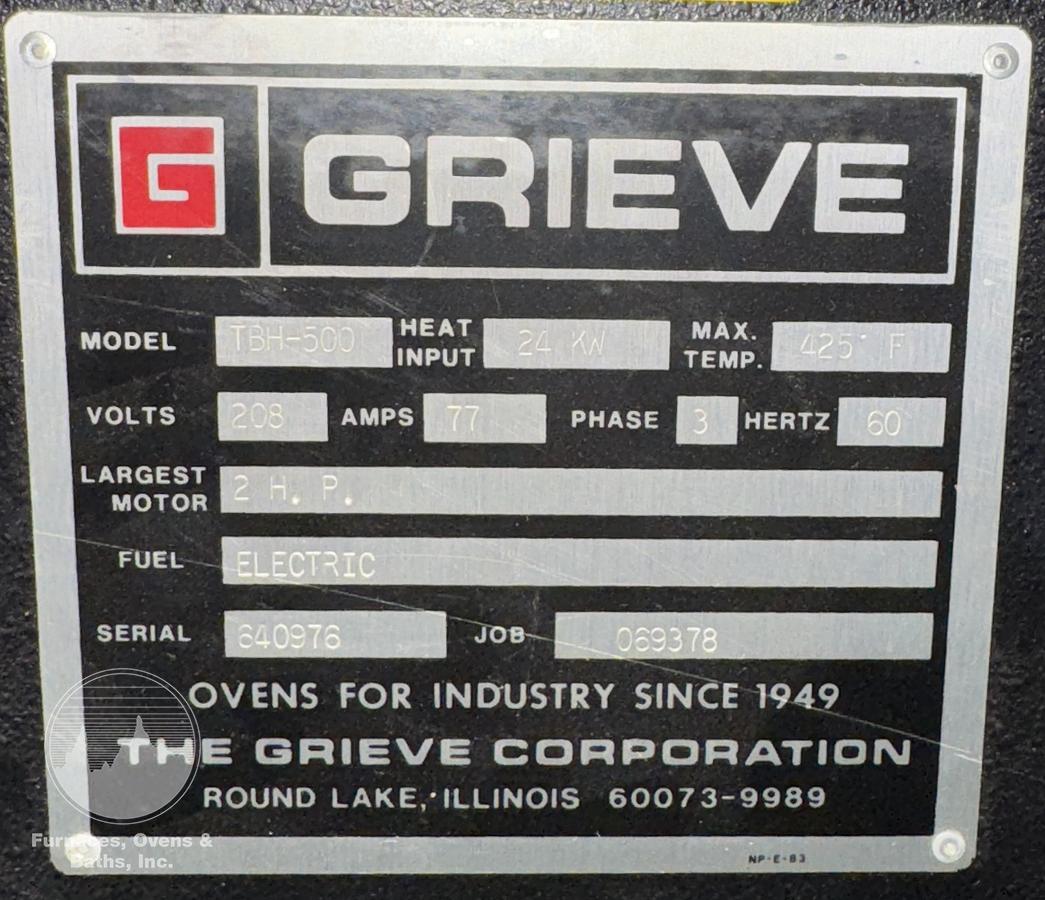

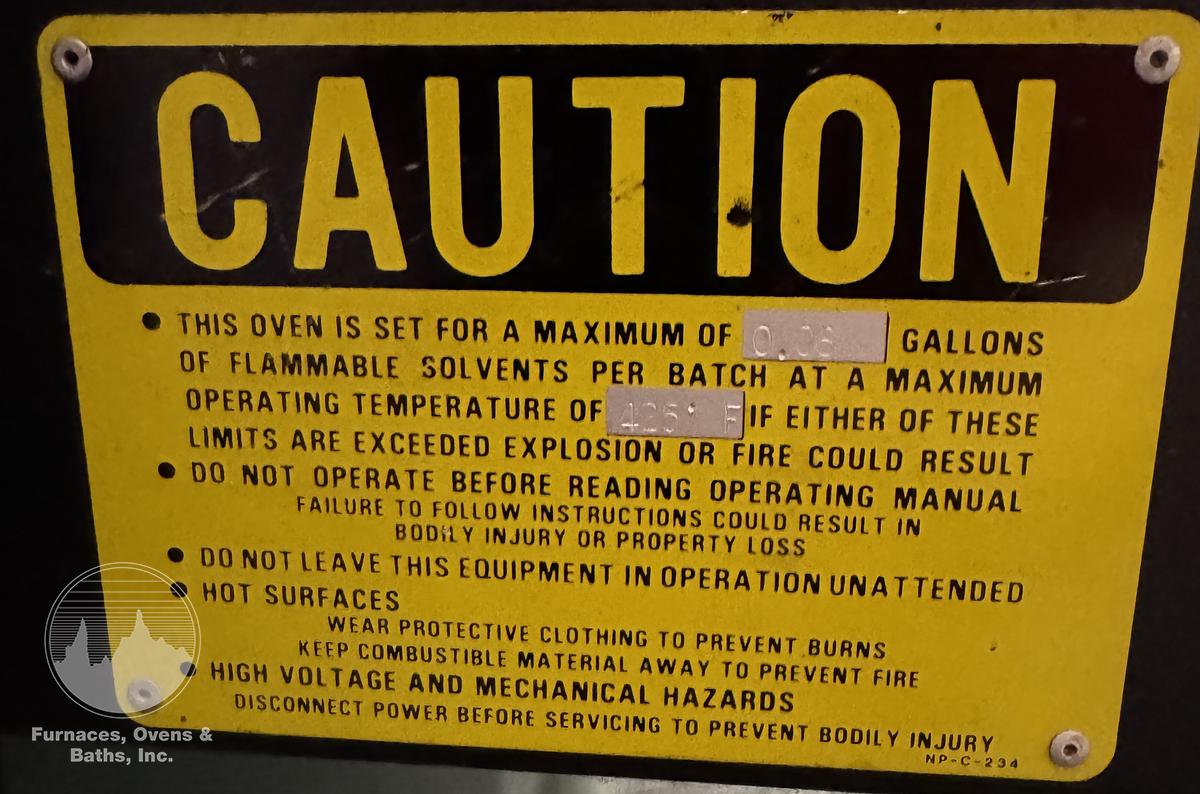

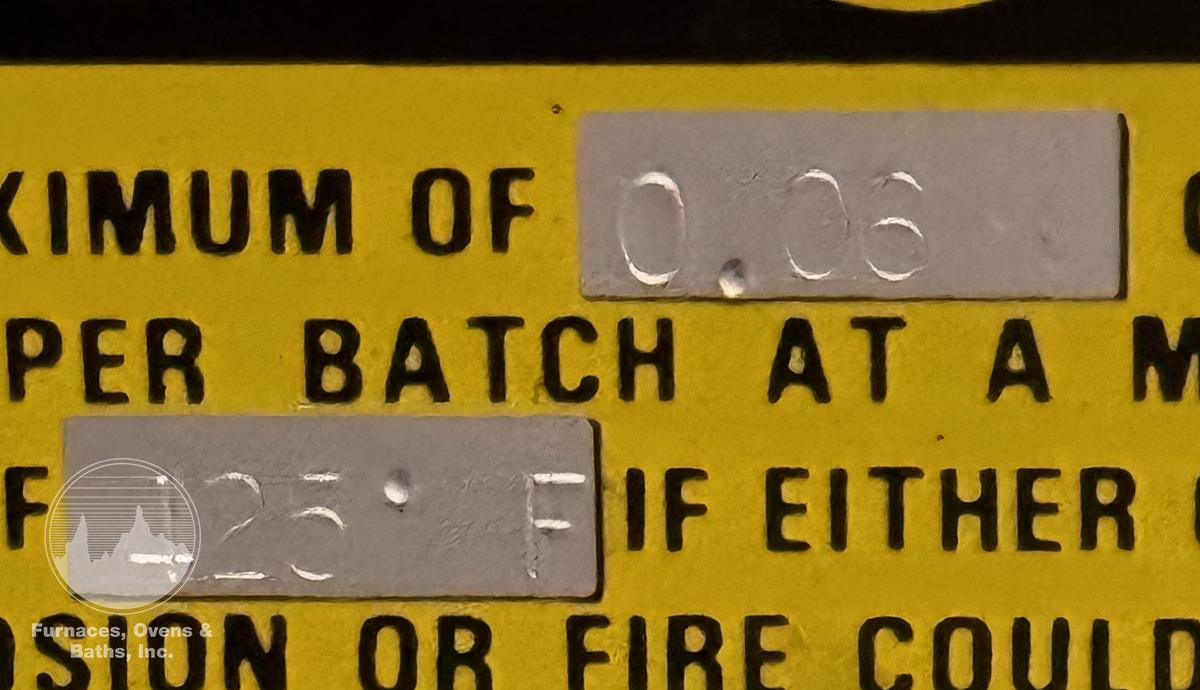

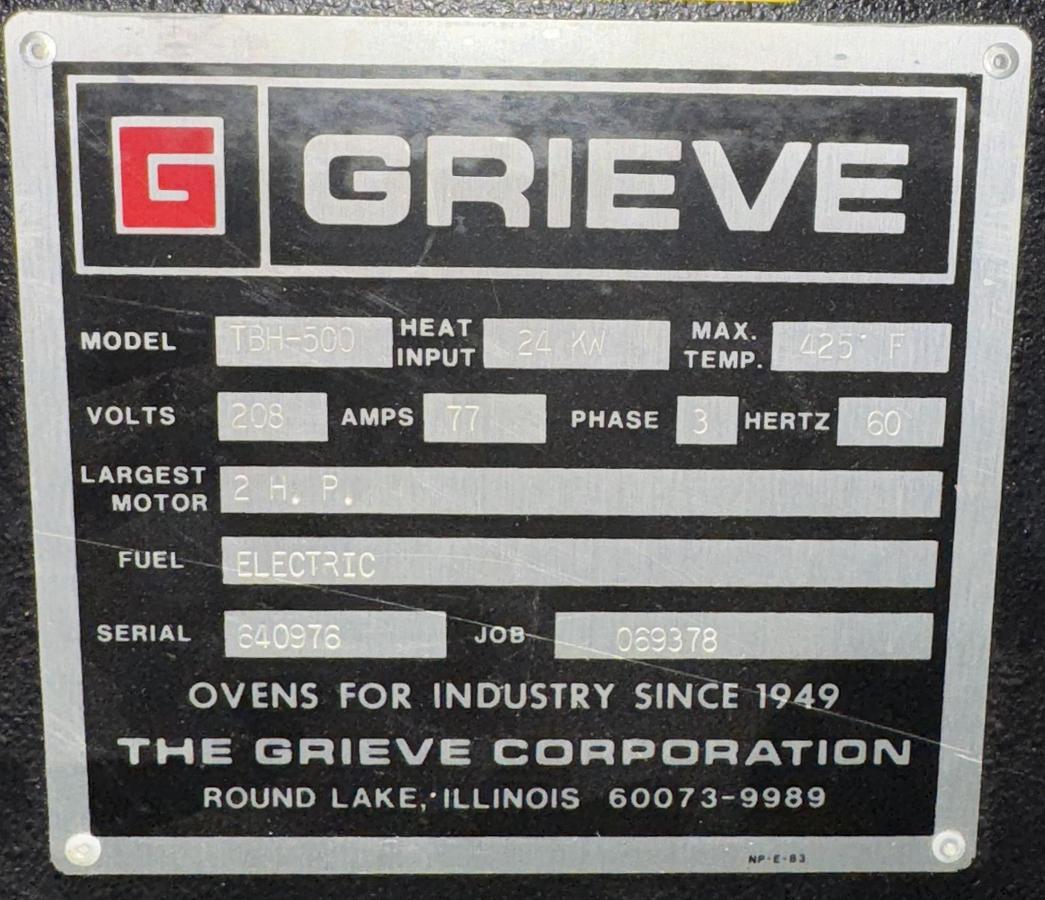

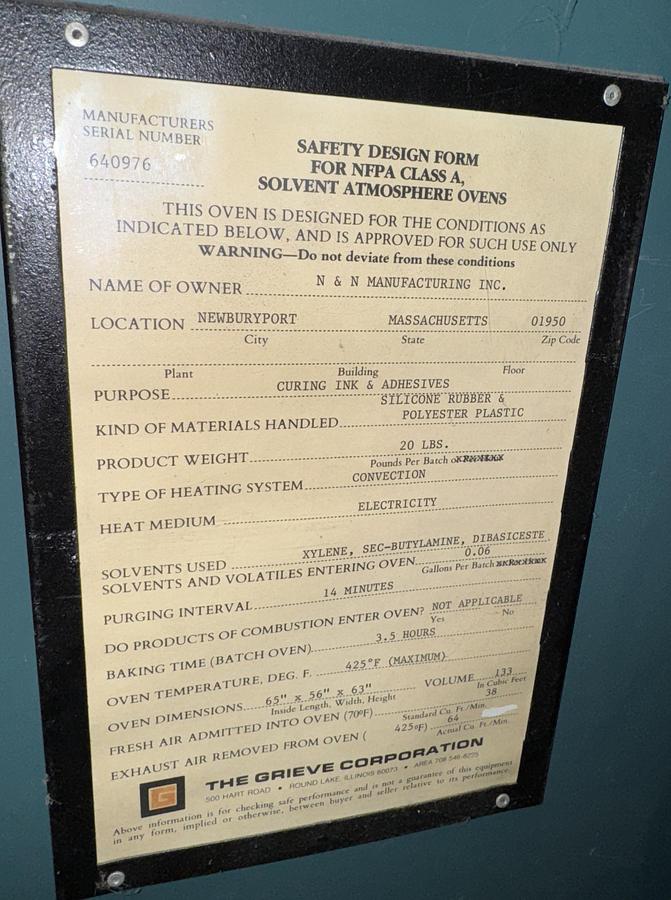

48"W x 60"H x 48"L, Grieve TBH-500, Electric, 500-F, Solvent Rated

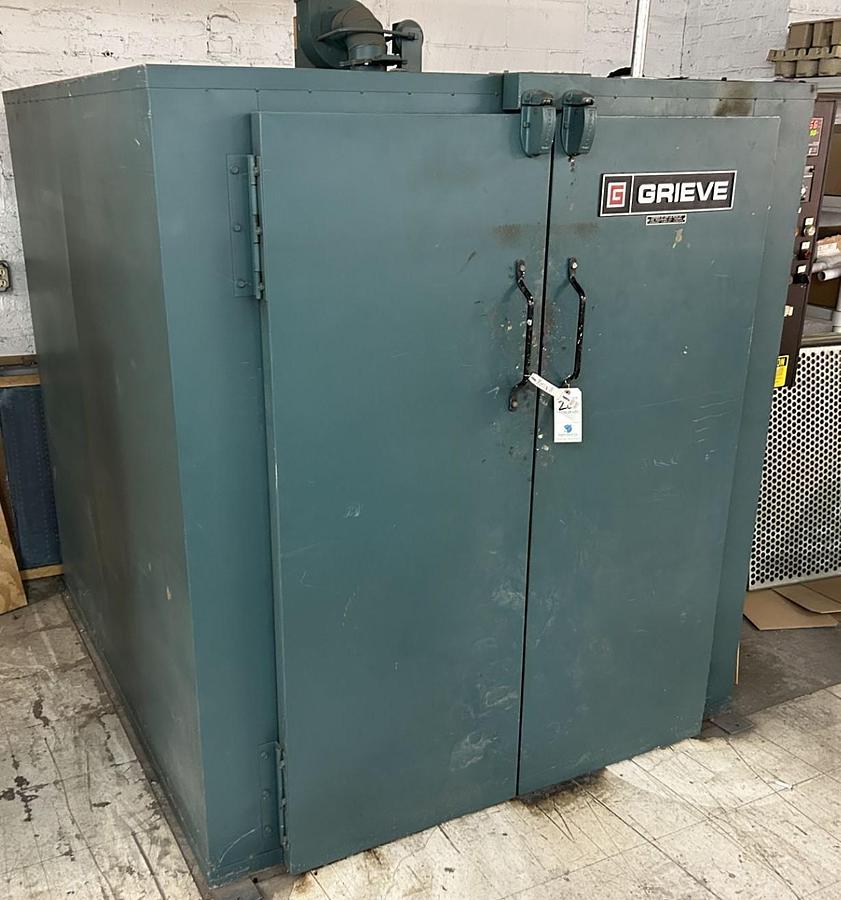

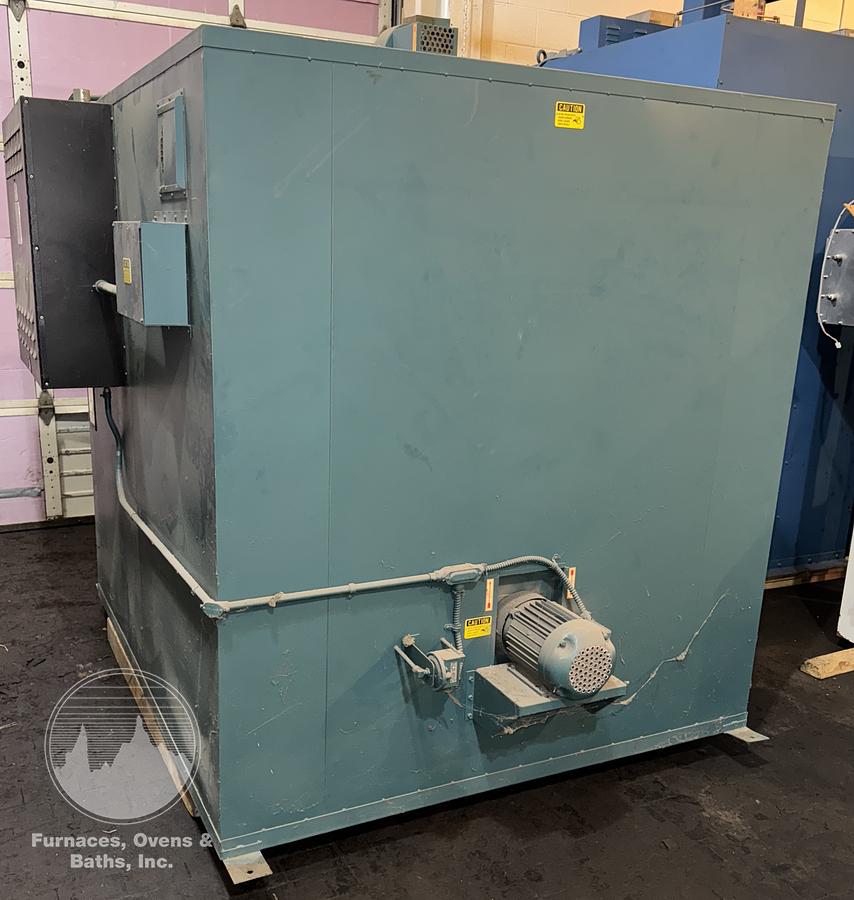

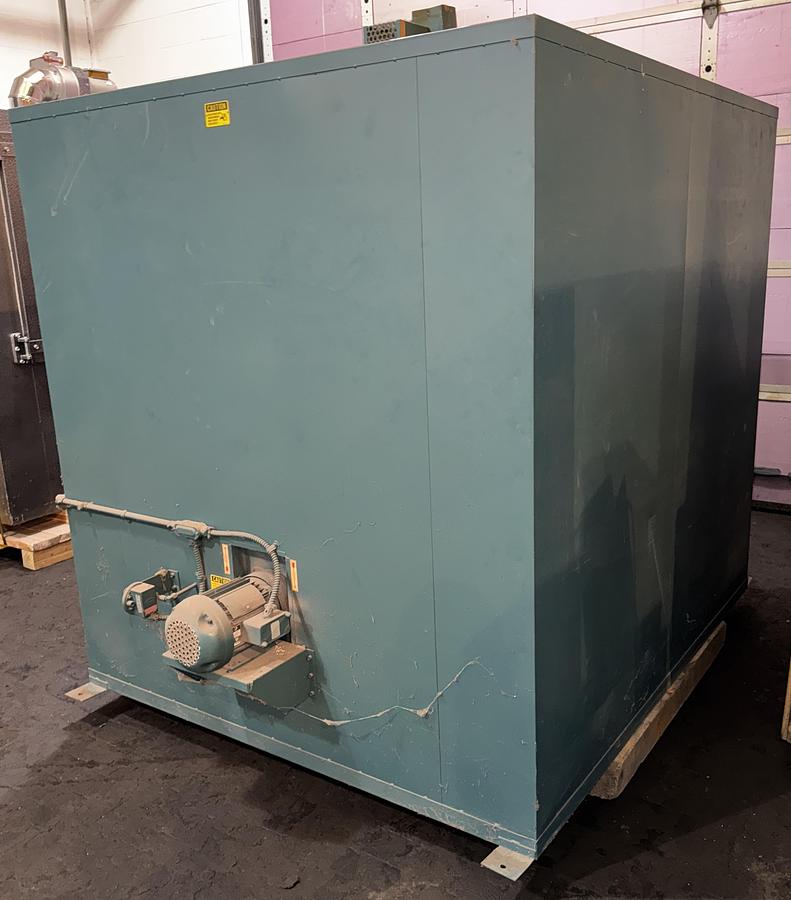

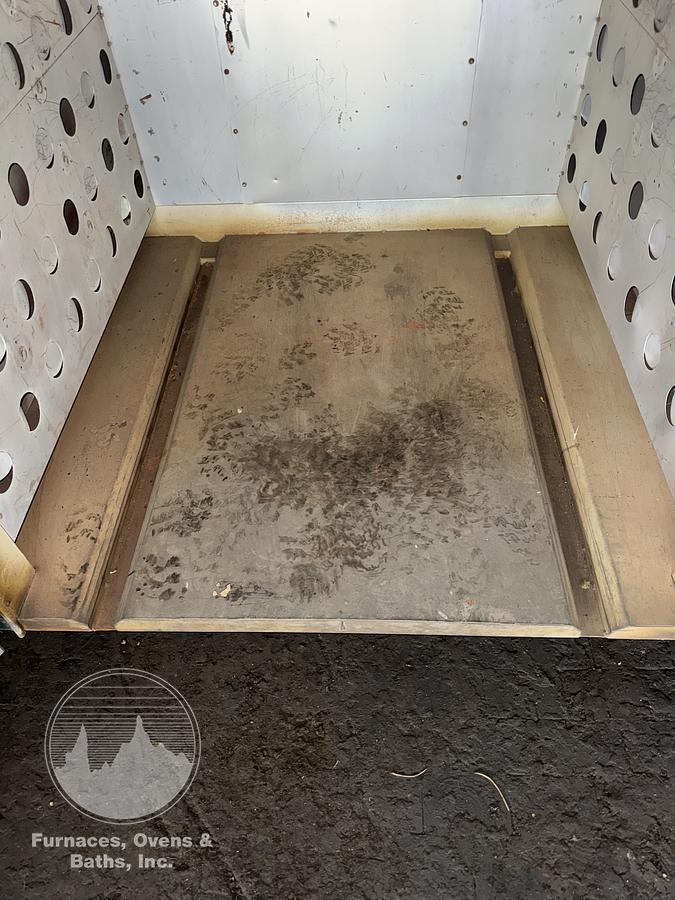

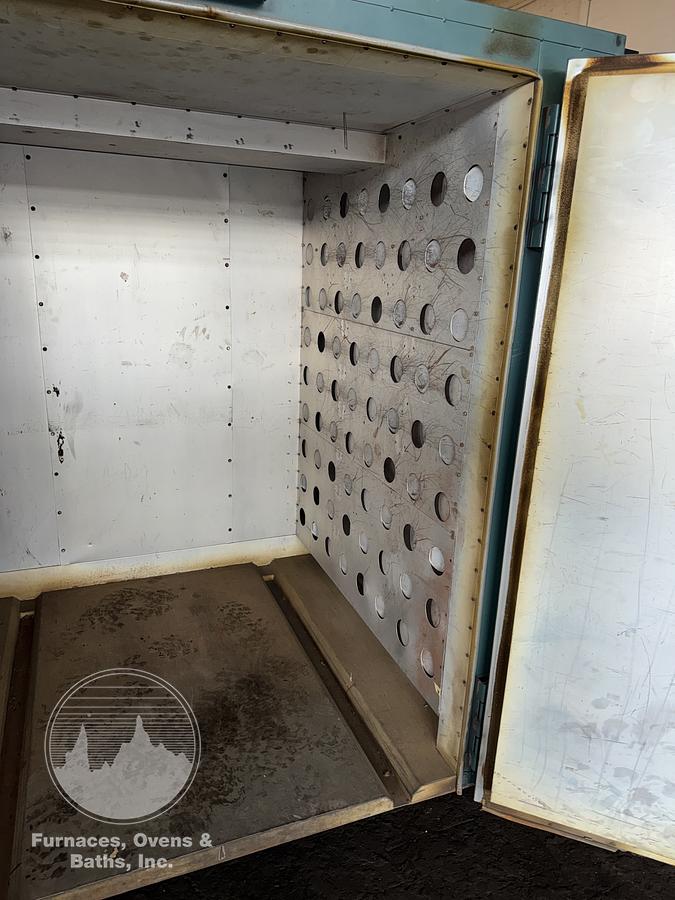

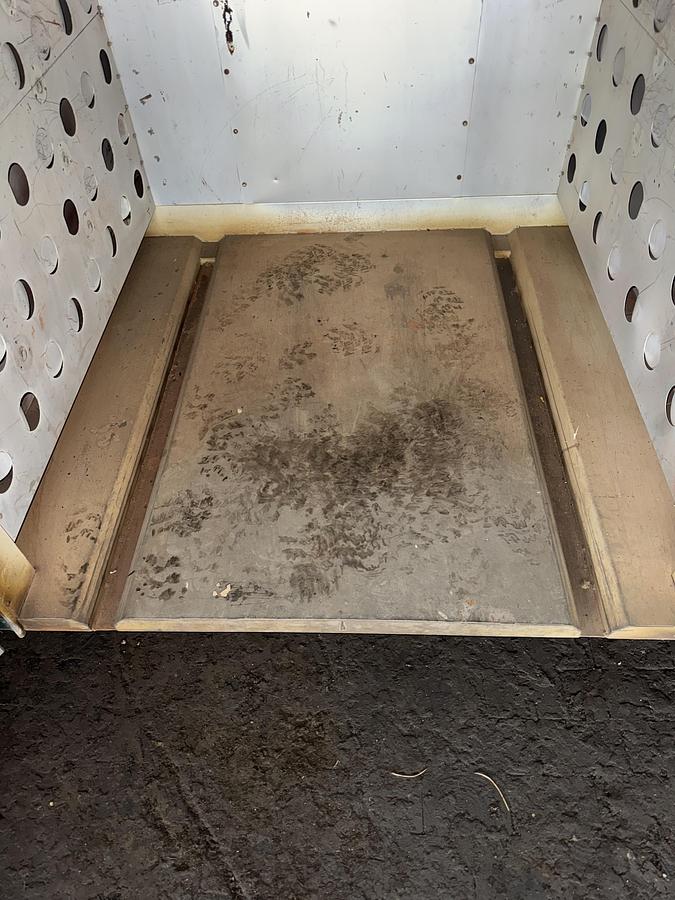

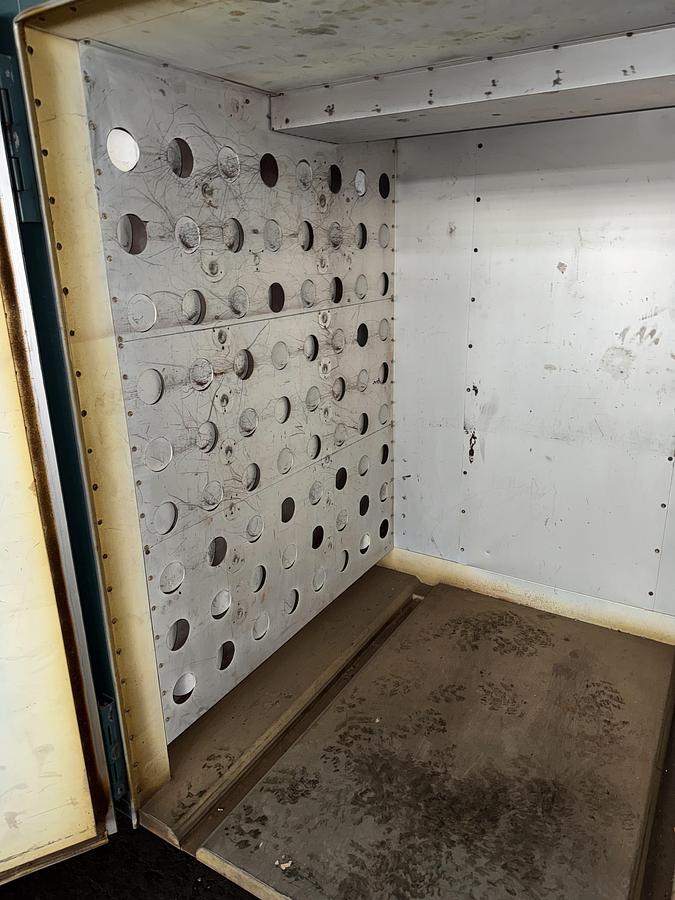

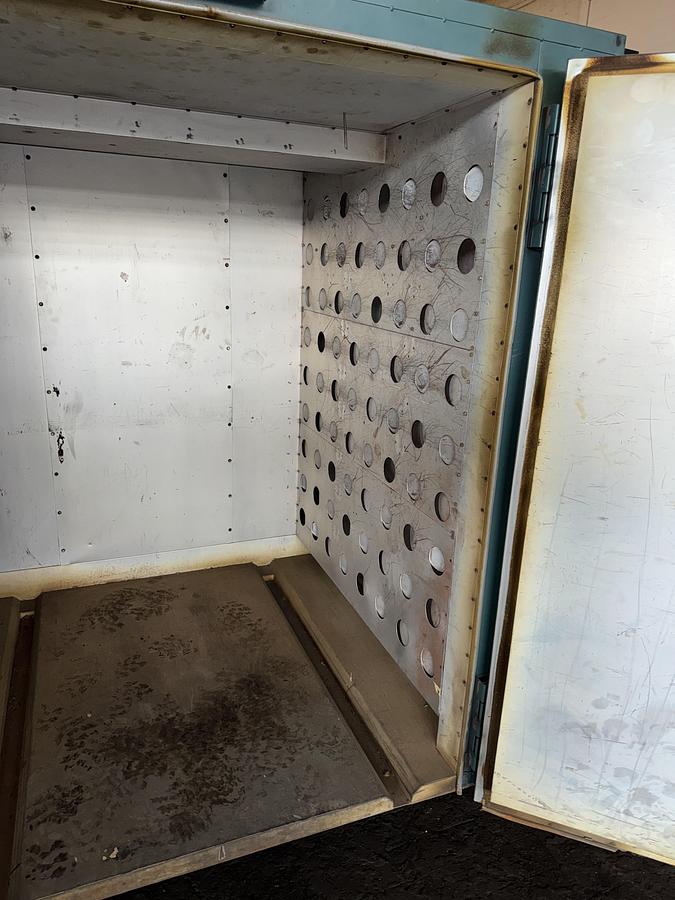

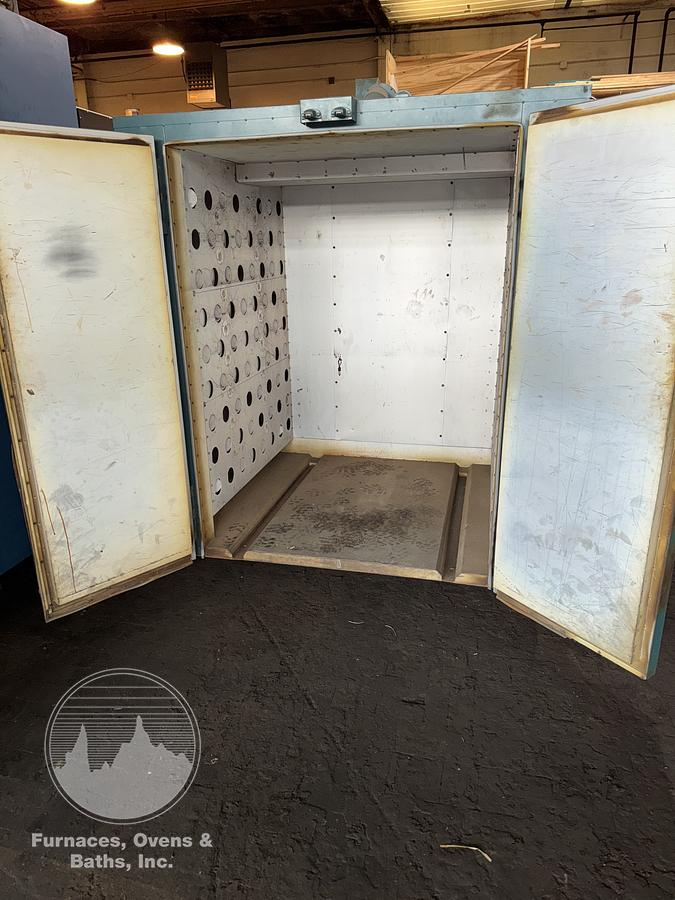

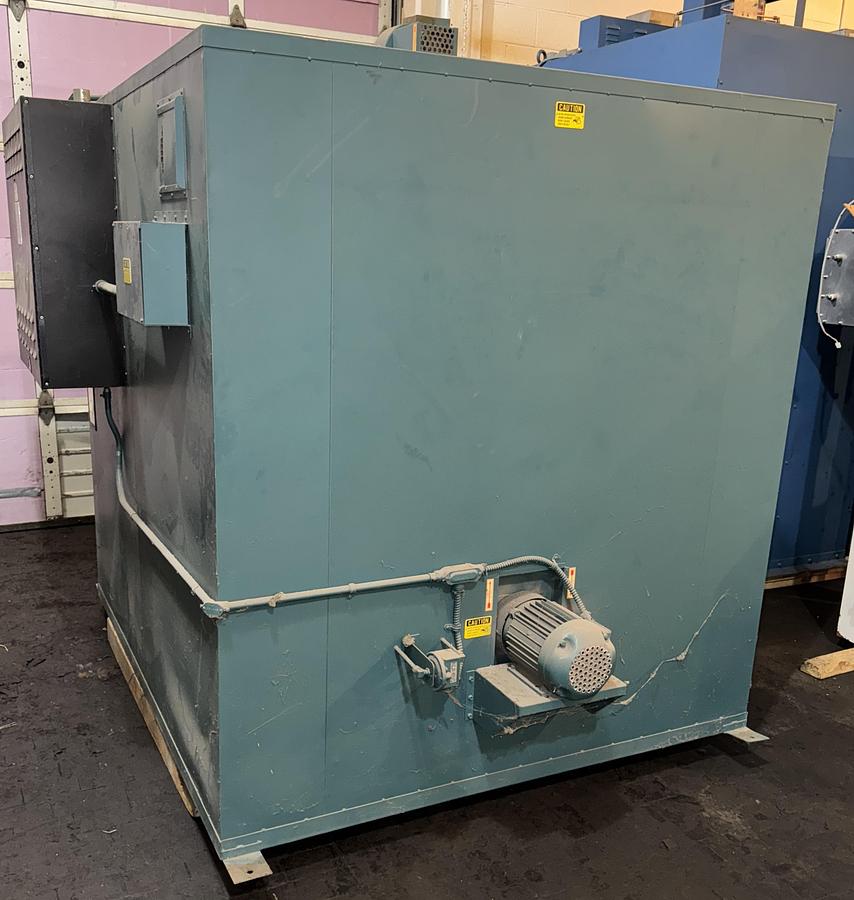

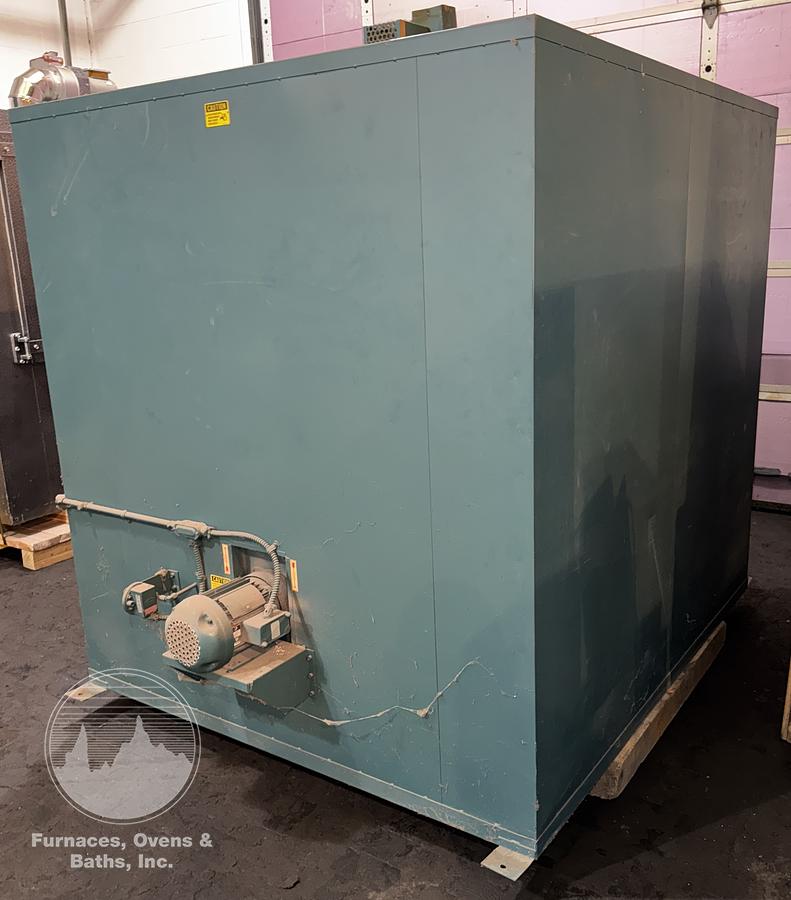

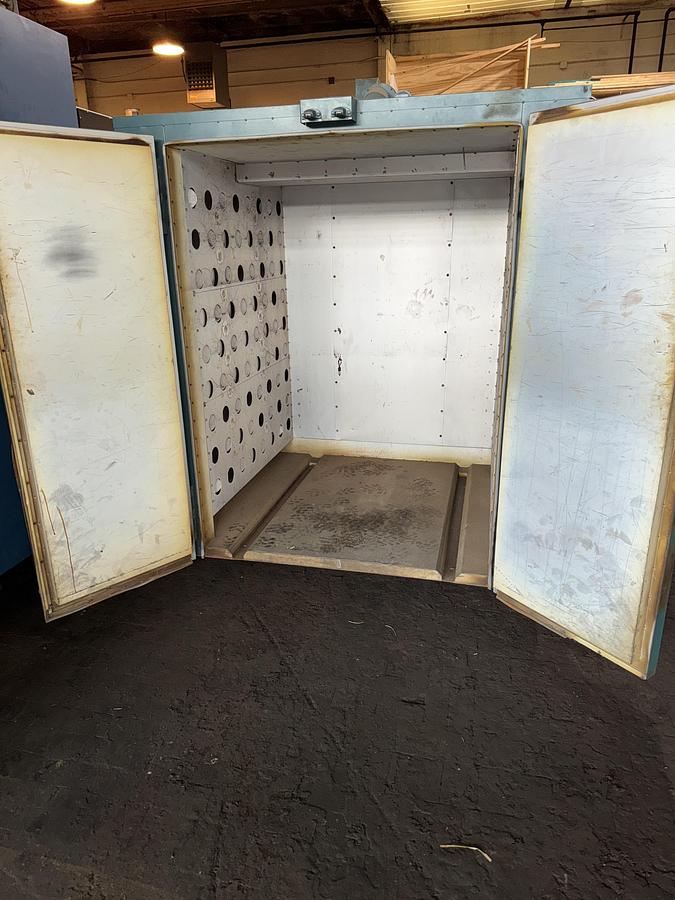

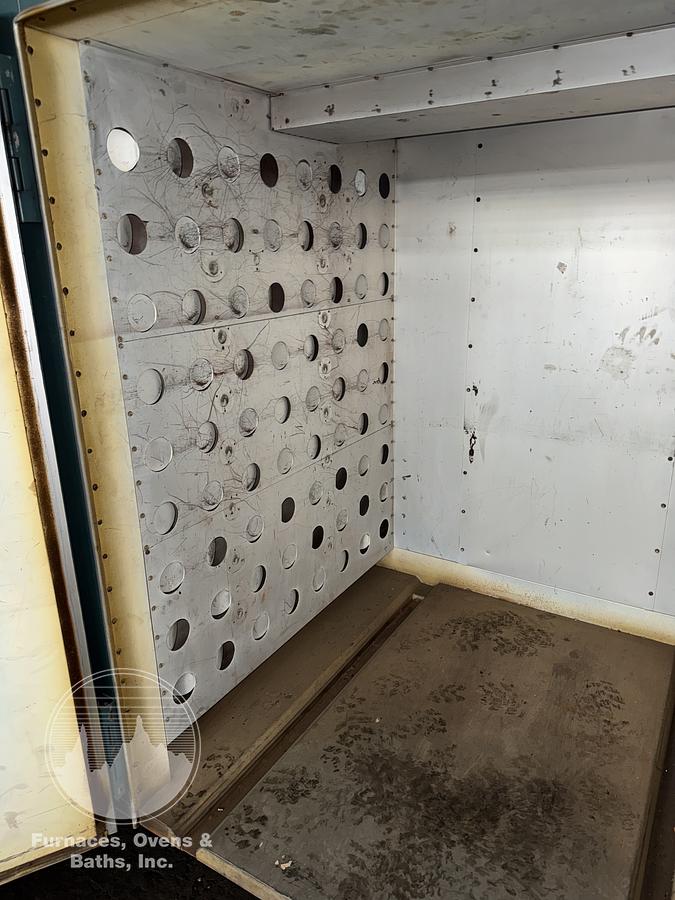

Double doors with silicone rubber gasket and "Brixon" spring tension latches with aluminized steel interior and 4" insulation. The insulated floor has 2" wide cart tracks on 36" centers. The heating elements are located on the right-hand side. There is a 2 HP direct driven circulating fan mounted through the rear wall. Heated air is circulated in a horizontal pattern across the chamber. A powered exhaust fan is mounted on top of the oven. Fresh air inlet is located on the back side above the element plenum. Oven will be tested prior to shipping.

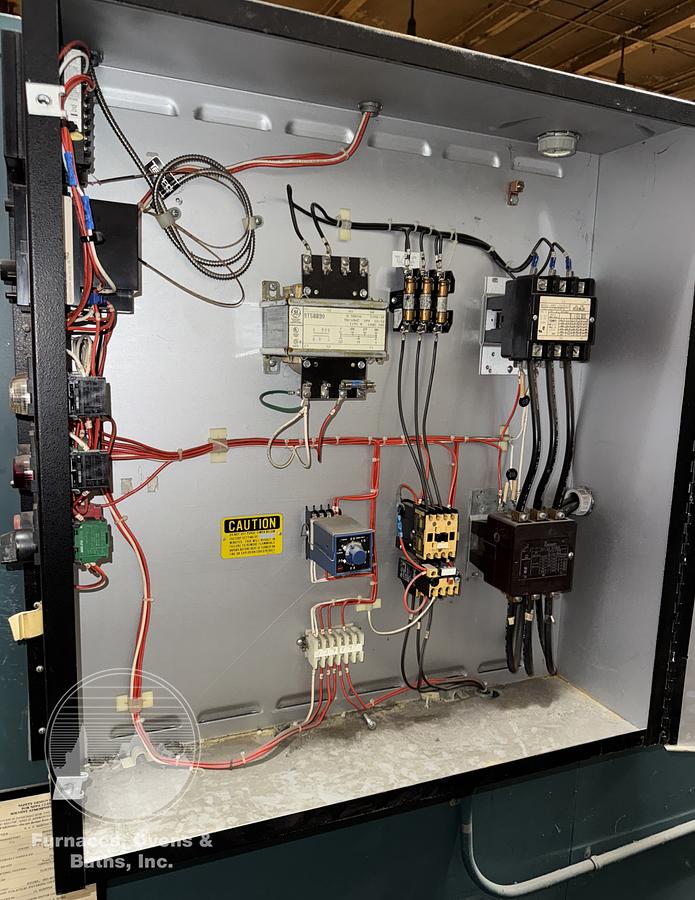

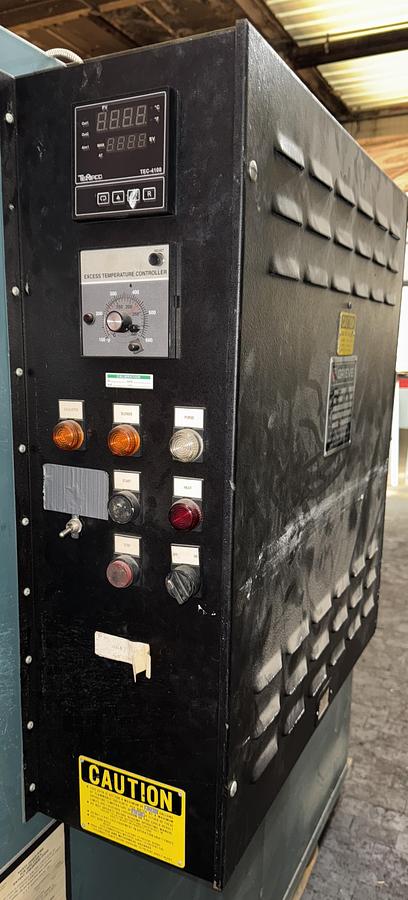

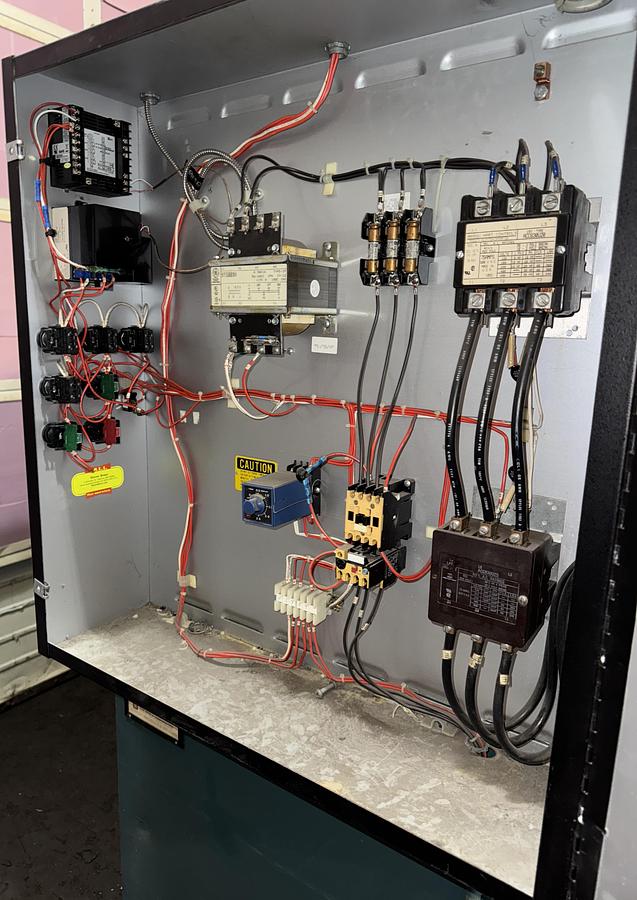

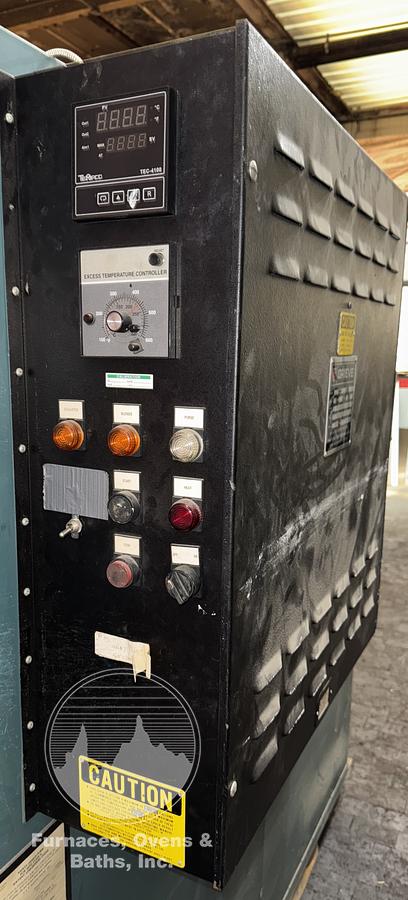

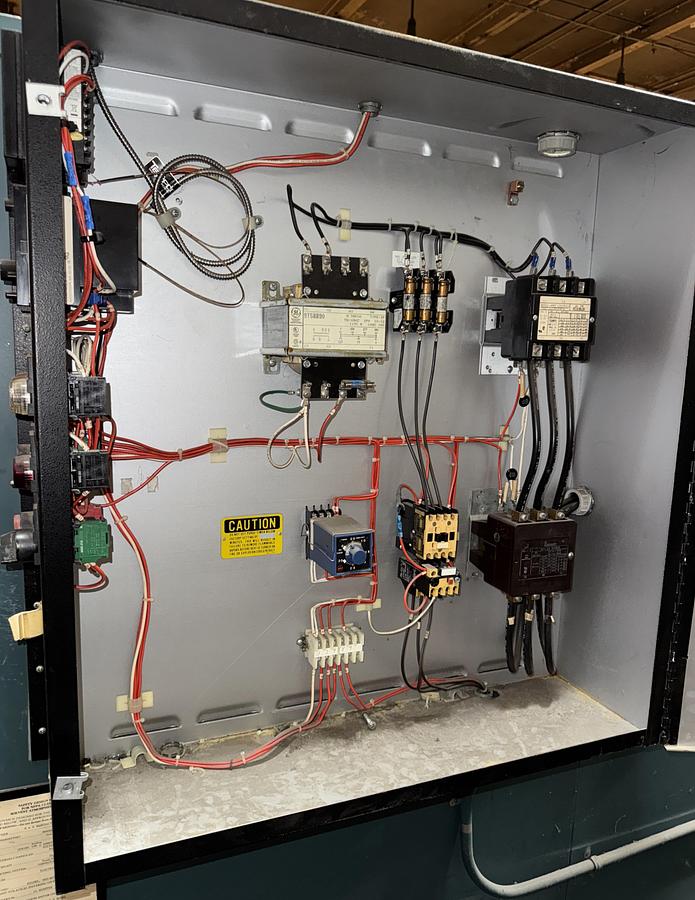

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven and includes a Tempco 4100 digital temperature controller and a Partlow analog high limit control. Push button and switches with indicating lights for purge, heat, blower and exhauster are flush mounted on the front of the enclosure door. Motor starters, fuses, high limit contactor, etc. are mounted inside the enclosure.
