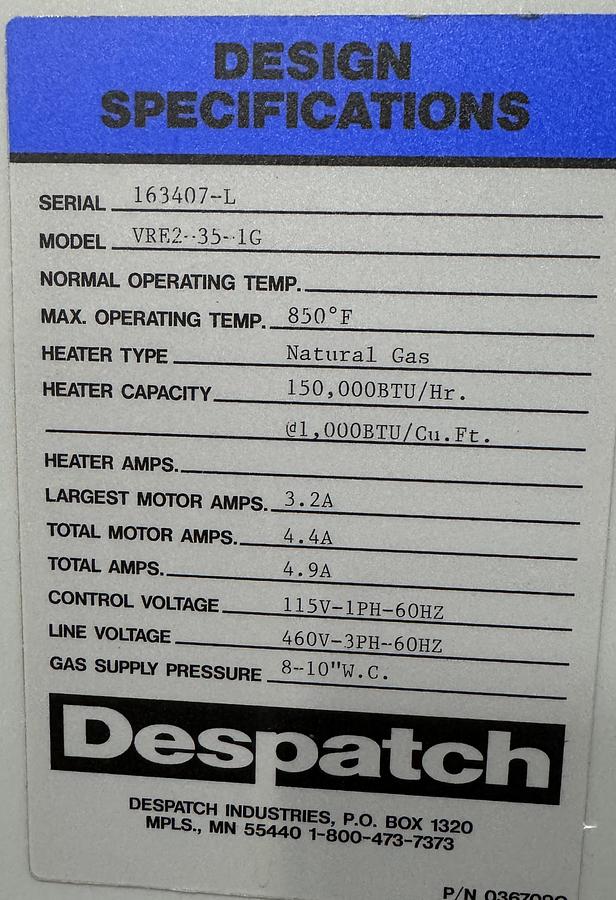

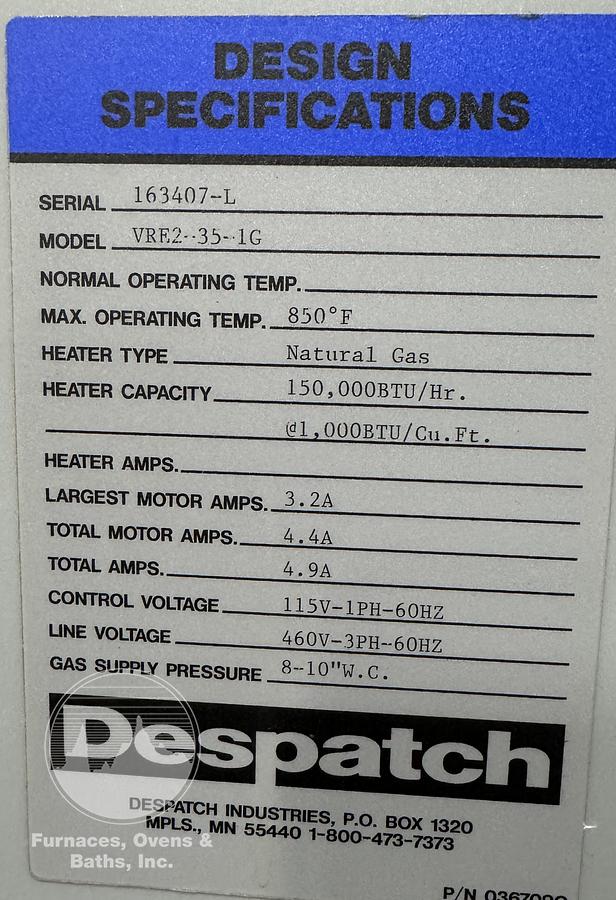

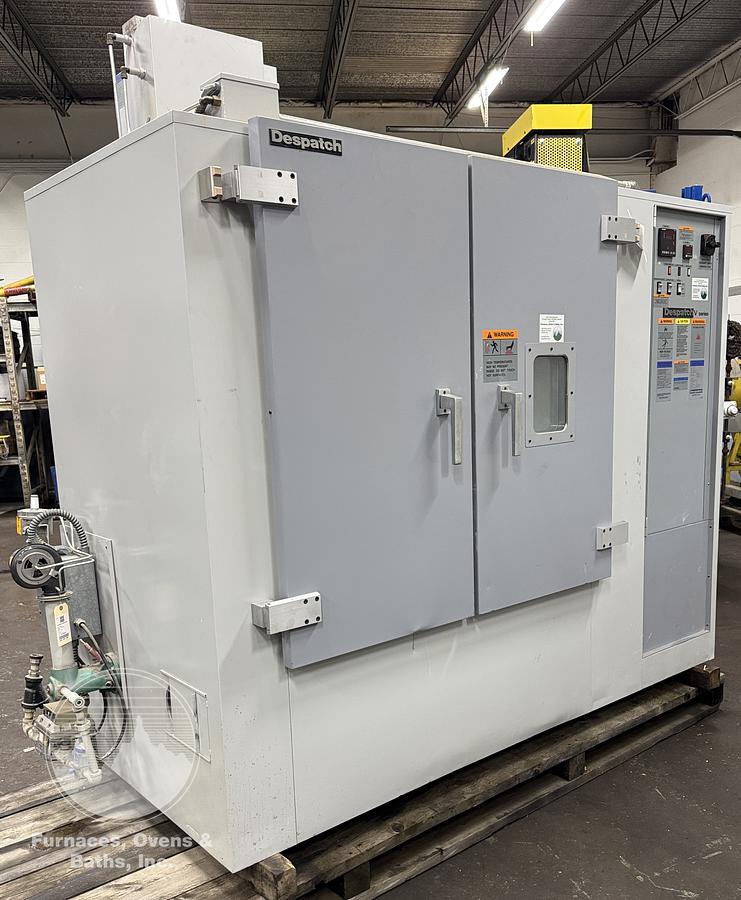

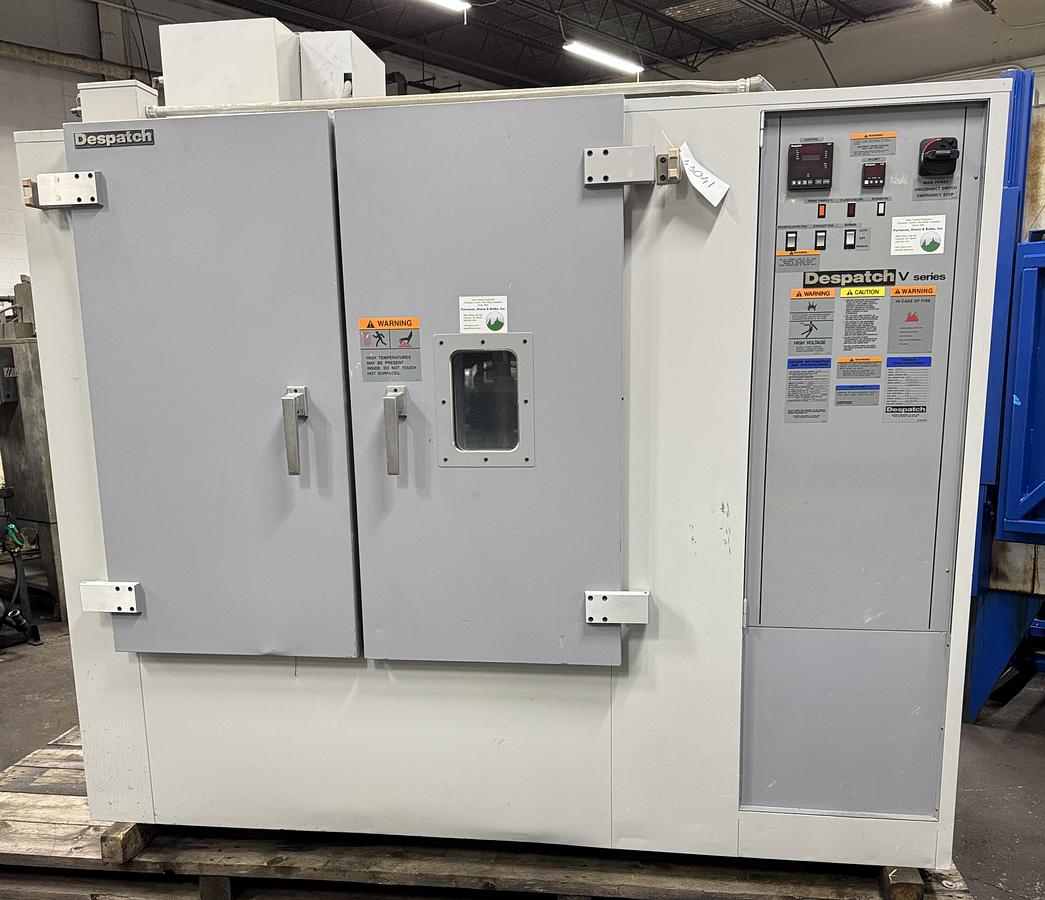

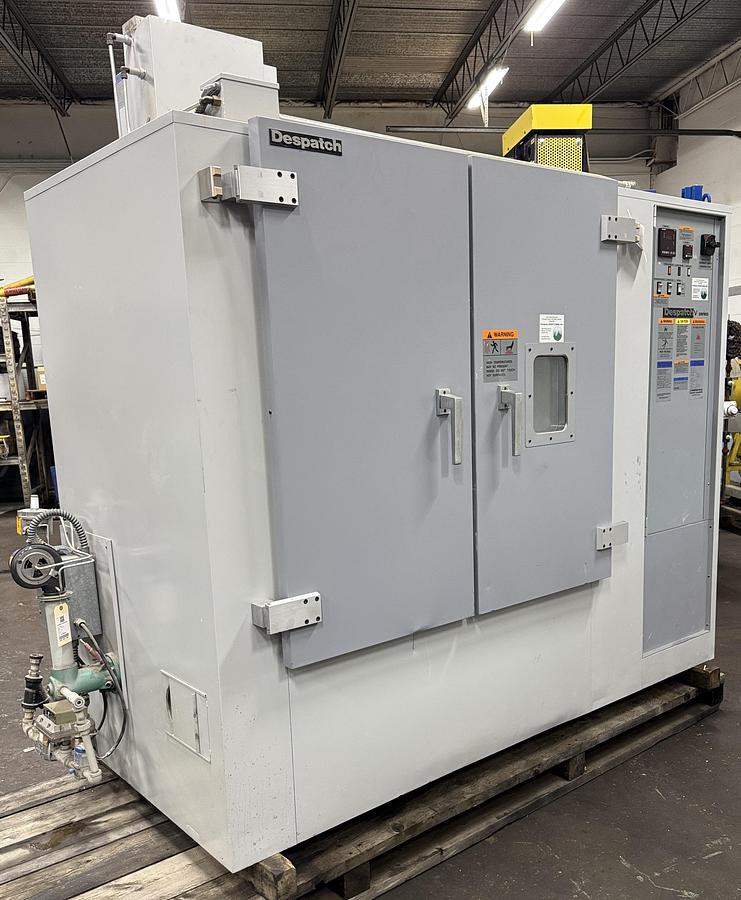

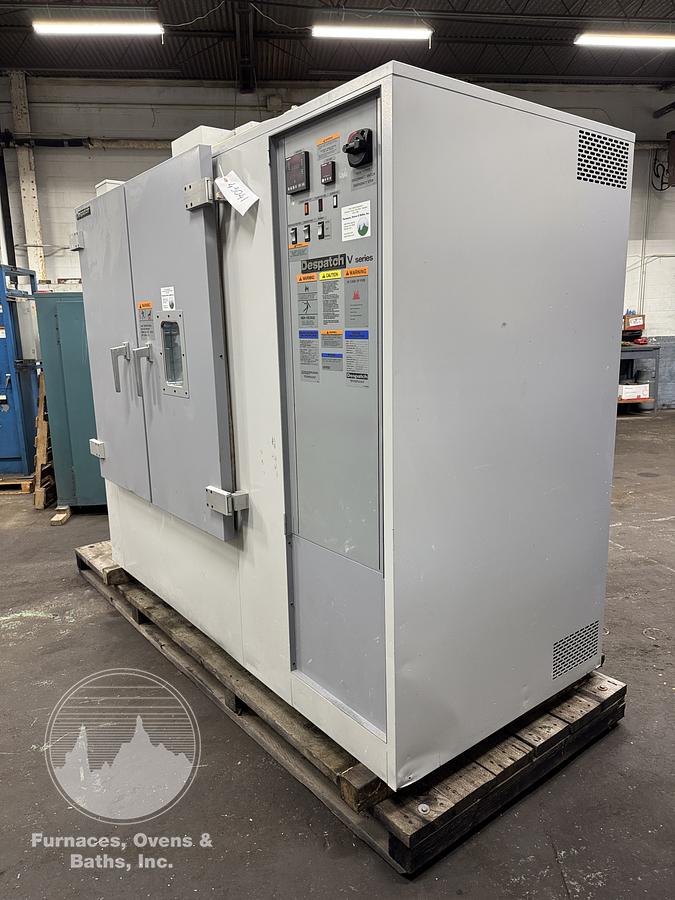

48"W x 42"H x 30”L, Despatch Industries VRE2-35-1G Cabinet Oven, 850-F, Gas Fired, Class A

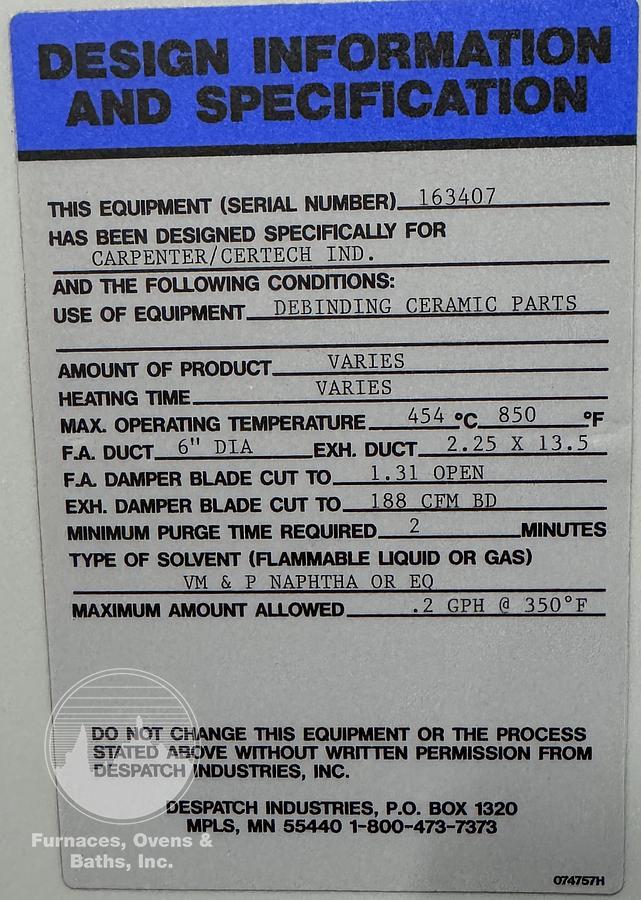

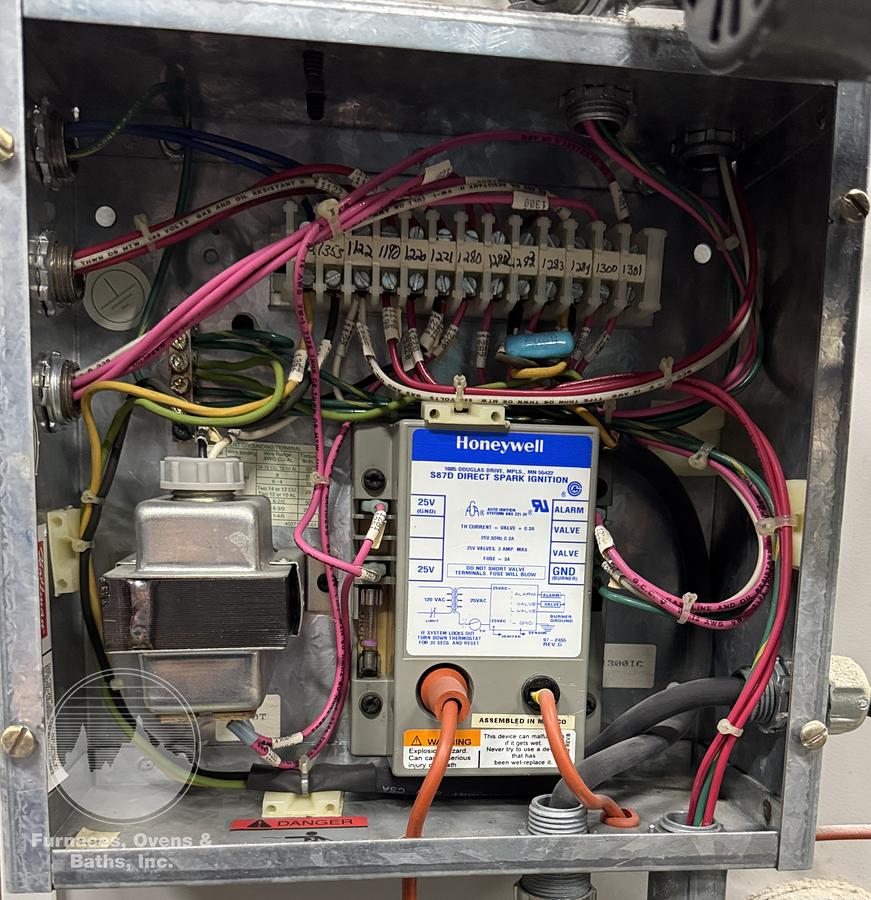

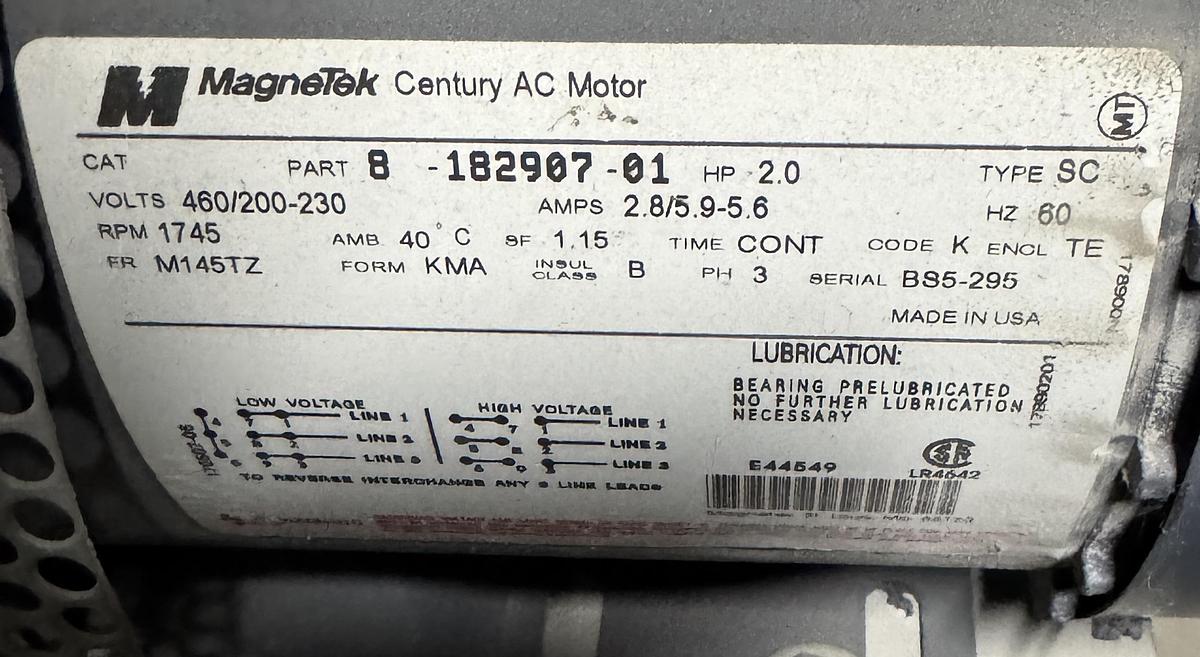

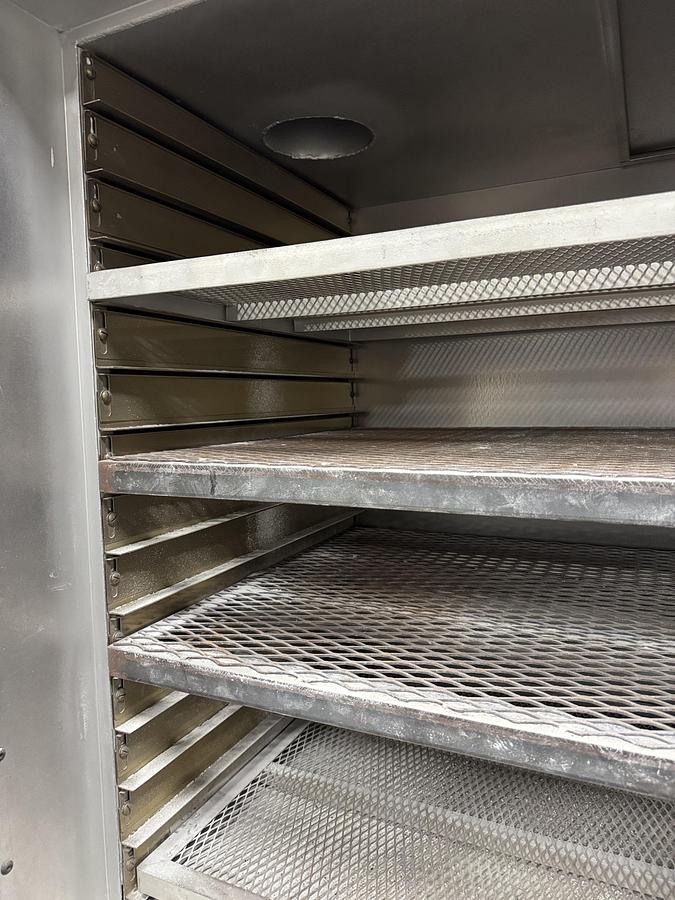

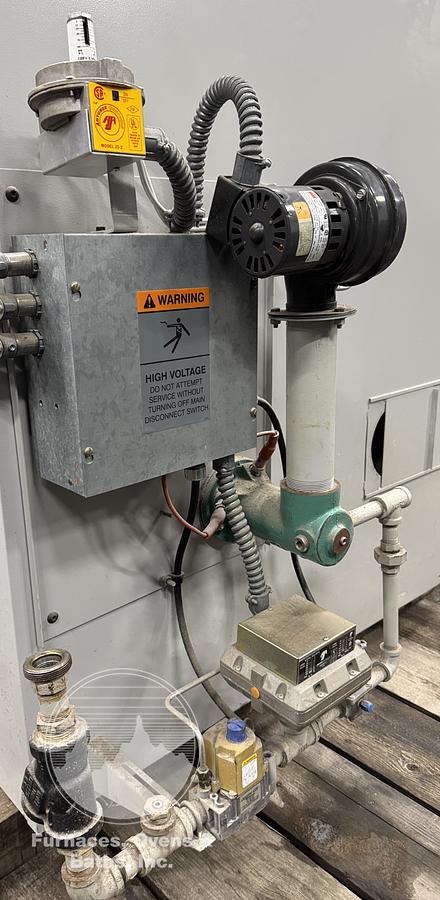

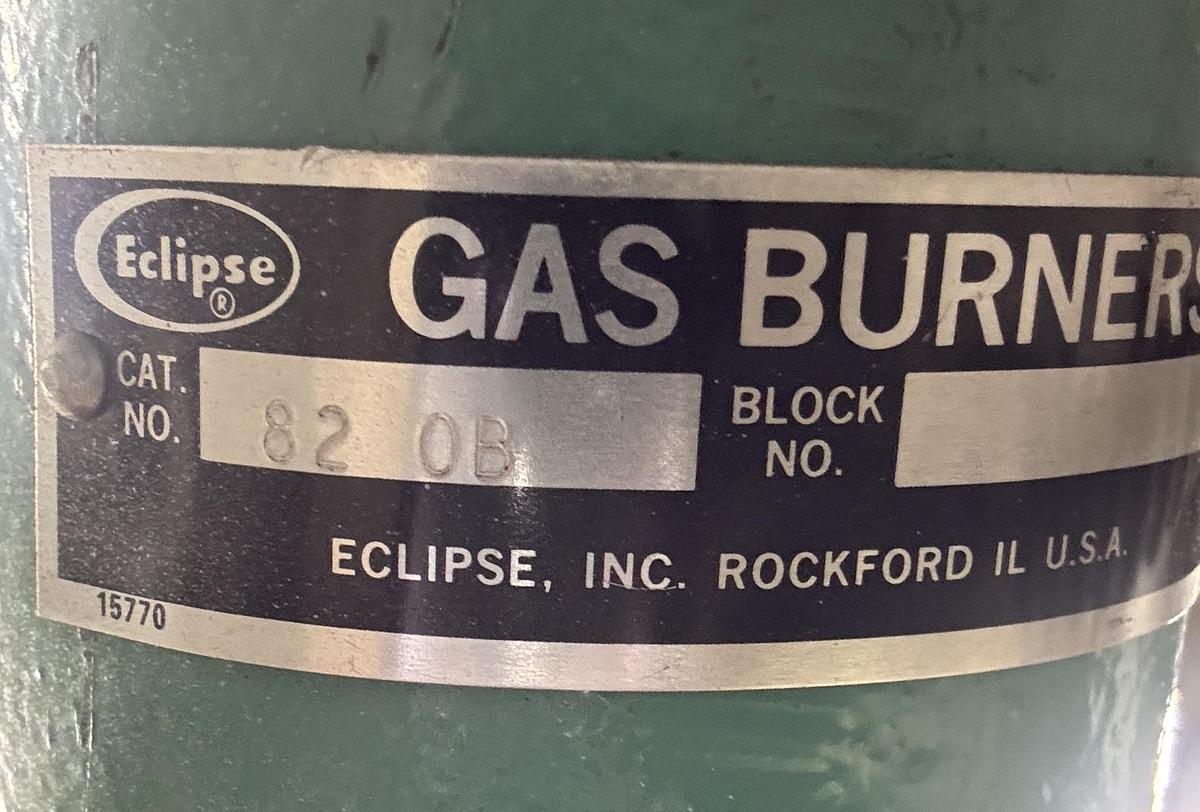

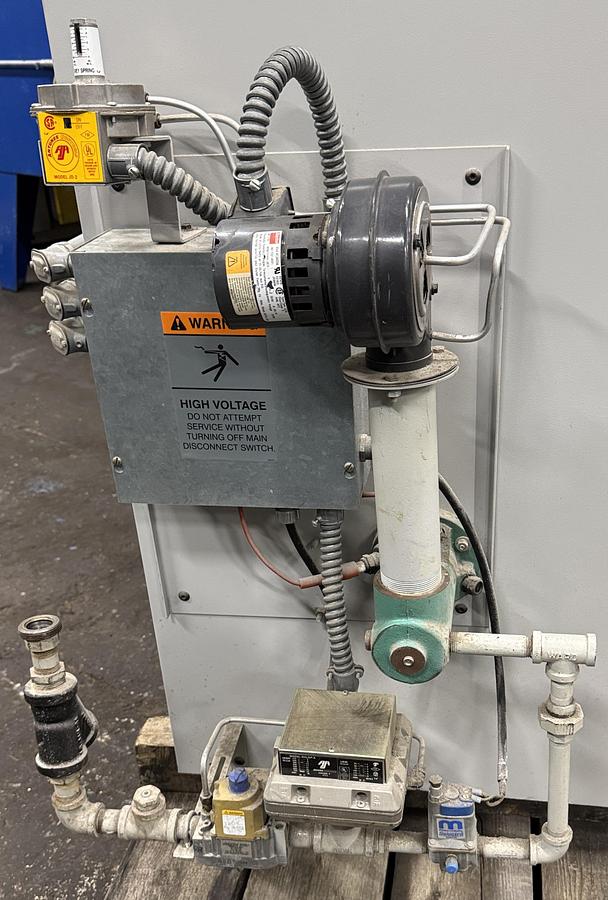

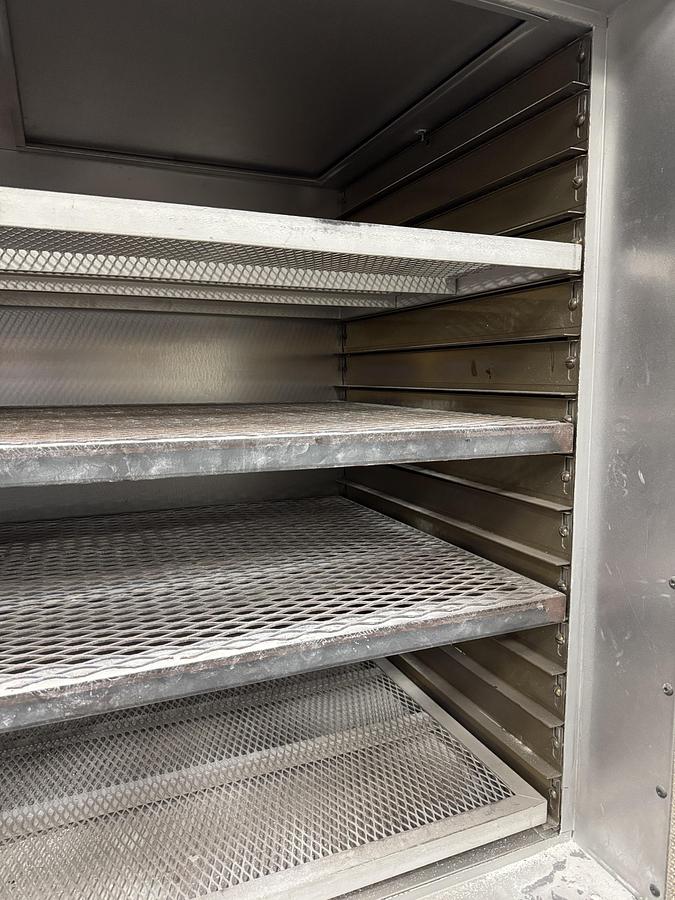

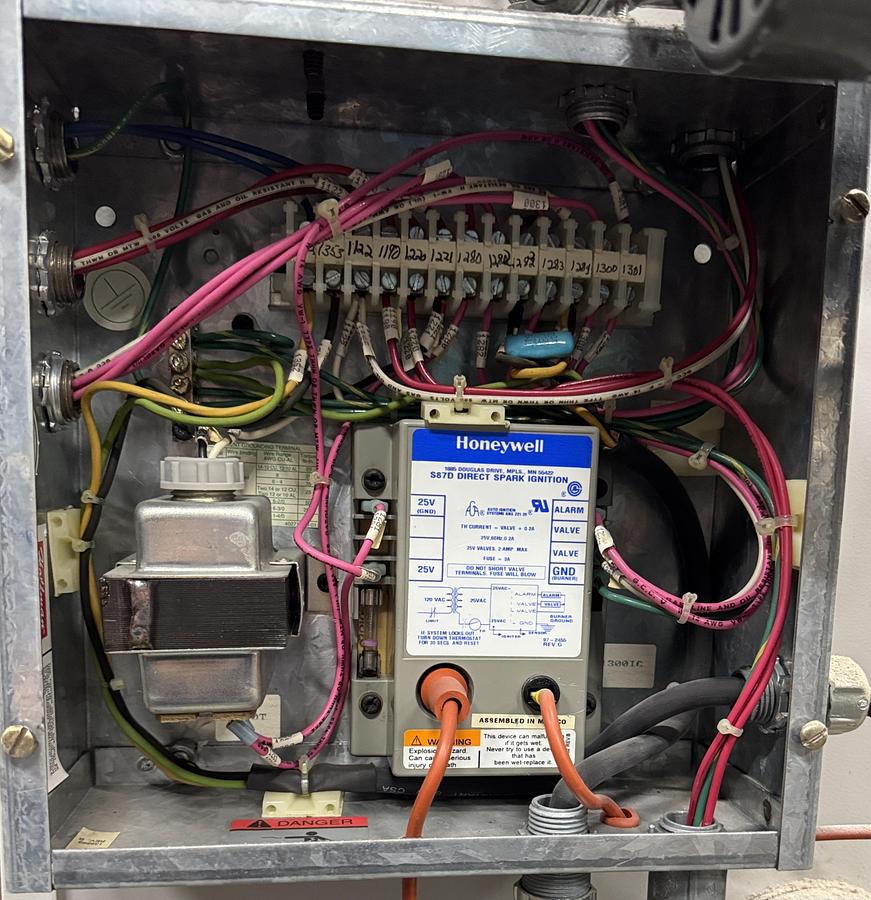

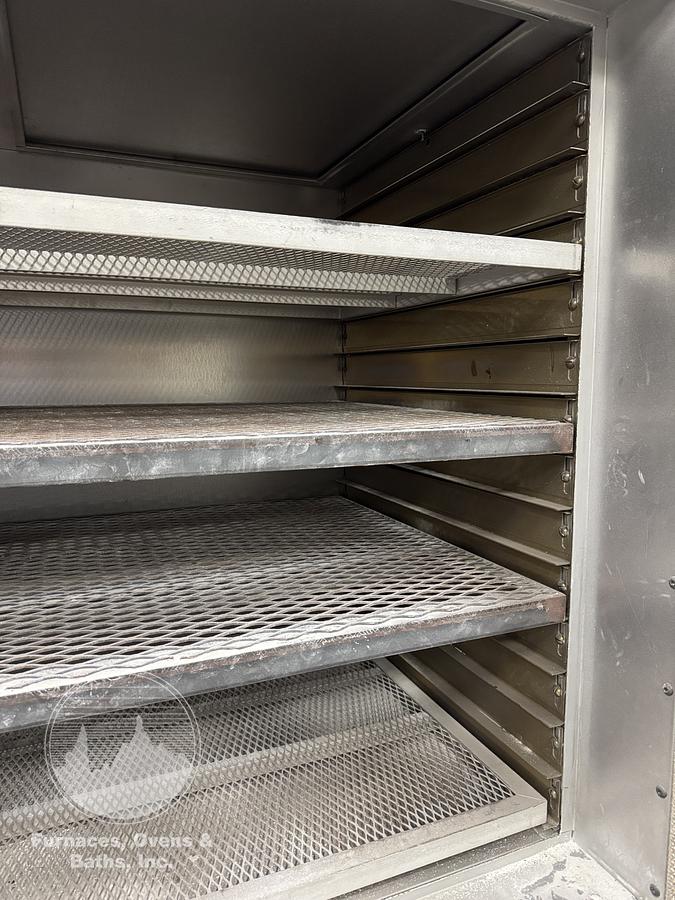

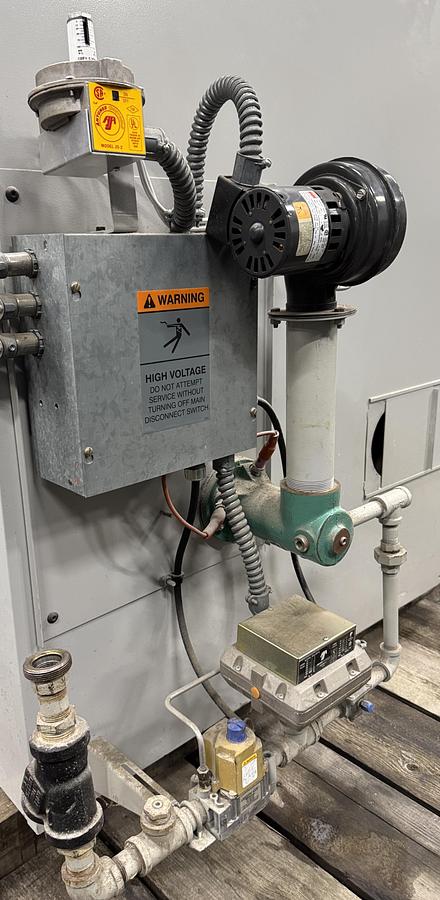

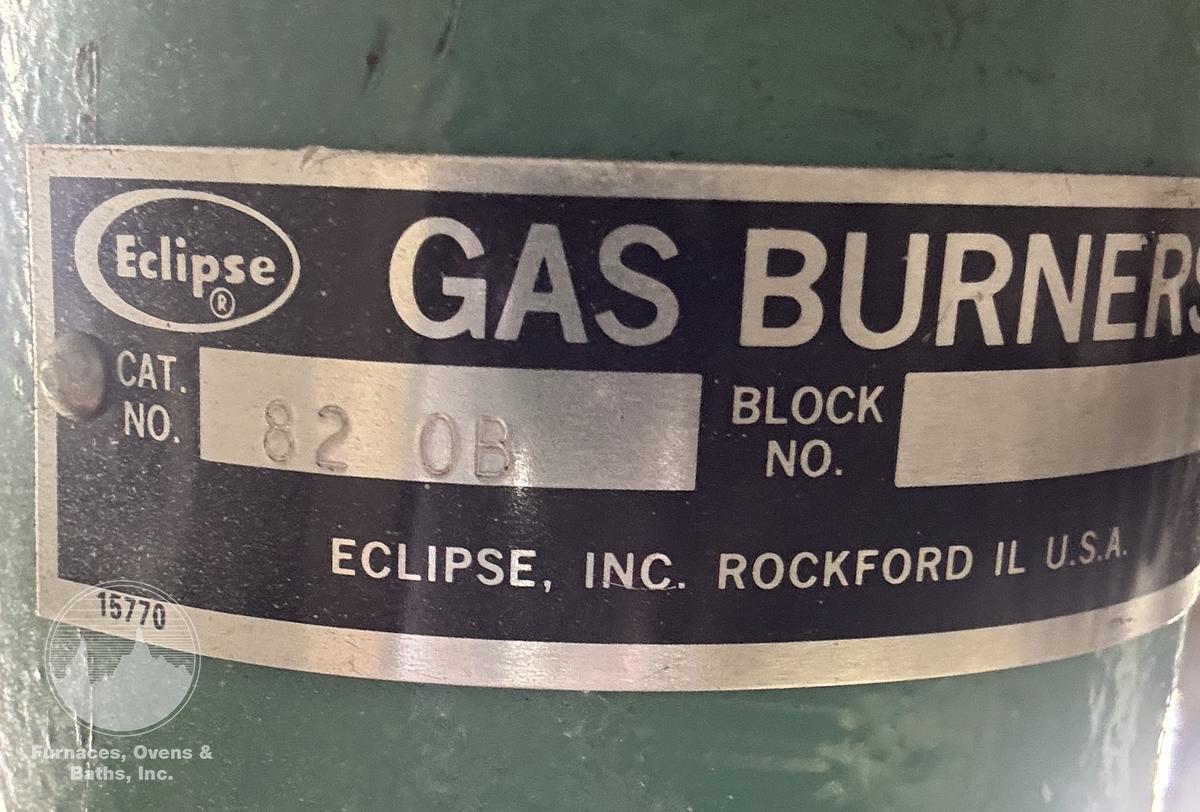

Despatch Class A Oven with double doors, high temperature ceramic fiber gaskets and cam action door locks which provides a good door seal. Aluminized steel interior with fourteen (14) stainless steel shelf brackets on 3" centers, 4 shelves are included with this oven. Located on the left hand side is an Eclipse 82 0B burner with spark ignition/flame sensing. A 2 HP direct driven circulating fan is located under the work area. Heated air is circulated horizontally across the work chamber for good uniform heating. A powered exhauster is mounted on top of the oven. This oven is solvent rated with a Class A designation from the manufacturer. Explosion relief panel is located on top of the oven. Drawings are included with this oven. Oven electrics will be tested prior to shipping.

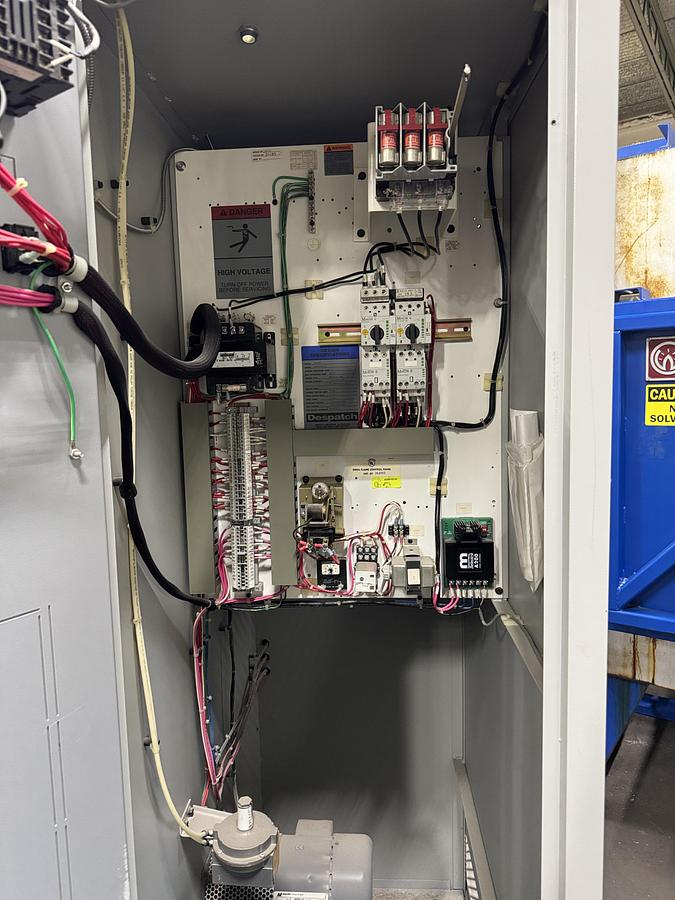

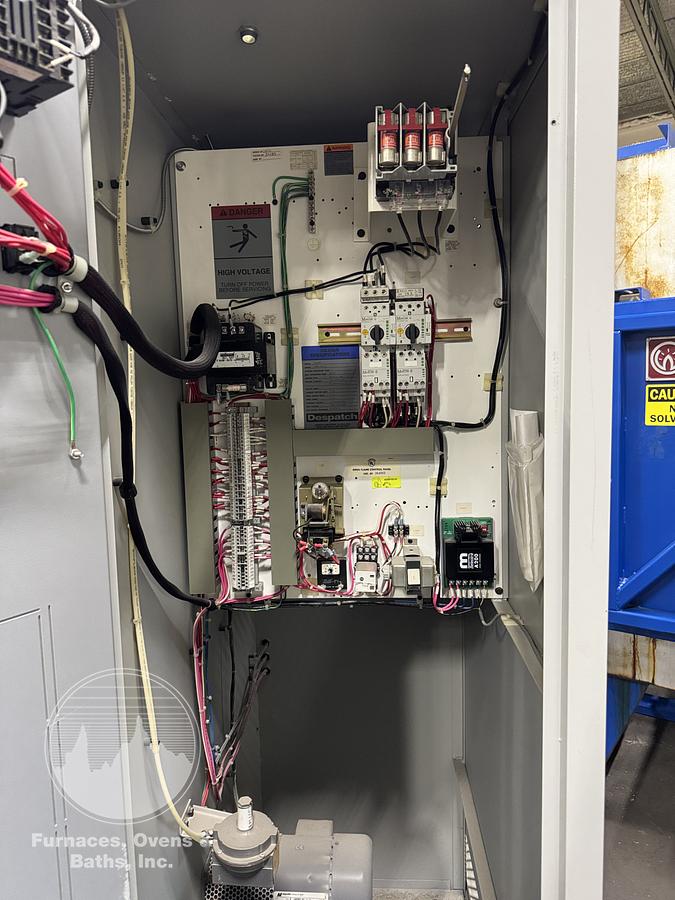

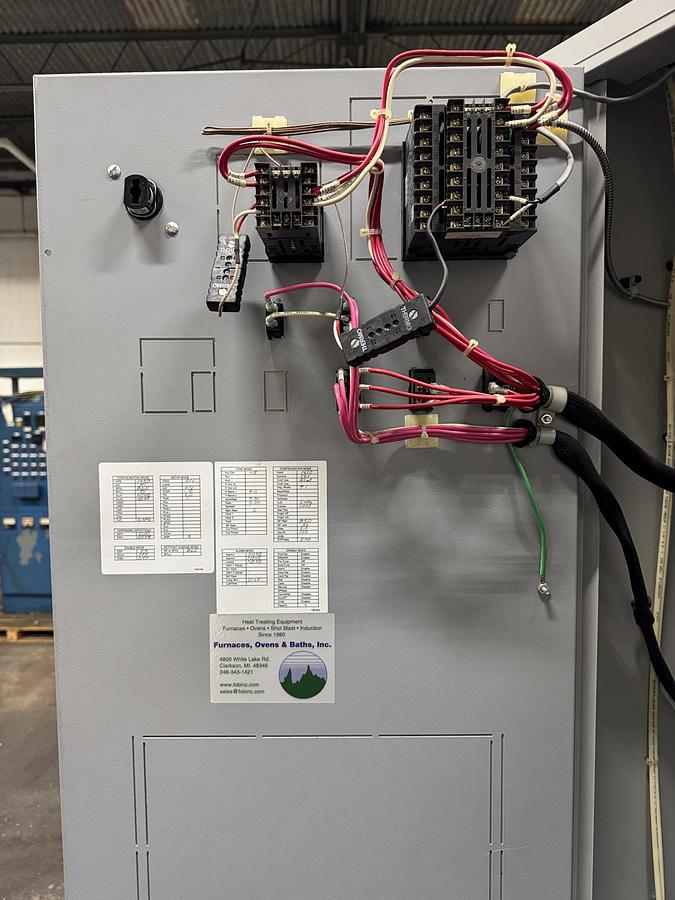

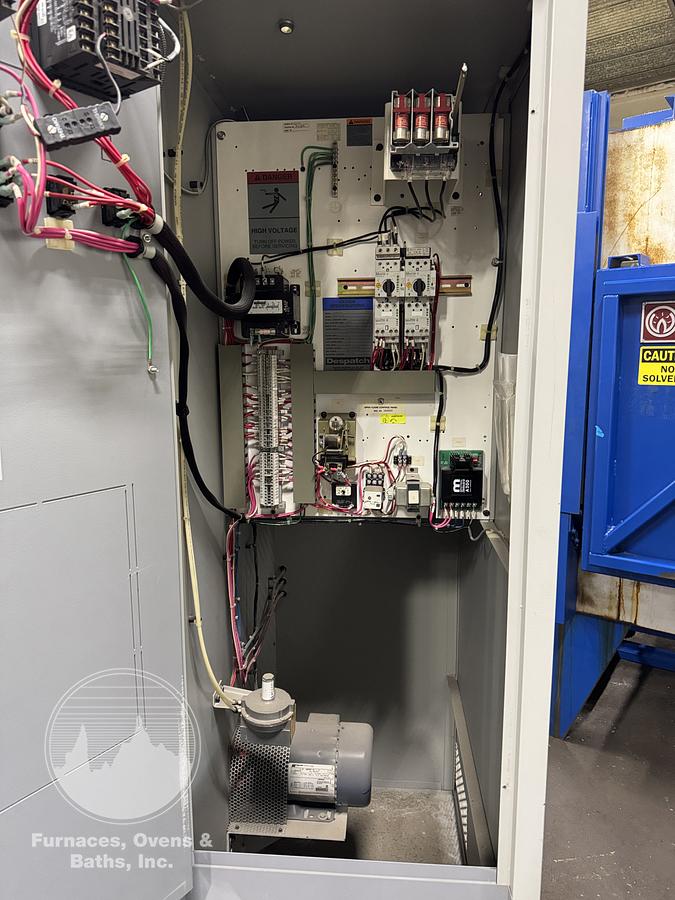

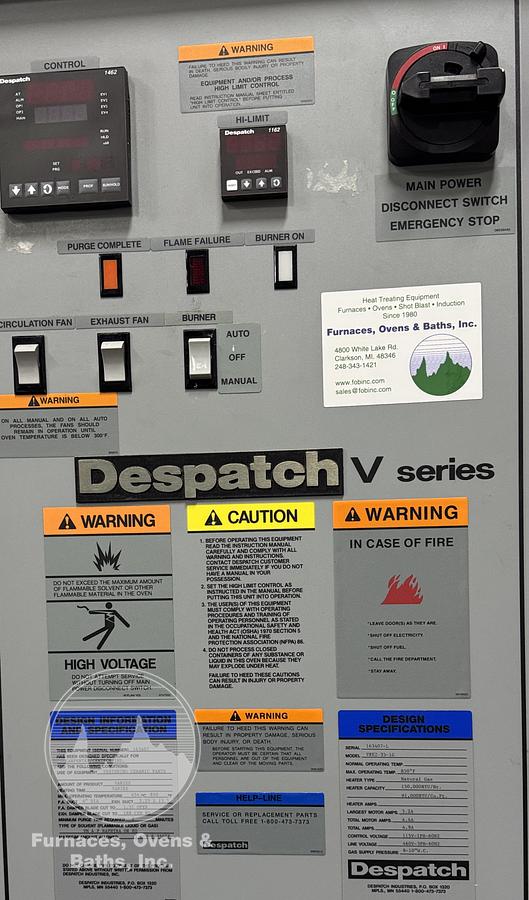

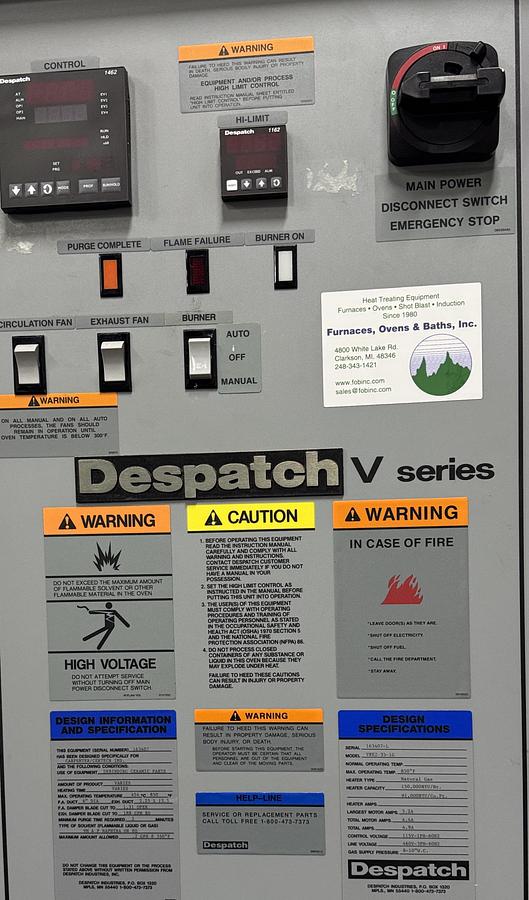

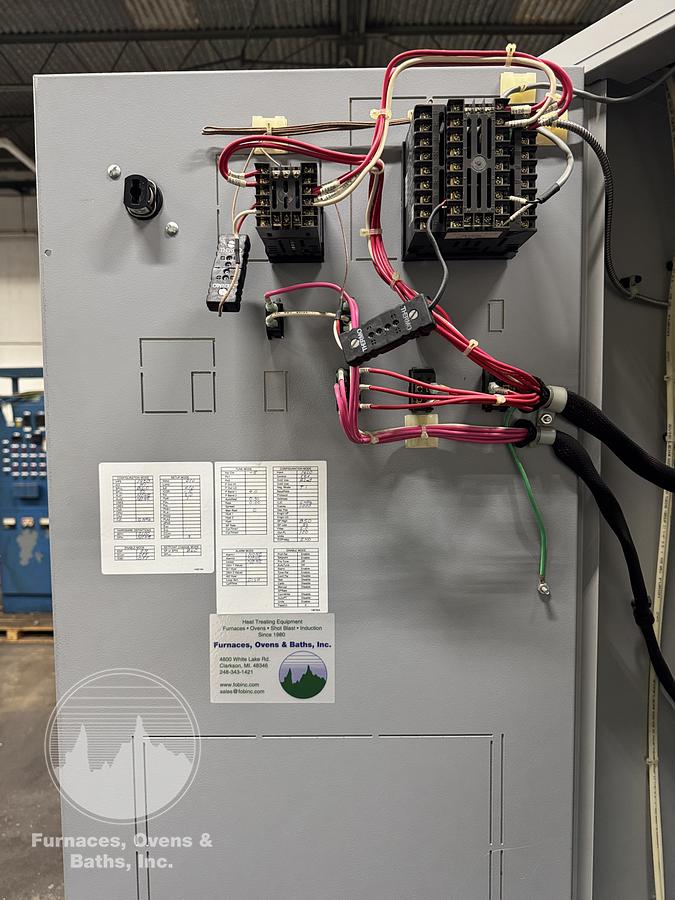

Controls are mounted and wired in a UL rated control cabinet with fused through the door disconnect. Temperature controls consist of a Despatch/Partlow 1462 digital programmable/ramping controller and a Despatch/Partlow 1162 digital high limit. Control switches for recirculating fan on/off, exhaust fan on/off, burner auto/off/manual are flush mounted in the front panel. Also included is indicating lights for purge complete, flame failure and burner on. Purge timer, motor starters, fuses etc. are located inside the control cabinet.
