48"W x 72"H x 72"L, Precision Quincy EC-406, Electric, 500-F

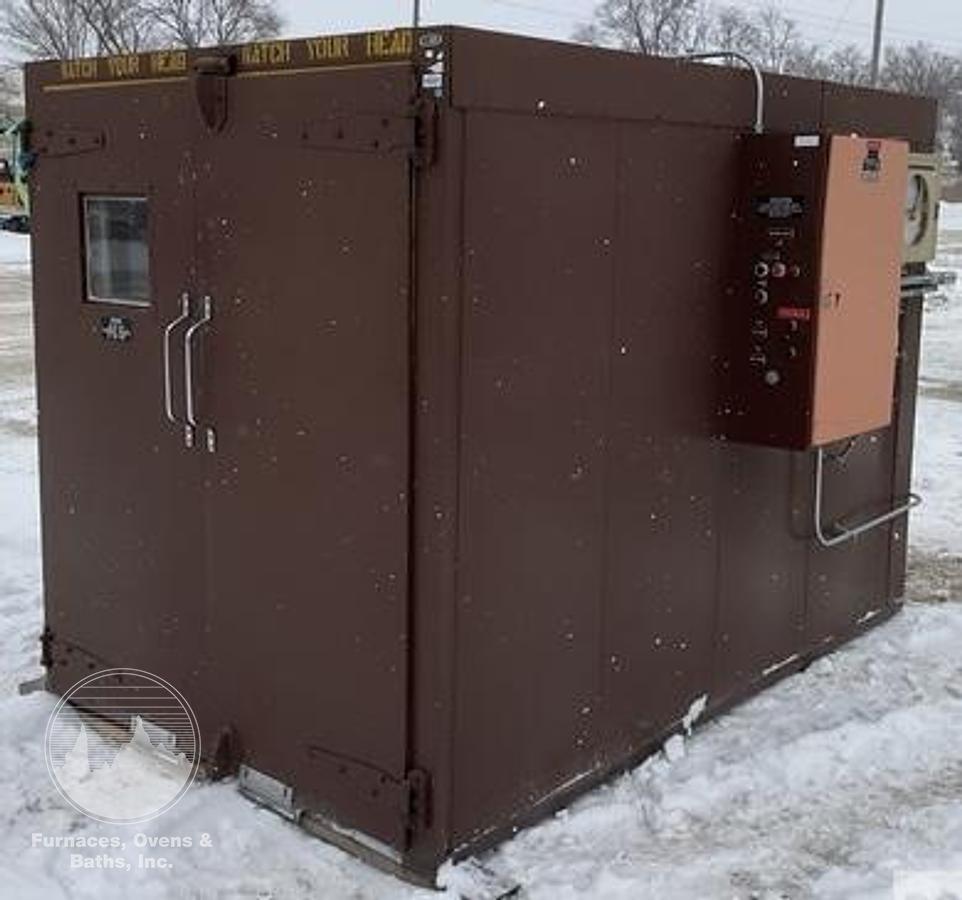

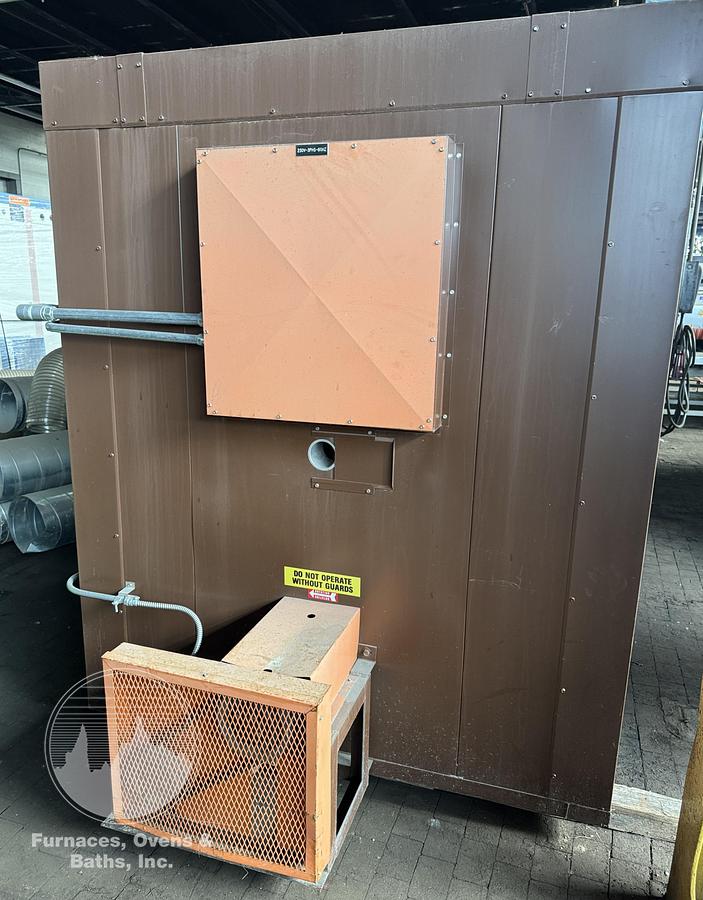

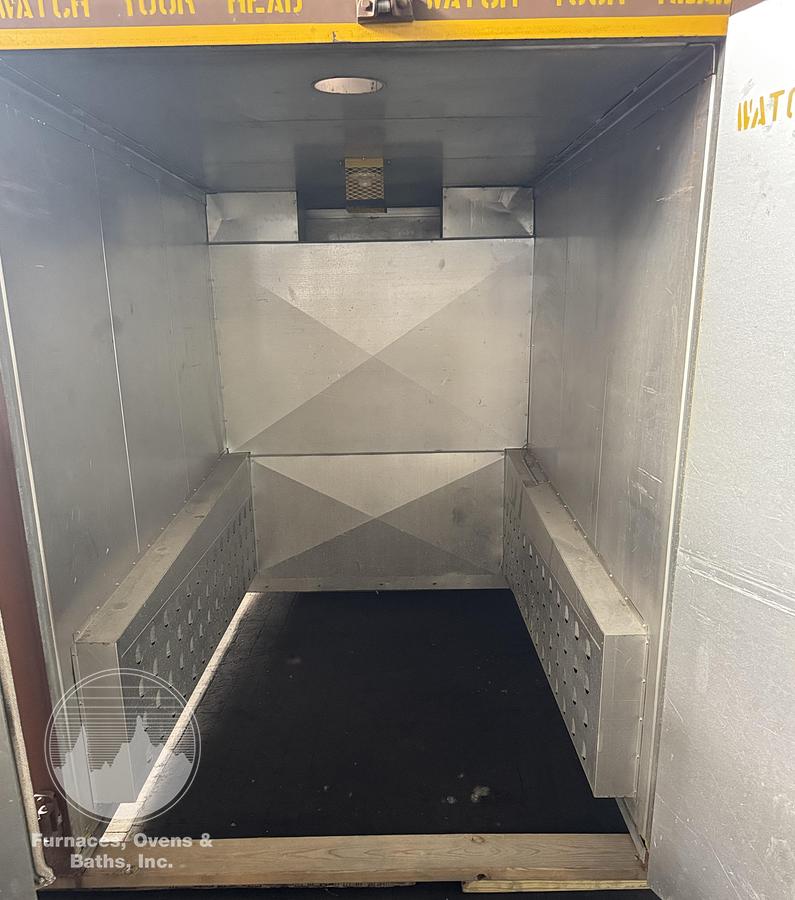

Walk-In oven with double doors on one end, heavy gauge strap hinges on each door, “Brixon” spring tension latches and silicone rubber gasket for a good door seal. Oven has an interior light with a viewing window on left-hand door. Aluminized steel interior with an insulated floor and floor tracks. Punched louvered air duct panels on both side walls. The 2 HP belt driven high volume circulating fan mounts through the rear wall and includes tubular style heating elements located in a separate plenum. Heated air is circulated in a full horizontal pattern across the work area for good uniform heating. Oven will be tested prior to shipping.

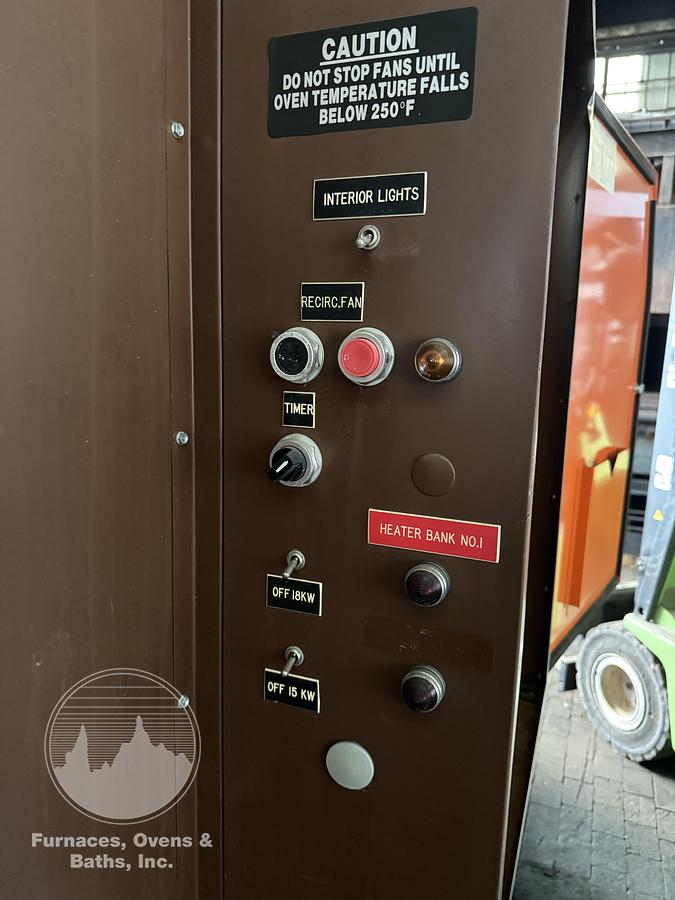

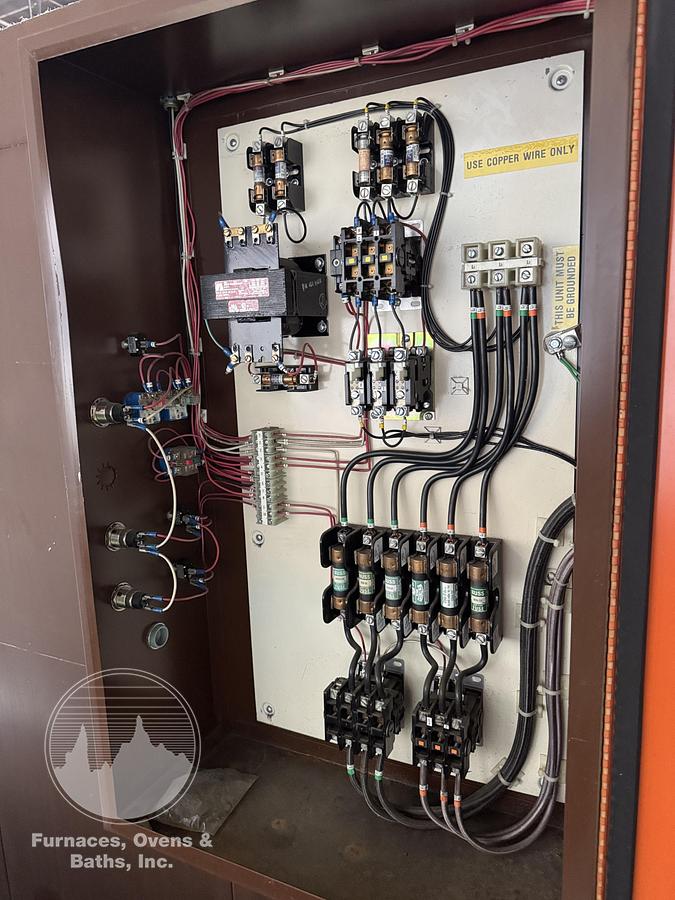

Controls are mounted and wired in a UL listed enclosure attached to the right-hand side of the oven. Control switches with indicating lights for recirculating fan, each element bank etc. are flush mounted to the face of the enclosure. Solid state relays, contactors, motor starters, fuses and relays etc. are mounted inside the control cabinet. Heating elements are wired in two (2) separate banks which provides the option of operating the oven at reduced power consumption.
