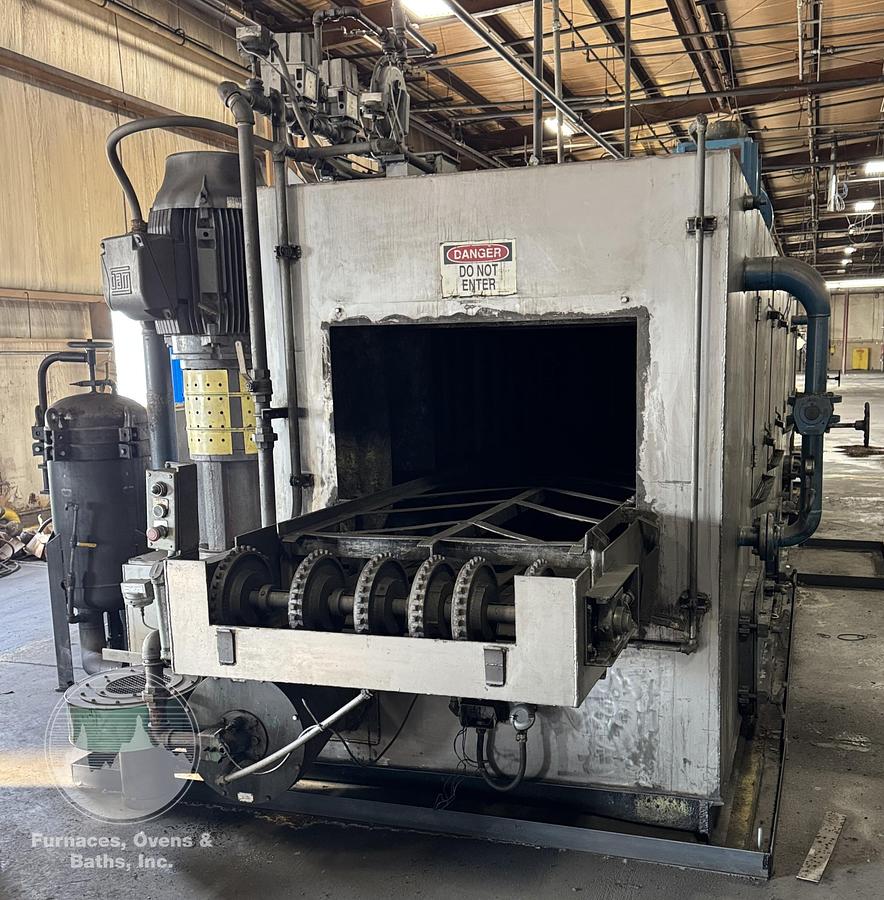

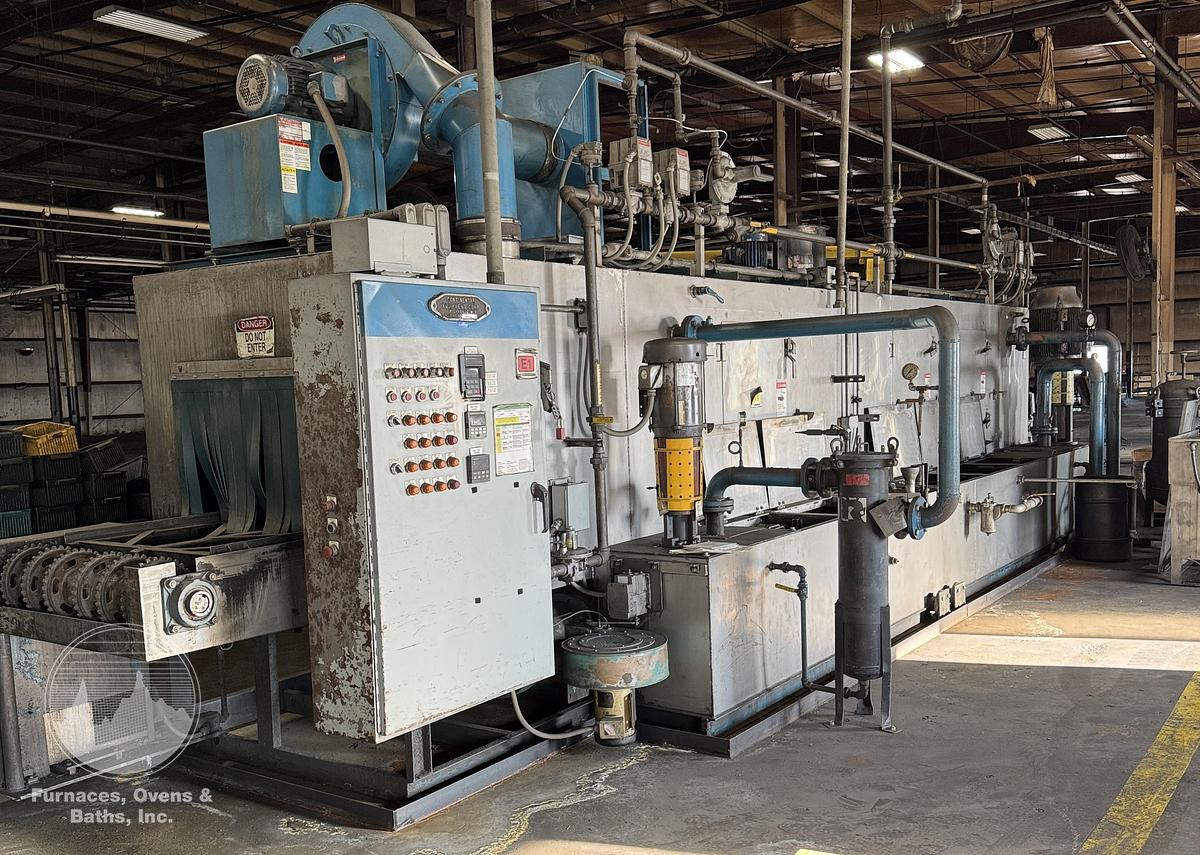

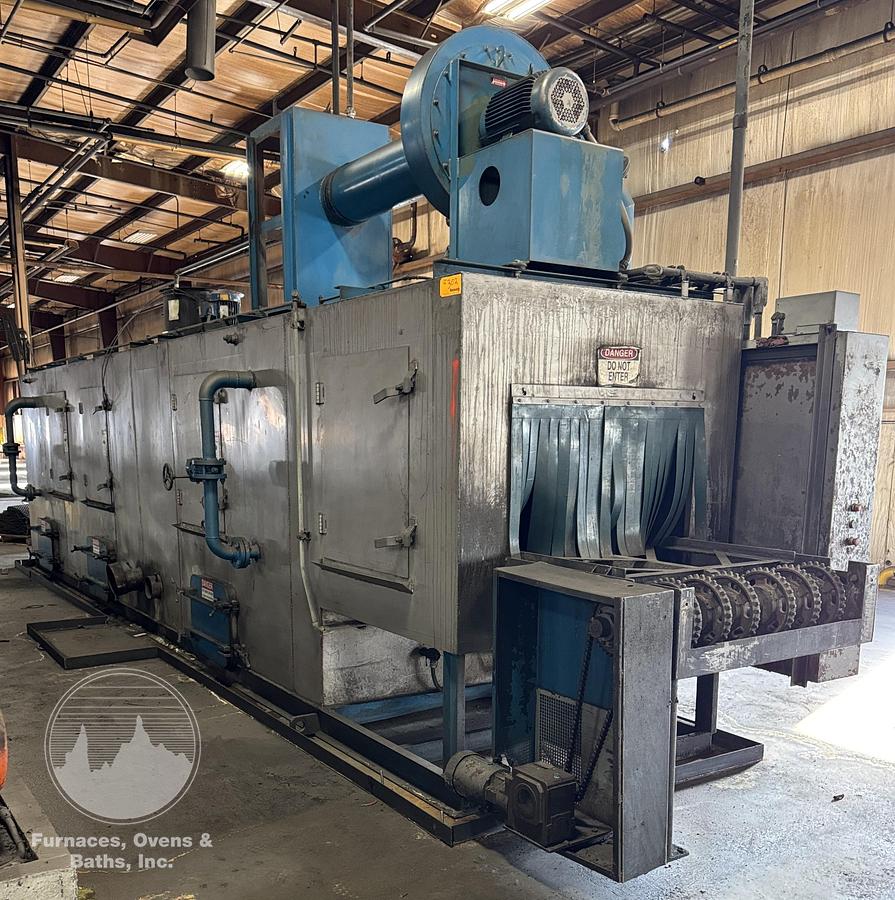

36"W x 24" High, 3-Stage Continental Equipment Belt Washer, Gas Fired, Stainless Steel

Description:

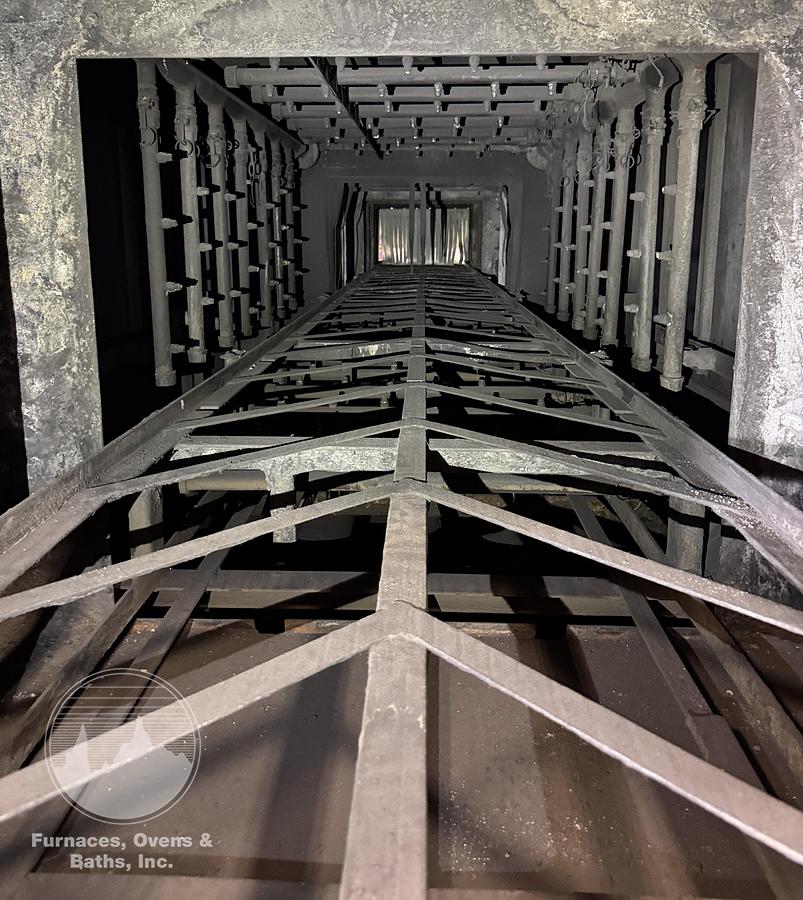

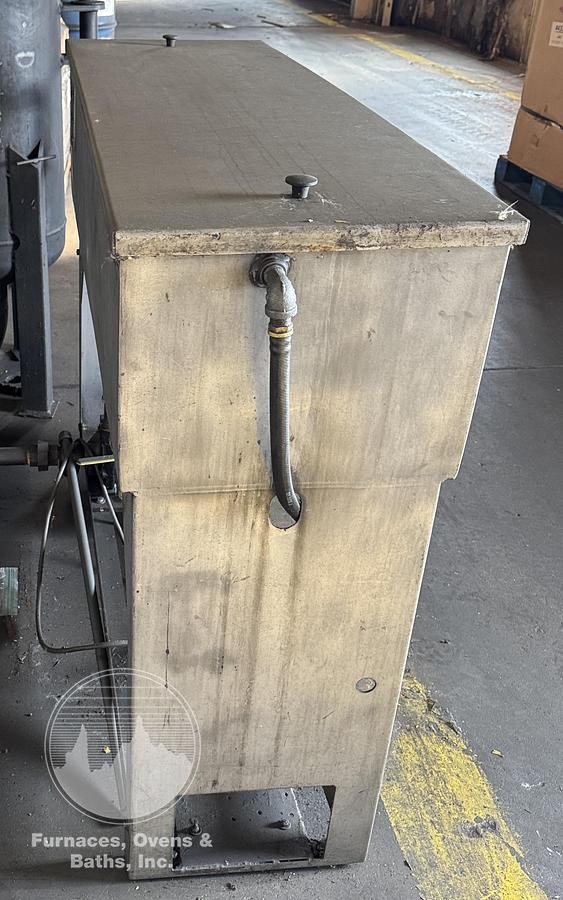

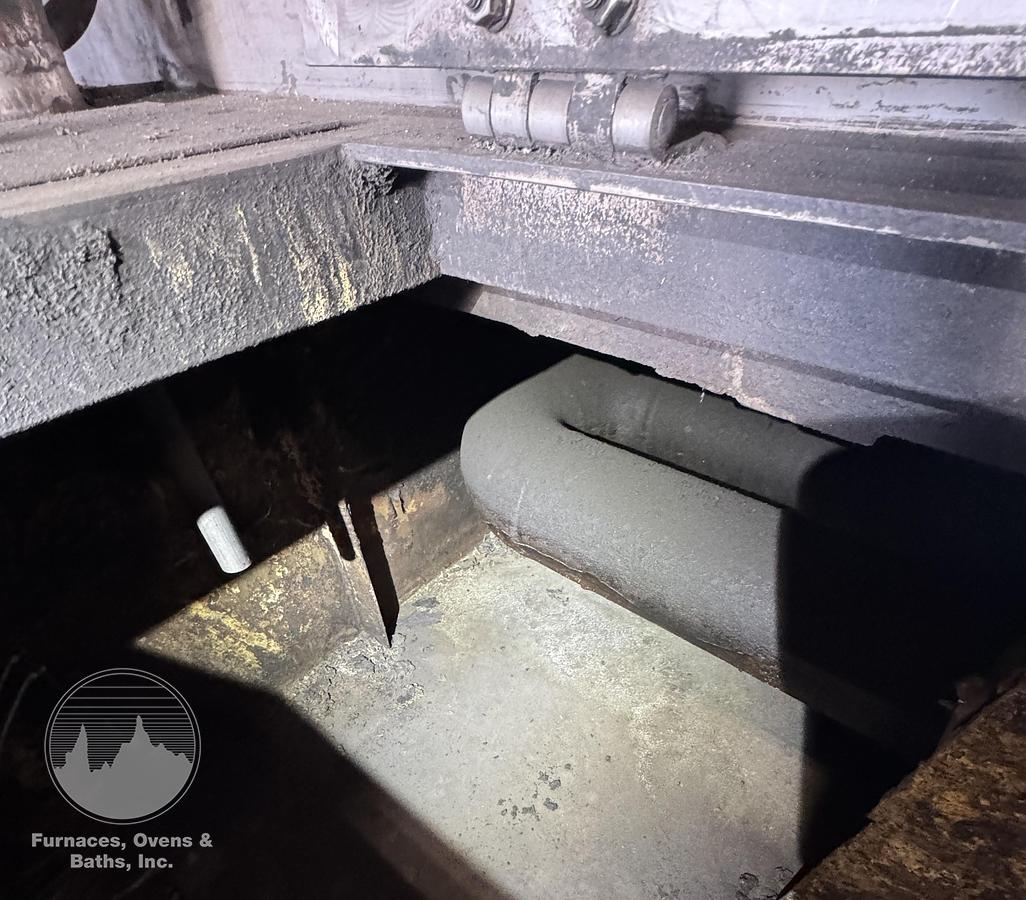

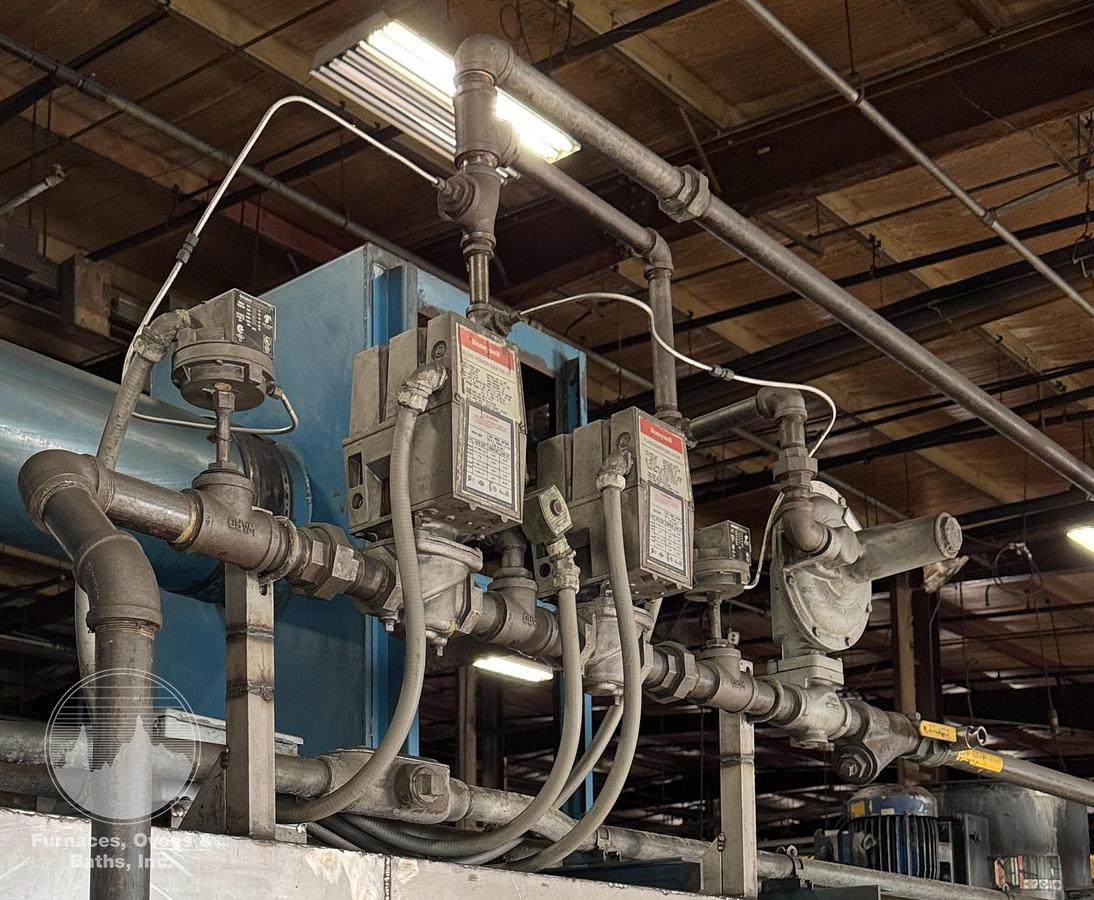

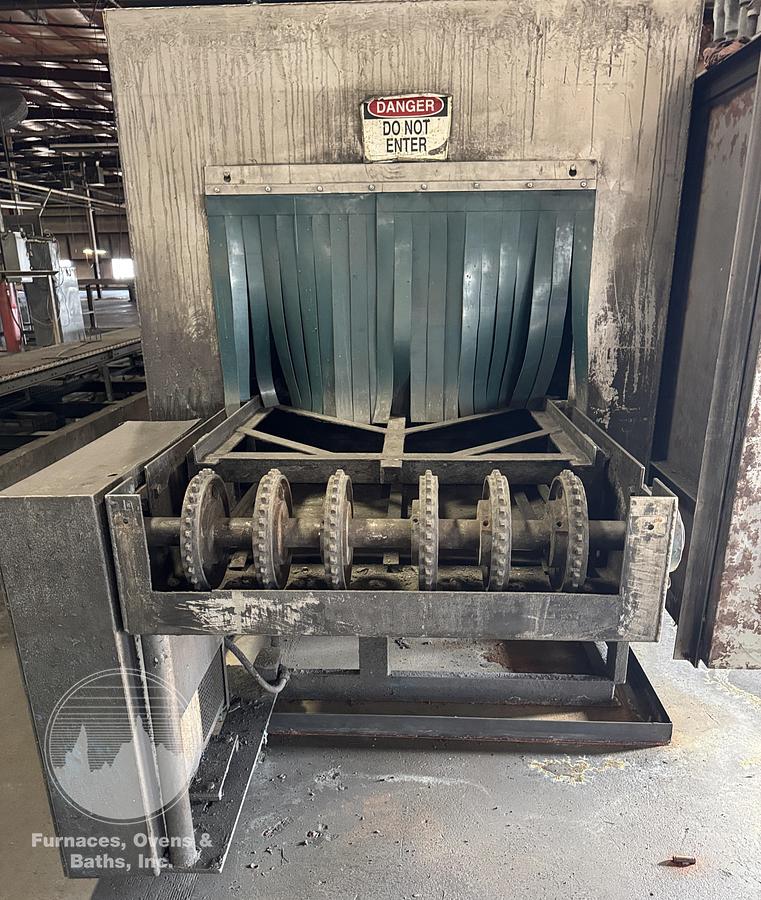

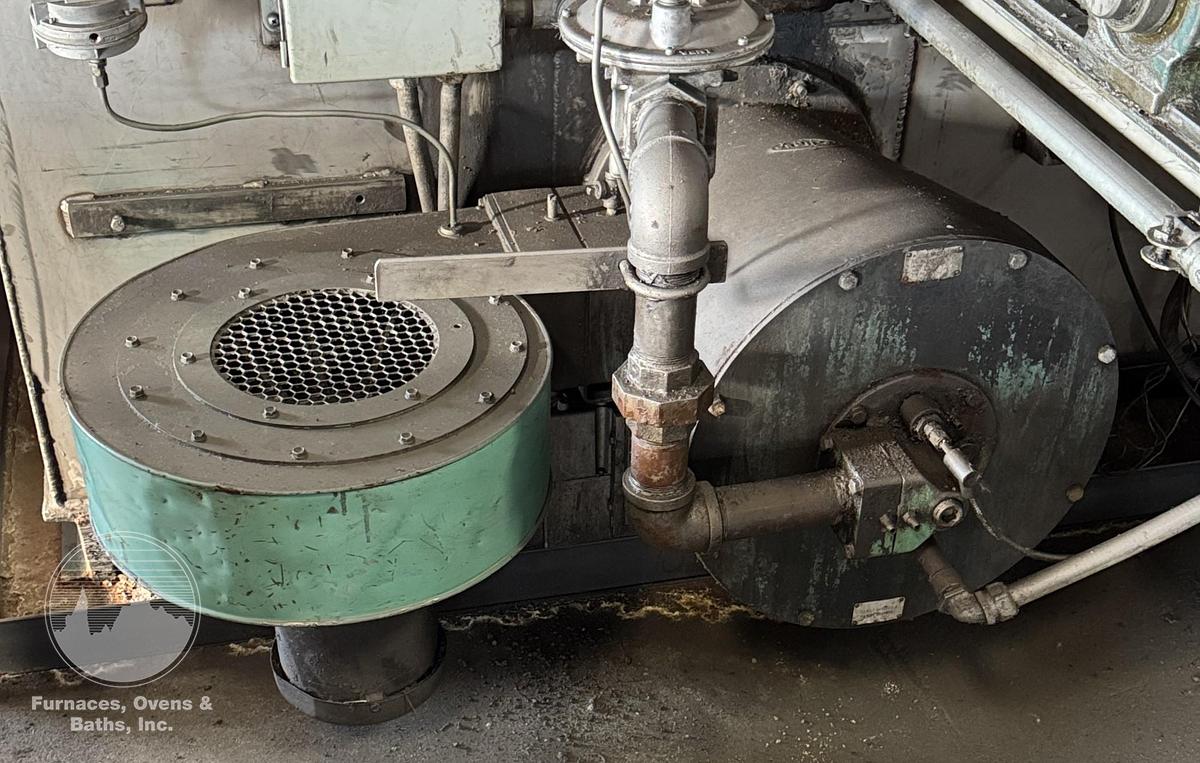

Heavy duty three (3) stage stainless steel conveyor belt washer (1" x 1" flat wire belt) with natual gas heated wash, natural gas heated rinse and ambient blow-off. Washer sequence consists of the foillowing: 36" long load end x 48" long entrance vestibule x 96" long wash vestibule x 60" long drain x 36" rinse x 48" long drain x 48" long blow-off x 36" long unload end. This washer has a 60HP, 475 GPM wash pump and a 10 HP, 200 GPM rinse pump. Both stages have 400 micron filter sytems. Heating system for the wash and rinse tanks consists of two (2) Eclipse 6" IMMERO-JET package burner systems with spark ignition, Honeywell Flame Safety w/UV scanners. Washer belt was removed for cleaning and will be shipped loosely on a skid for buyer installation. Also induded is oil separator with skimmer.

Controls:

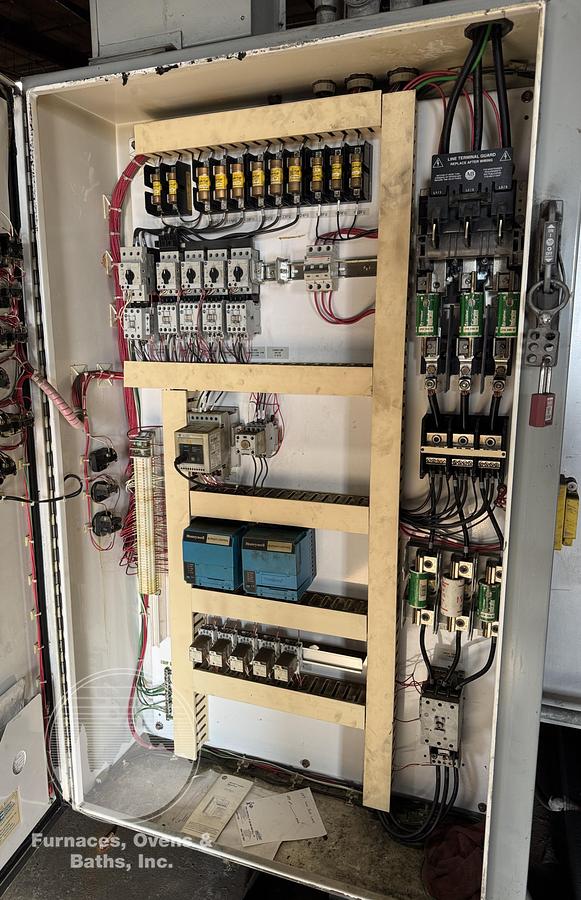

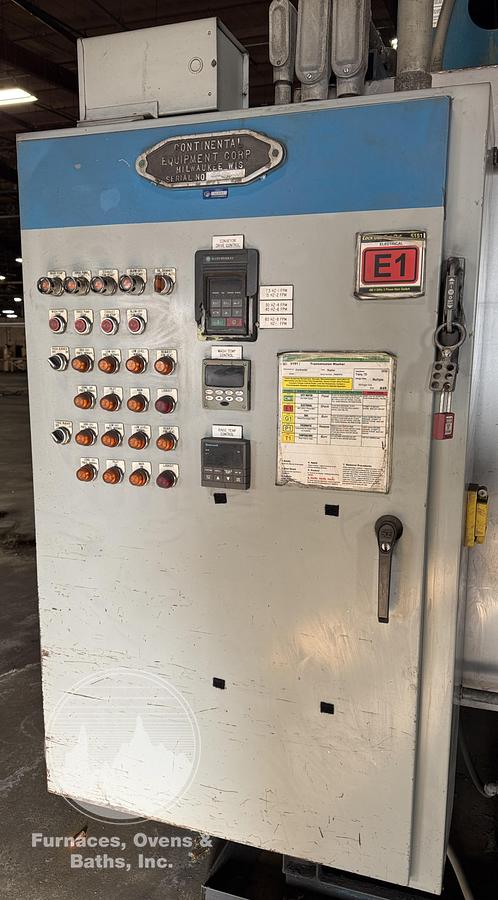

Mounted and wired in a NEMA style enclosure with fused disconnect includes two (2) Honeywell UDC digital temperature controllers for wash and rinse, Allen Bradely VFD for conveyor drive rated for 1 to 8 F.P.M., Honeywell Flame Relays, motor starters etc. Flush mounted to face of this enclosure includes Allen Bradley pushbuttons and signal lights. Drawings are included with this washer.

See drawing for more information.
