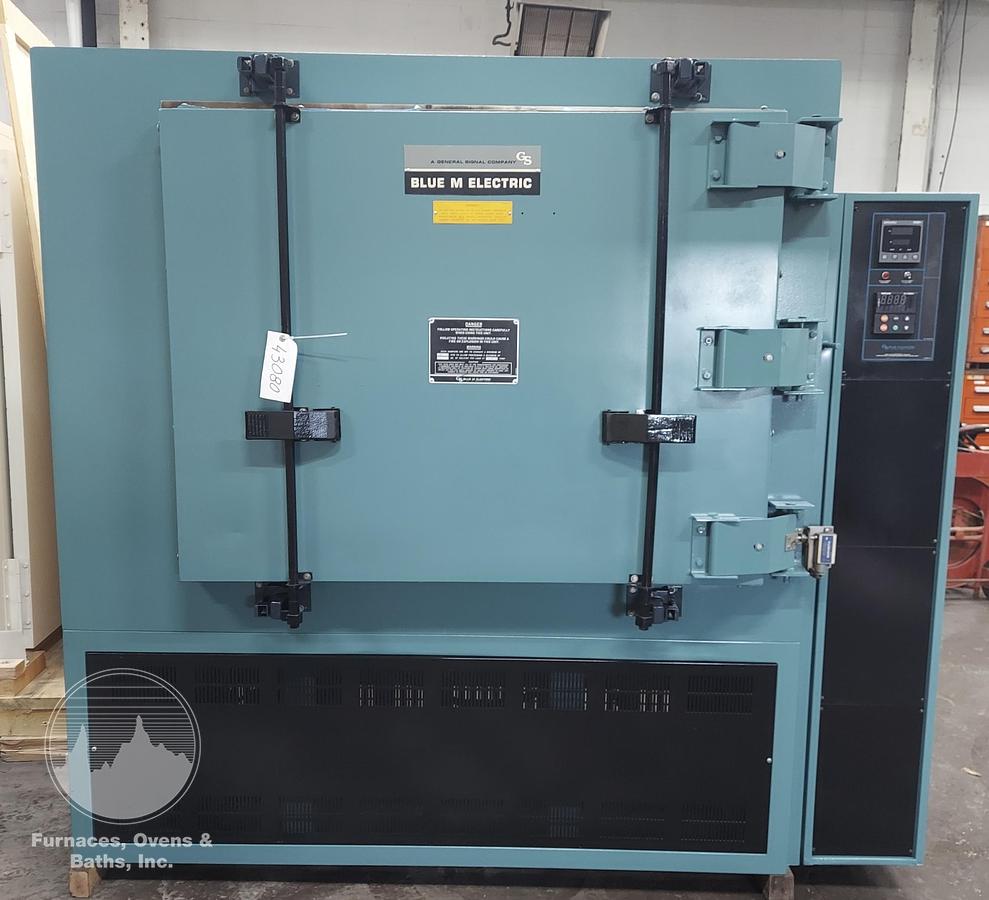

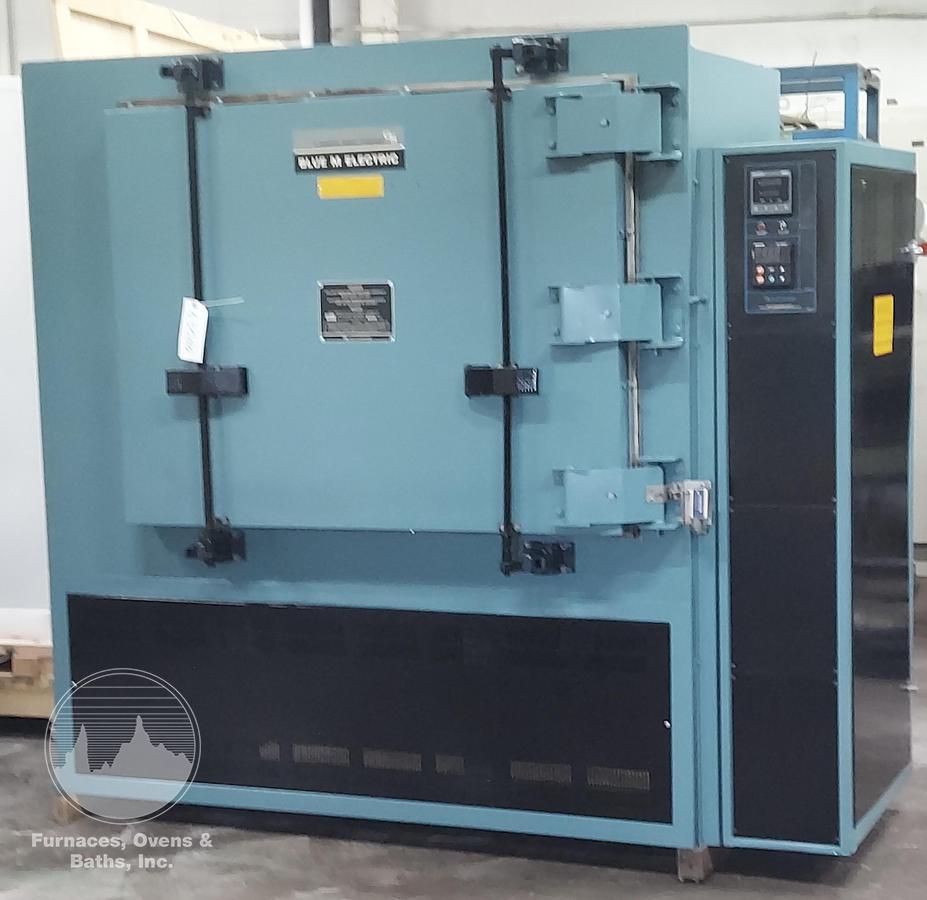

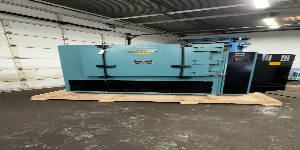

48"W x 36"H x 24"L Blue M CW-9980F Solvent Rated Cabinet Oven, 1300°F, Electric

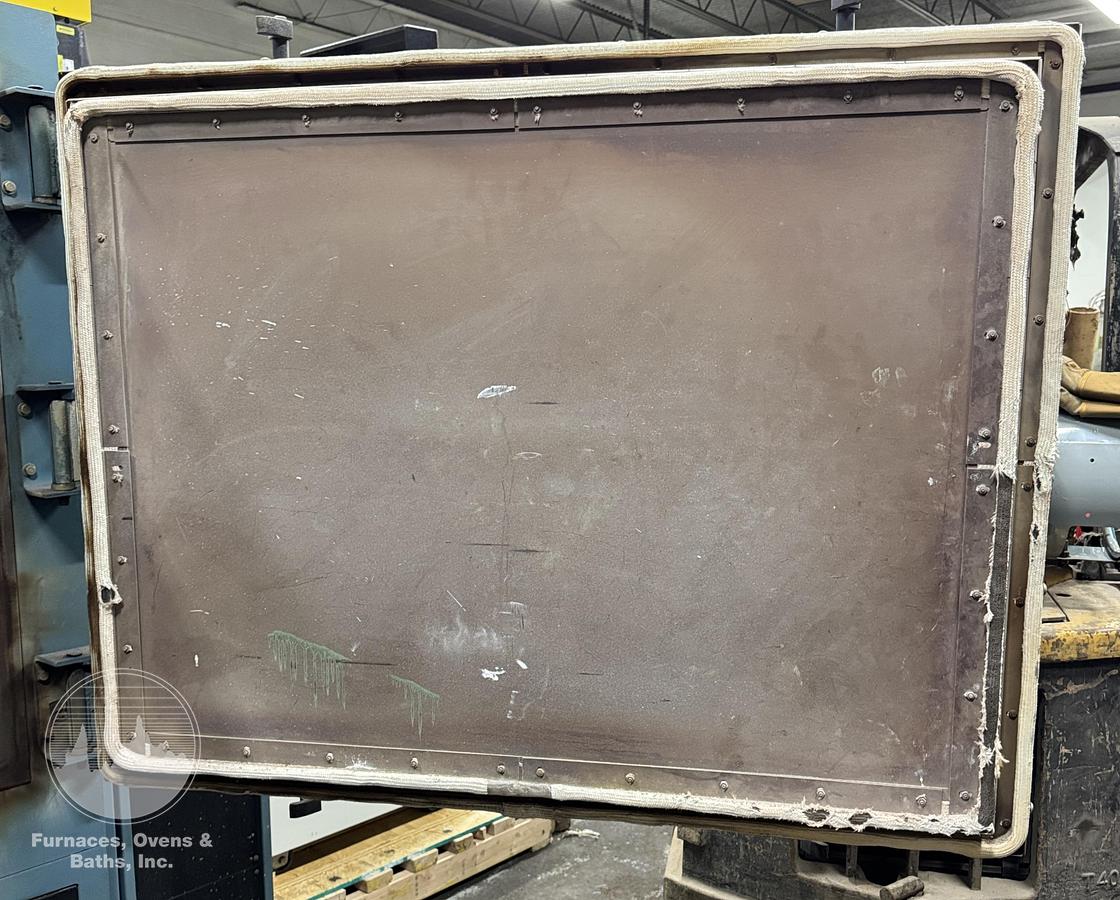

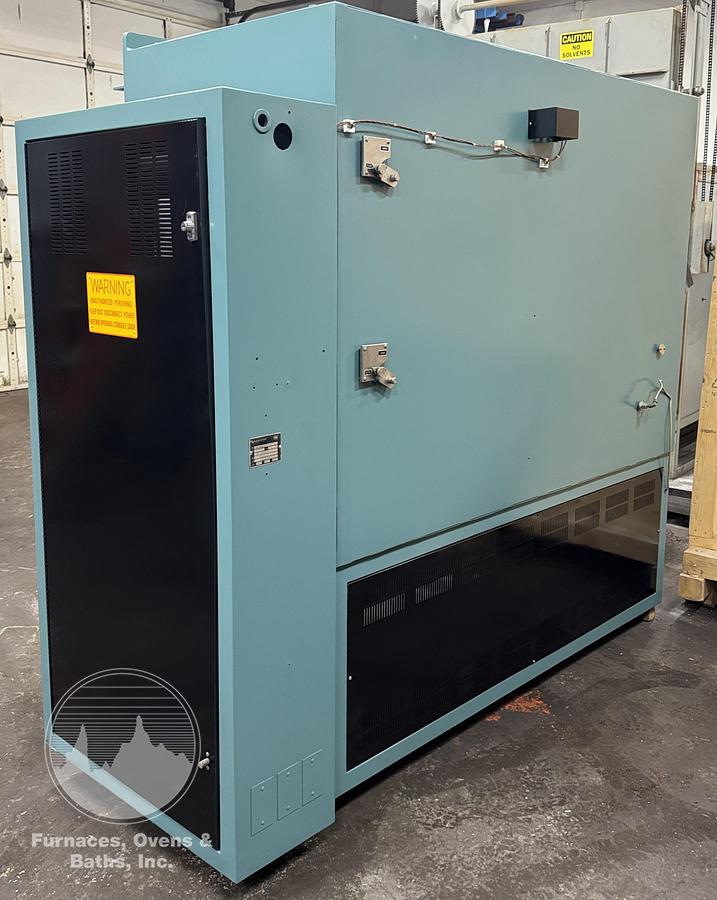

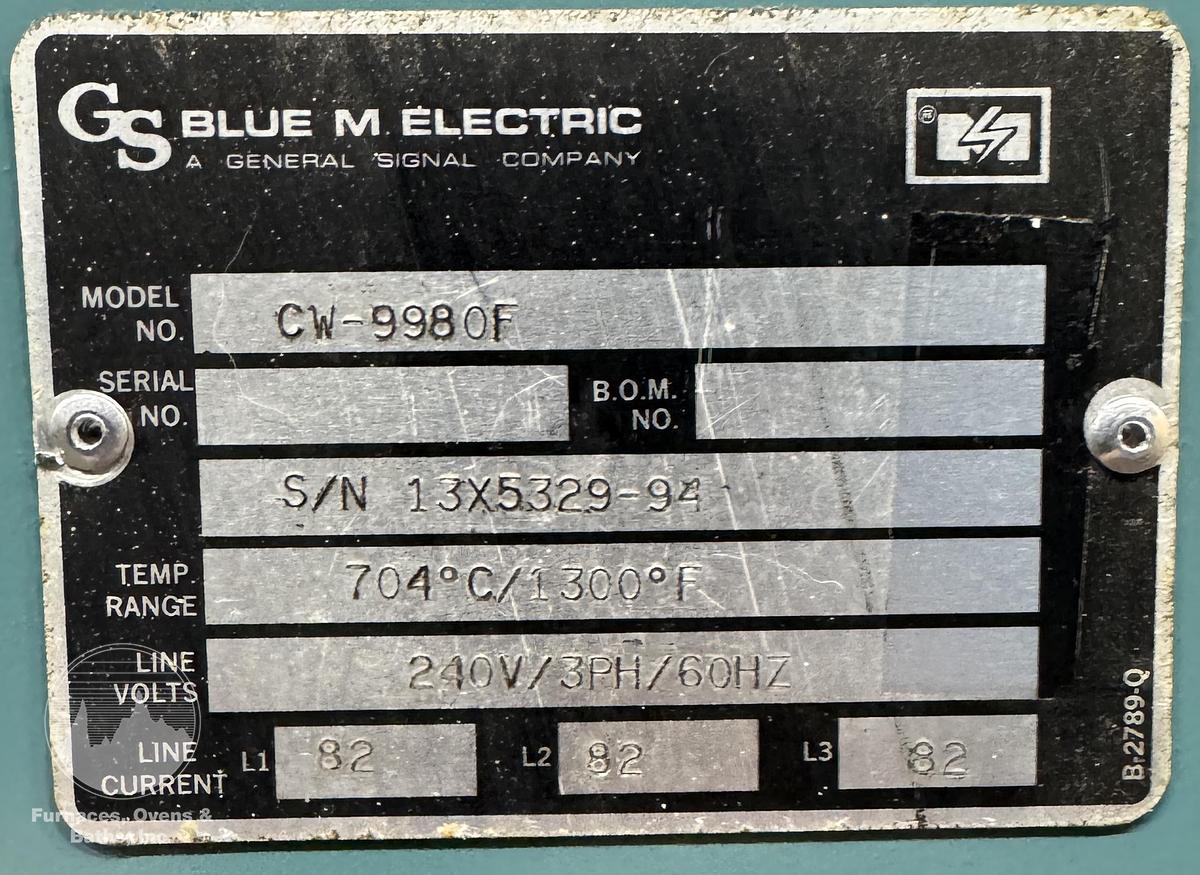

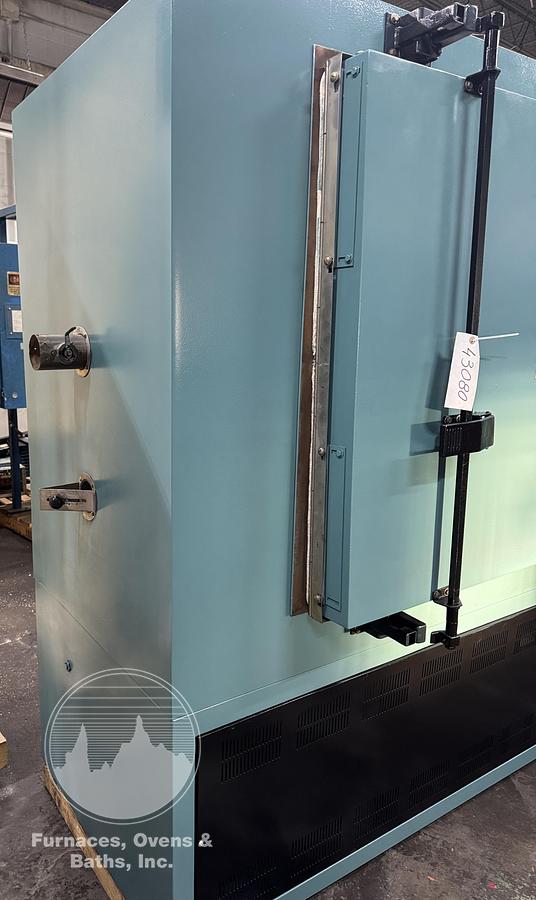

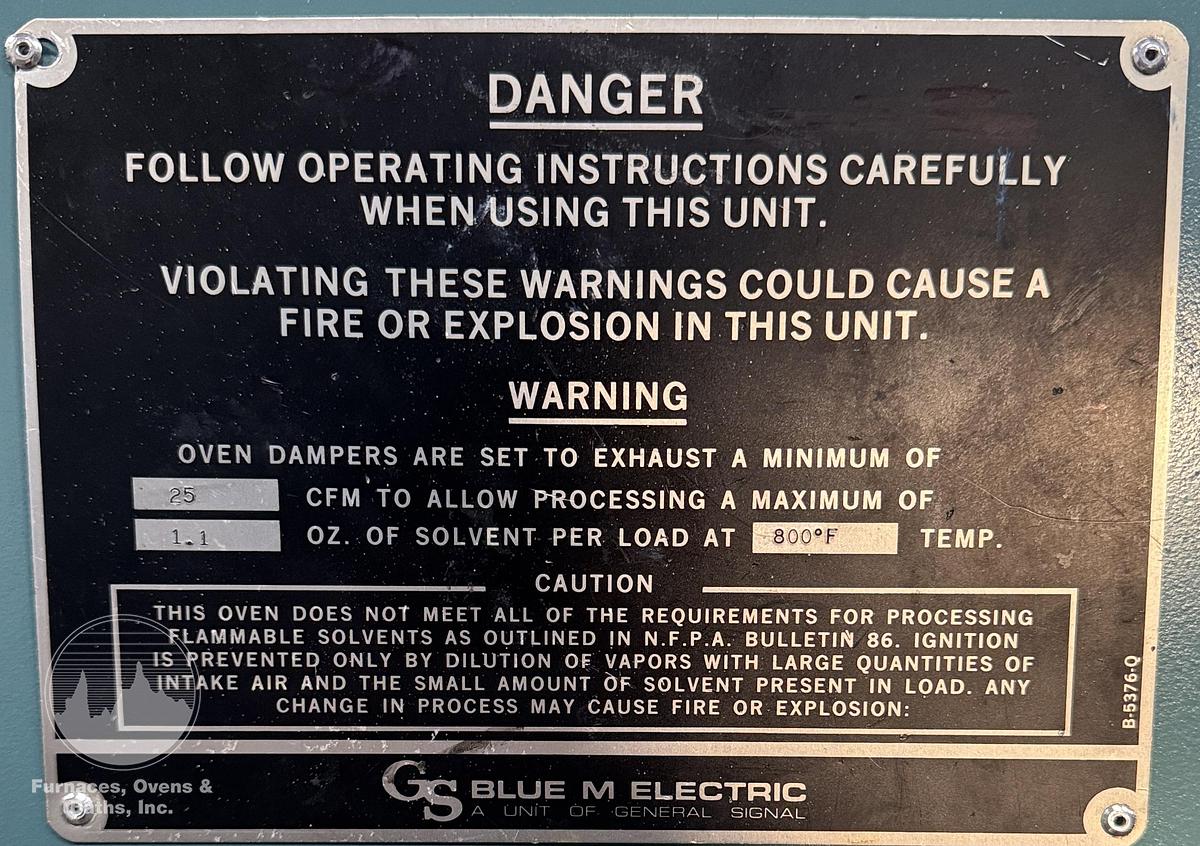

Single door with 4 cam action positive seal latches with inner/outer stainless steel/ceramic fiber door gasket for a good seal. Stainless steel interior with 7 shelf brackets on 4" centers, two (2) shelves are included with this oven. Coiled style heating elements and circulating fan are located under the floor pan. Heated air is circulated horizontally across the chamber. Exhaust port and adjustable fresh air inlet are mounted on the left-hand side. The door limit switch cuts power to fan and elements when the door is open. This oven is rated for use with some solvents. See Manufacturer data tag. Oven will be tested prior to shipping.

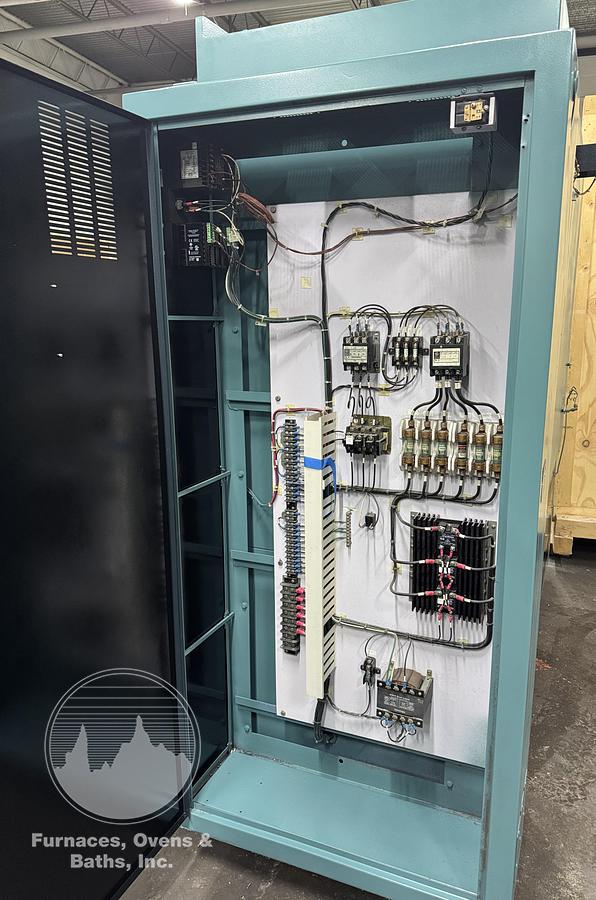

Controls are mounted and wired in a right-hand side mounted enclosure. There is a Watlow EZ-ZONE digital high limit and a Partlow 1400 digital temperature controller. "CRYDOM" solid state relays, high limit contactor, motor starter etc are mounted inside this enclosure. Flush mounted to the face of the enclosure includes a toggle switch for power on/off, and indicating light.
