TM Super Series Vacuum Furnace, 12”W x 12”H x 24”L. 2400-F, 2 Bar, Diffusion Pump

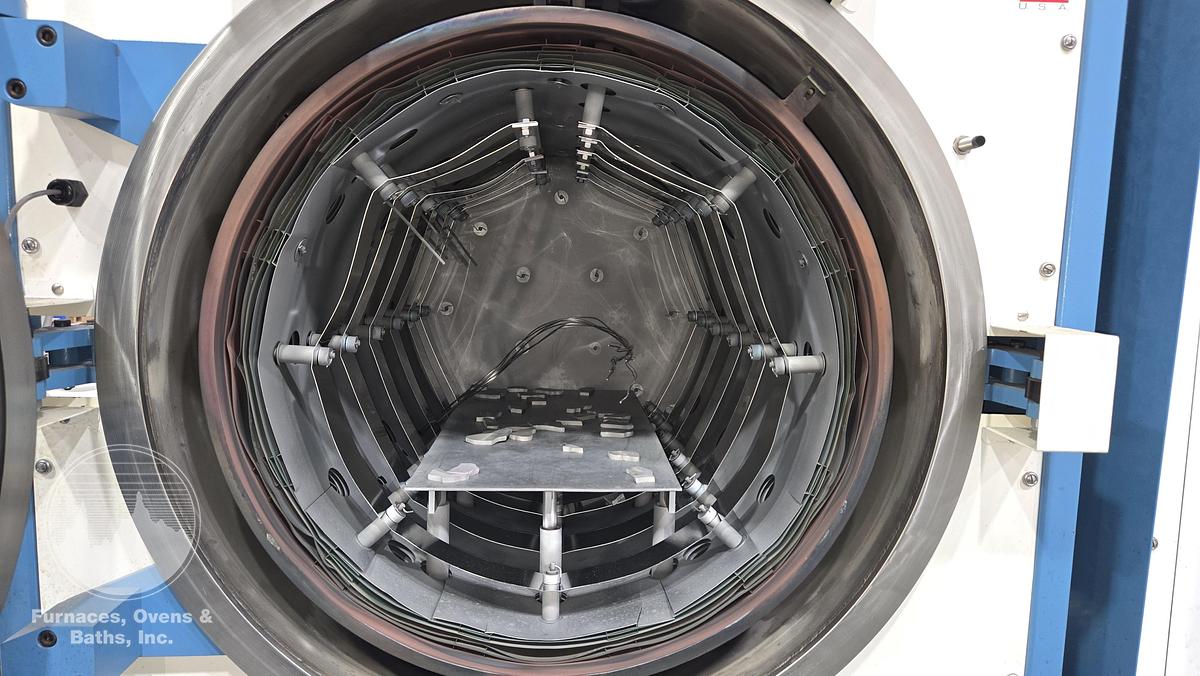

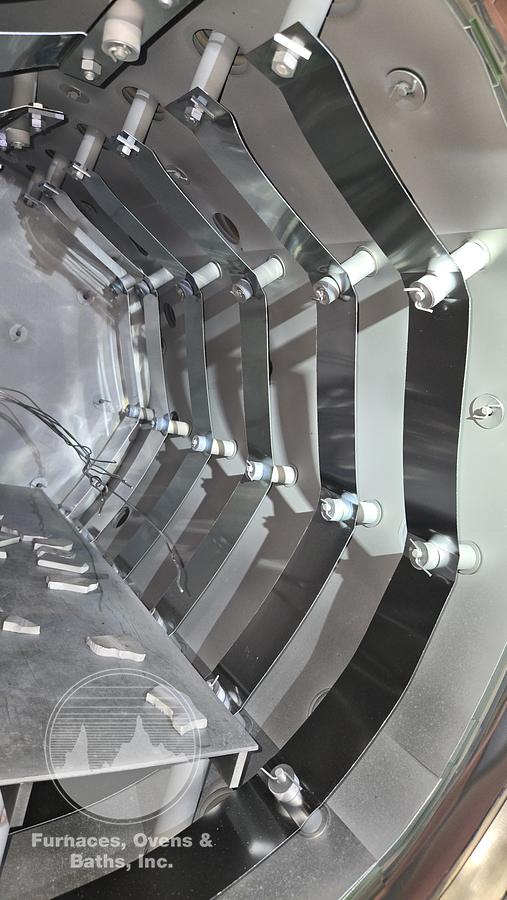

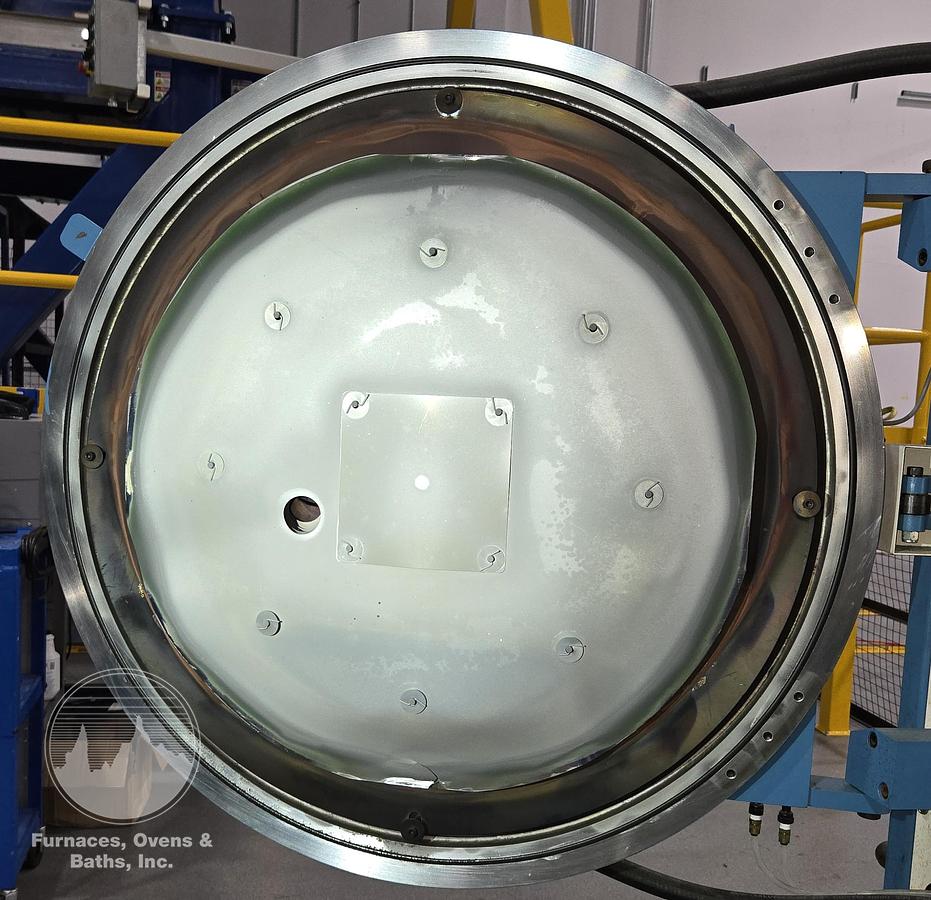

Horizontal front loading double wall vacuum furnace with stainless steel chamber. Door consists of six (6) pneumatically operated clamps for 2-Bar pressure. All metal Hot-Zone (Moly) consisting of Moly layers backed by stainless steel, 2" Moly band type heating elements and Moly hearth assembly. Furnace is equipped with a diffusion pump, mechanical pump and holding pump. Cooling consists of a 10 HP with heat exchanger.

****** Furnace Meets AMS-2750H requirements and uniformity at 1100F (-3.8F to +2.2), 1700F (-6.7 to +2.4) and 2100F (-10.9 to +1.7) as of March 2022 when it was last tested by ATP. Tight furnace for aerospace applications. ******

Controls are mounted and wired on the self contained system and includes a Allen Bradley PLC w/HMI Interface, Partlow digital high limit, AC Amps/Volt Meters for front center and rear zones, Televac vacuum controller and Three (3) Control Concepts SCR power controllers for each zone.
