14"W x 14"H x 14"L Blue M DCI-146 Inert Gas Cabinet Oven, 662°F, Electric

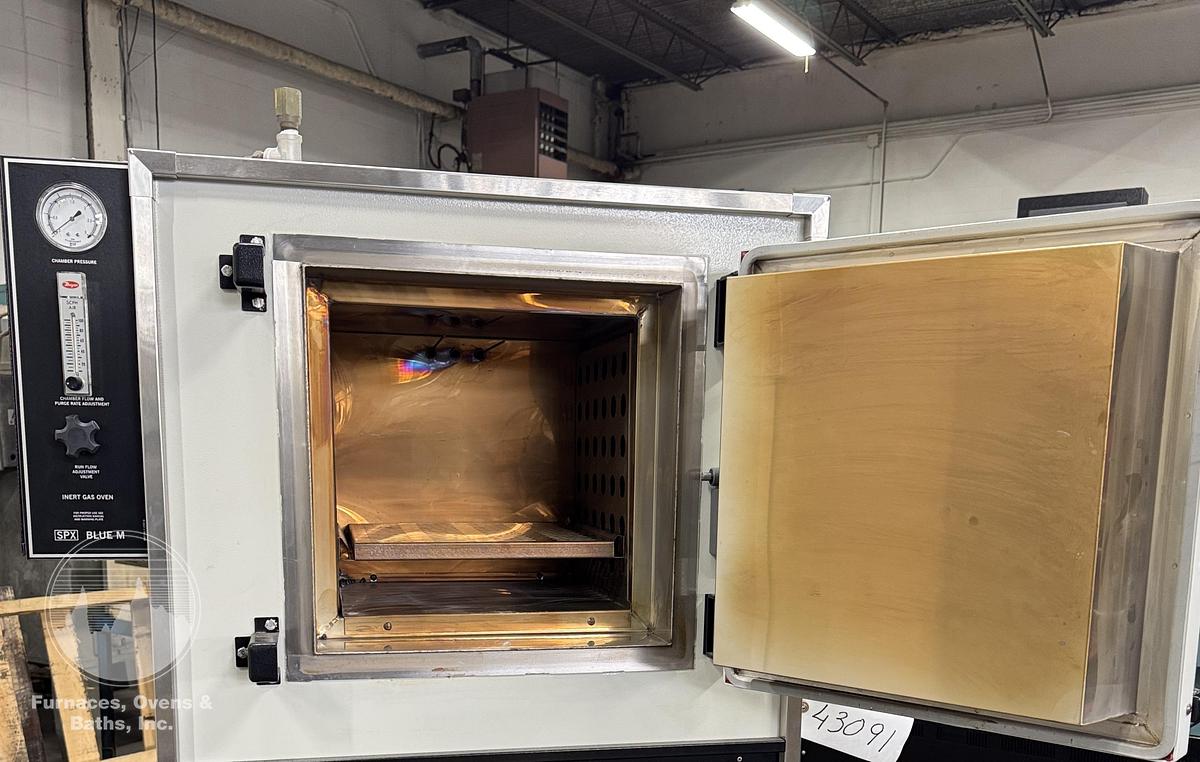

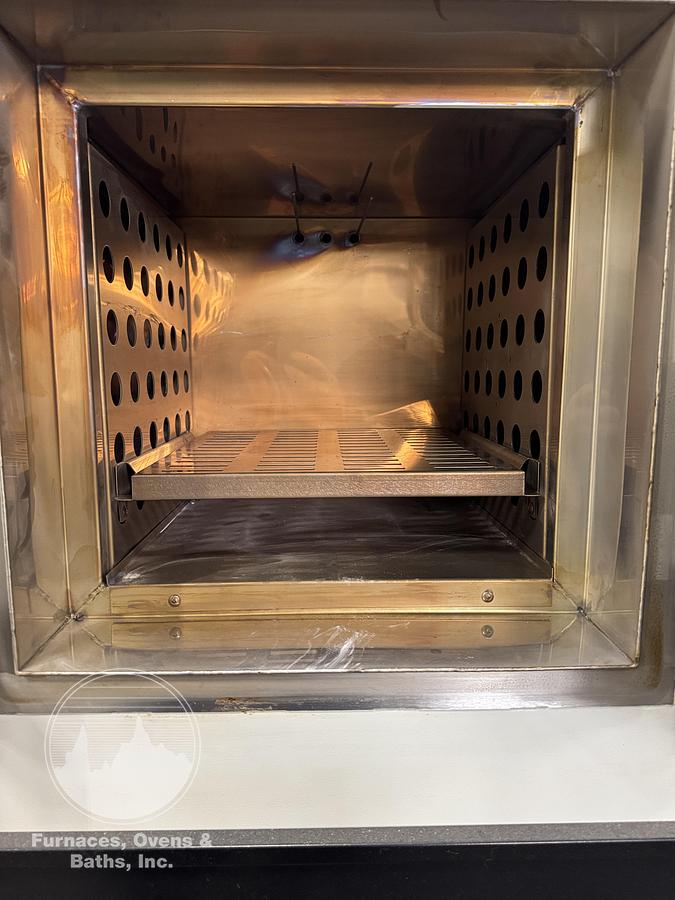

Mechanical convection inert gas cabinet oven with cooling. Single door with 3-point cam action latches and silicone rubber door gasket for an excellent door seal. Stainless steel interior with one (1) shelf. Heavy gauge coiled style heating elements and direct driven circulating fan are located under the work area. Inert gas is introduced at the blower shaft seal reducing the possibility for air being drawn into the chamber. Heated air and atmosphere are recirculated in a horizontal pattern across the work area for good uniform heating. Stainless coil located under the floor pan for cooling. Door limit switch cuts power to the heating elements when the door is open. Like new condition and will be tested prior to shipping.

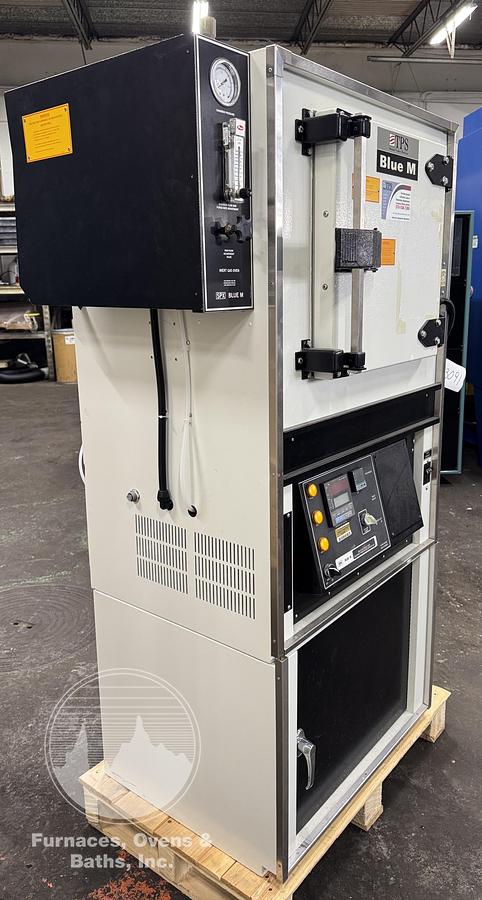

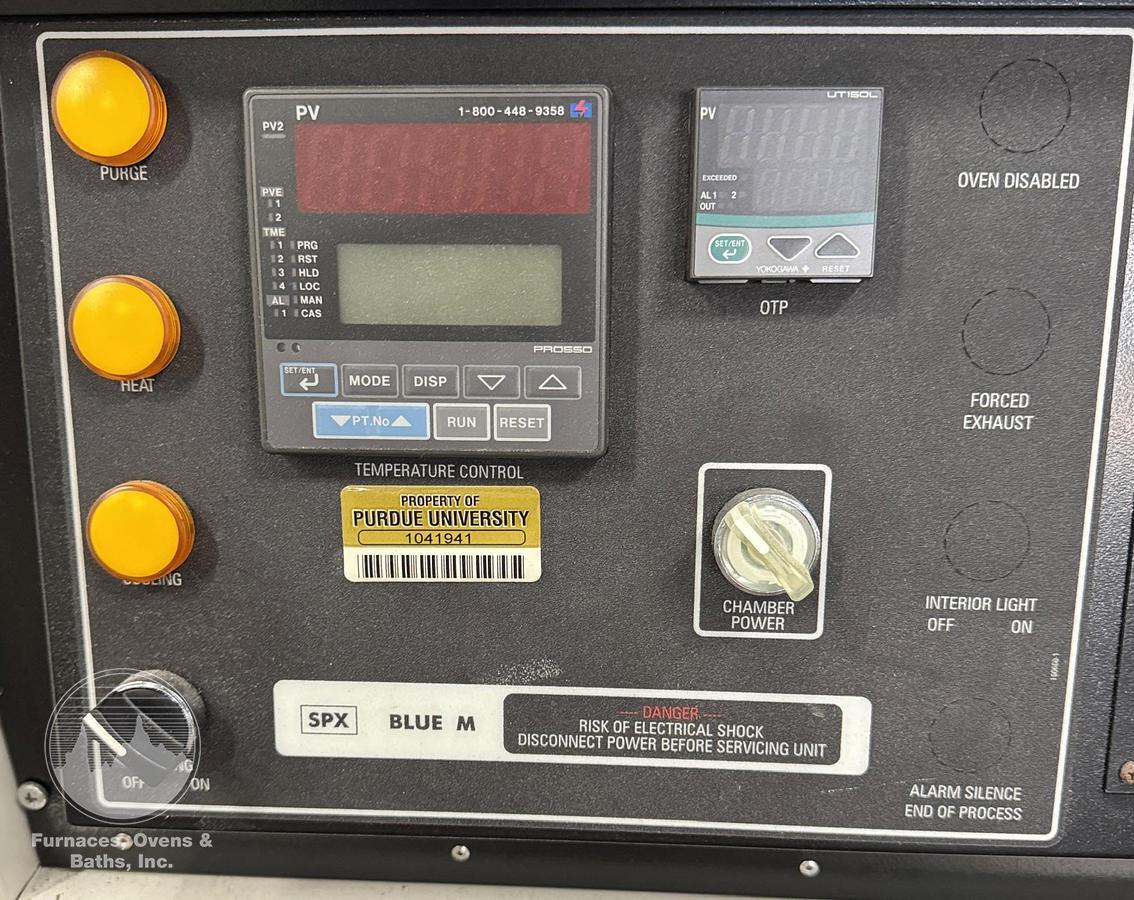

Controls are mounted in a console located directly under the work chamber. Blue M/Yokogawa PRO 550 digital programmable temperature controller and Blue M/Yokogawa UT 150L digital high limit, chamber power switch and cooling on/off switch are flush mounted in the face of the console. There are signal lights for purge, heat and cooling. Circuit breaker disconnect switch is mounted on the front panel. Inert gas flow meter, chamber pressure gauge is located on the left hand side of the oven. Adjustable flow meter for inert gas purge is mounted on the front of the oven.
