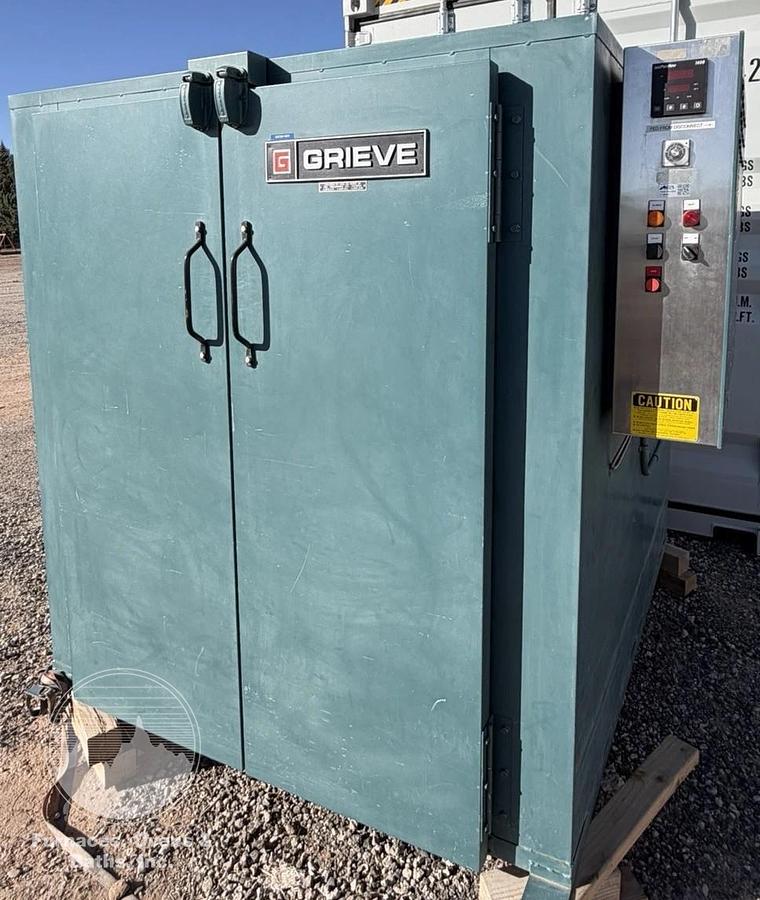

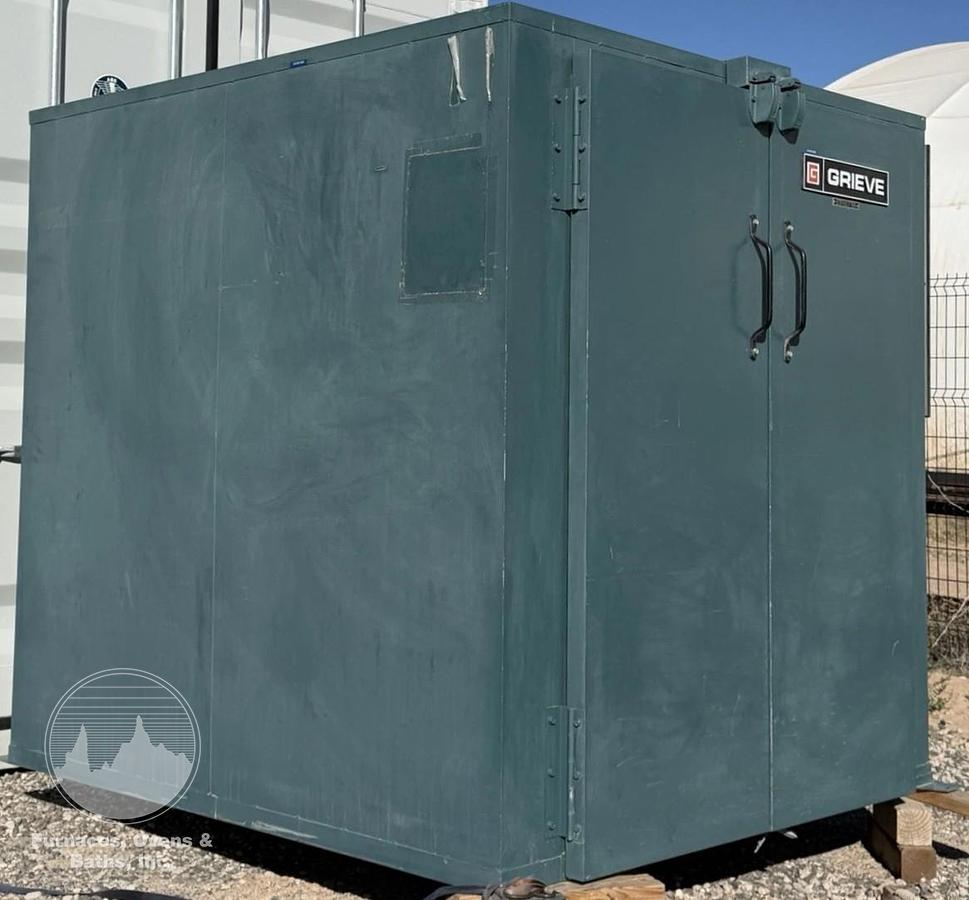

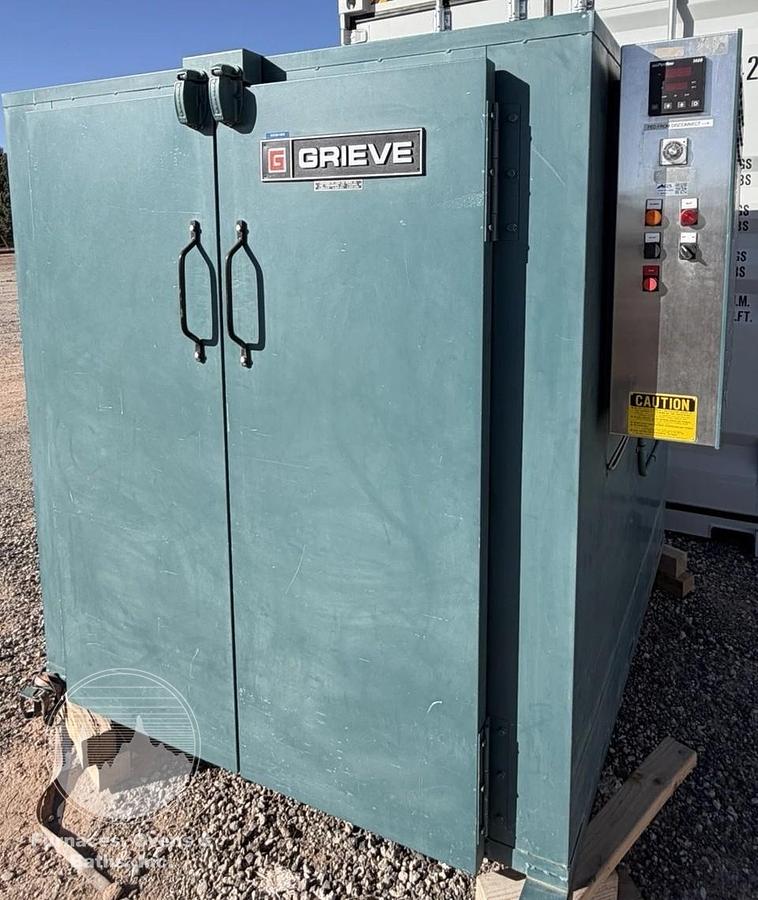

48"W x 60"H x 48"L, Grieve TB-500, Electric, 550-F, w/Cart

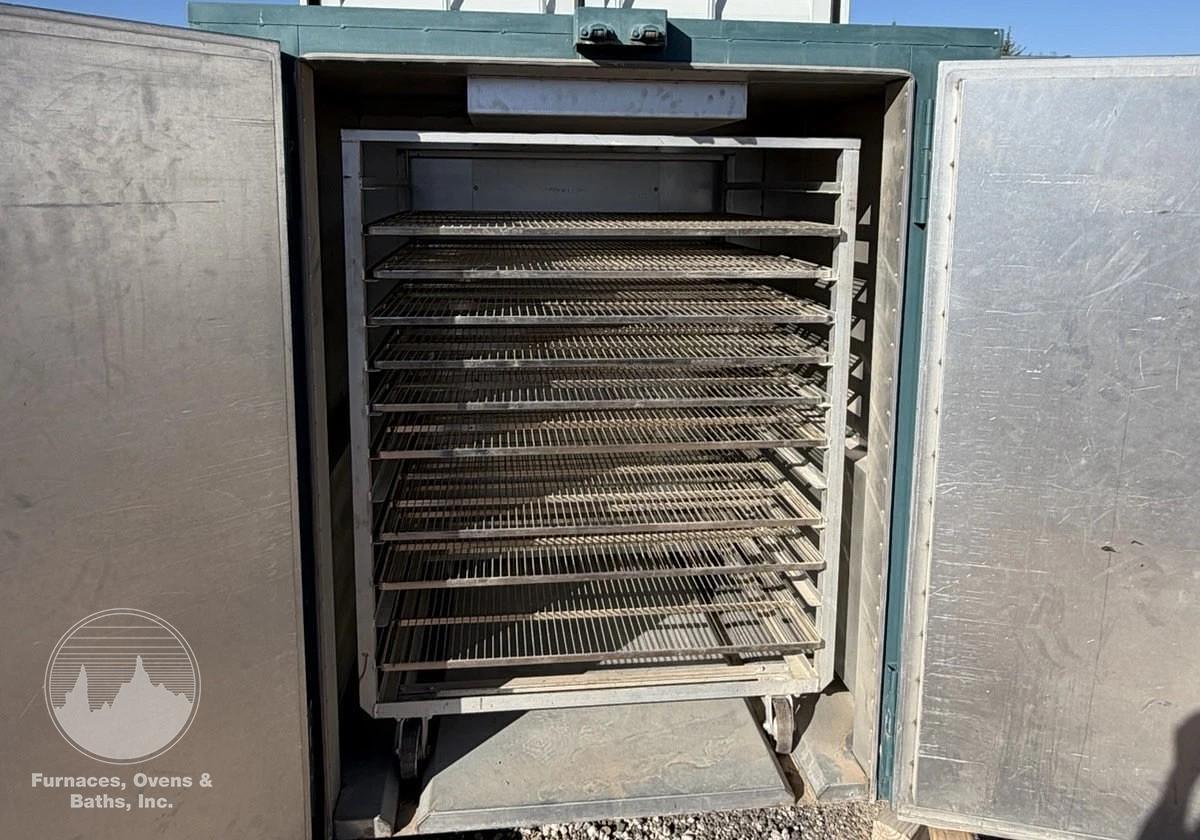

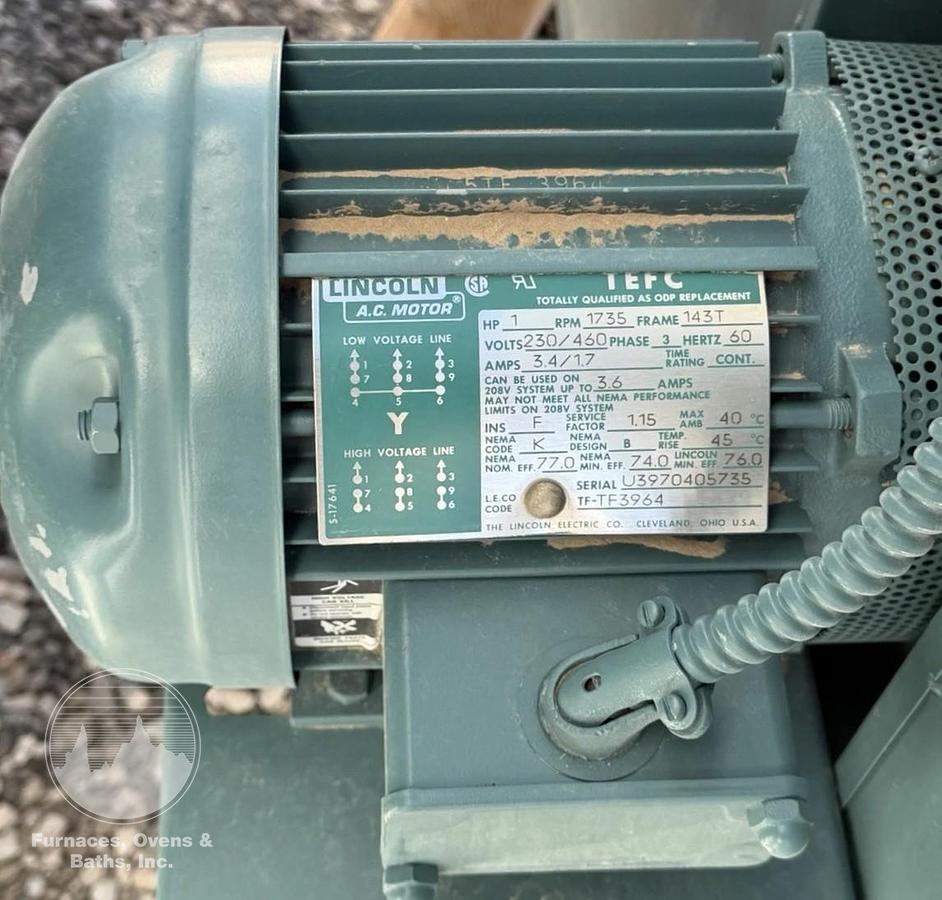

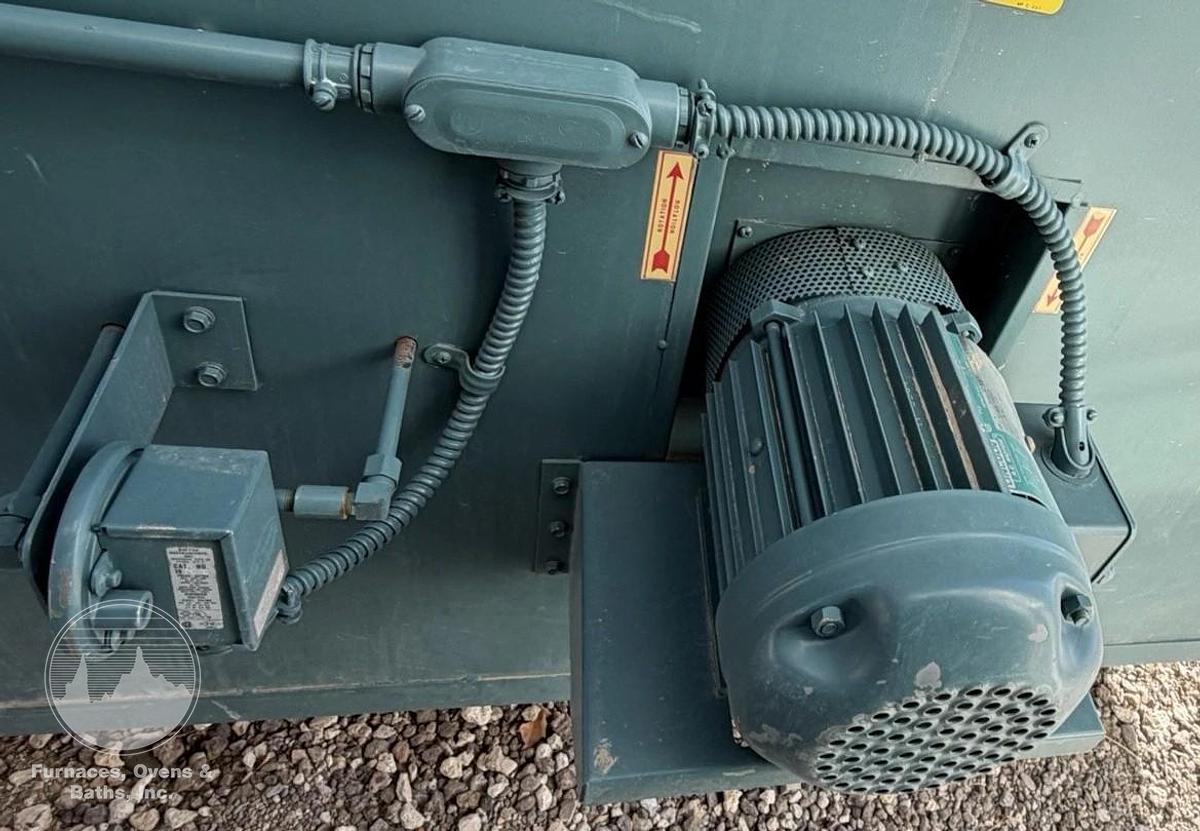

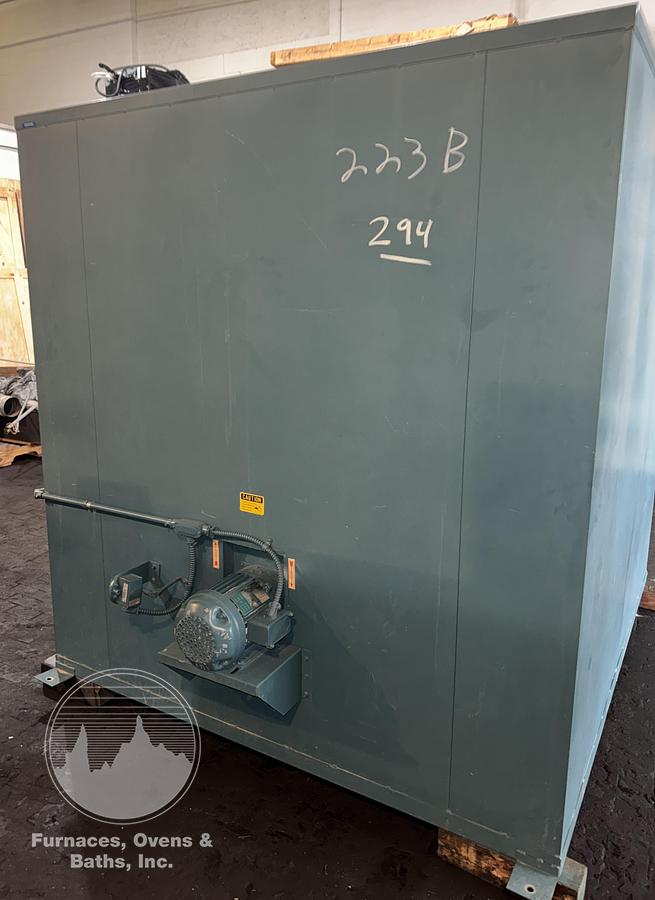

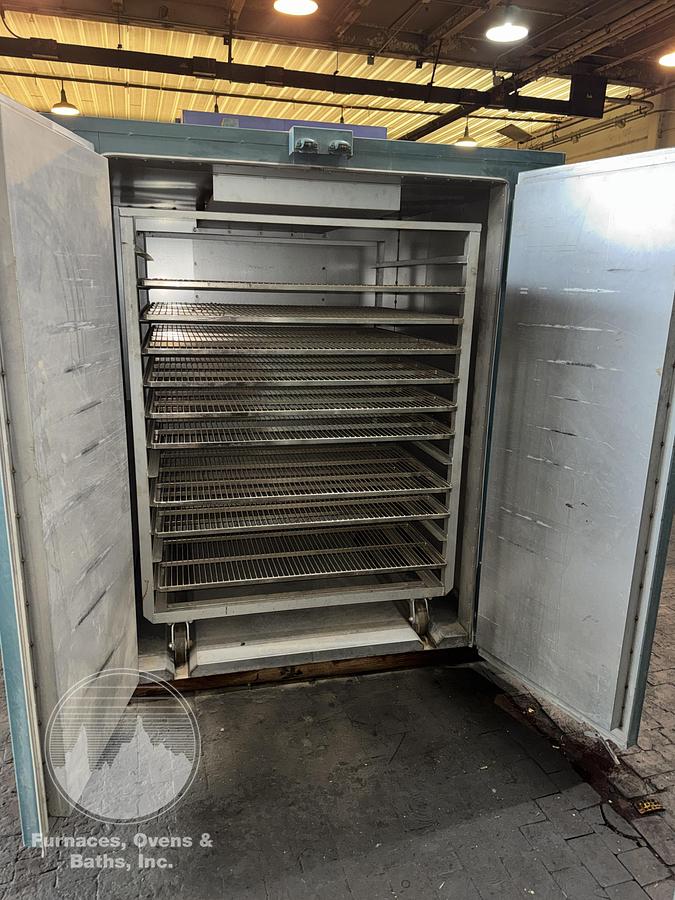

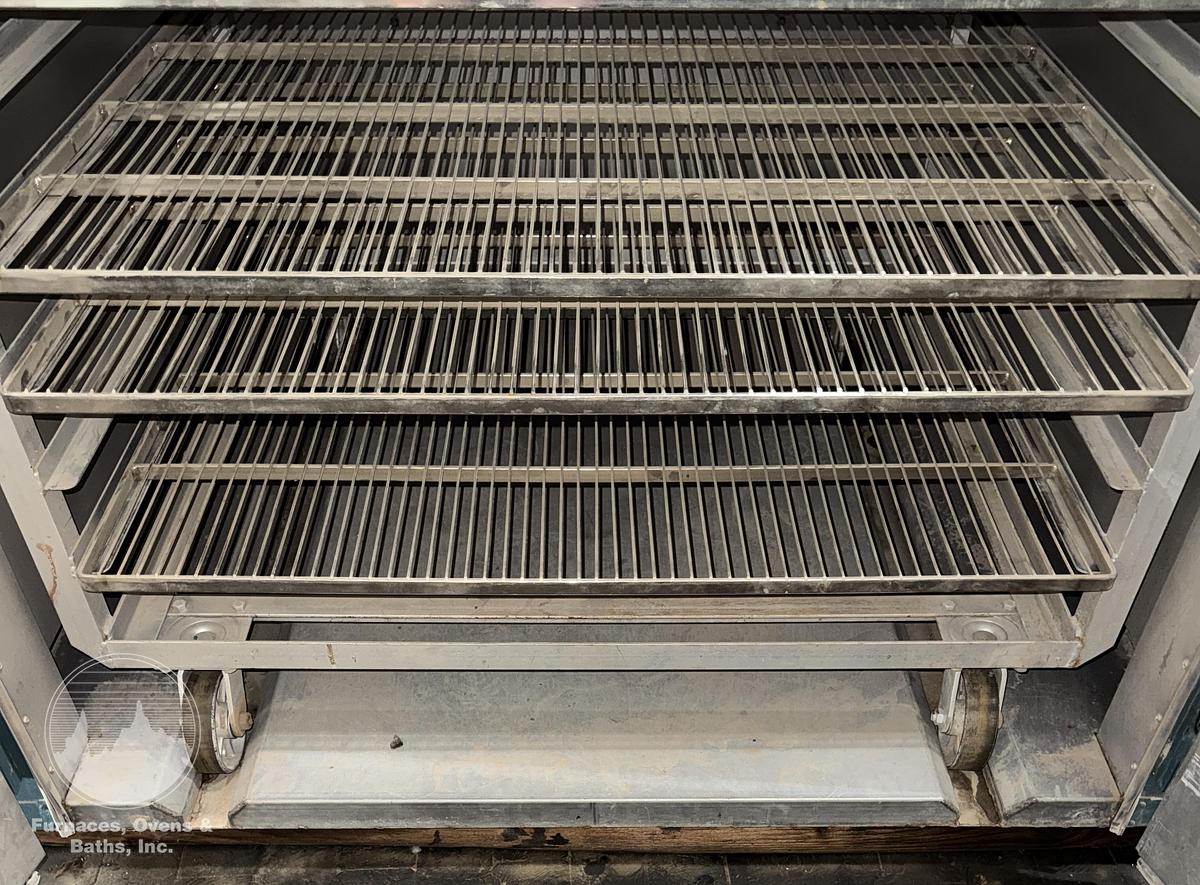

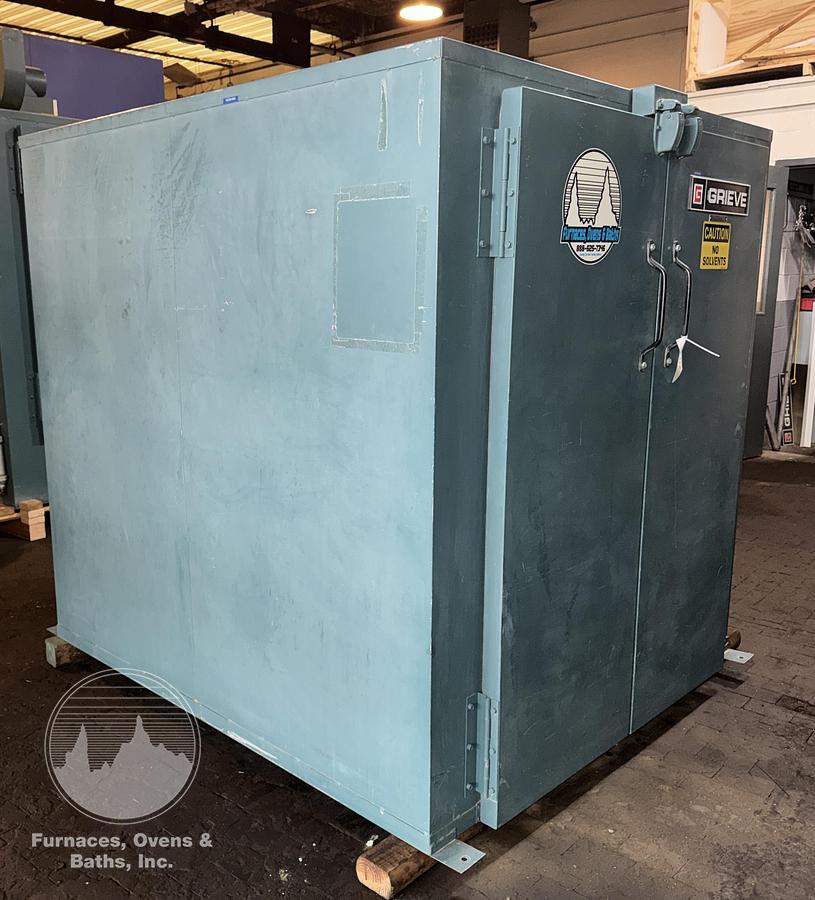

Double doors with silicone rubber gasket and "Brixon" spring tension latches with aluminized steel interior and 6" insulation. The insulated floor has 2" wide cart tracks on 36" centers. The heating elements are located on the right-hand side. There is a 1 HP direct driven circulating fan mounted through the rear wall. Heated air is circulated in a combination horizontal/vertical air flow. A gravity exhaust port is mounted on top of the oven. Fresh air inlet is located on the back side above the element plenum. Oven includes one (1) steel roll in cart. Oven will be tested prior to shipping. Prints and manual included with this oven.

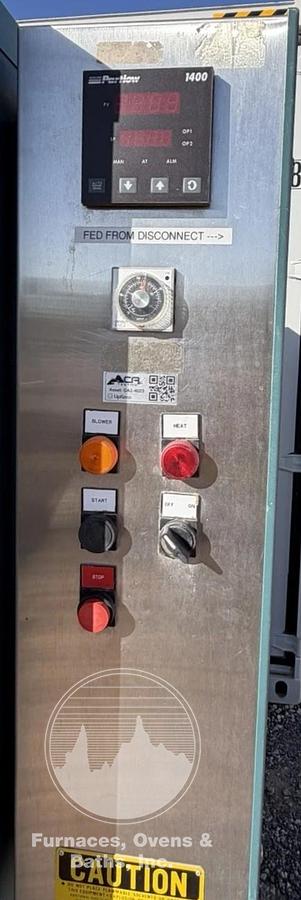

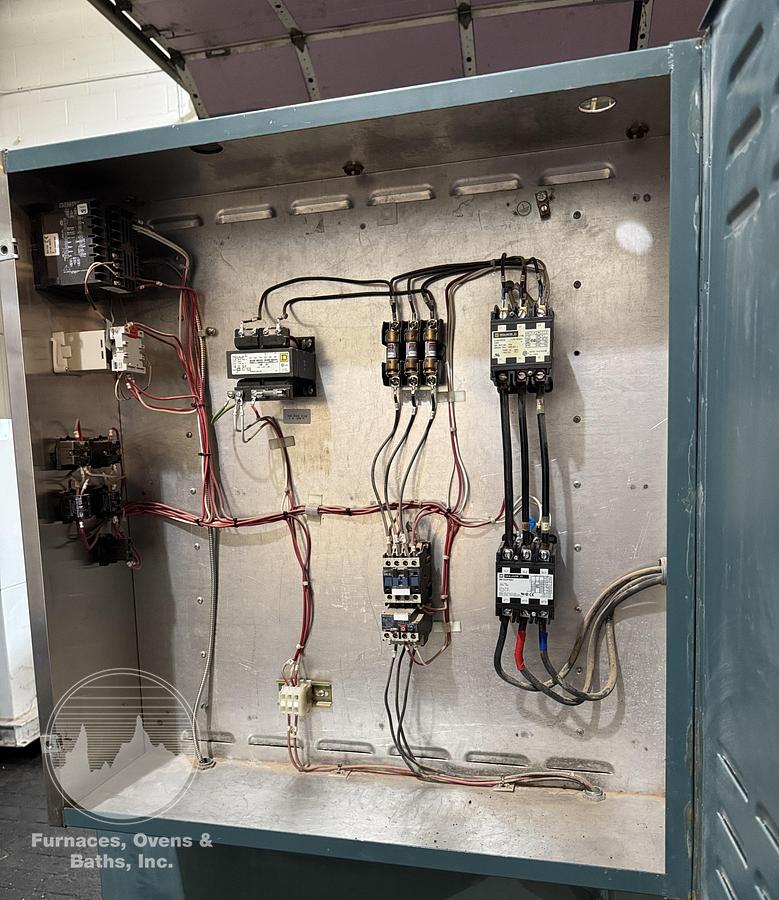

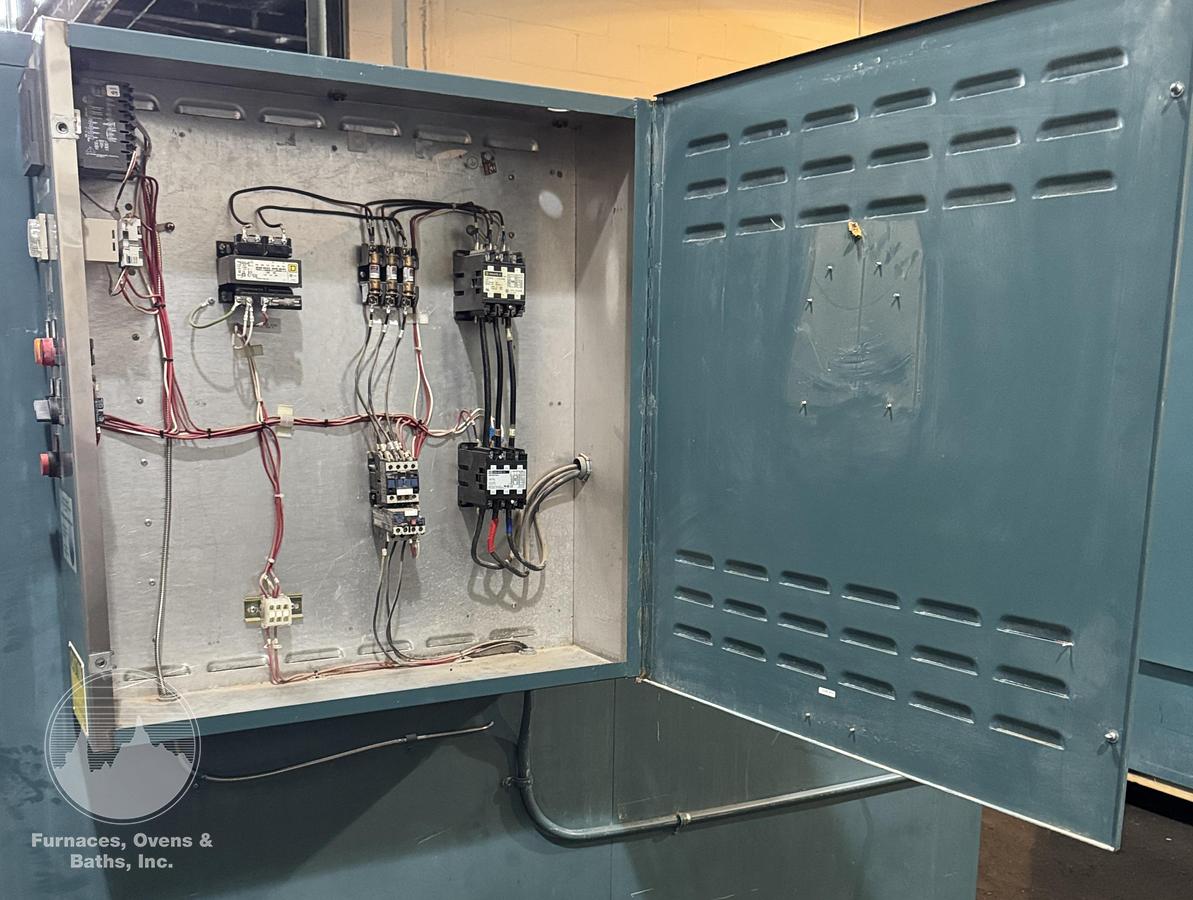

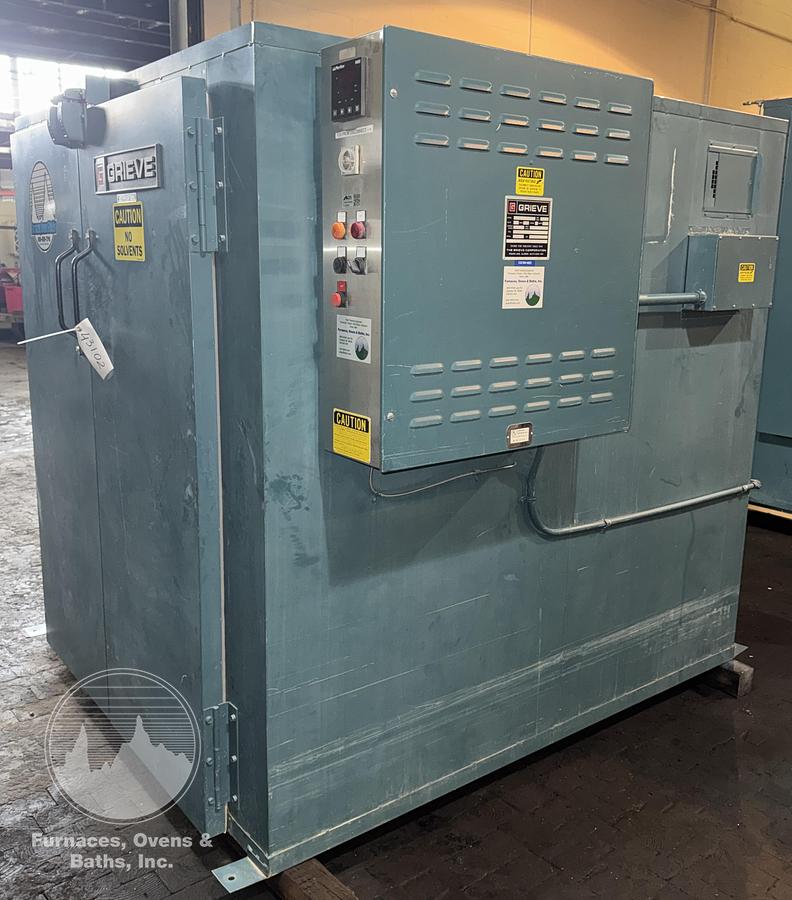

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven and includes a Partlow 1400 digital temperature controller and a Love analog high limit controller. Push button and switches with indicating lights are flush mounted on the front of the enclosure door. Motor starters, fuses, contactors, etc. are mounted inside the enclosure.
