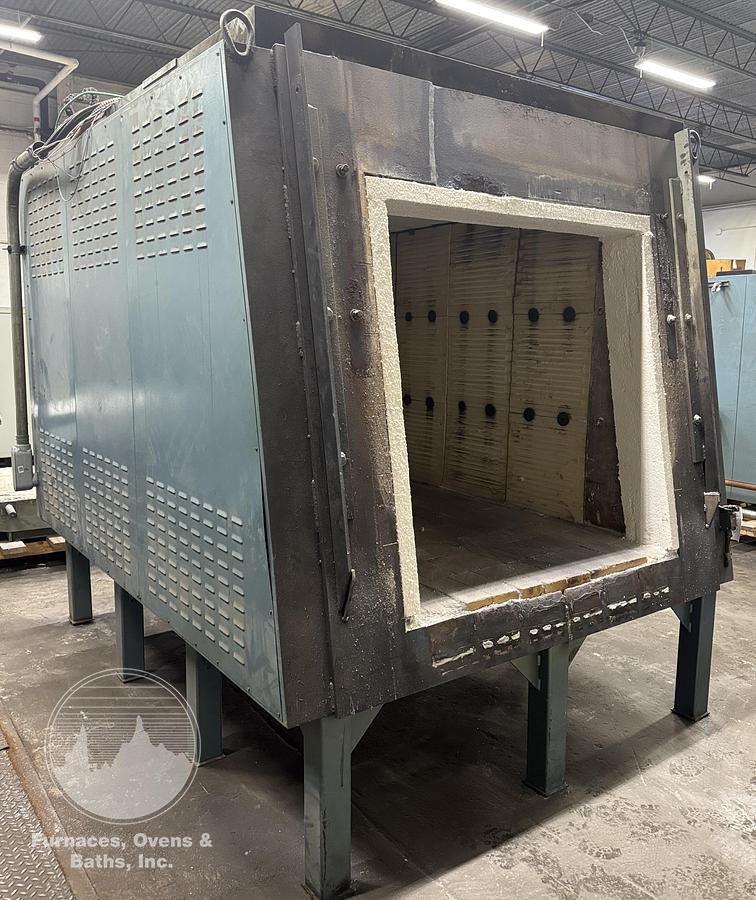

48"W x 48"H x 72"L, Thermcraft, 2200-F, Electric

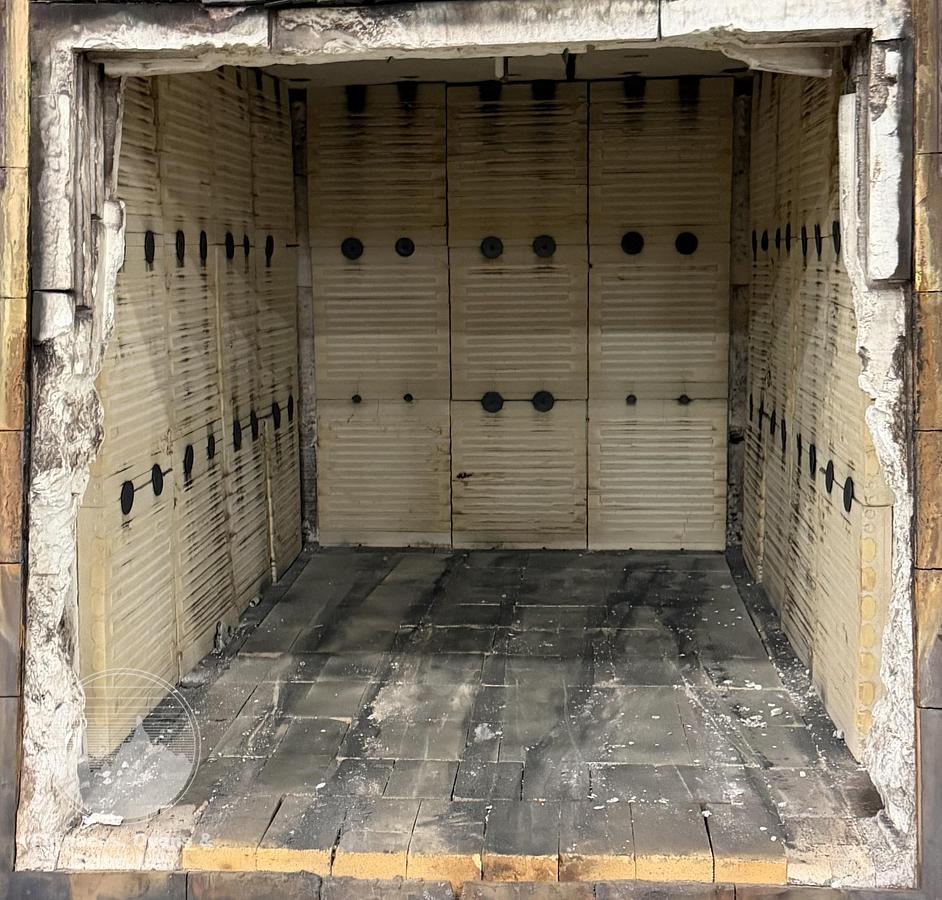

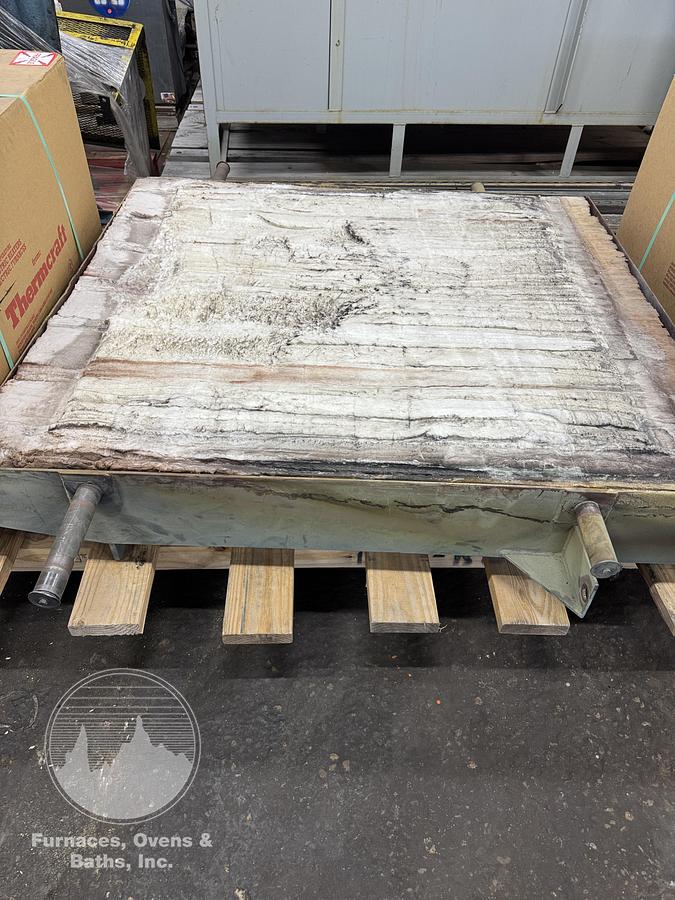

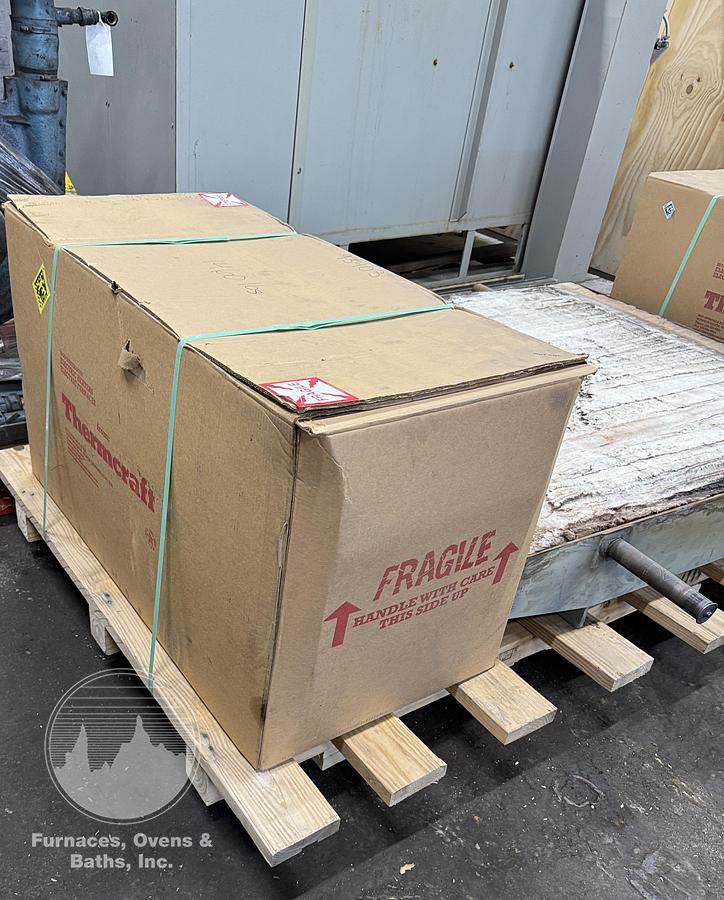

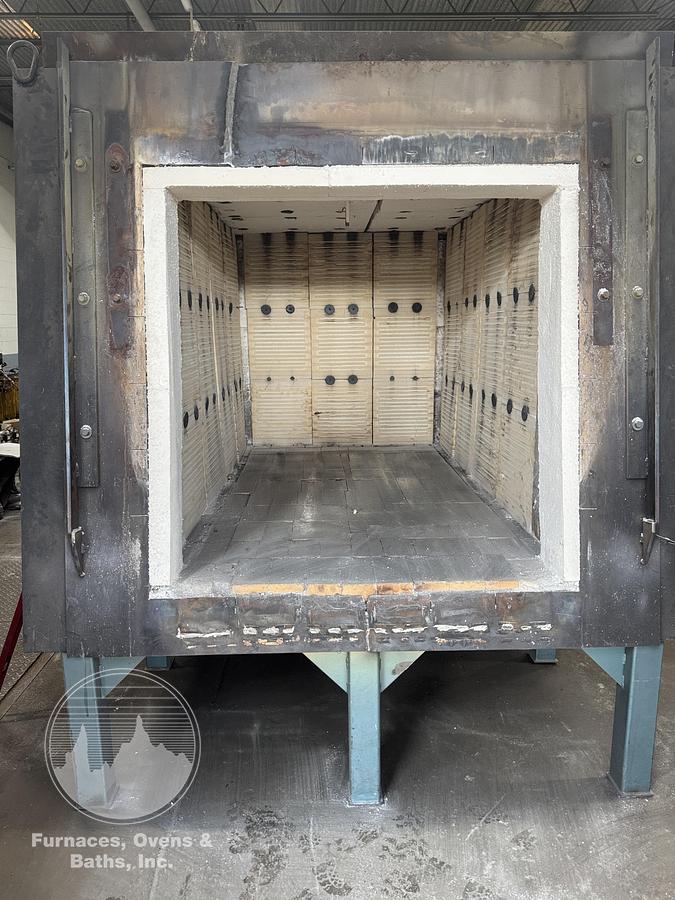

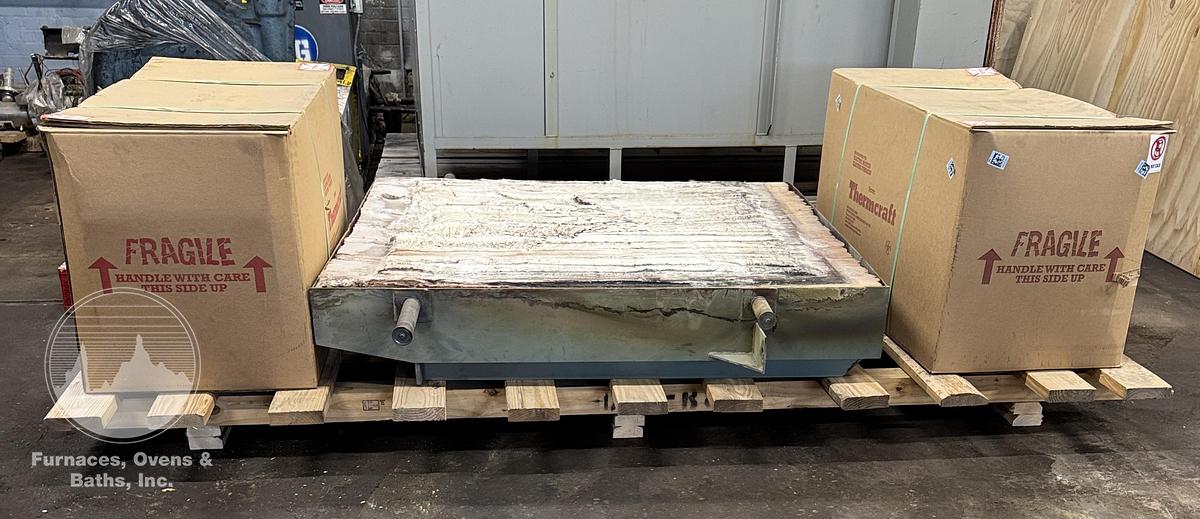

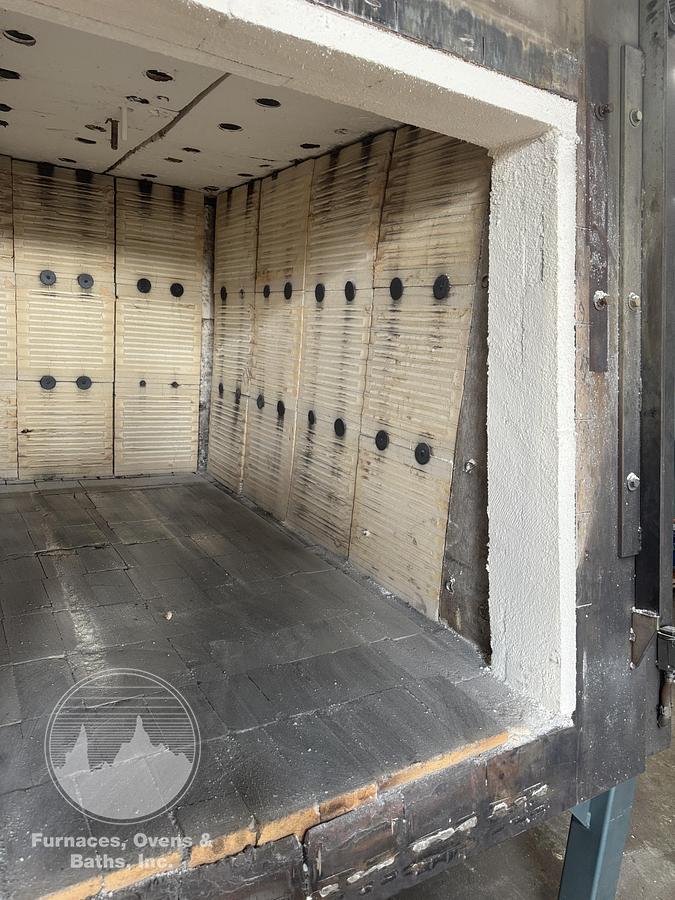

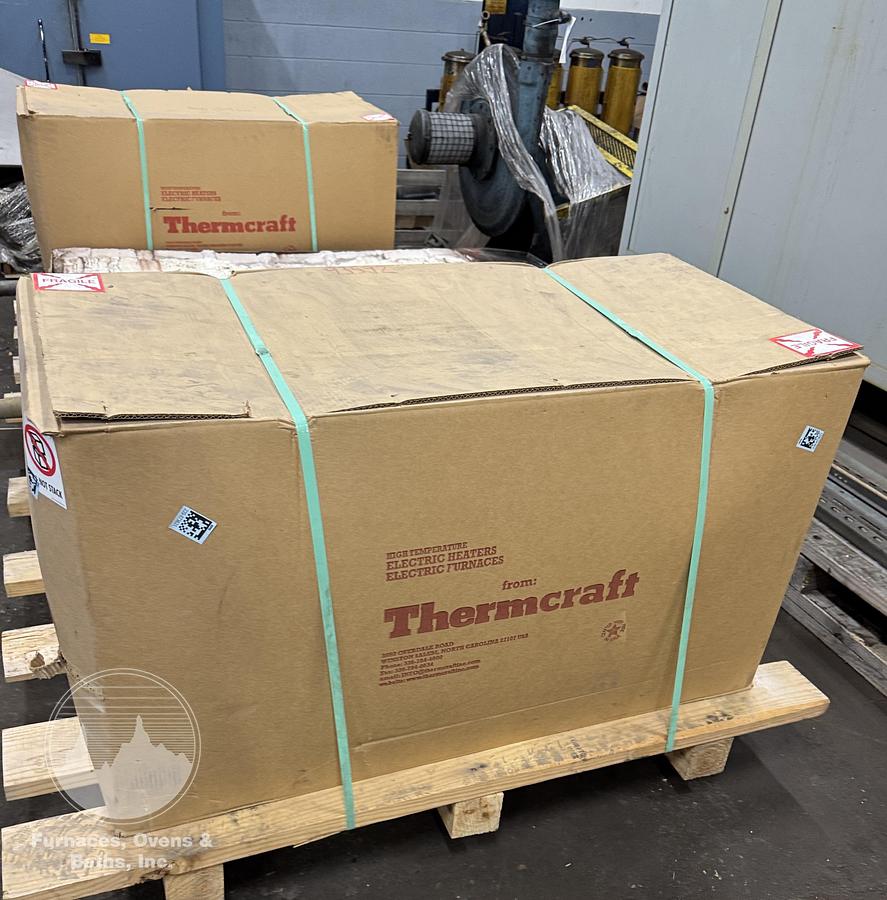

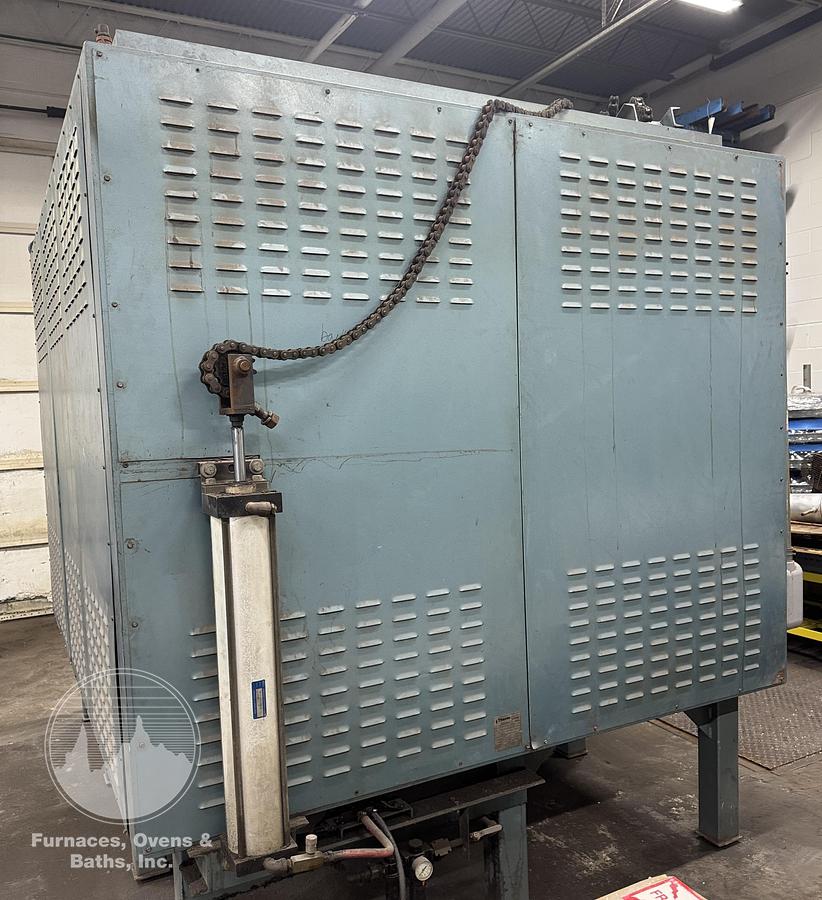

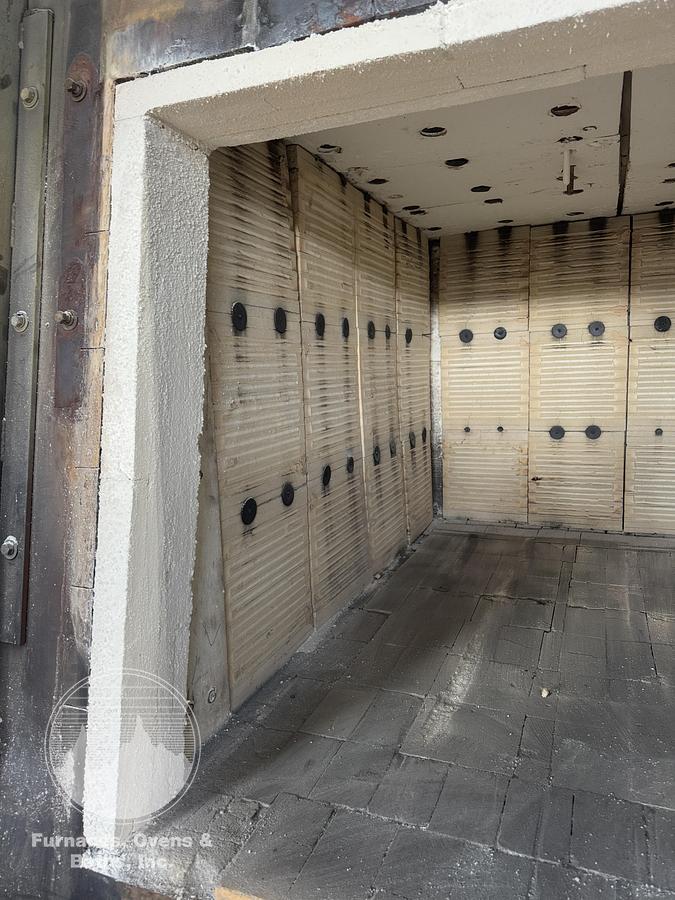

Air operated vertical lift door with hand operator control. Door limit switch cuts power to the heating elements when the door is open. Elements are located on both sidewalls and the rear wall. Spare heating elements, manual and drawings are included with this furnace.

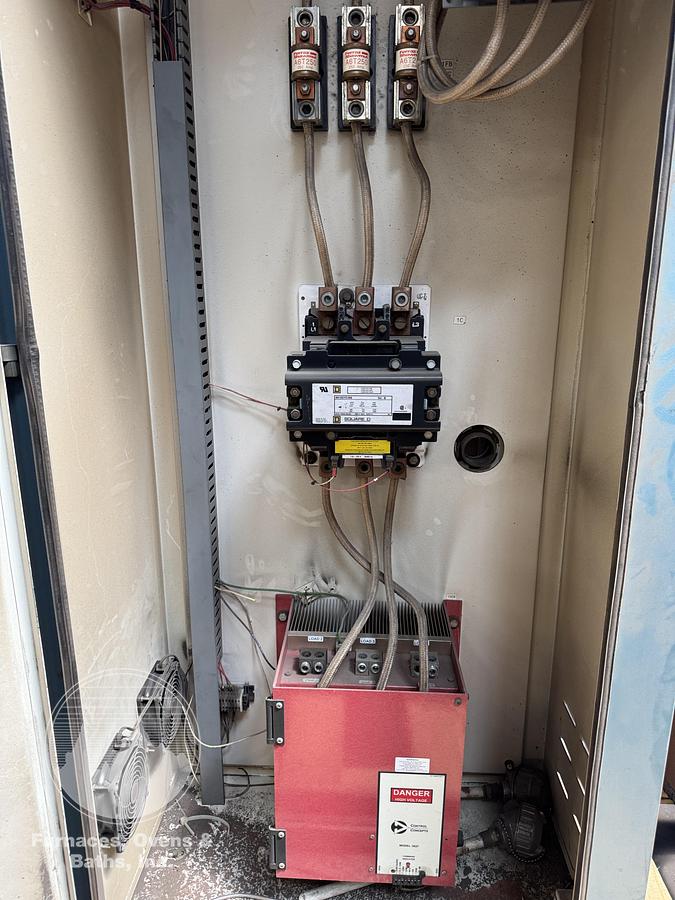

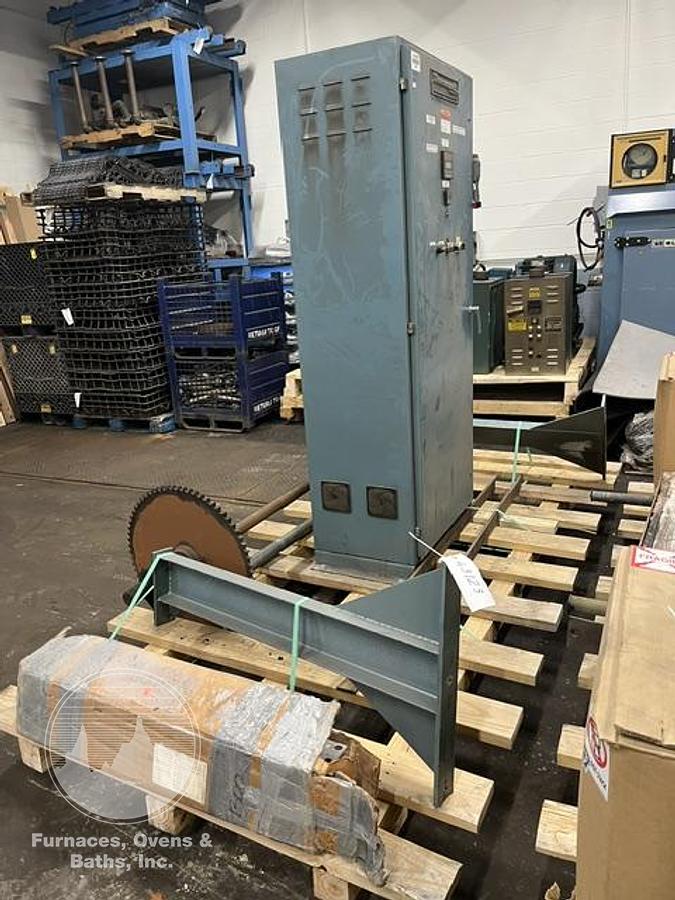

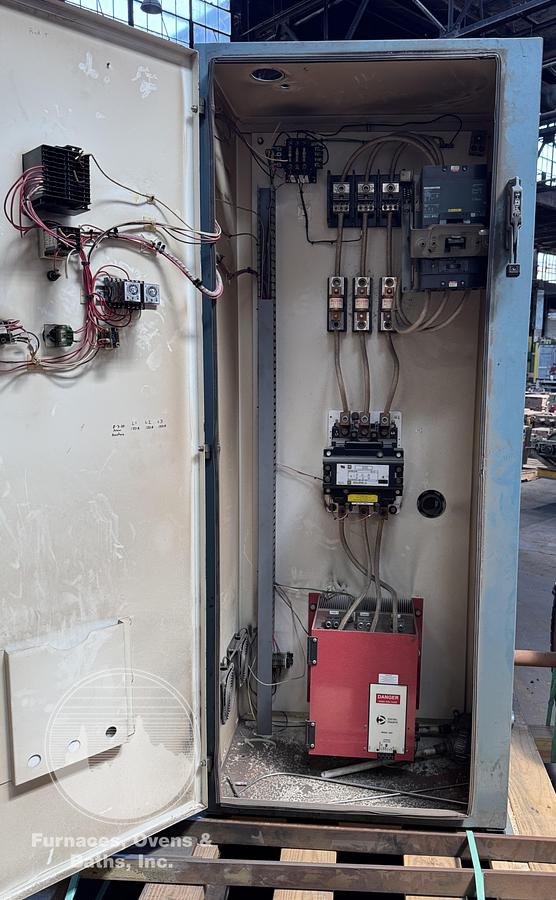

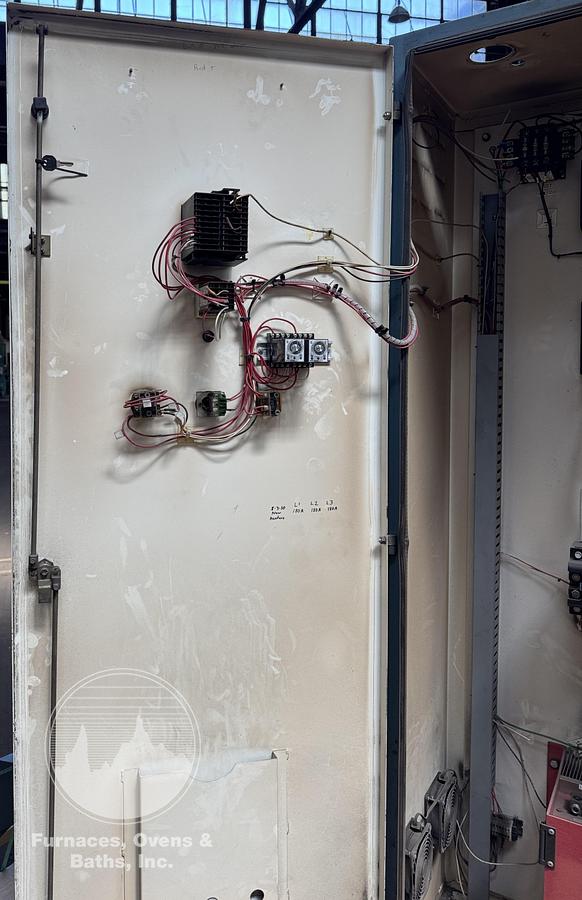

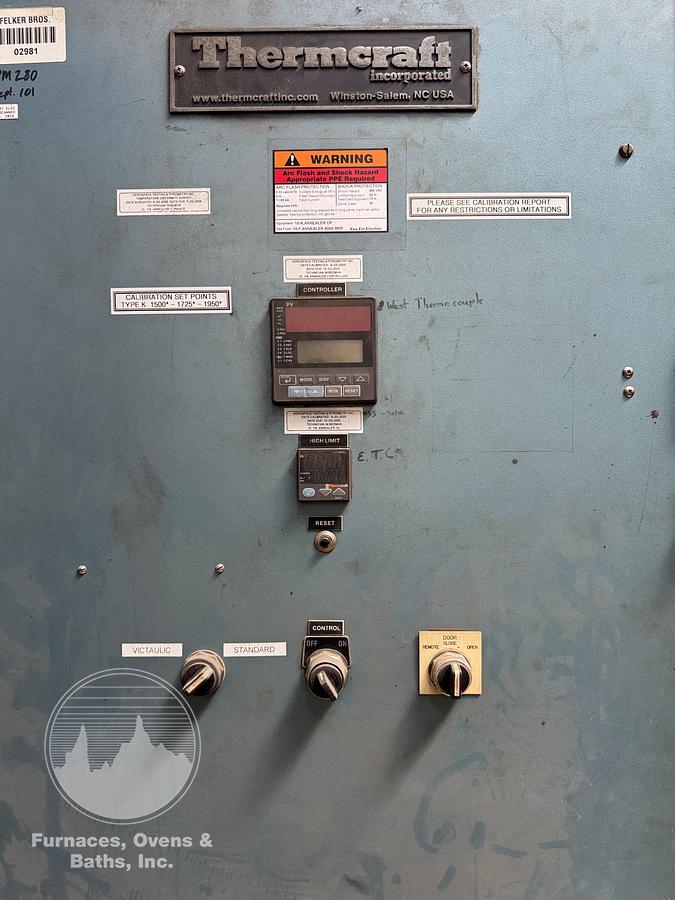

Controls are mounted in a free standing enclosure with fused disconnect. Flush mounted to the faced of the control panel includes a Yokogawa UP-550 digital programmable temperature controller and a Yokogawa UT150L digital high limit along with switches for control power etc. "Control Concepts" SCR power controller, high limit contactor, fuses, relays, cooling fans etc. are mounted inside the control panel.
