36"W x 36"H x 48"L, J.L. Becker, 1400°F, Gas Fired, Fiber Lined, AMS 2750H

36"W x 36"H x 48"L, J.L. Becker, 1400°F, Gas Fired, Fiber Lined, AMS 2750H

Contact us for price

or
Call 248-343-1421

Description

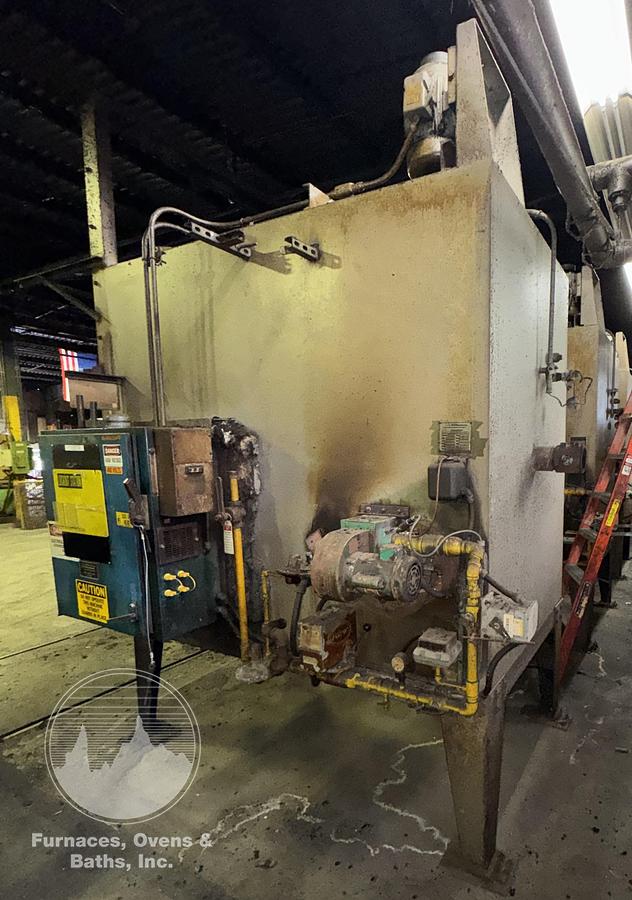

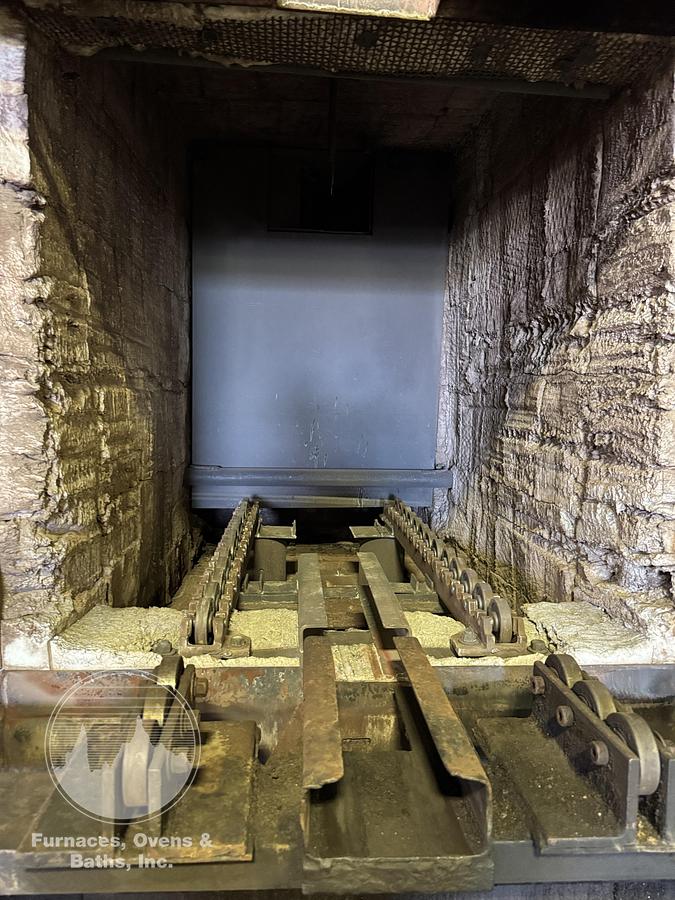

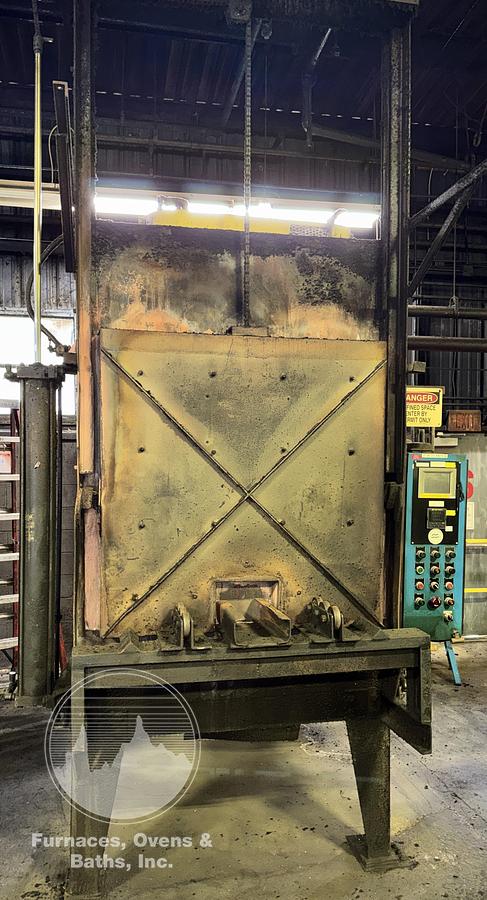

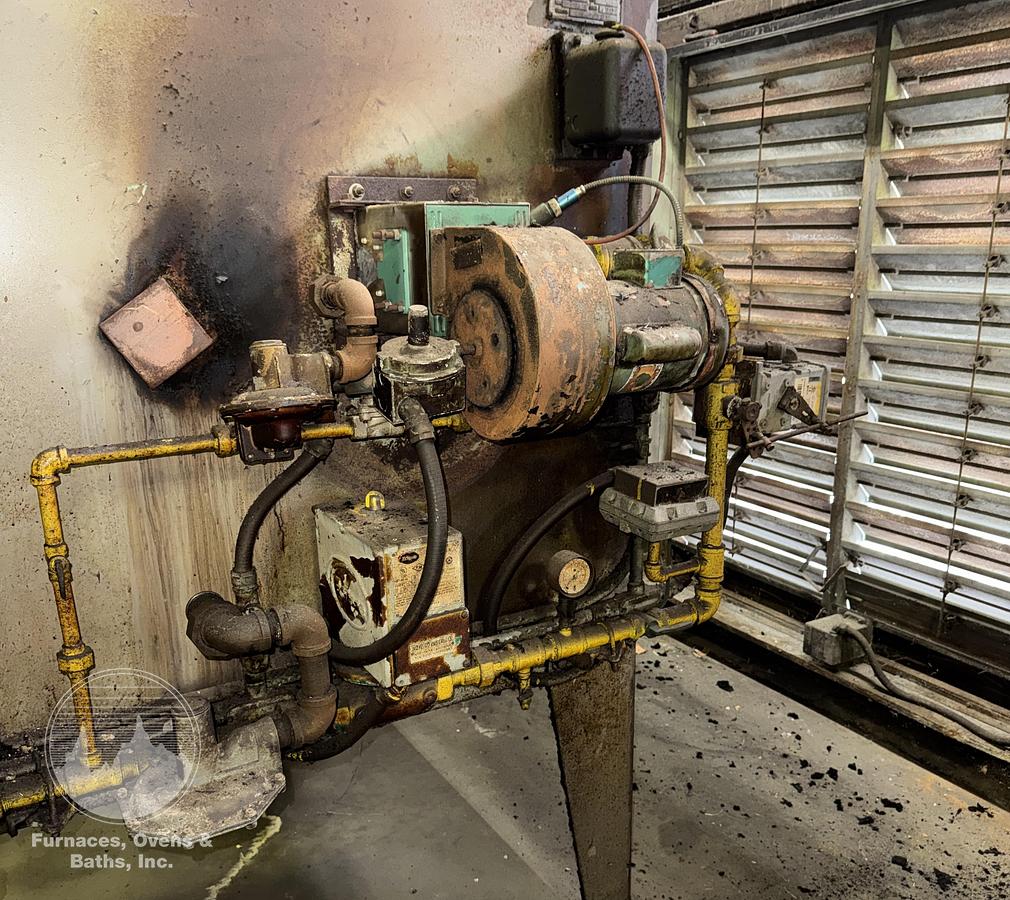

Fiber Lined Recirculating Box Tempering Furnace complete with Top-Mounted Alloy Recirculating Fan, Eclipse AH Package Burner System w/Flame Safety, Alloy Roller Rail Hearth, and Vertical Rising Pneumatic Front Door.

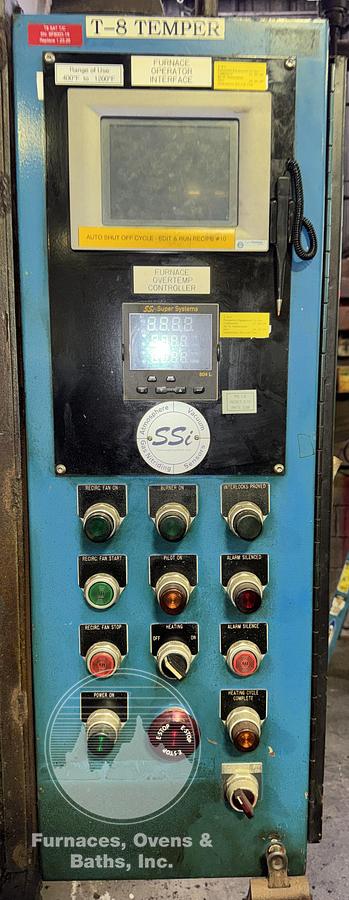

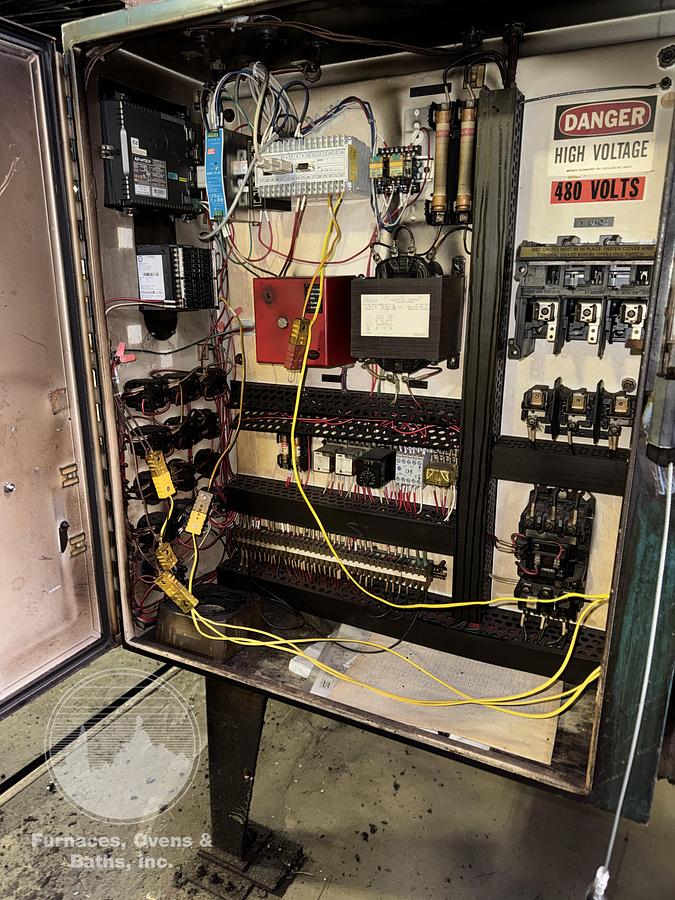

Side-Mounted Control Panel with SSi Controls, Fire Eye Flame Safety w/UV Scanner and Spark Ignition.


Note: Bolted On Legs are removed for shipping.

Show All

Specifications

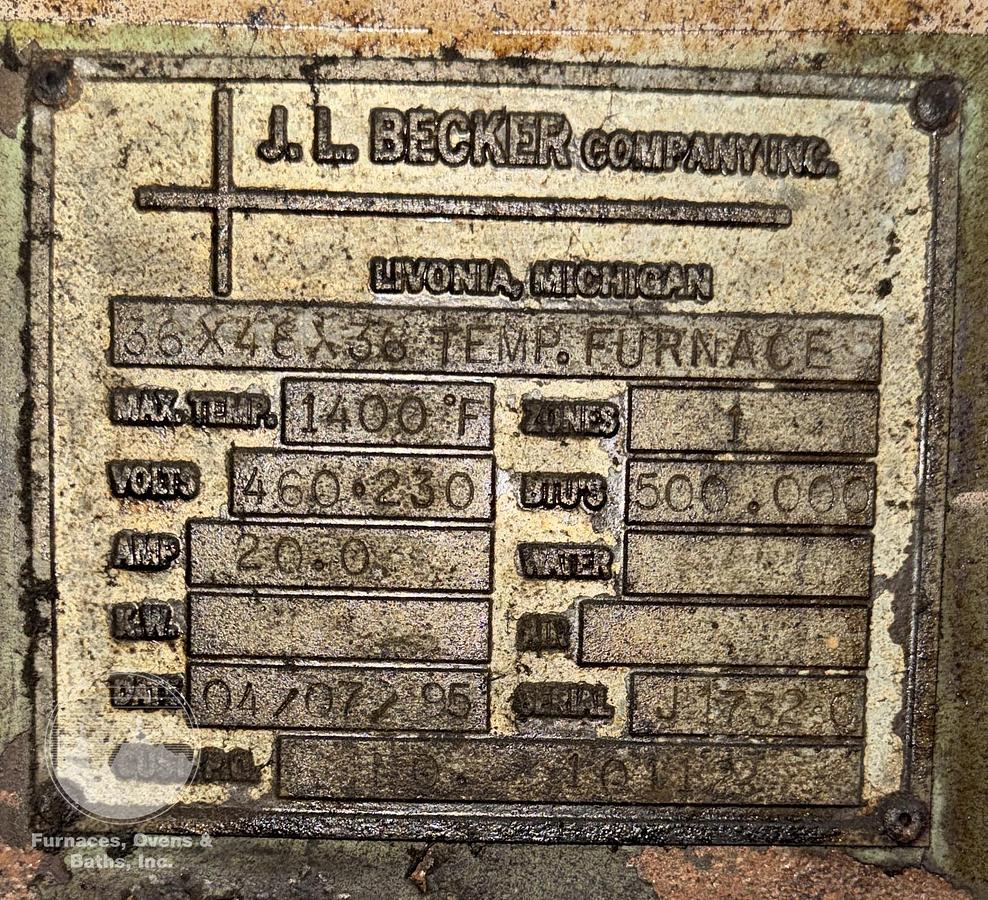

ManufacturerJ.L. Becker
Model36 x 48 x 36 Temper Furnace
Year1995
ConditionUsed
Serial NumberJ/1732.C (T-8)
Stock Number7937
Work area36"W x 36"H x 48"L
HeatedNatural Gas - 500,000 BTU’s/Hour
Max temperature1400°F
Voltage460/3/60/20 Amps
External dimensions84” wide x 147” high x 120” long
AvailabilityImmediate
