36"W x 36"H x 48"L, Brimstone/Thermcraft, Electric, 1250-F

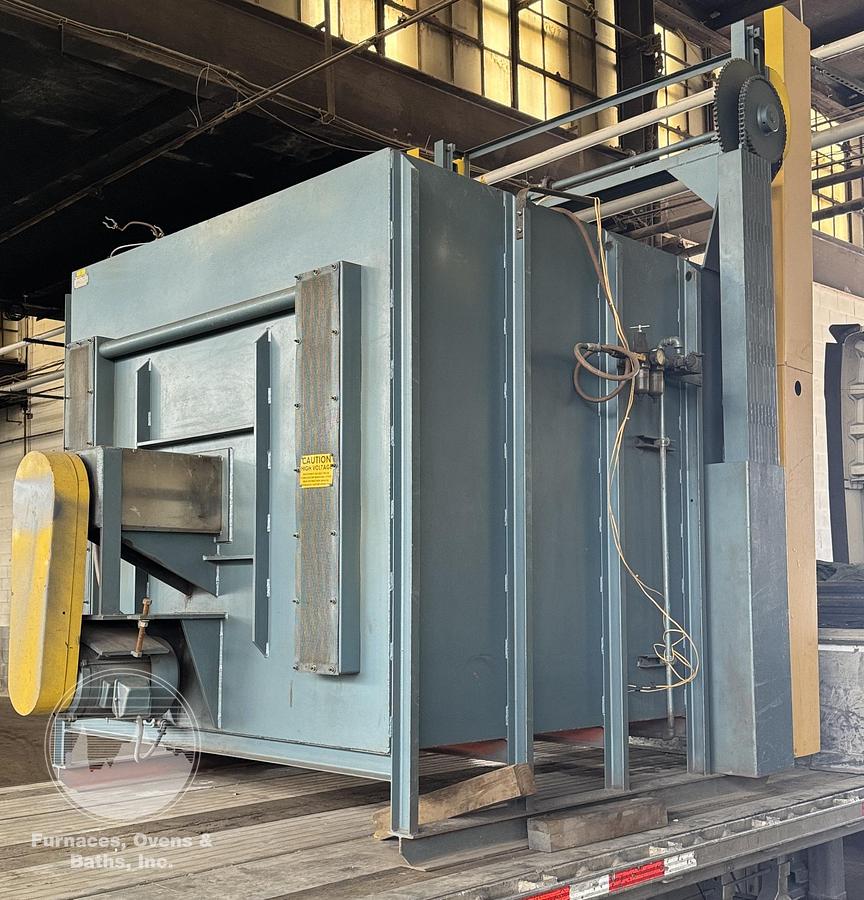

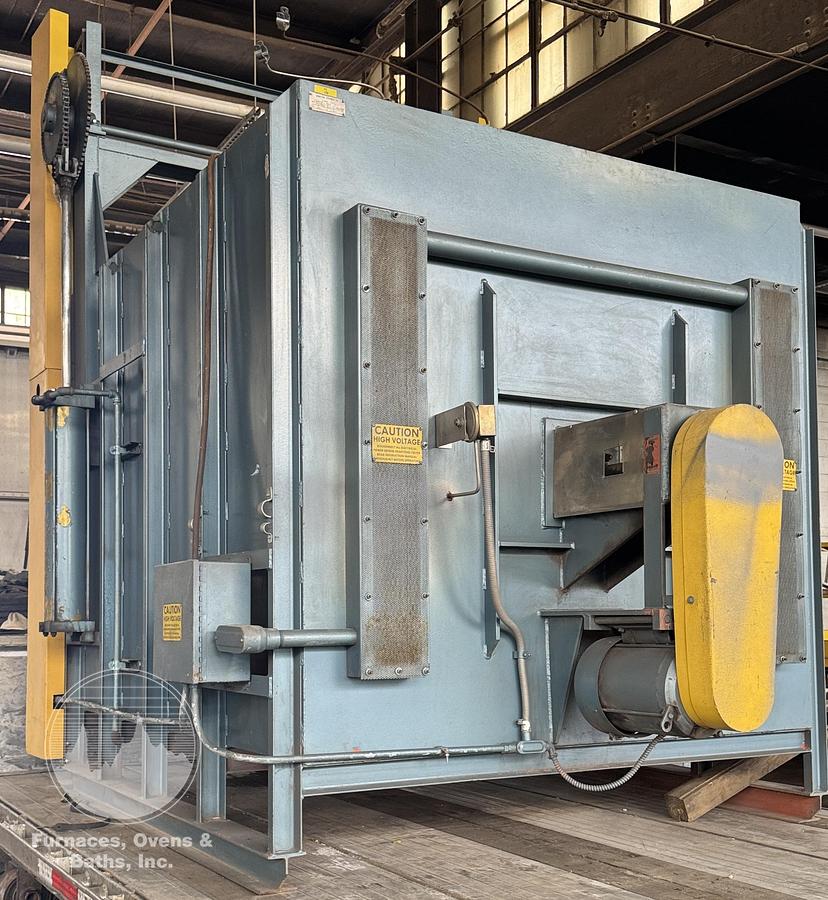

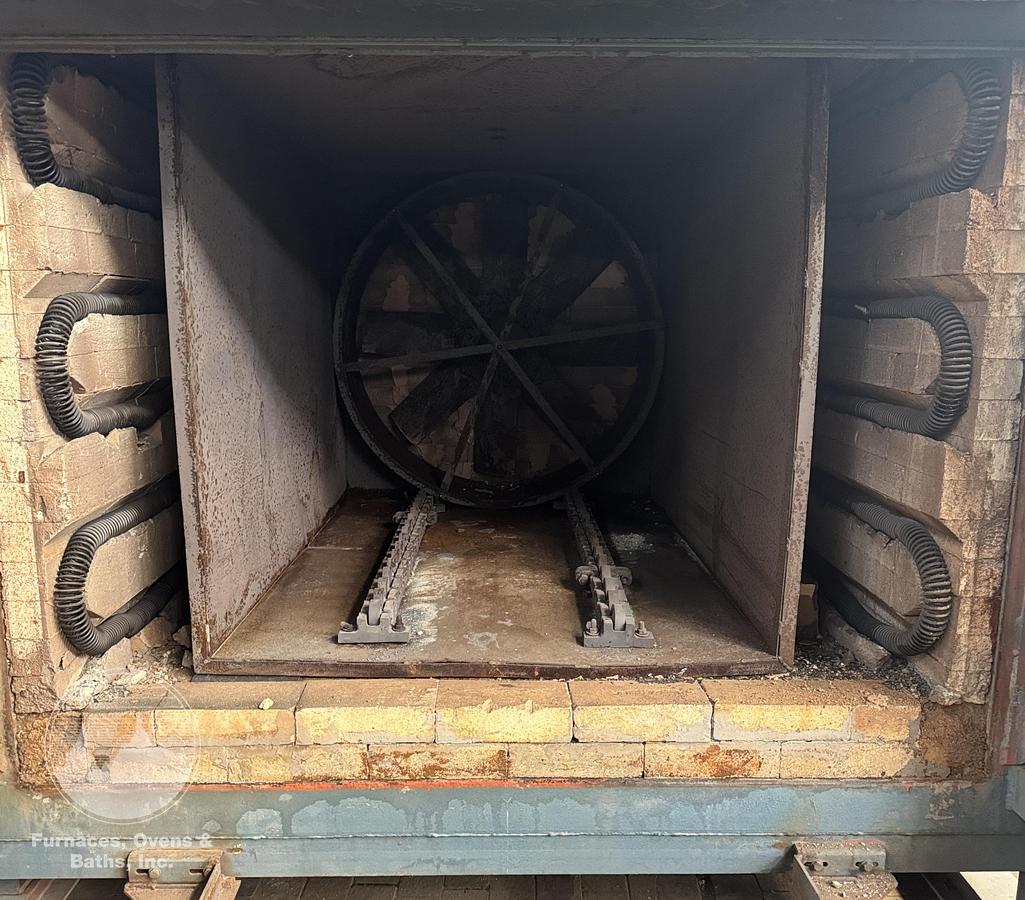

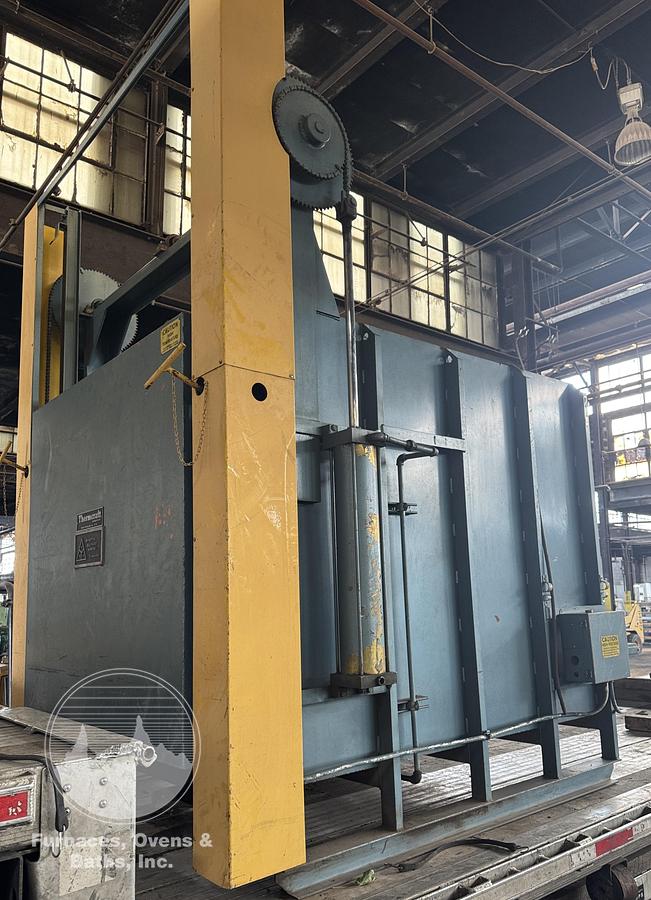

Air operated counter weight assisted vertical lift door with door limit switch and hand operator control. Coil type heating elements are located on both sidewalls. Circulating fan is mounted through the rear wall. Stainless steel air duct liner for good air circulation. Roller rail type hearth. Some manuals and drawings are included with this furnace. Furnace includes a powered mobile load table.

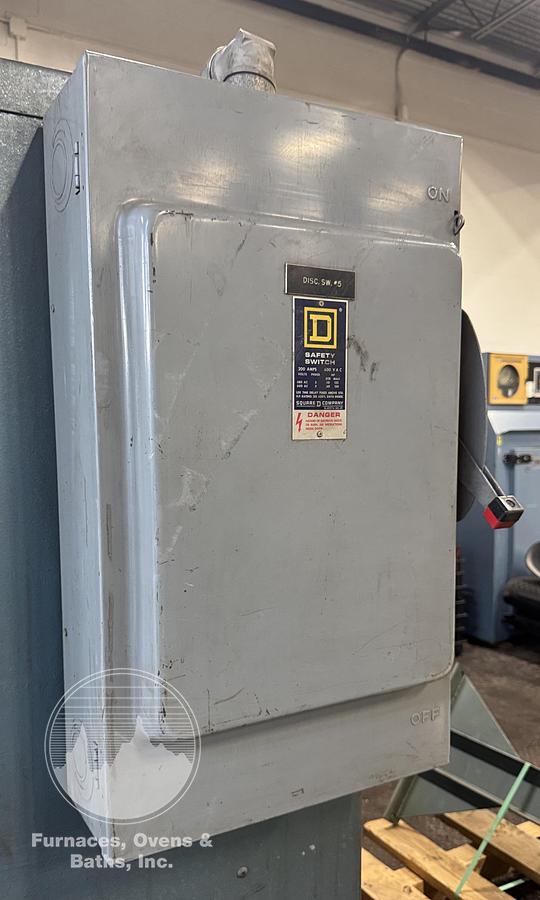

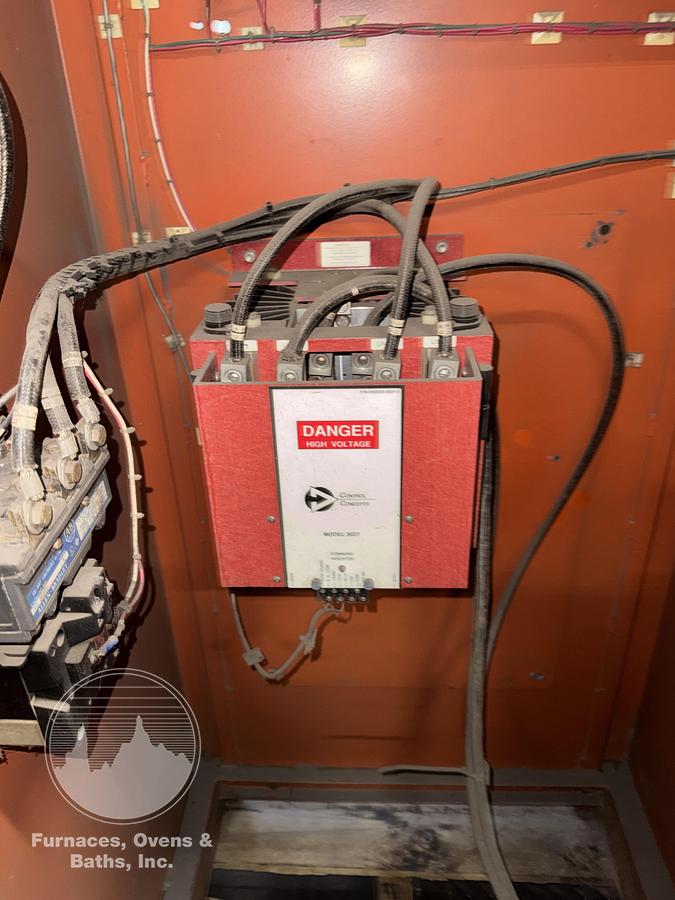

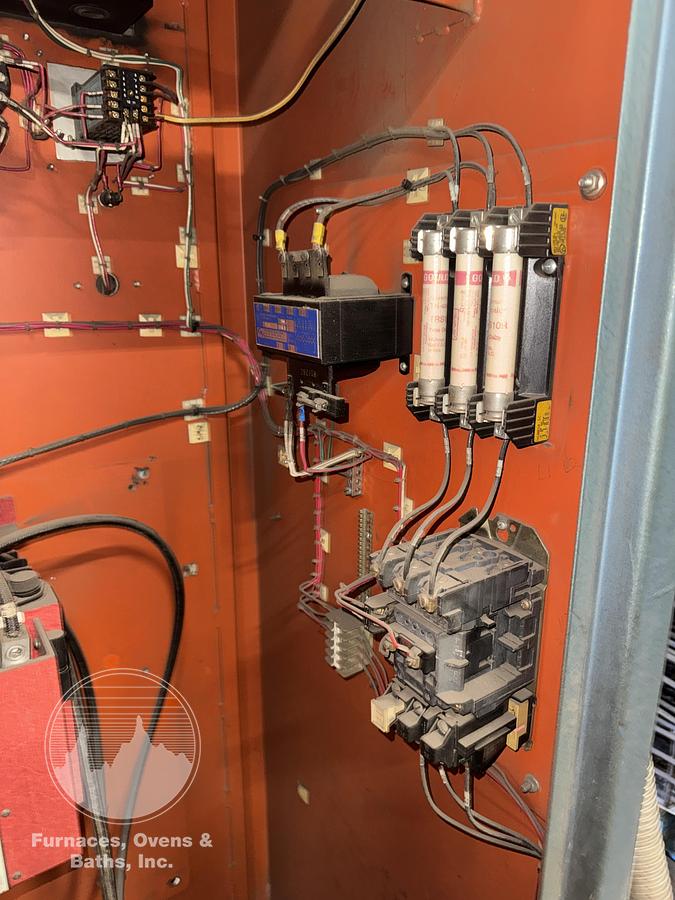

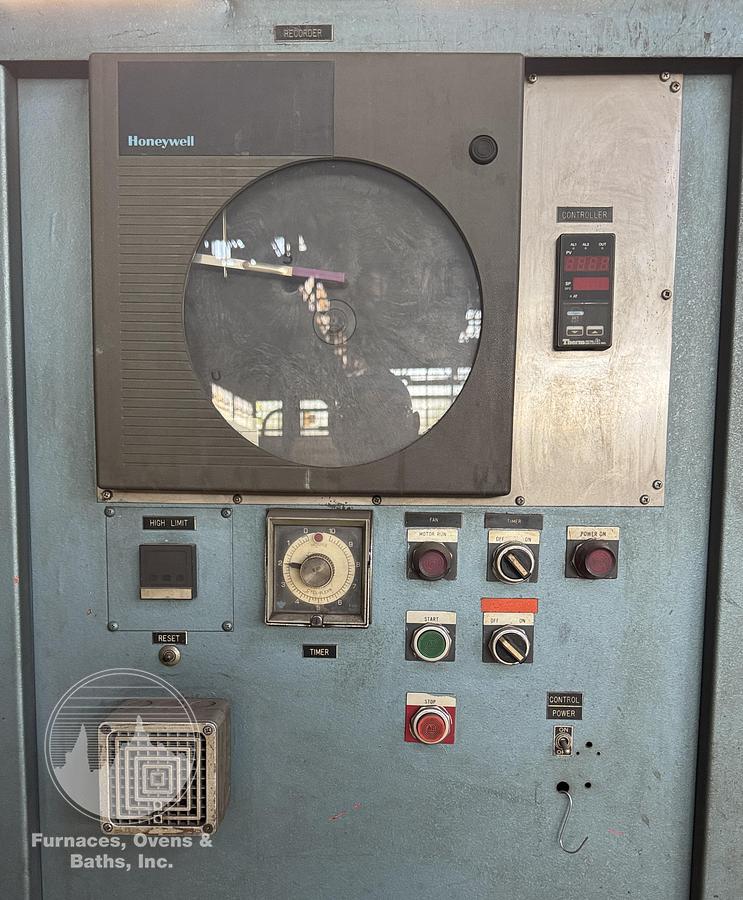

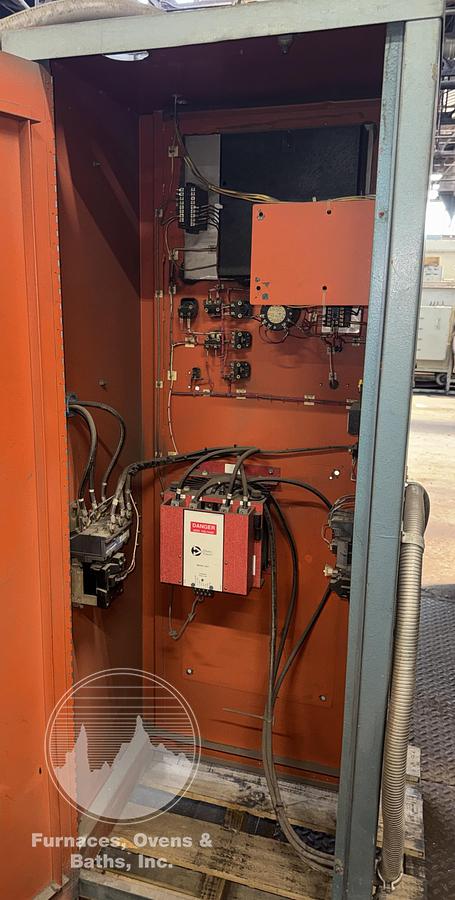

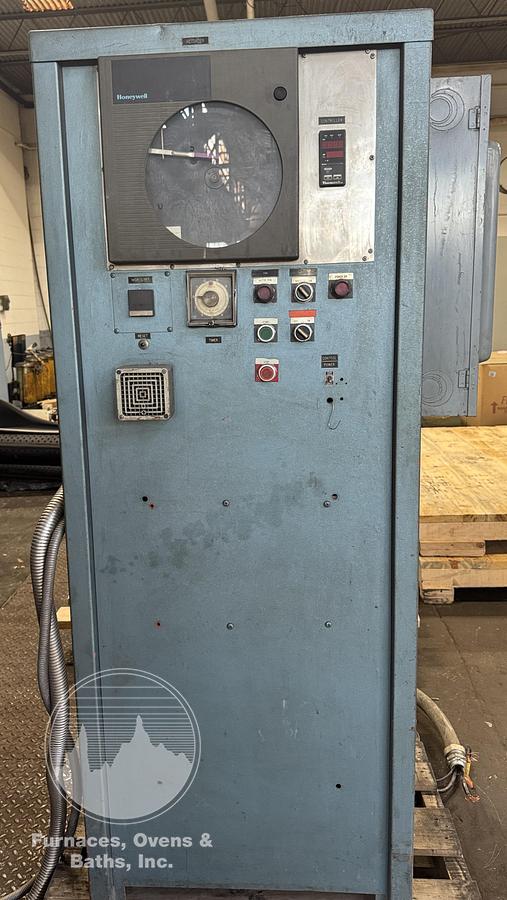

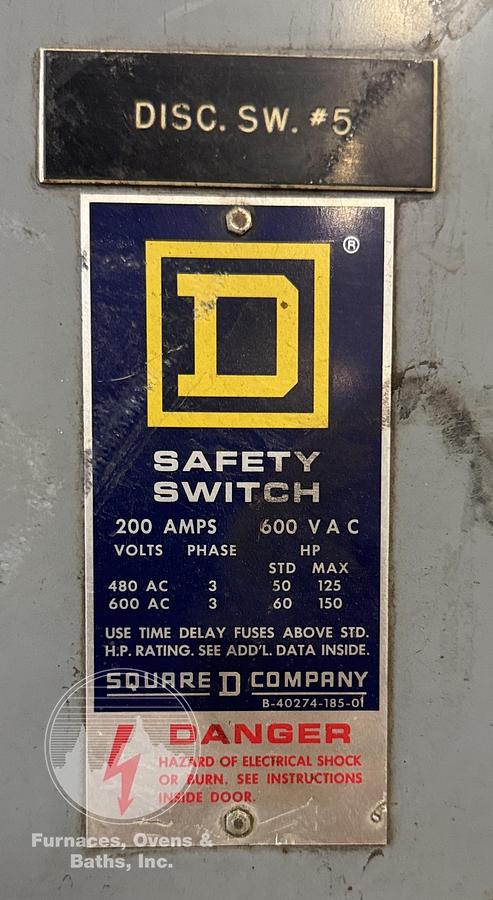

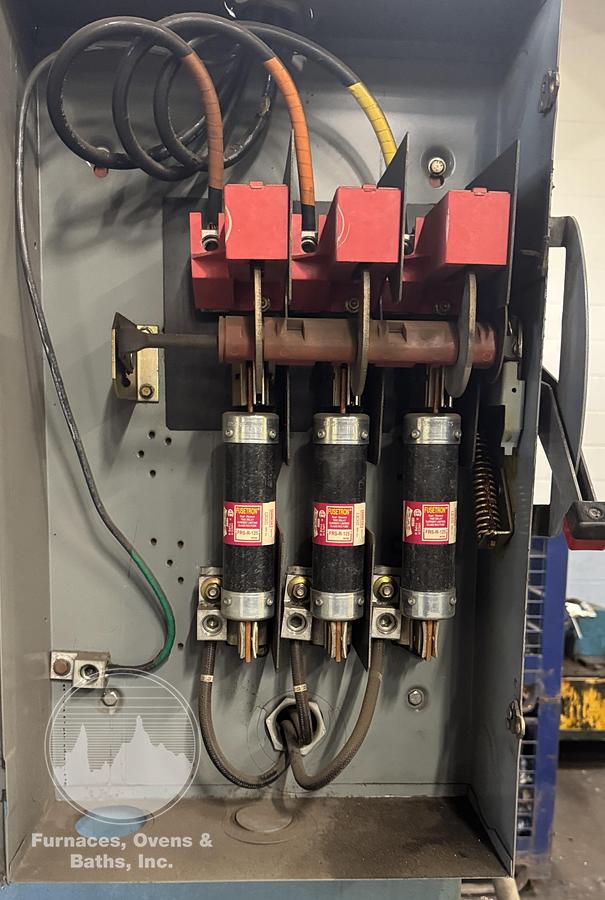

Controls are mounted in a free standing enclosure with fused disconnect. There is a Yokogawa digital temperature controller and digital high limit along with switches and signal lights for control power, fan and timer flush mounted to the face of the enclosure. Control Concepts SCR, high limit contactor, motor starter, fuses, relays etc. are mounted inside the enclosure.
