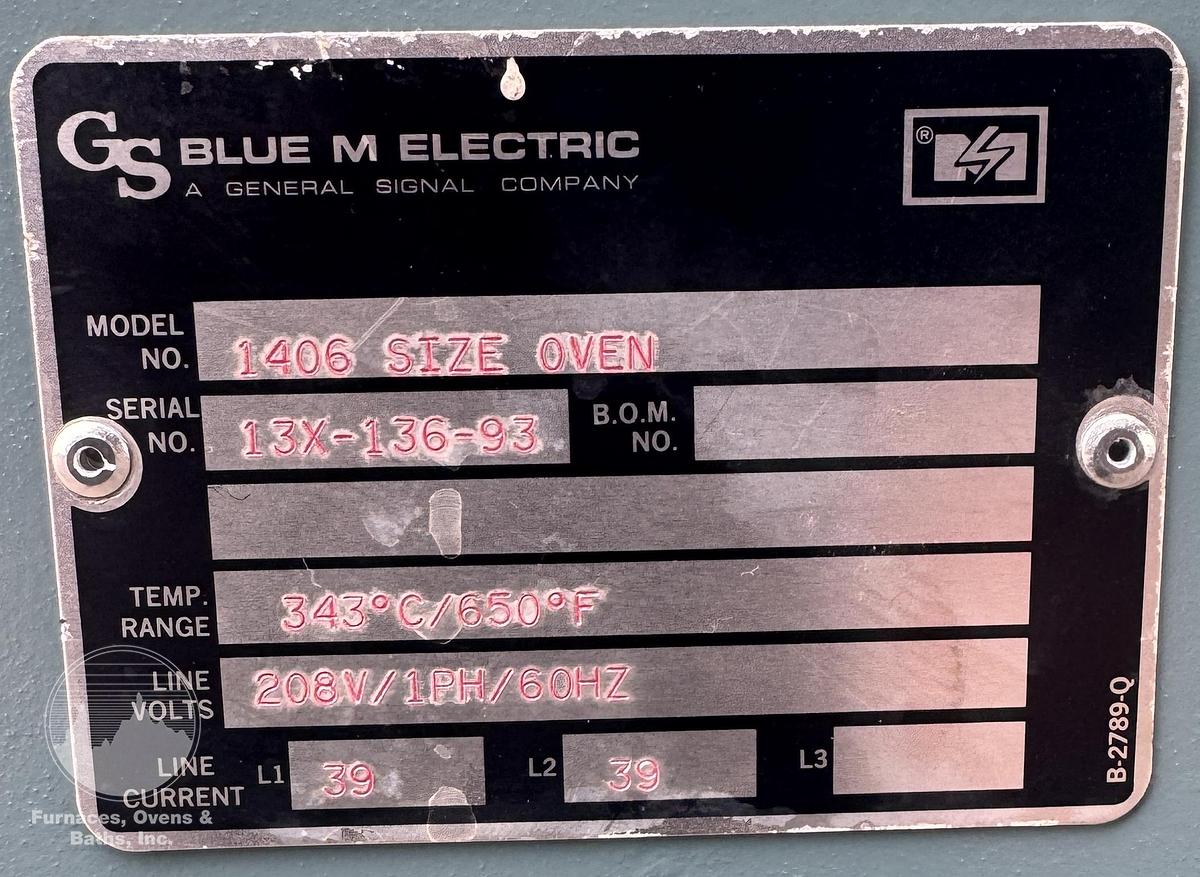

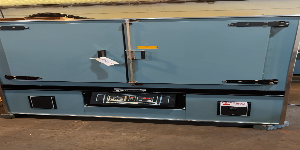

48"W x 36"H x 24"L Blue M 1406 Cabinet Oven, 650°F, Electric, Single Phase

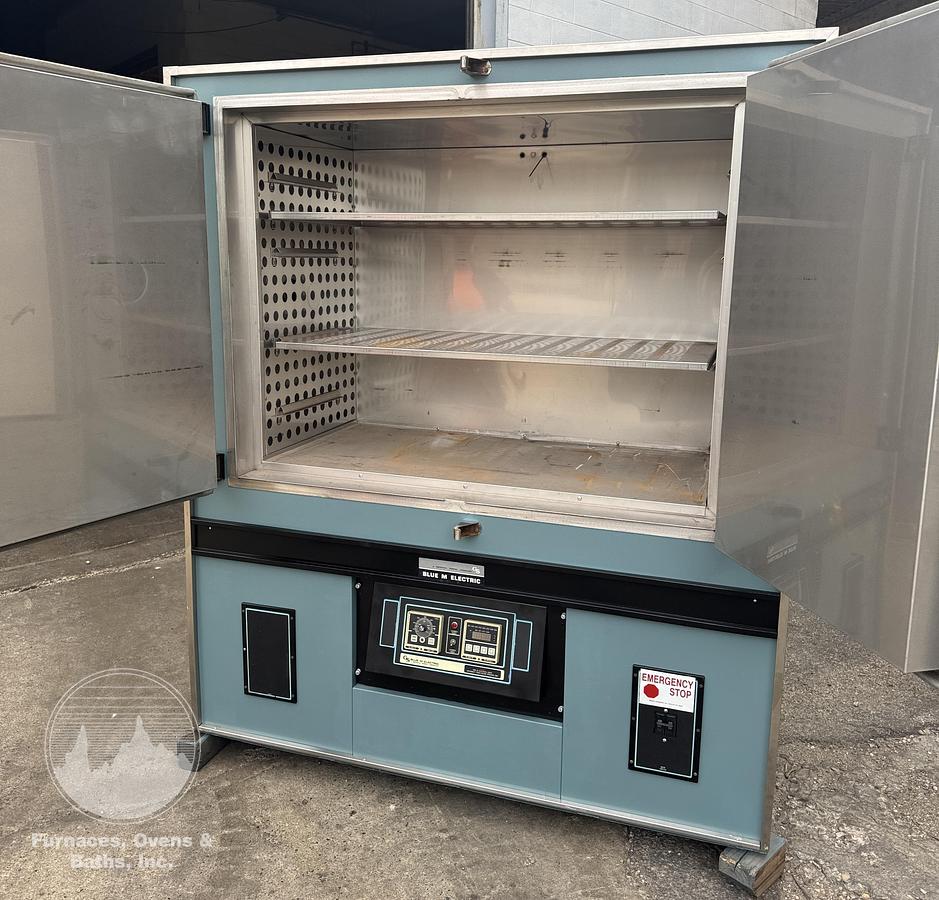

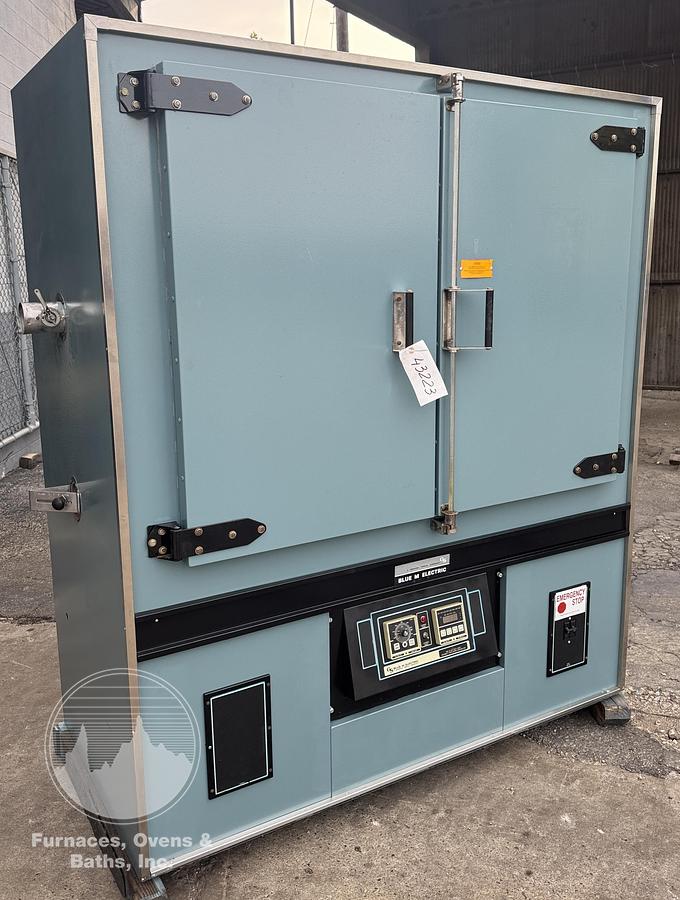

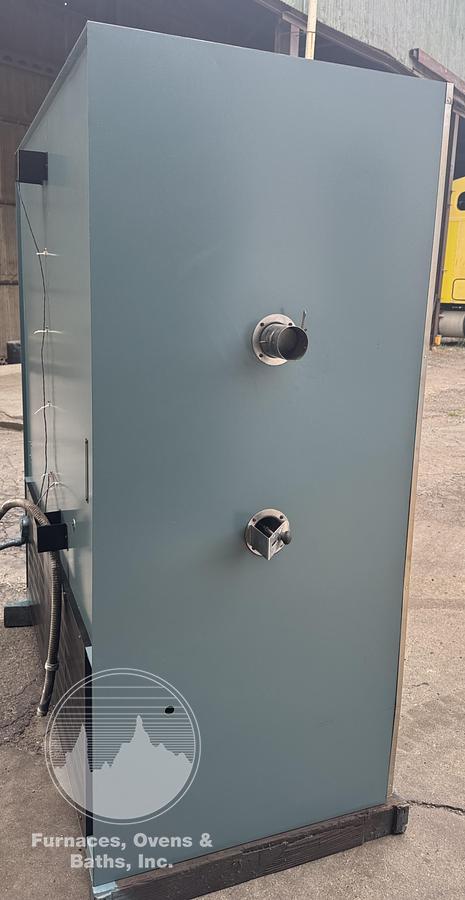

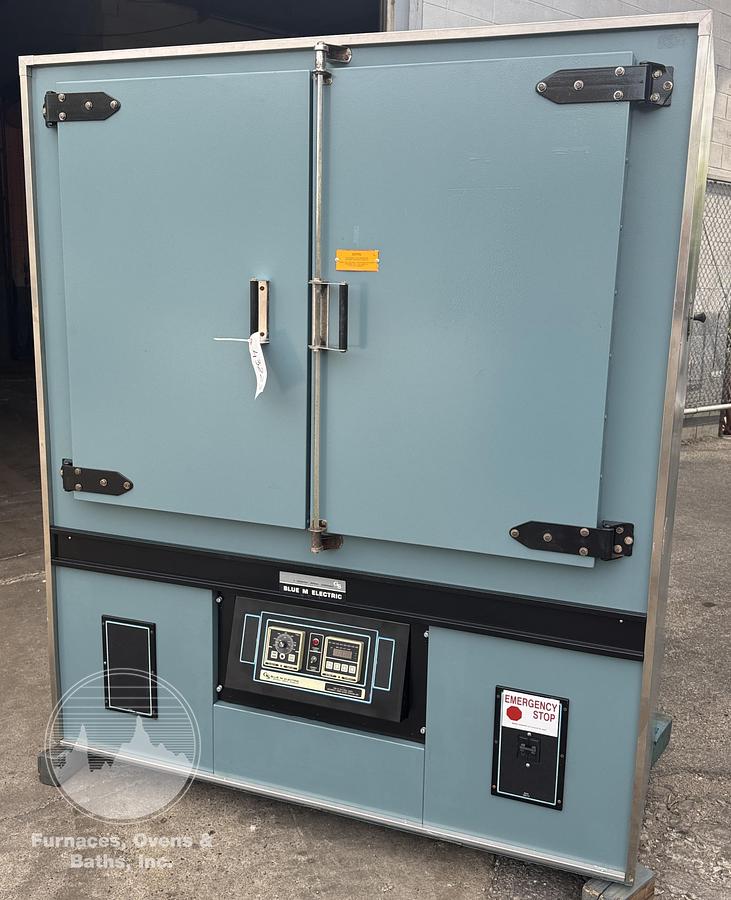

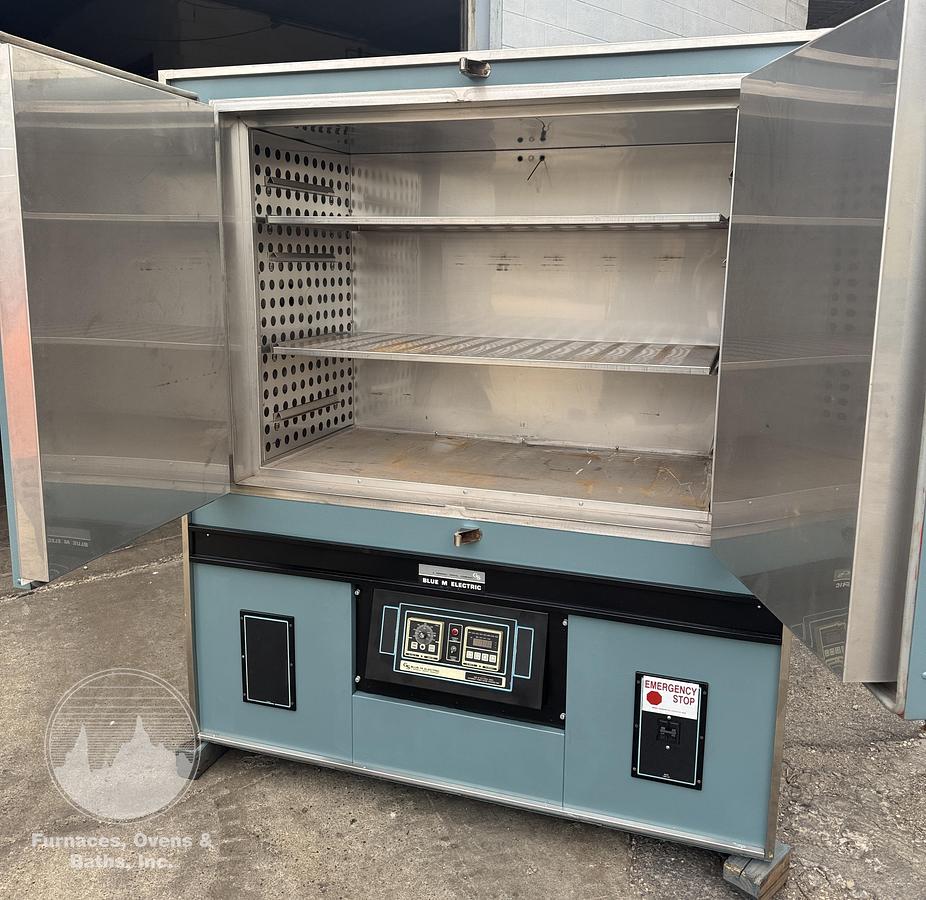

Double doors with 2-point cam action positive seal latch and silicone rubber gasket. Stainless steel interior with two (2) adjustable stainless steel shelves. Coiled style heating elements and direct drive circulating fan are located under the floor pan. There is an adjustable fresh air inlet and 3" exhaust port located on the left-hand side. A 3" diameter chamber access port is located on the right-hand side. Heated air is circulated in a horizontal pattern across the chamber. Oven will be tested prior to shipping.

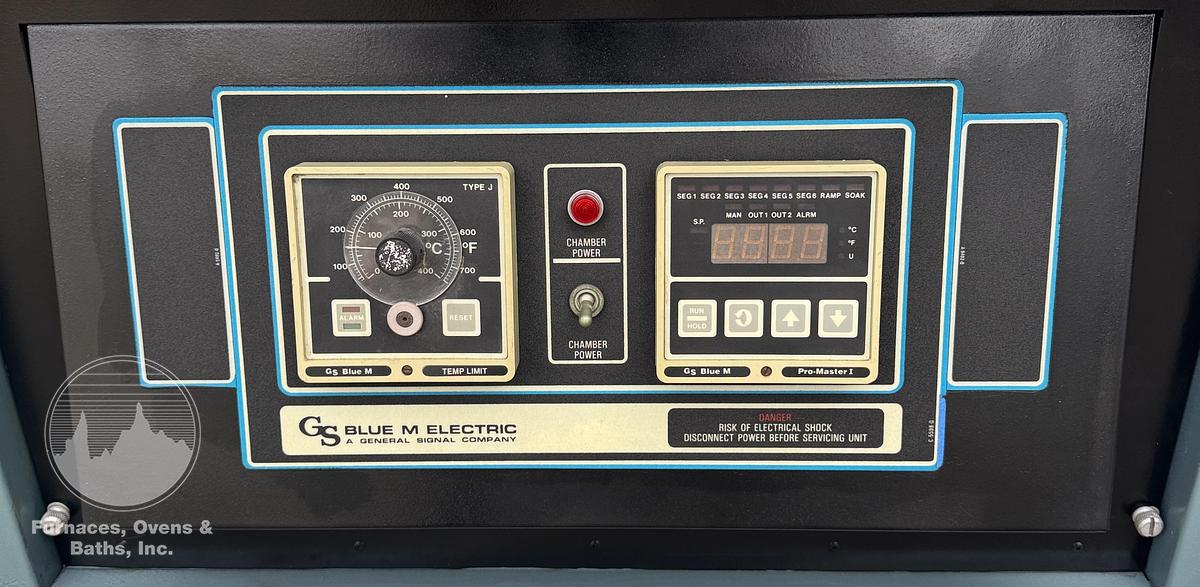

Controls are in a slide out console located directly under the work chamber. There is a Partlow/Blue M Pro-Master I digital programmable temperature controller, a Partlow/Blue M analog high limit control and chamber power control switch with indicating light is flush mounted in the face of the console. Solid State Relays, high limit contactor, motor starter etc. mounted and wired inside the cabinet. A circuit breaker disconnect switch is mounted on the front panel - right side.
