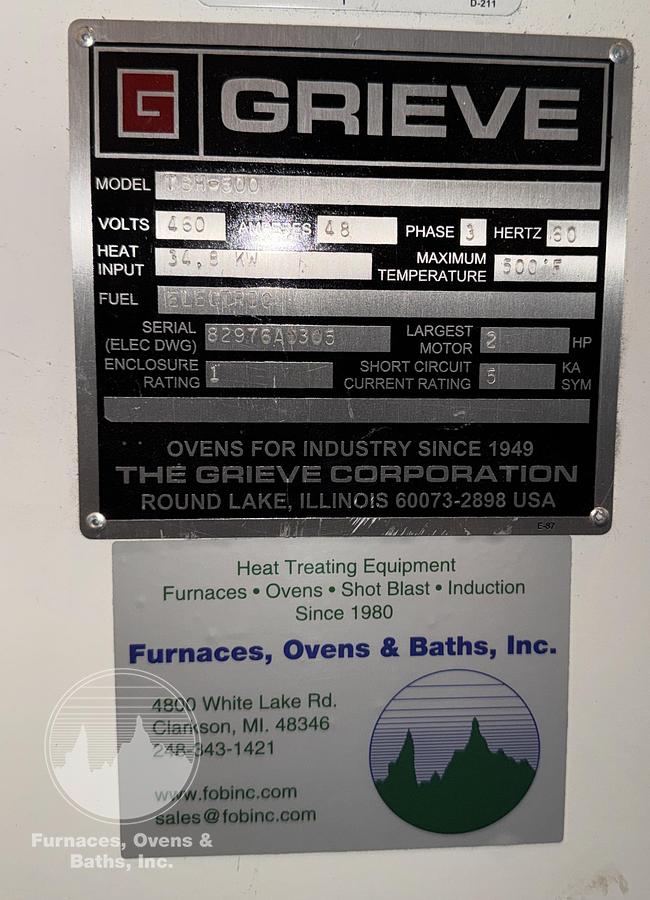

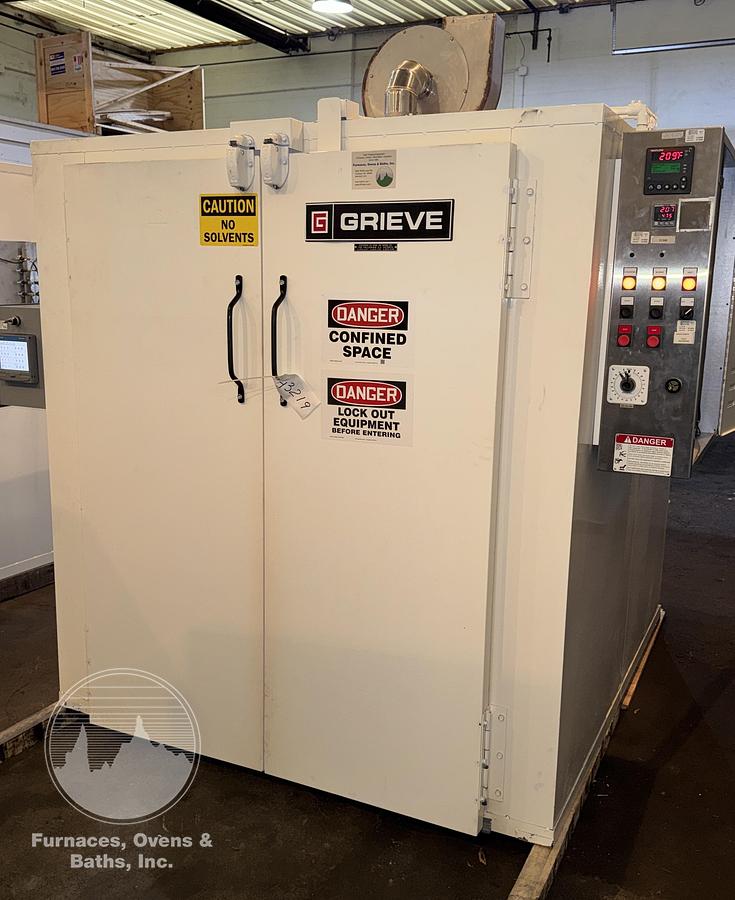

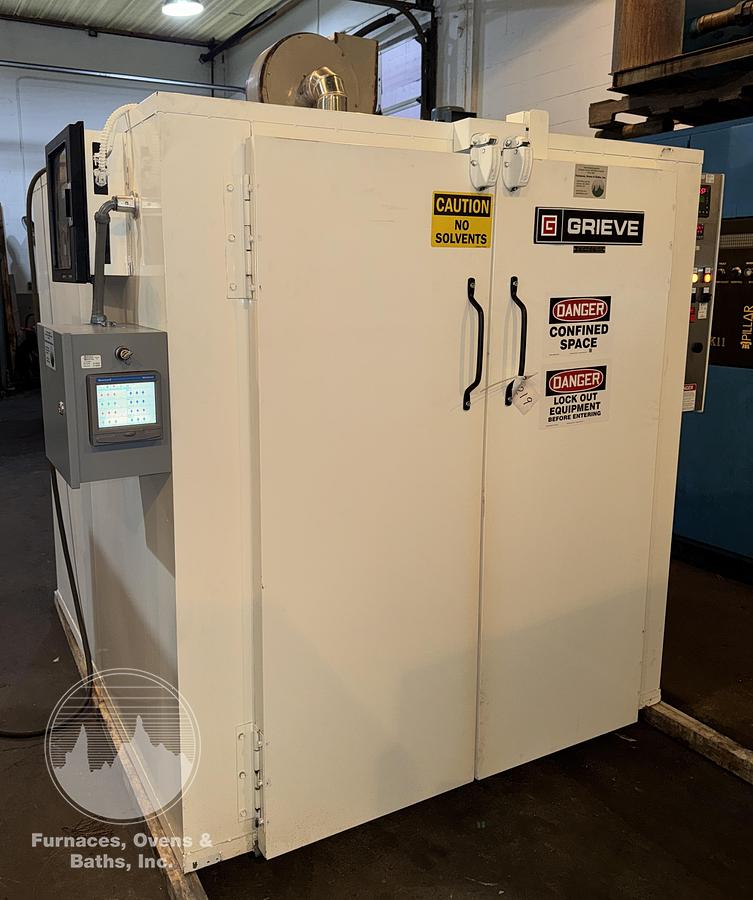

48"W x 60"H x 48"L, Grieve TBH-500, Electric, 500-F, Stainless Steel w/Cart, LIKE NEW

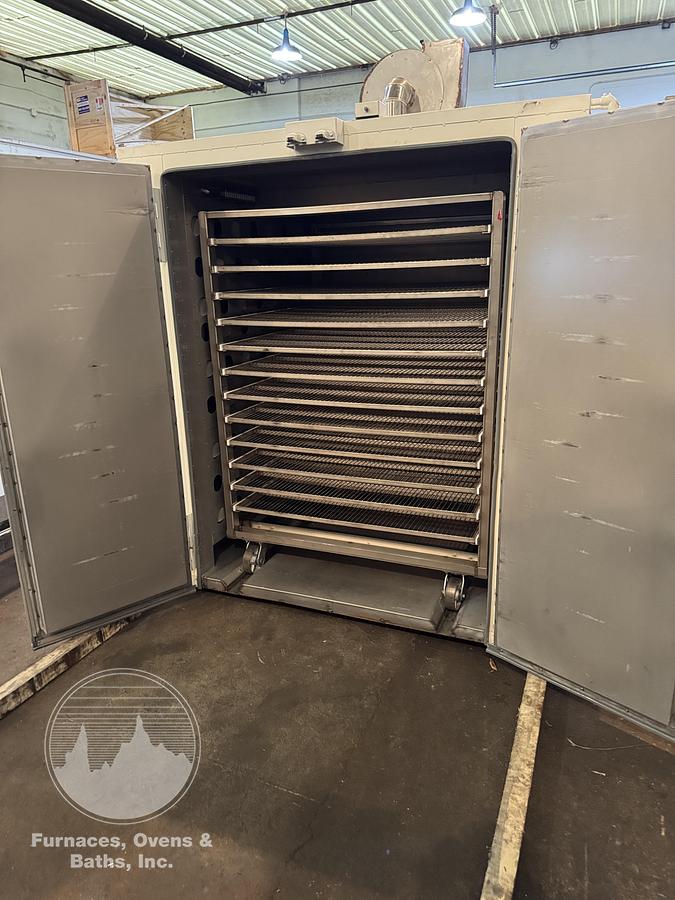

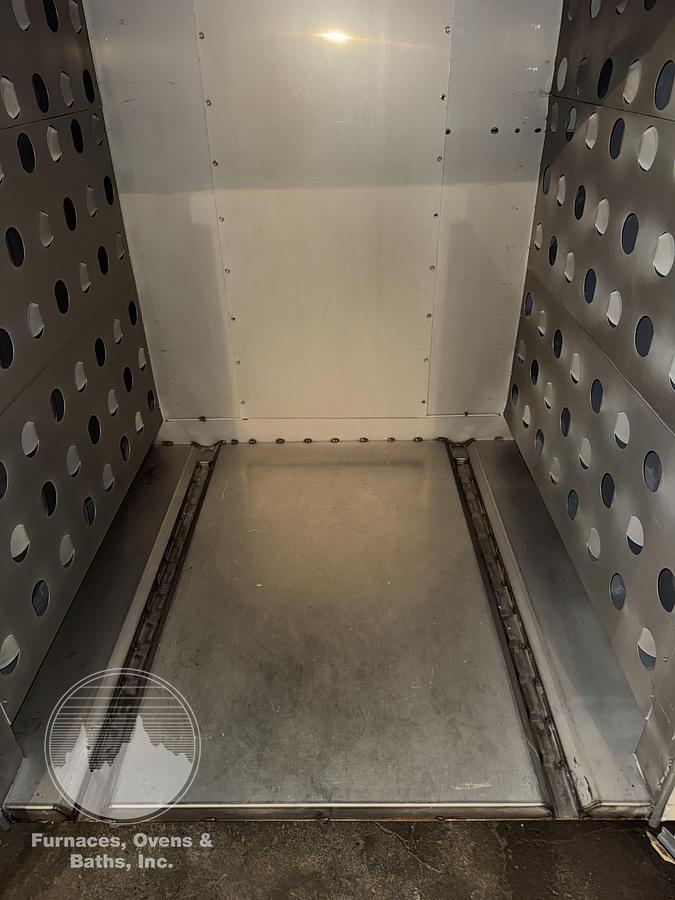

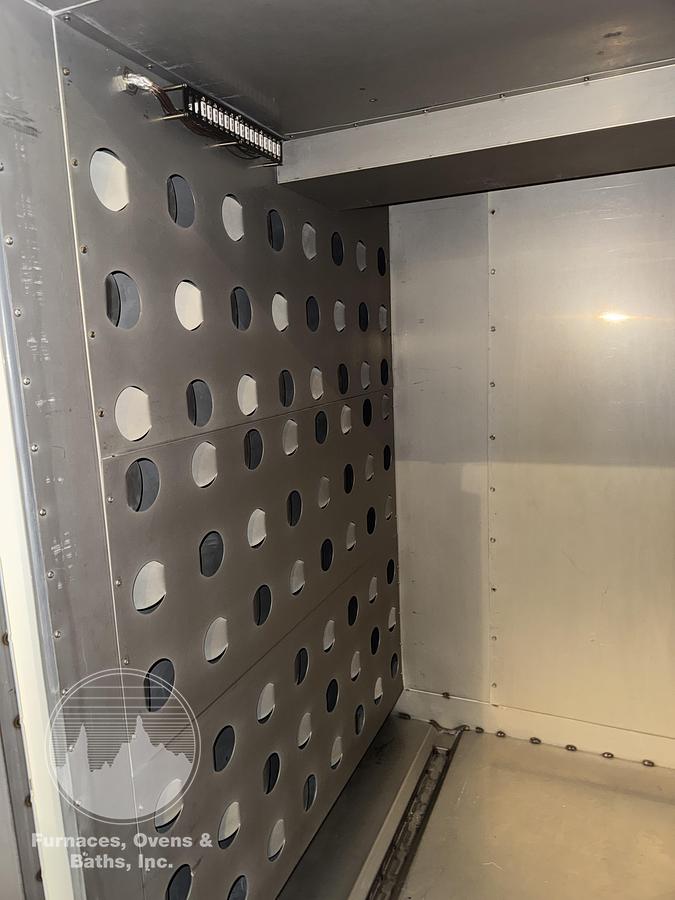

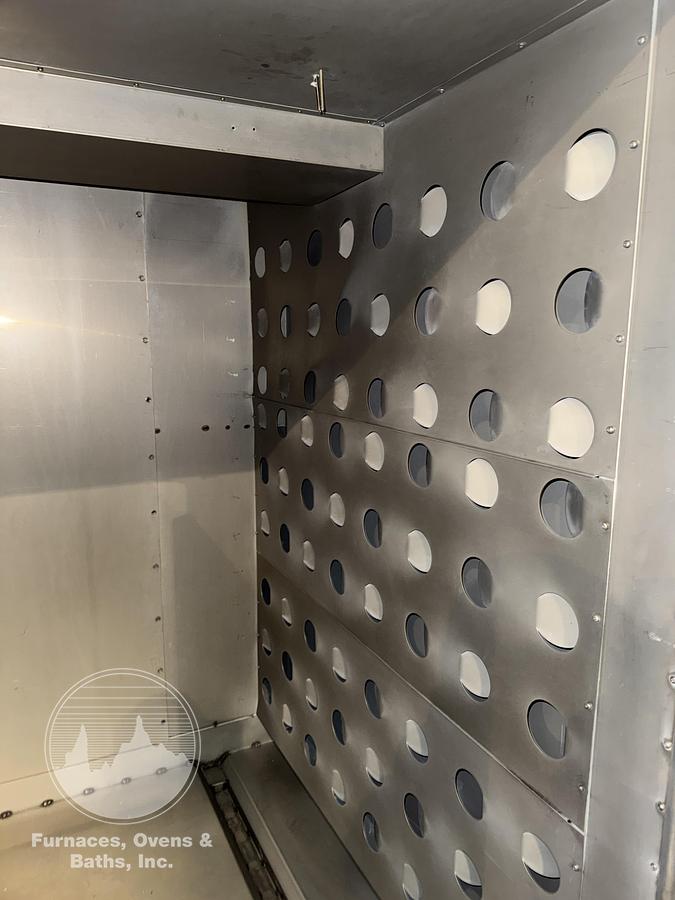

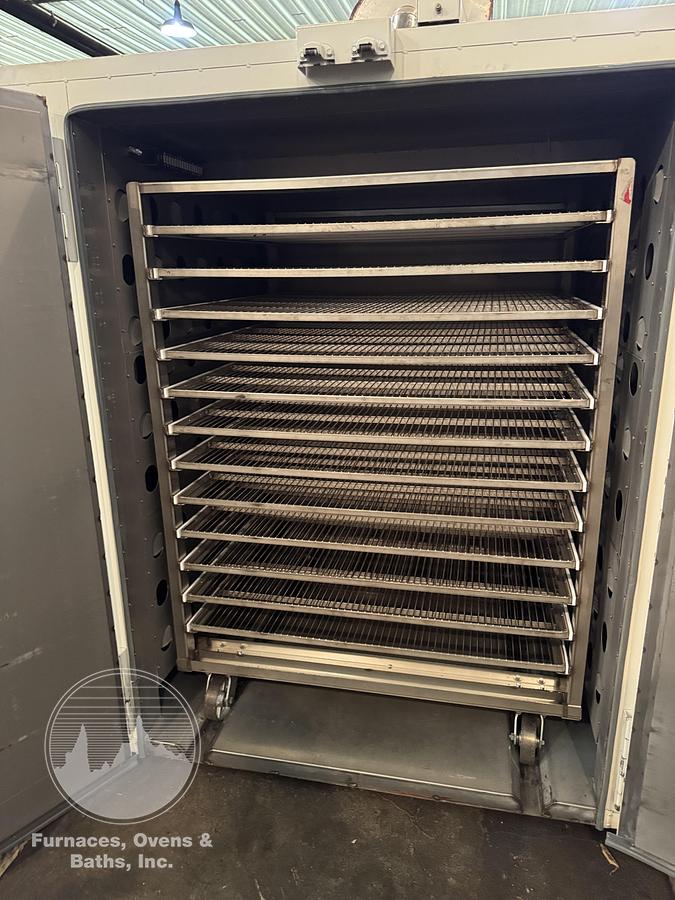

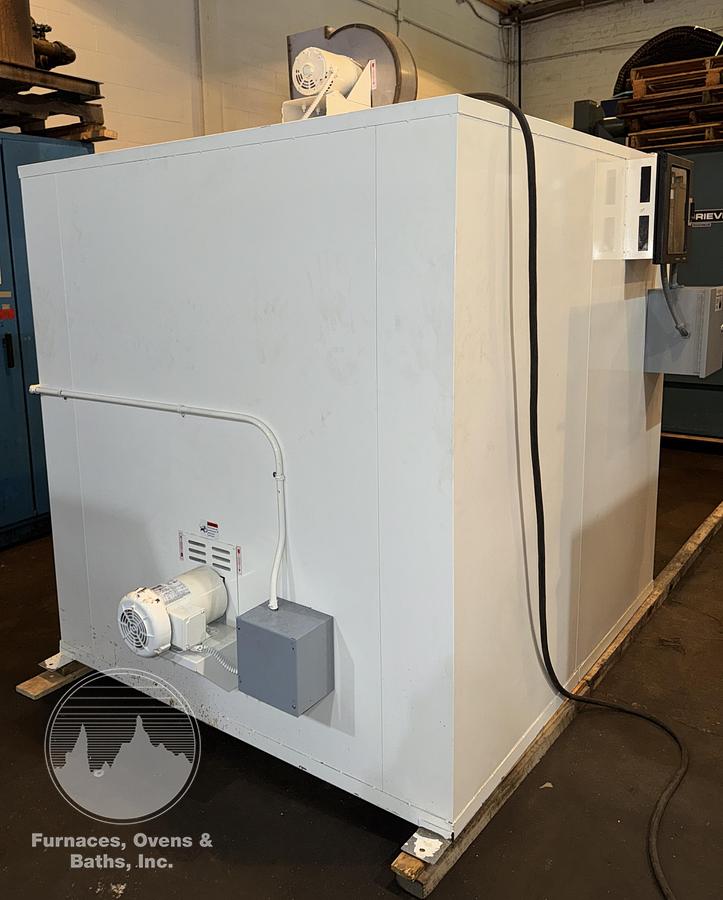

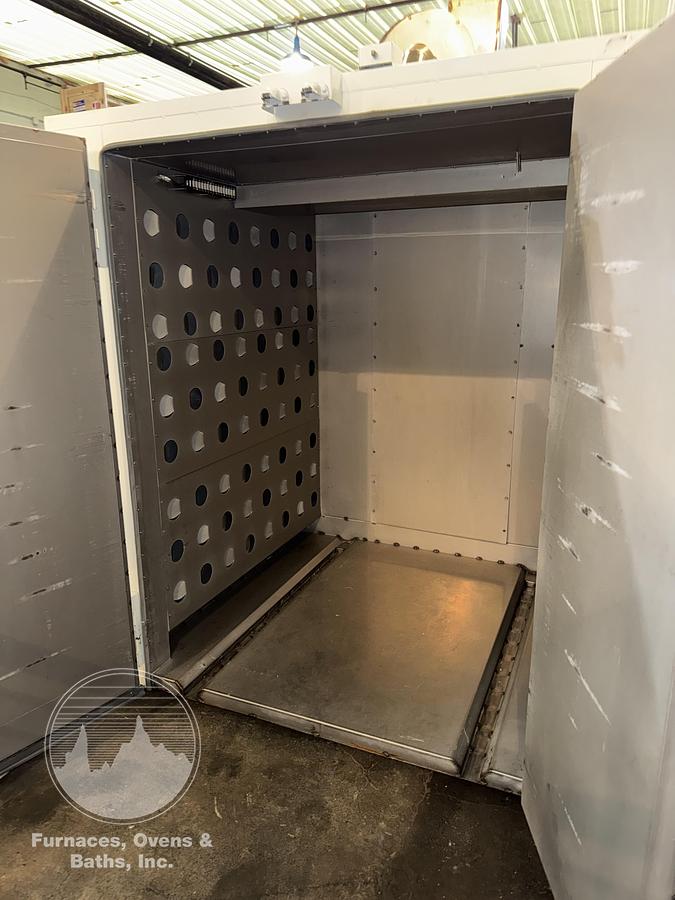

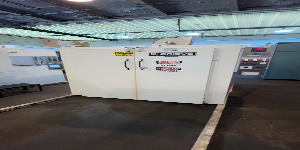

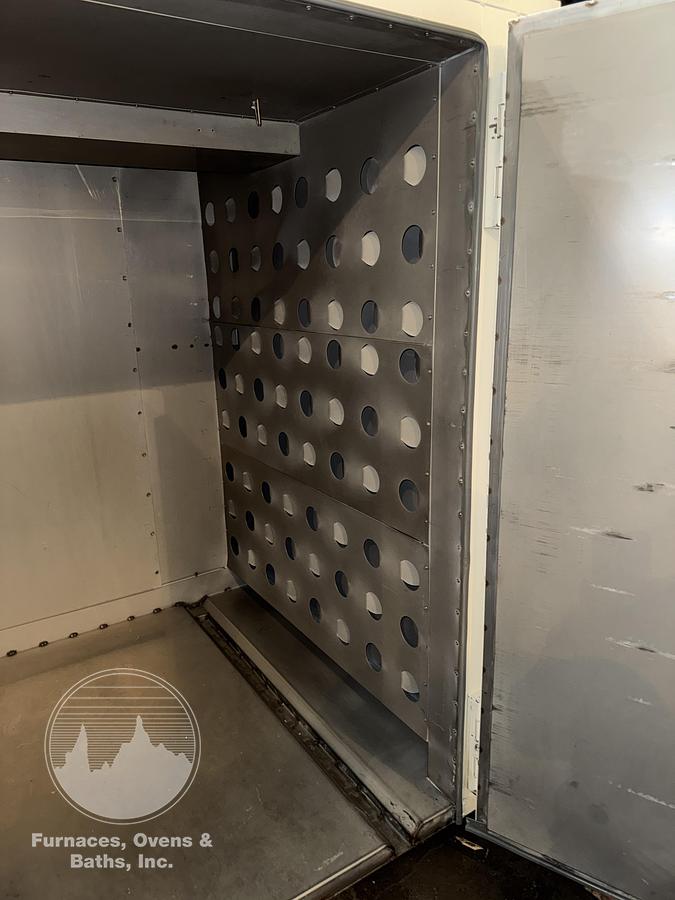

Double doors with silicone rubber gasket and "Brixon" spring tension latches with stainless steel interior. The insulated floor has 2" wide cart tracks on 36" centers. The heating elements are located on the right-hand side. There is a 2 HP direct driven circulating fan mounted through the rear wall. Door limit switch cuts power to the fan and heating elements when the door is open. Heated air is circulated in a horizontal pattern across the chamber. A powered exhaust fan is mounted on top of the oven. Fresh air inlet is located on the right side above the element plenum. Oven includes one (1) stainless-steel roll in cart. Cart will accept 12 shelves, 12 shelves are included with this oven. Oven is tested and ready to ship. SEE VIDEO.prior to shipping.

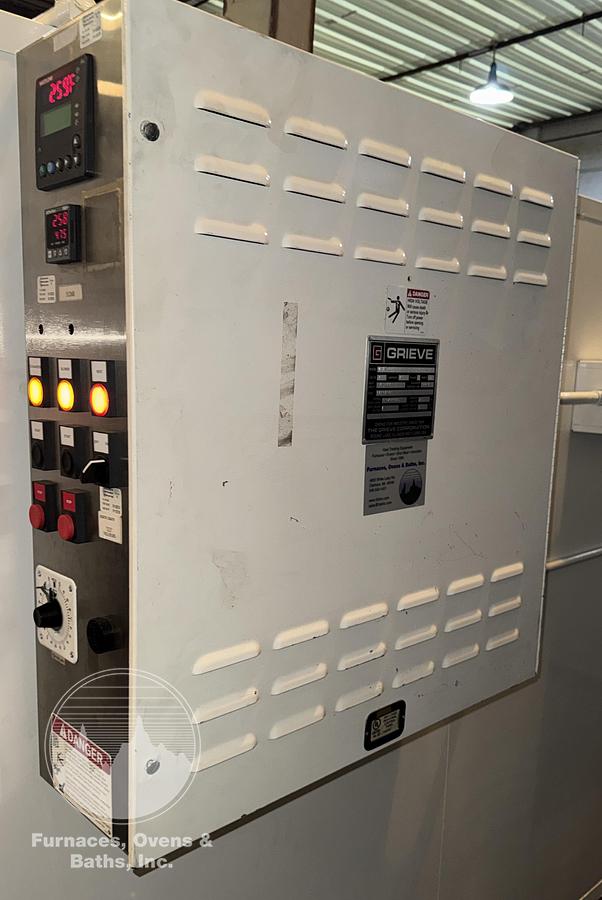

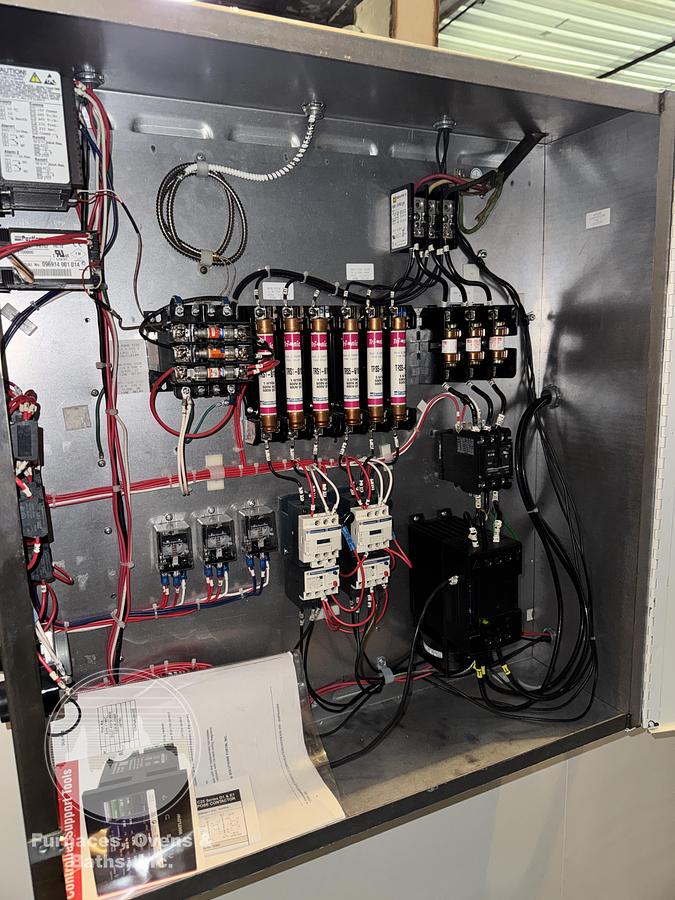

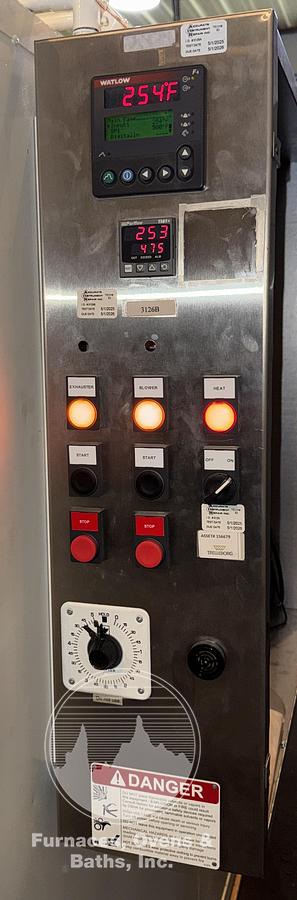

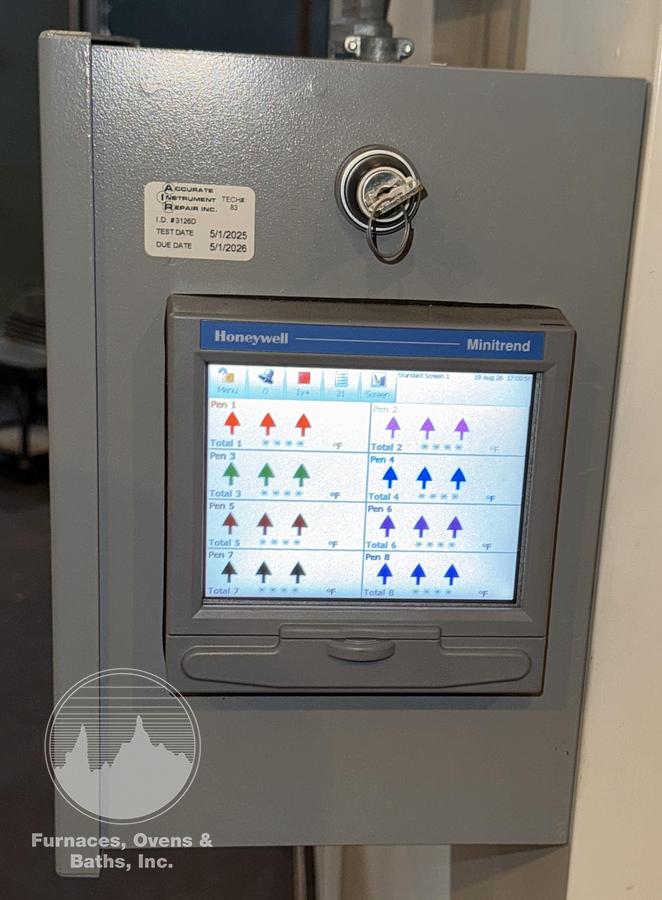

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven and includes a Watlow F4 digital temperature controller, Partlow 1161+ digital high limit control and Honeywell Mini-Trend digital paperless recorder. Push buttons, switches and indicating lights for exhauster, blower and heat are flush mounted on the front of the enclosure door. Also mounted to the front of the enclosure door is a mechanical process timer with horn. Motor starters, fuses, high limit contactor, Watlow "Din-a-mite" SSR etc. are mounted inside the enclosure.
