72"W x 72"H x 120"L, Grieve B4-500 Walk-In Oven, 500°F, Gas Fired, Solvent Rated

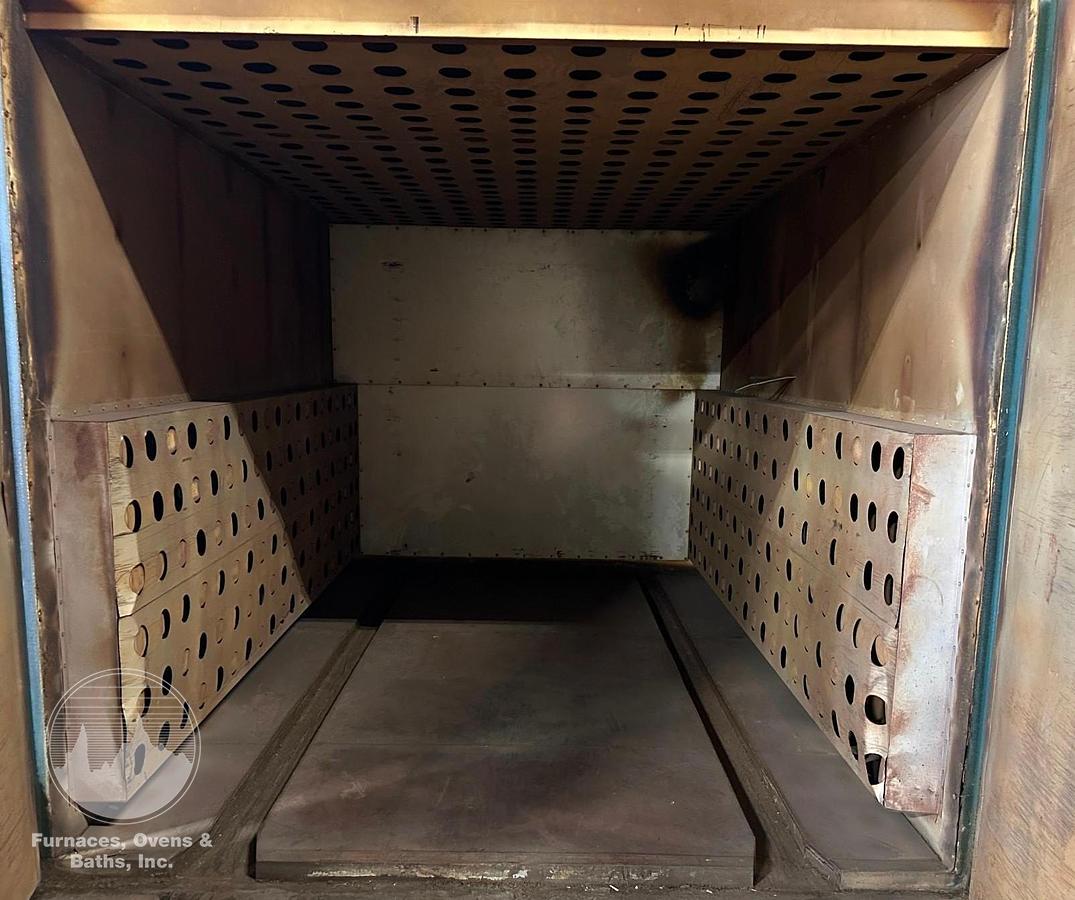

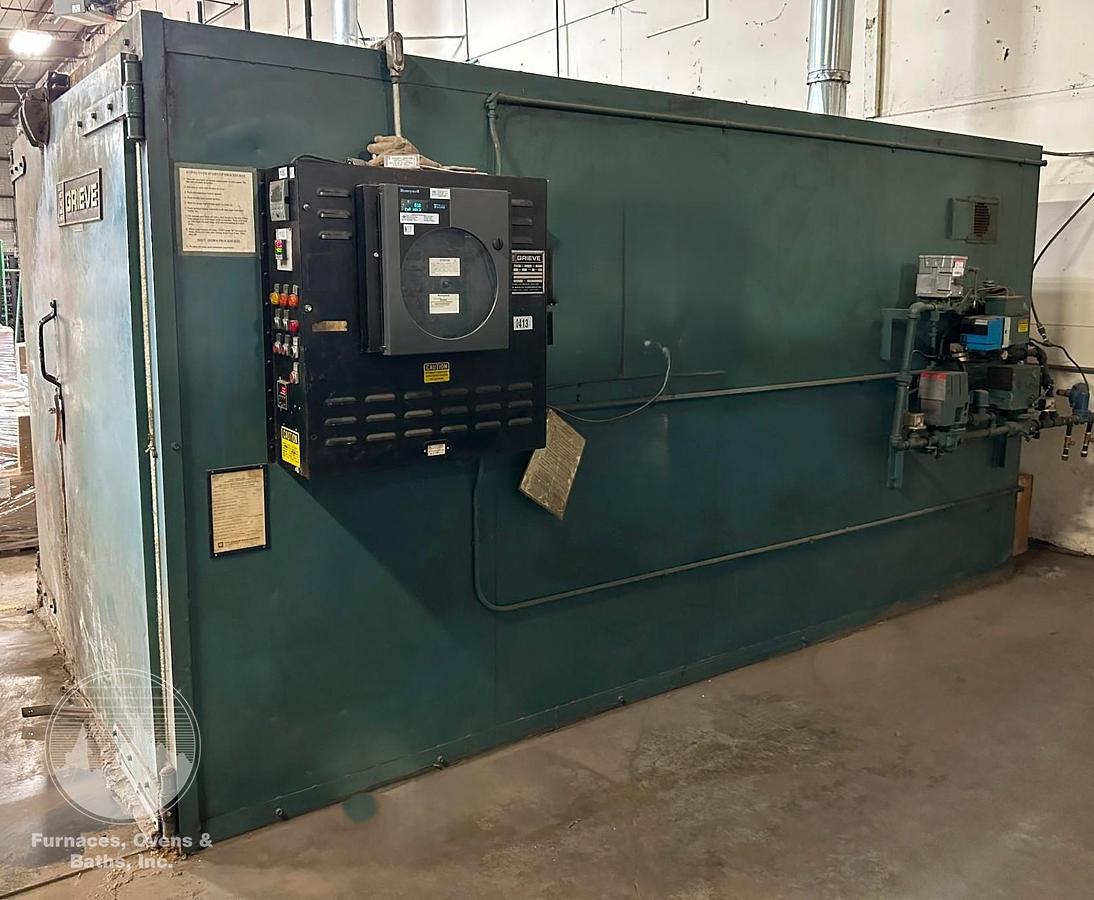

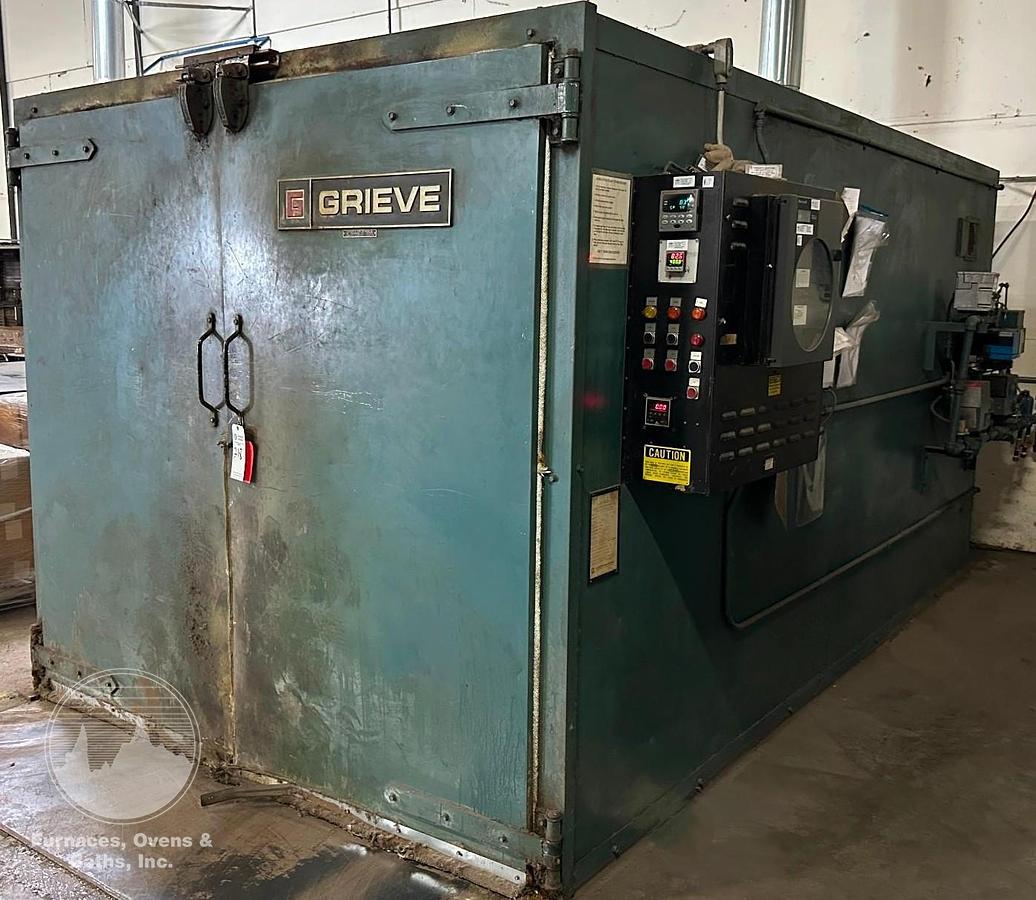

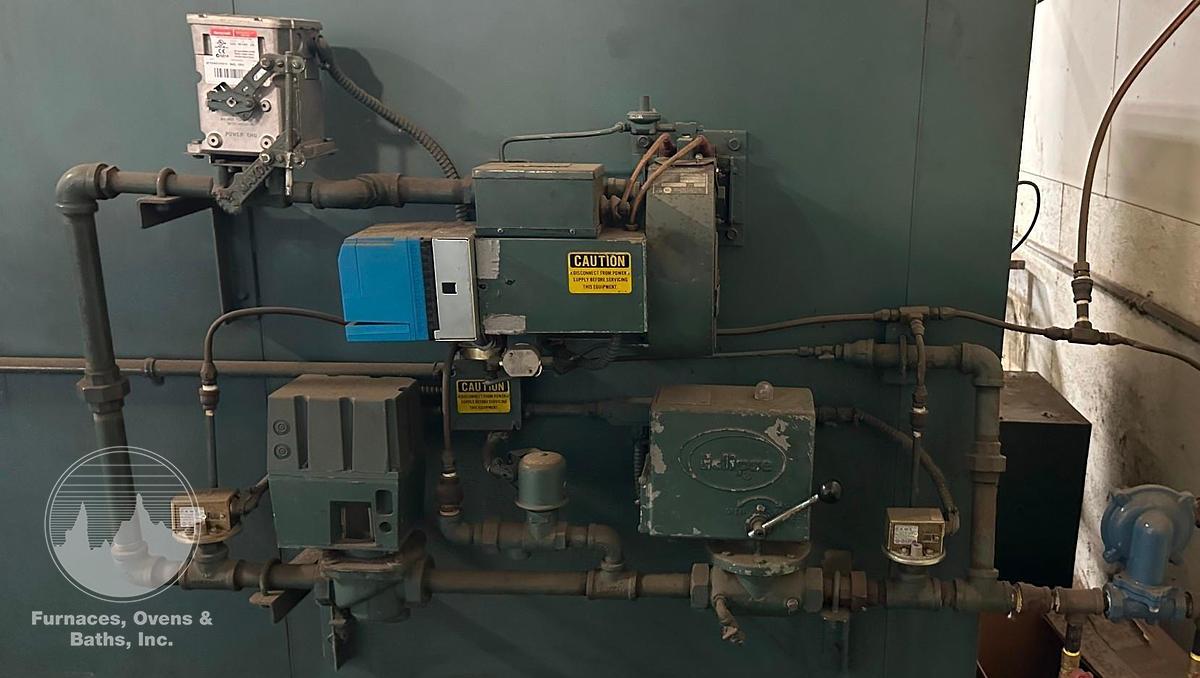

Double doors on one end. Doors have a woven fiberglass gasket and a spring tension latch for a good door seal. Aluminized steel interior with an insulated. Punched louvered air duct panels on both side walls and the roof. Package burner system w/Honeywell flame relay is located on the right-hand side towards the rear of the oven. 5 H.P. belt driven circulating fan is mounted through the rear wall. Heated air is circulated out both side wall air ducts and returns through the roof creating a combination airflow pattern for good uniform heating. A powered exhaust vent is located at the rear of the oven. Manuals and Drawings are included with this oven.

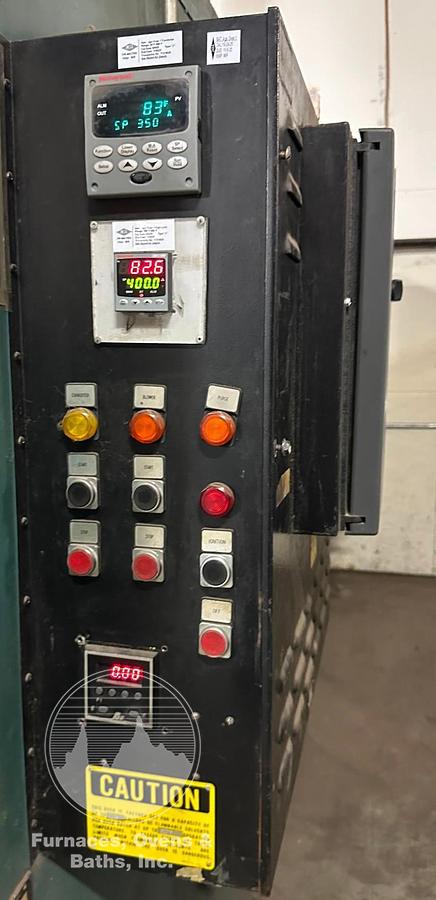

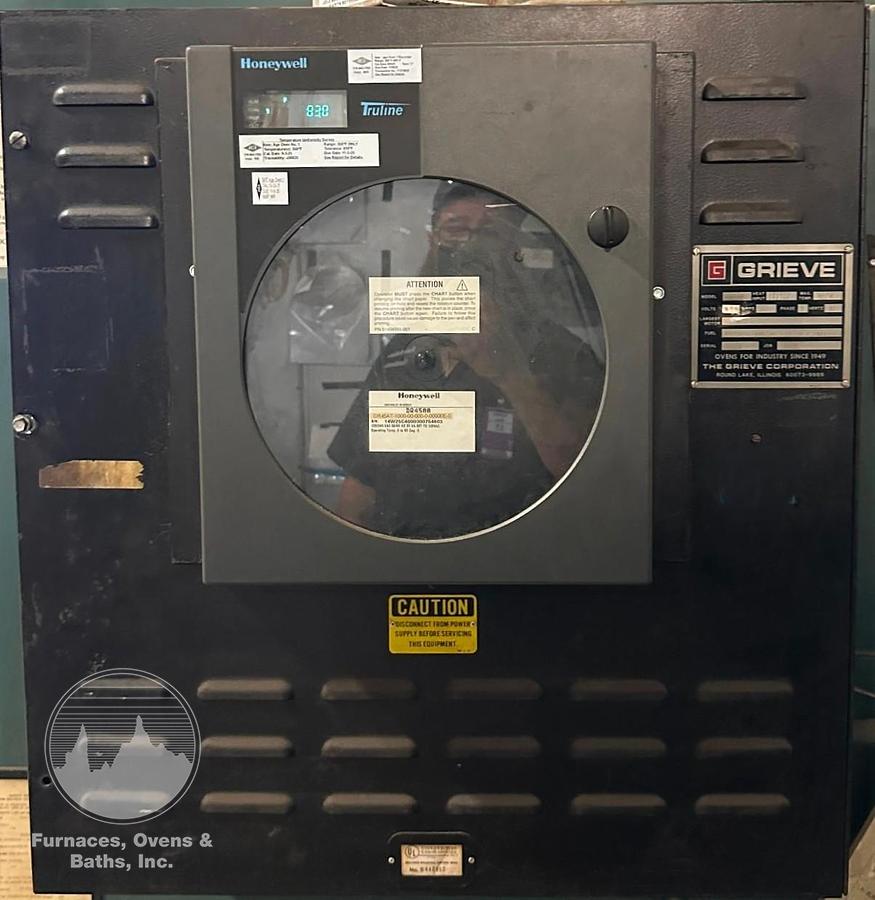

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven. Temperature controllers consist of a Honeywell UDC digital temperature controller, Honeywell UDC digital high-limt and a Honeywell DR 4500 digital round chart recorder. Start/Stop switches with indicating lights for exhuaster, circulating fan are flush mounted to the face of the enclosure.
