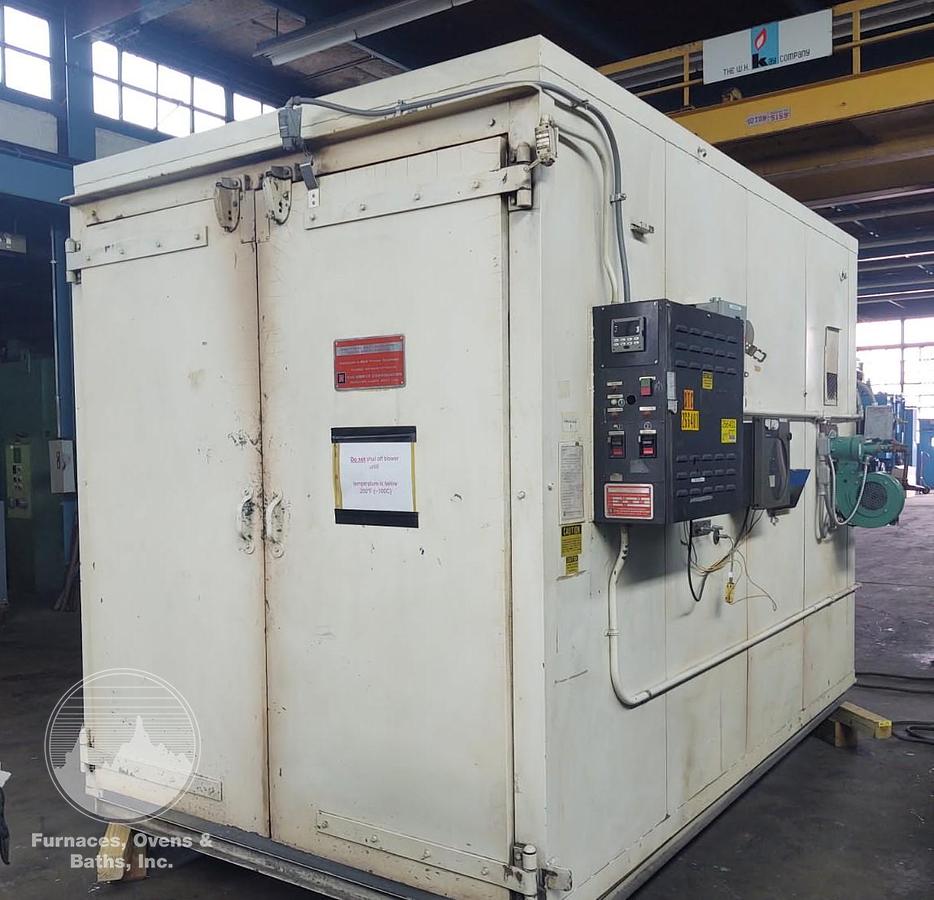

60"W x 72"H x 96"L, Grieve B3-650 Gas Fired Walk-In Oven, 650°F, Class A Solvent Rated

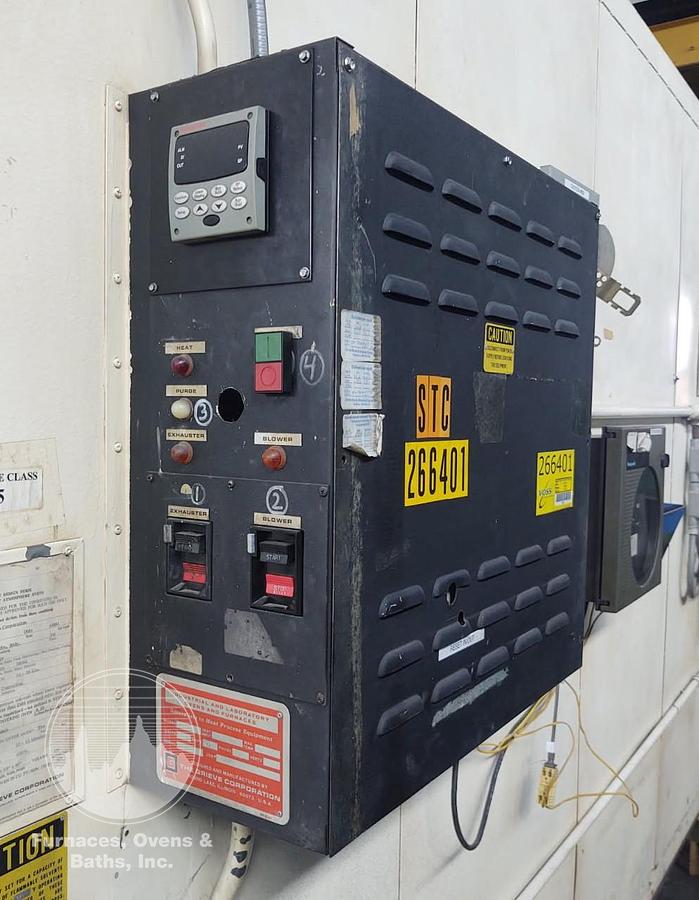

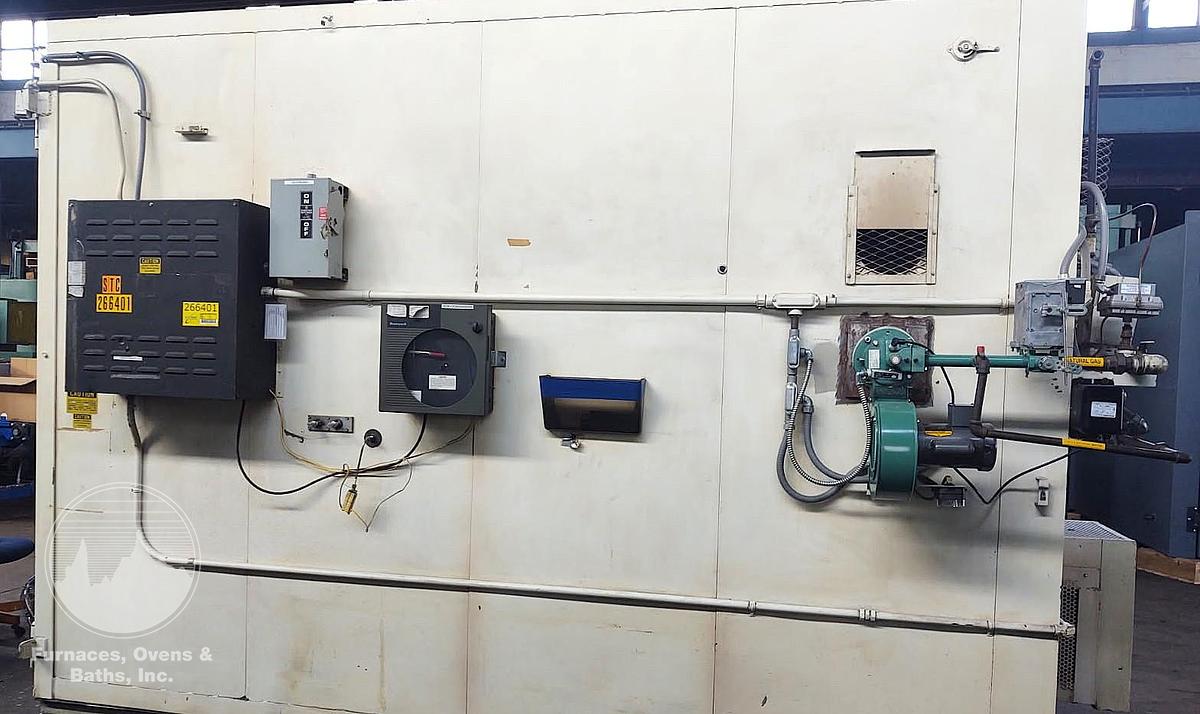

Controls are located in an enclosure attached to the right-hand side of the oven. There is a Honeywell UDC digital temperature controller, Honeywell DR 4300 Circular Cart Recorder and Eclipse Flame Safety. Control switches for circulating fan and heat are flush mounted to face of the enclosure. Manuals and drawings are included with this oven.

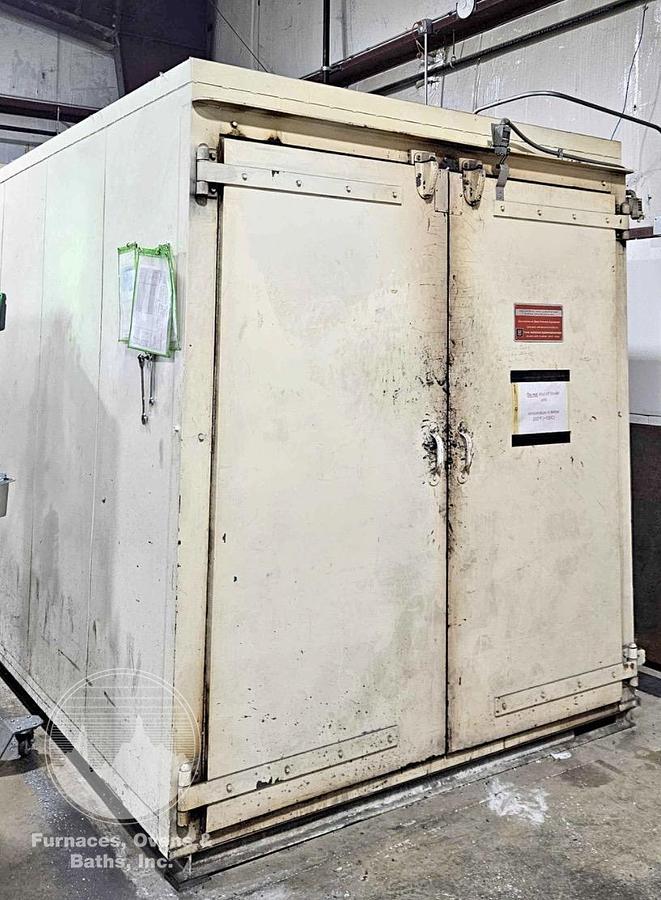

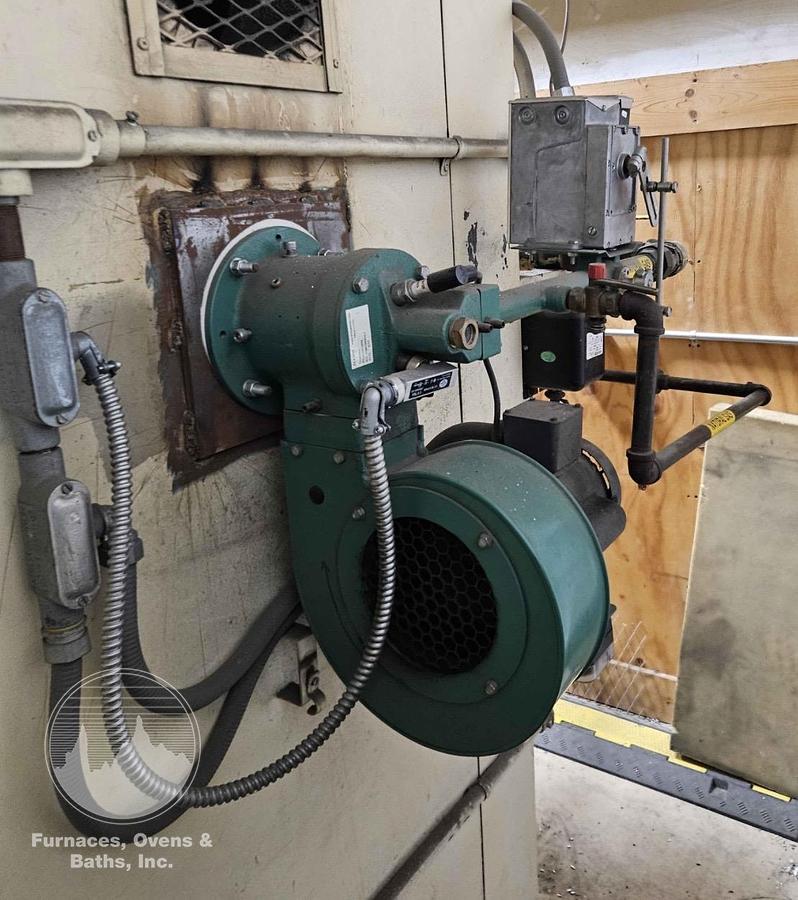

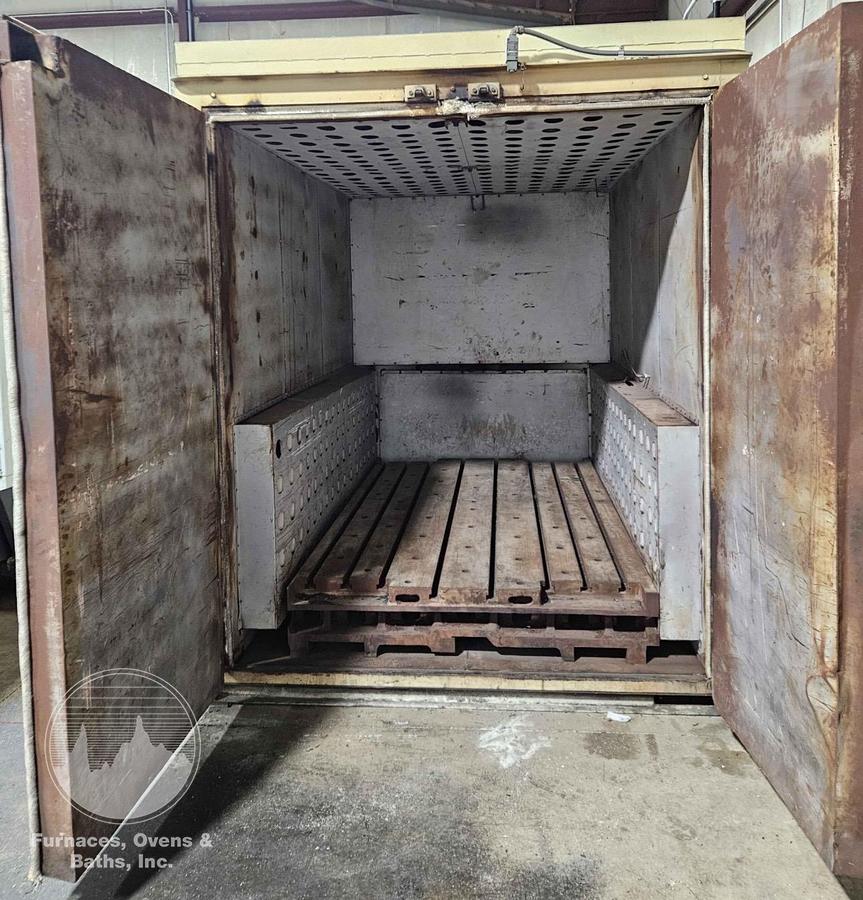

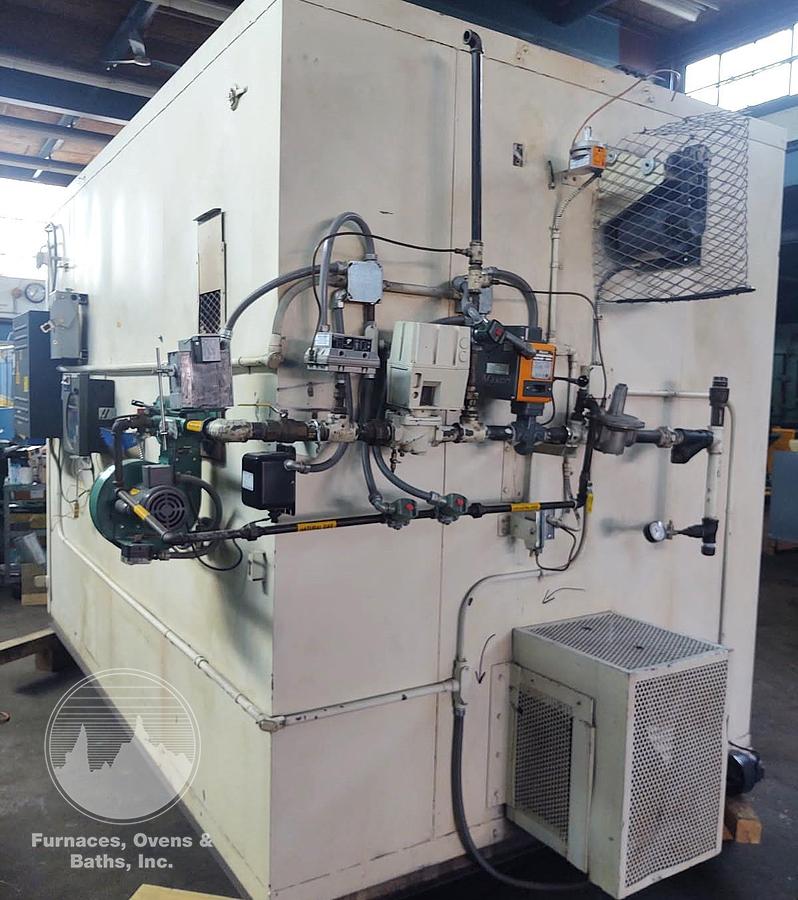

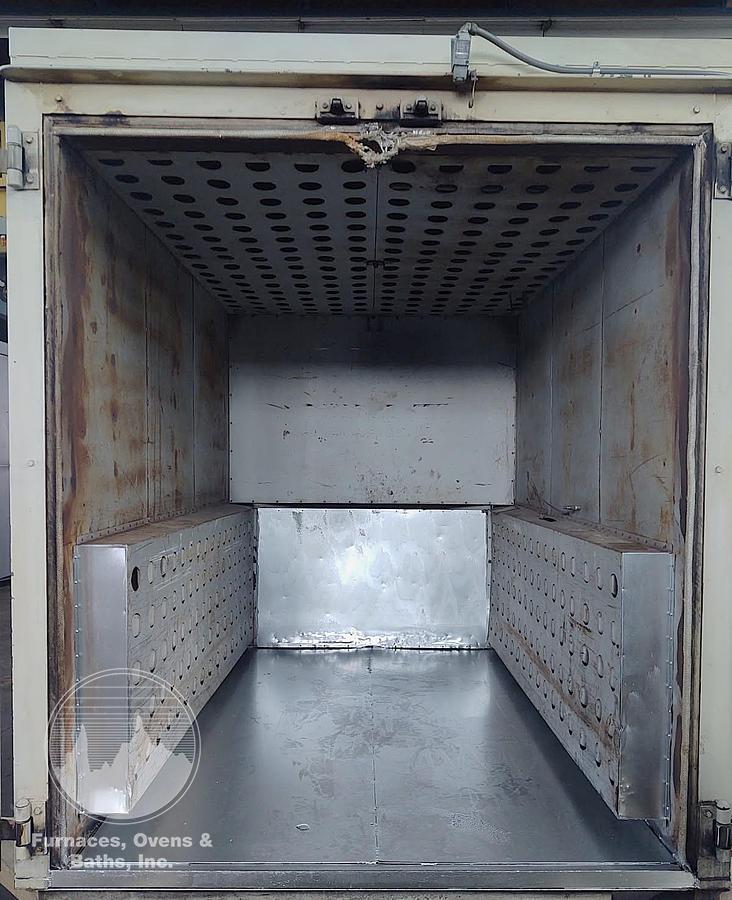

Solvent rated walk in oven (.25 Gallons Per Batch) with double doors on one end. Doors have a woven fiberglass gasket and a spring tension latch for a good door seal. Aluminized steel interior with a insulated floor. Punched louvered air duct panels on both side walls and the roof. Side mounted Eclipse Package burner with spark ignition and UV Flame Safety. Belt driven circulating fan and powered exhauster are mounted through the rear wall. Heated air is circulated out both side wall air ducts and returns through the roof creating a combination airflow pattern for good uniform heating.
