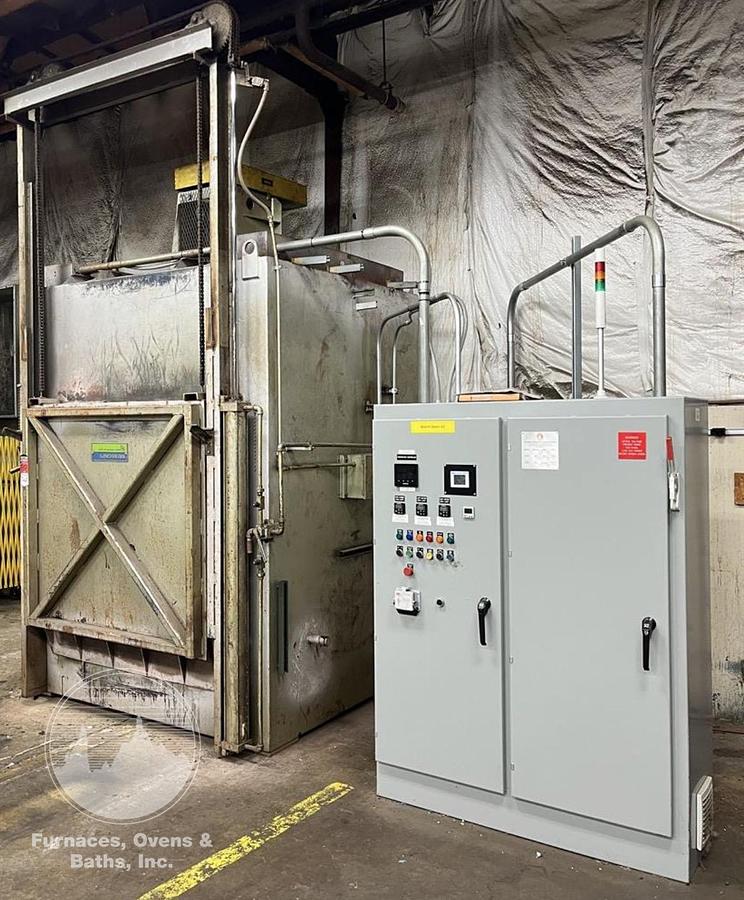

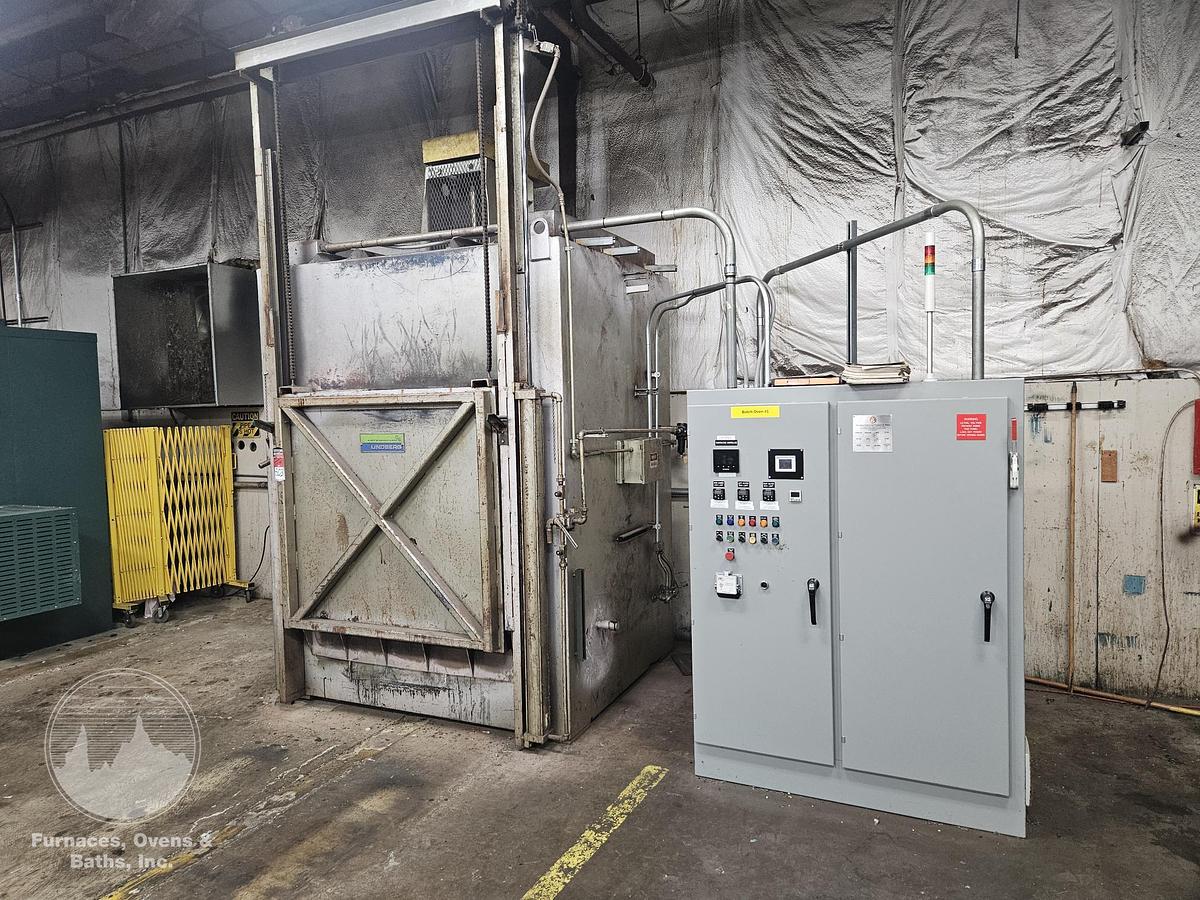

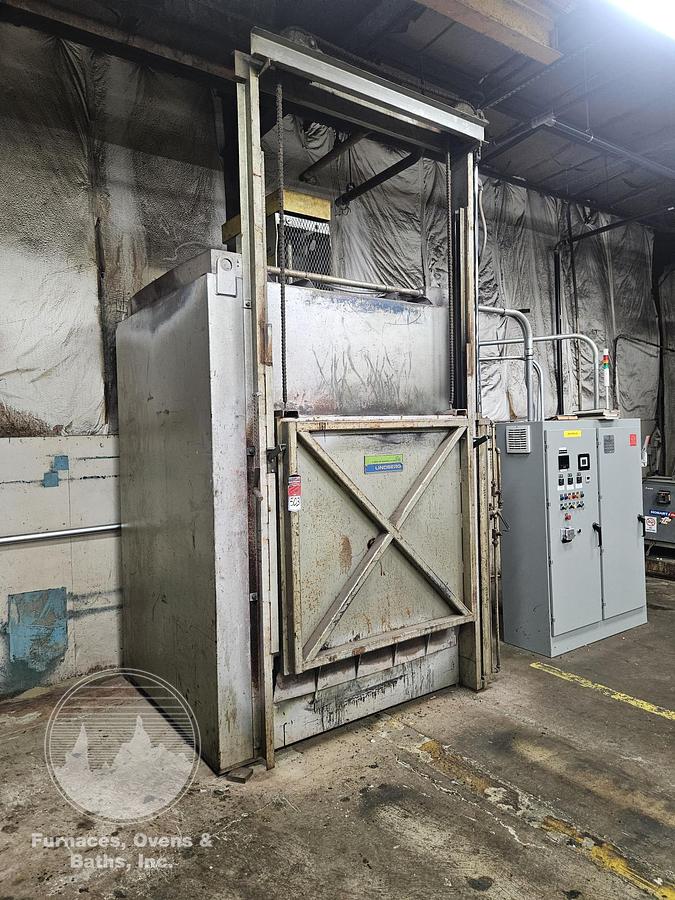

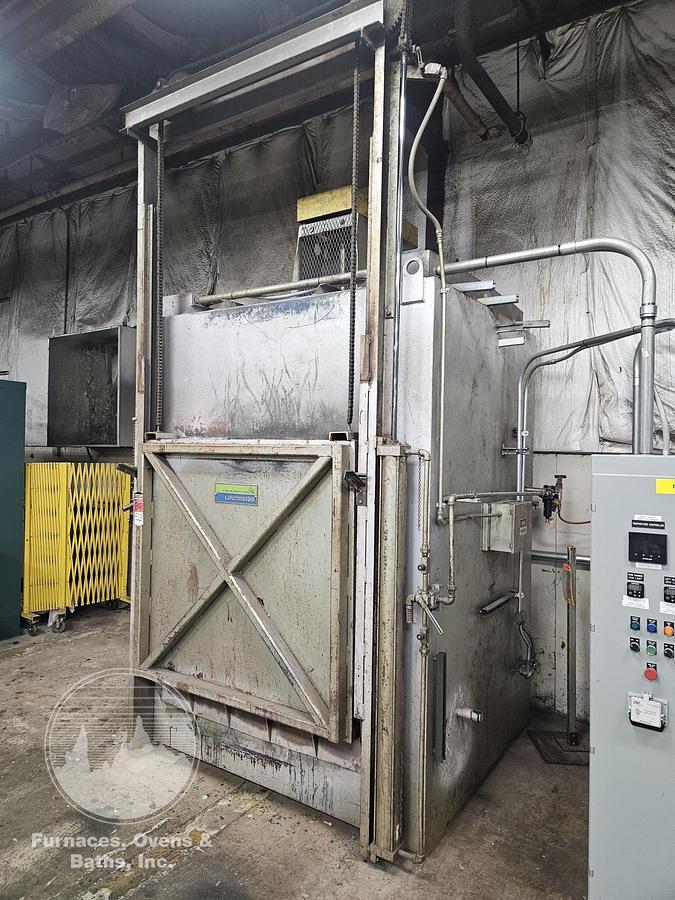

48"W x 48"H x 48"L Lindberg Box Tempering Furnace, 1250°F, Electric

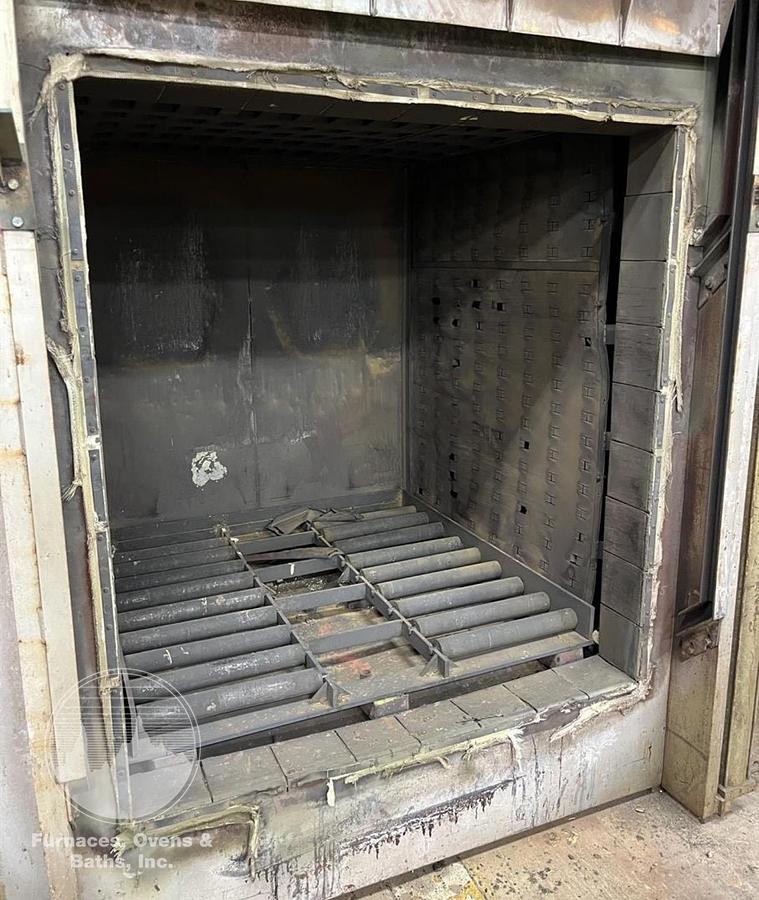

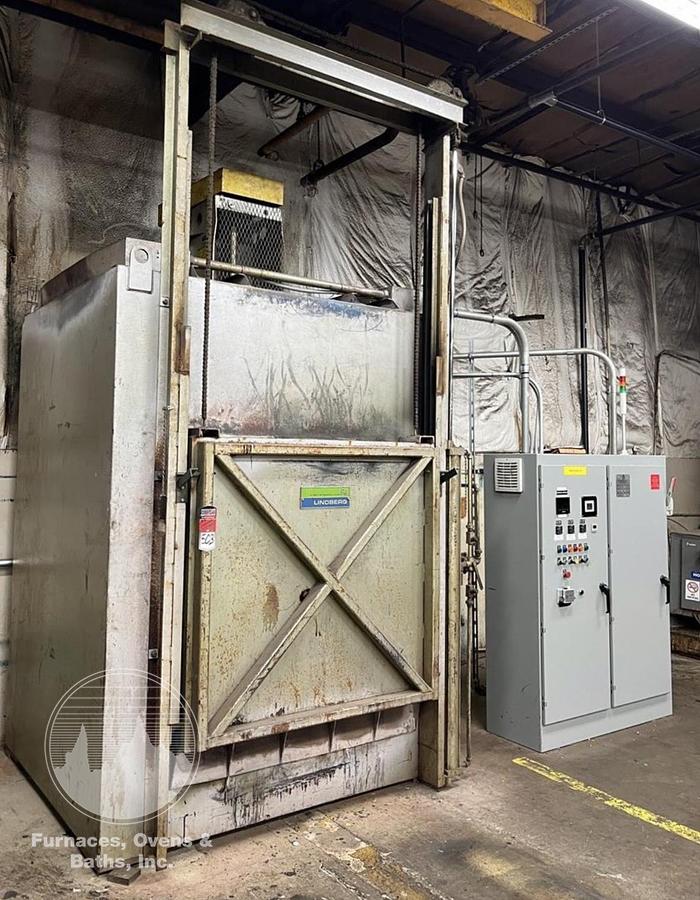

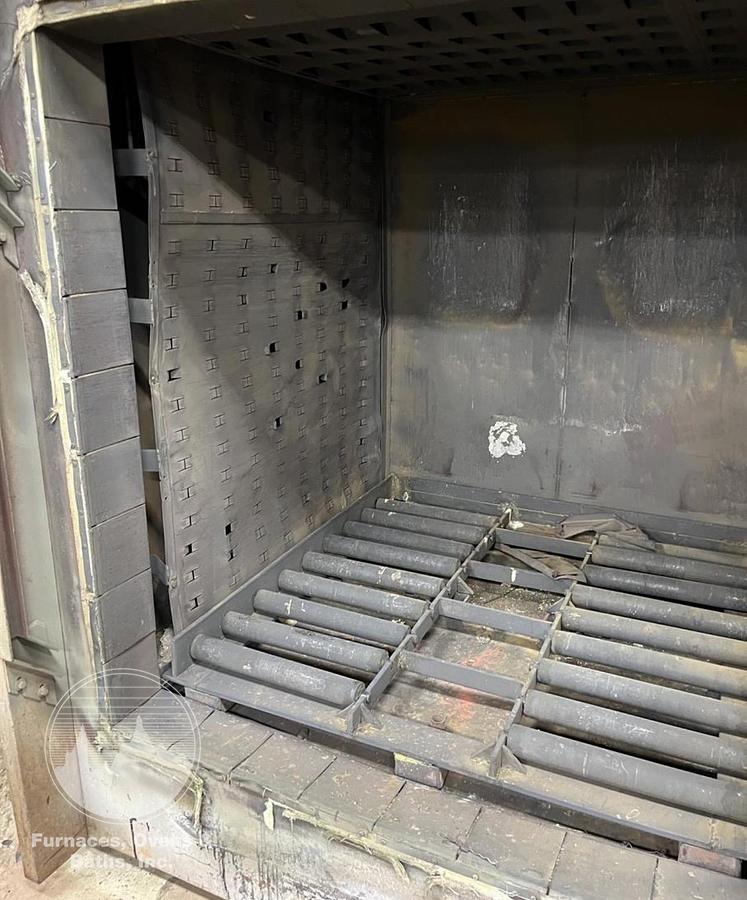

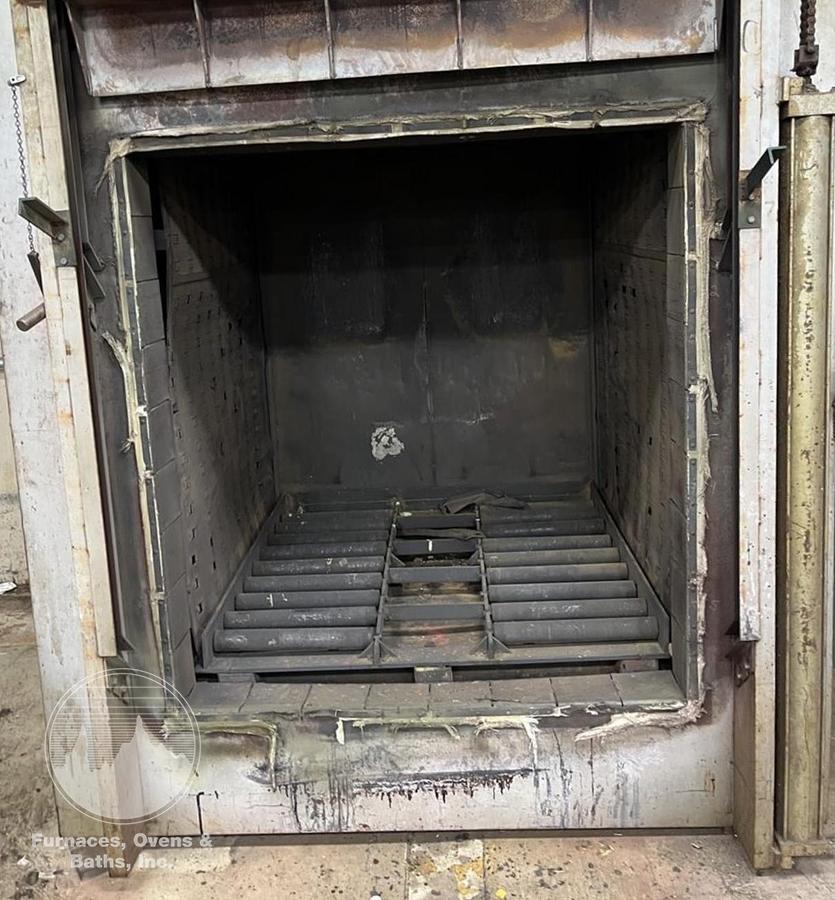

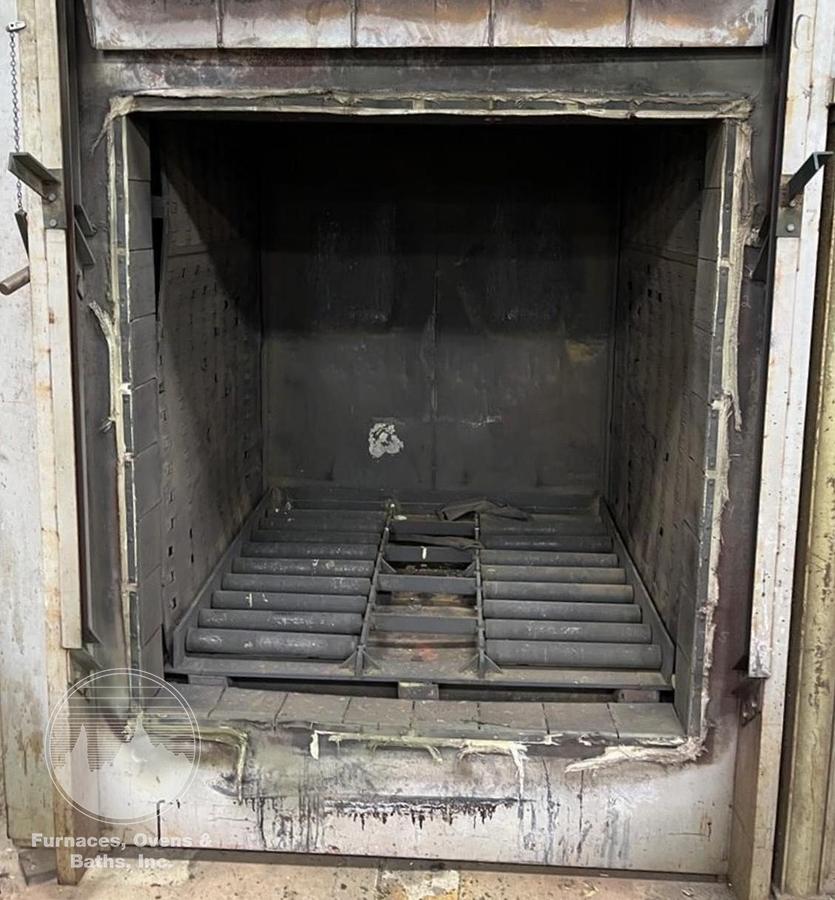

Air operated vertical lift door with door limit switch and hand operated control valve. Stainless steel interior with fully adjustable "H" style cutouts in the ductwork located on both side walls and top for good uniform heating. The recirculating fan is mounted through the roof which circulates the heated air through the chamber. Heating elements are located on both sidewalls. Roller hearth type hearth supports the workload. An adjustable fresh air inlet and powered exhaust vent with slide plates are located in the rear wall.

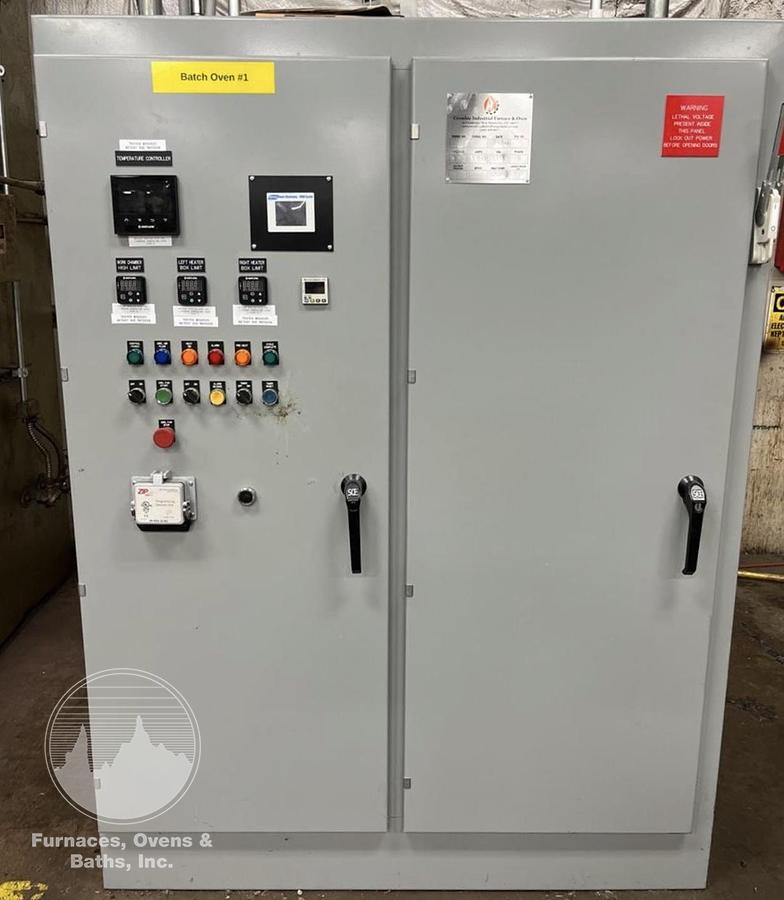

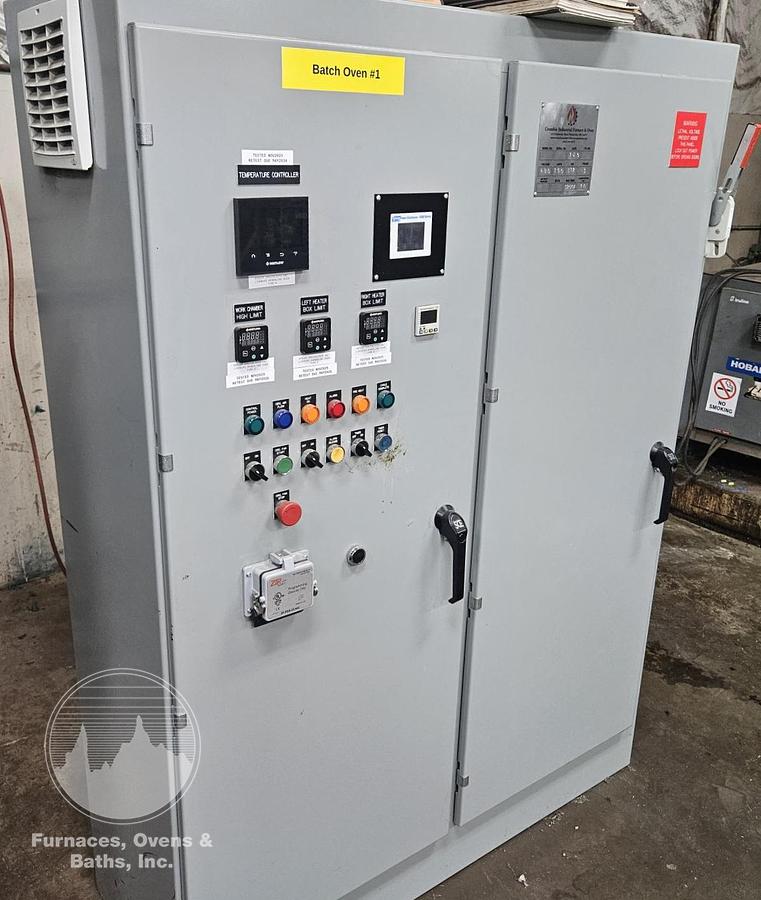

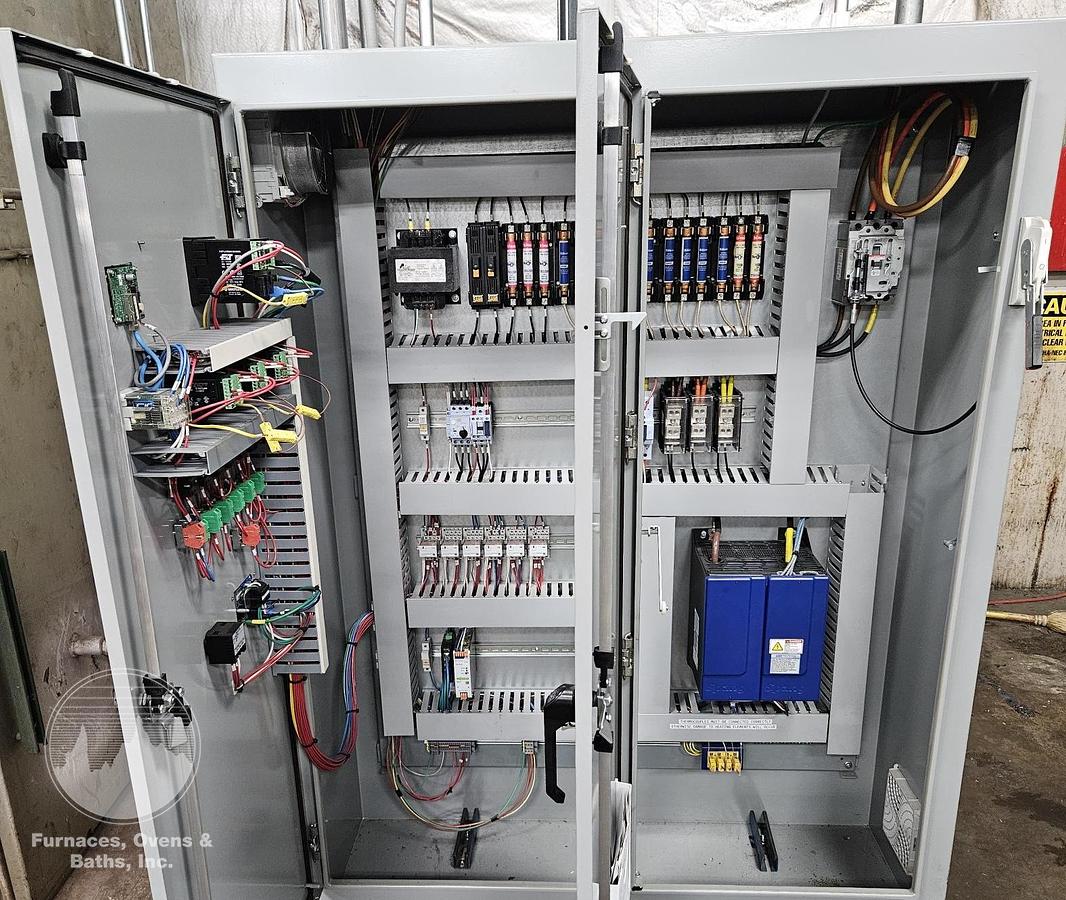

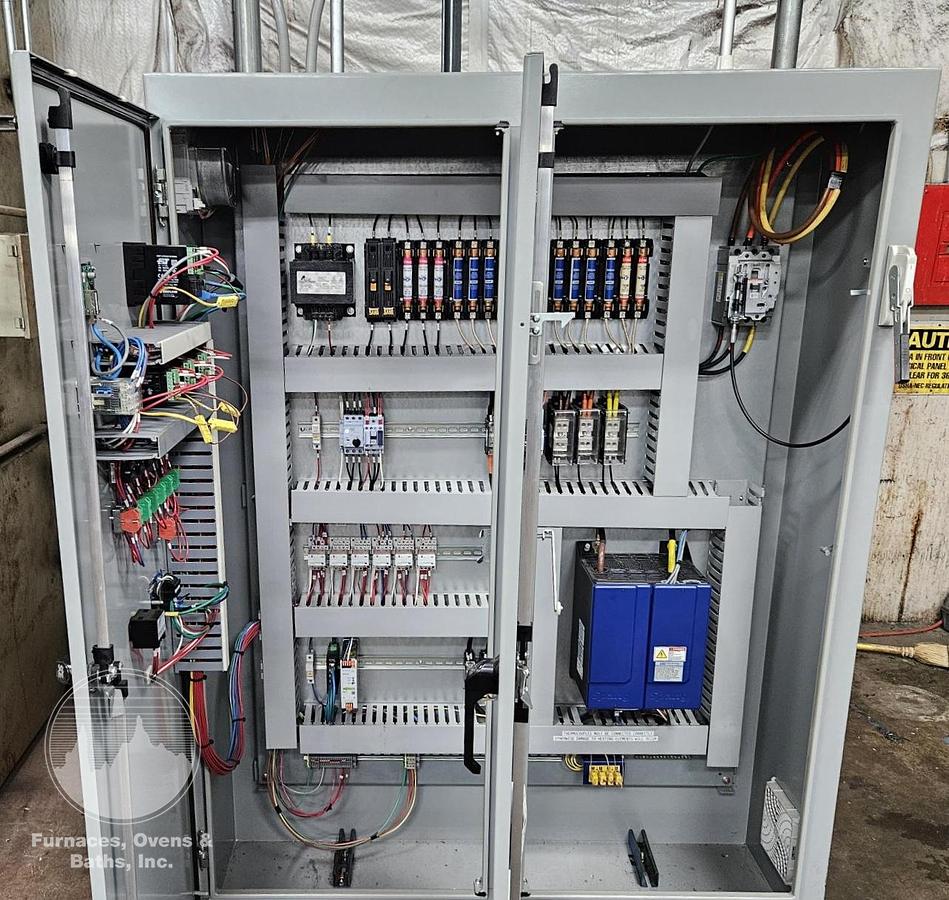

Controls are mounted and wired in a double door free standing enclosure with fused disconnect. Watlow F4T touchscreen temperature controller and three (3) Watlow digital high limits (1 for work chamber, 1 for left side heating element and 1 for right side heating element). Control switches and signal lights are flush mounted to the door of the enclosure. SCR power controller for heating elements. Door assembly is removed for shipping.
