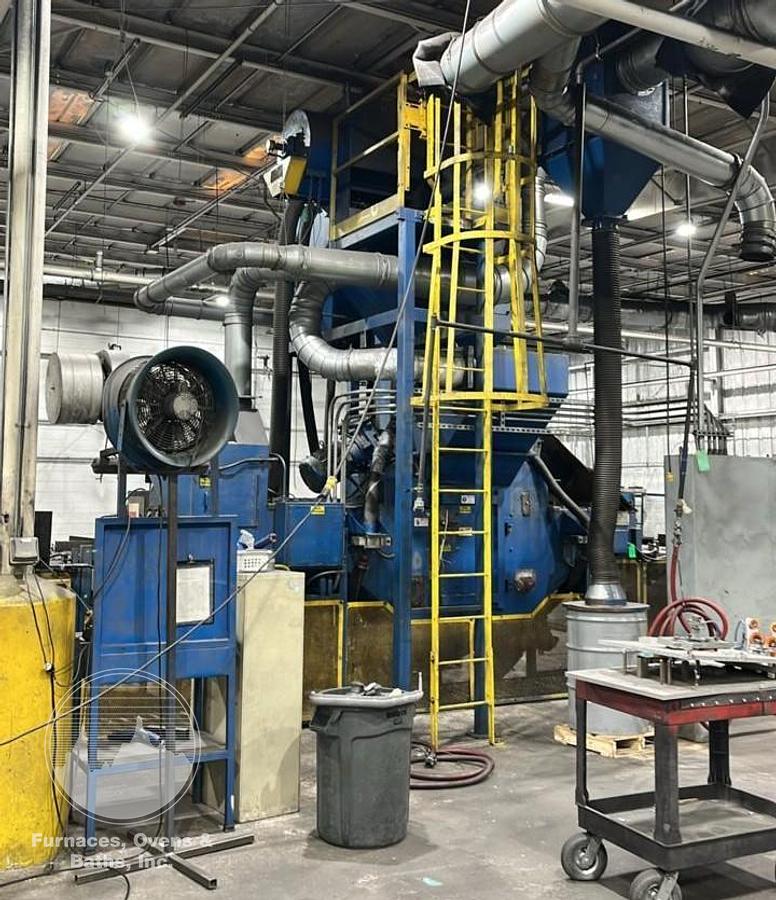

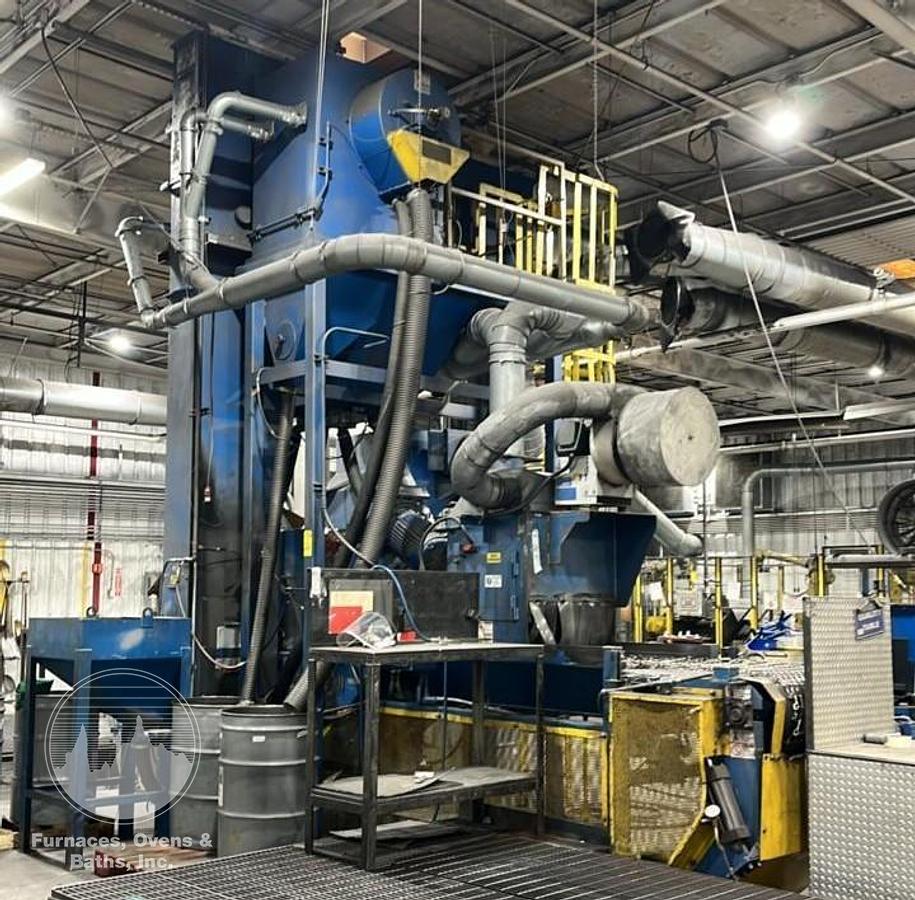

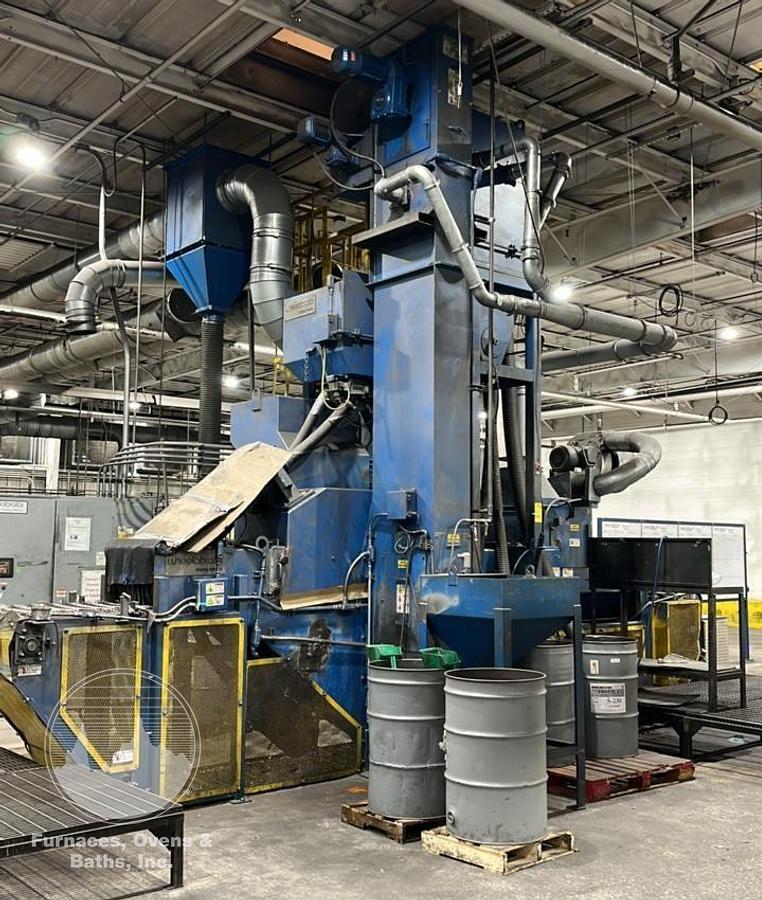

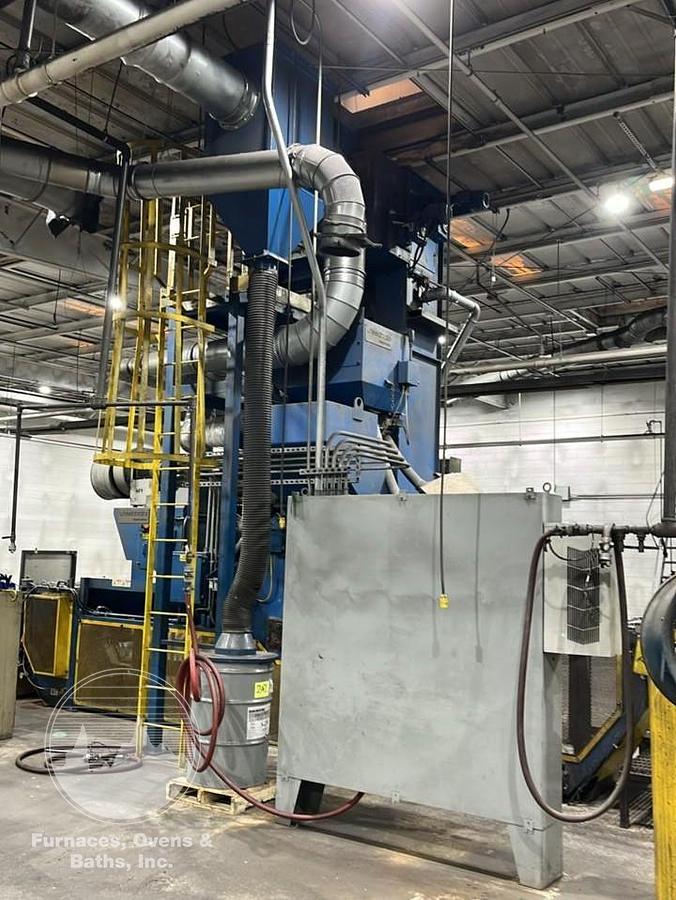

Wheelabrator MMB-27-4-20 Mesh Belt Shot Blaster Complete w/Dust Collector, PLC Controls, VFD's

Description:

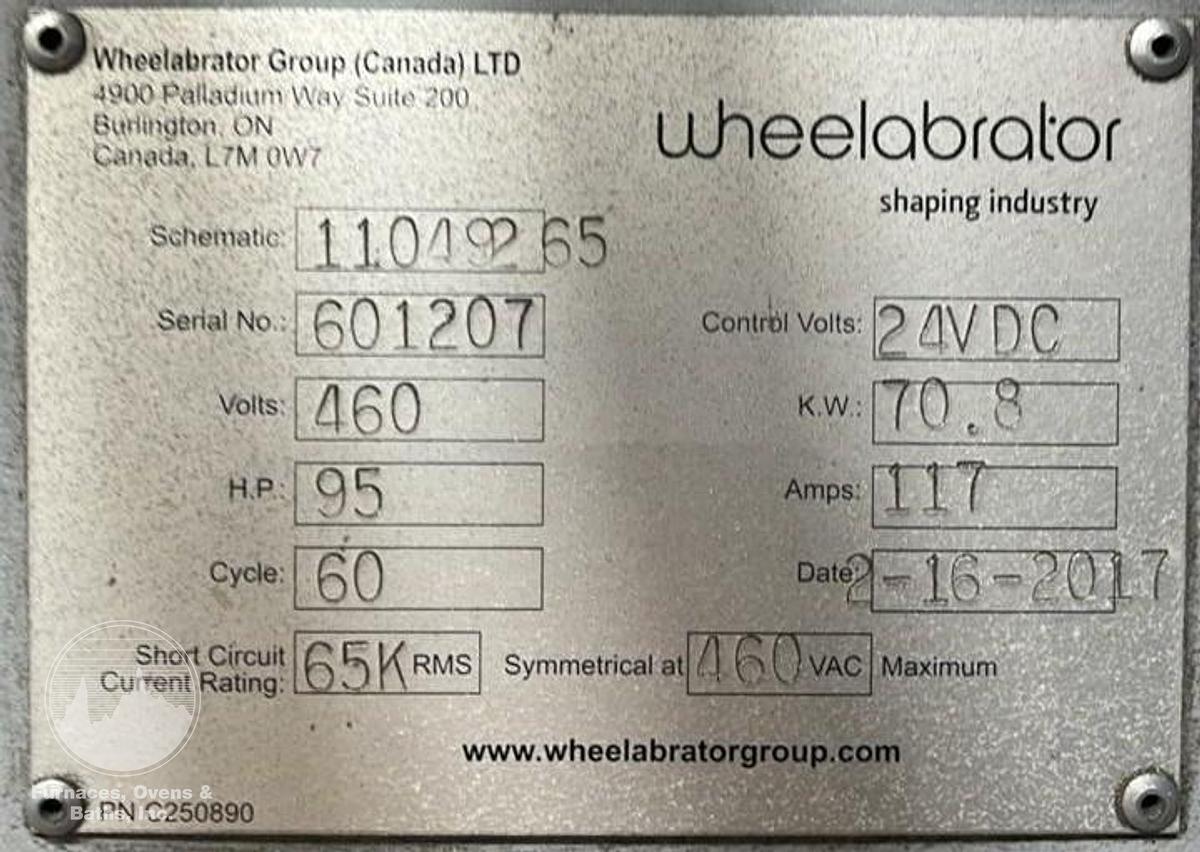

Continuous Mesh Belt Shot Blaster with Four (4) Variable Speed 20 H.P. Direct Drive Wheels, 27" Wide Belt x 14" Clear Height. Includes Dust Collector. Machine Sequence: 48" long charge end x 104" long shot blast section x 108" long discharge end to include a AIR WASH BLOW OFF. Wheelabrator Shot Blast Machine, Continuous Wire Mesh Belt, Serial Number 601207, New Year 2017, (4) 20 HP EZFit Blast Wheels, 27" Wide Belt, 14" Work Height, Torit Dust Collector, Allen Beadlley PLC, Variable Speed Drives, 460/3/60, 95 Total HP, 117 Amps

Controls:

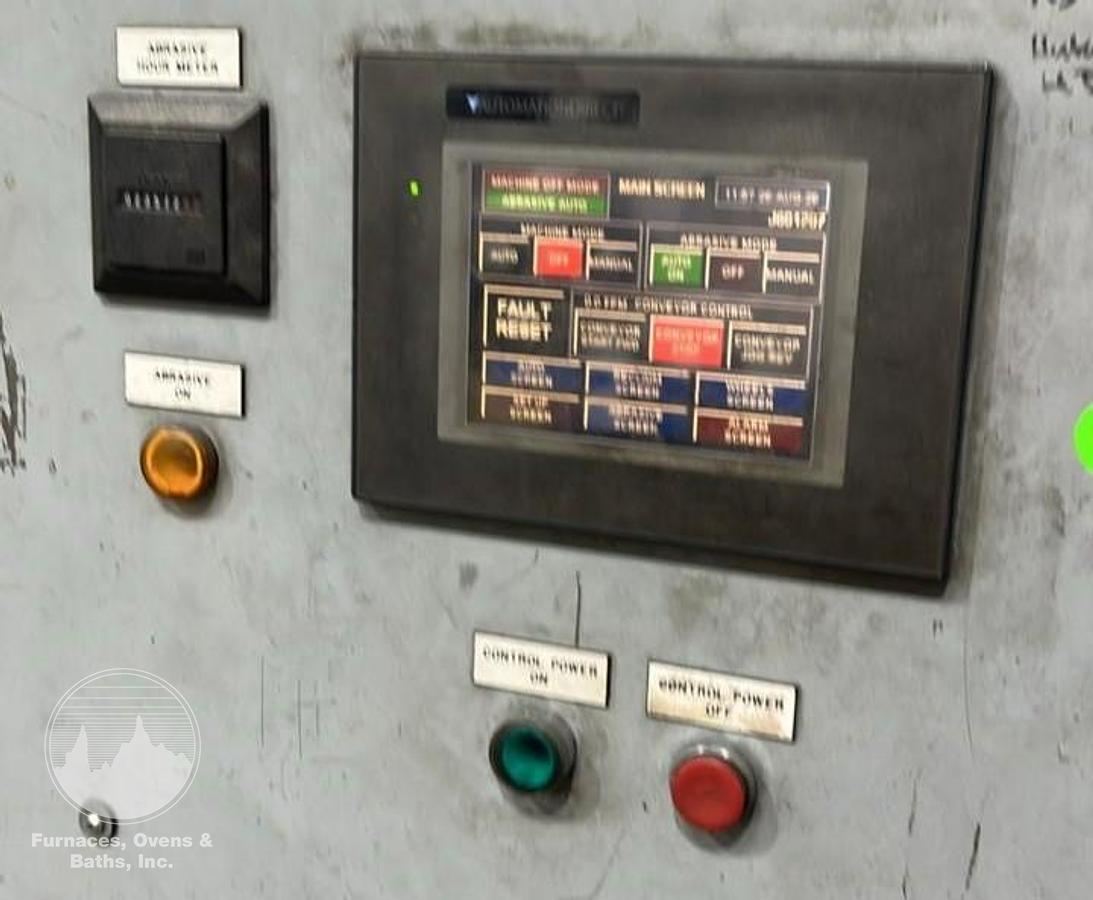

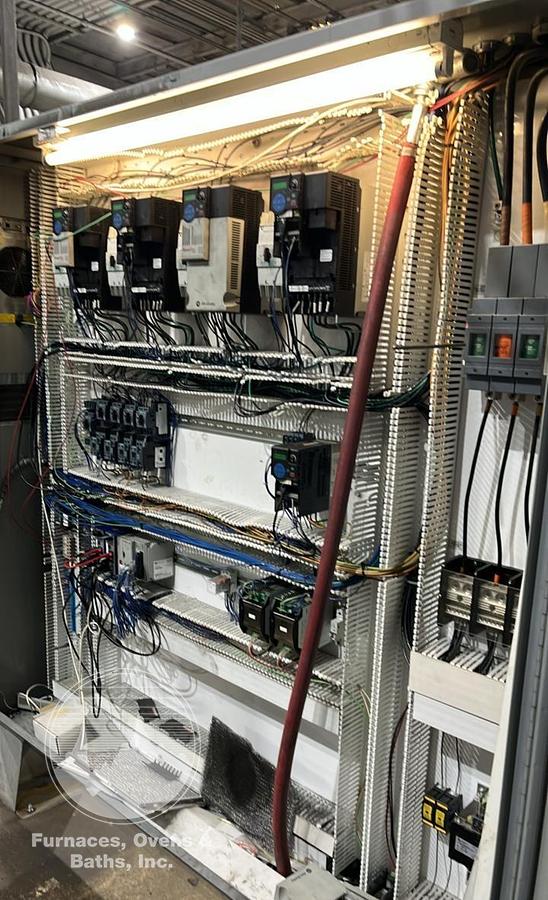

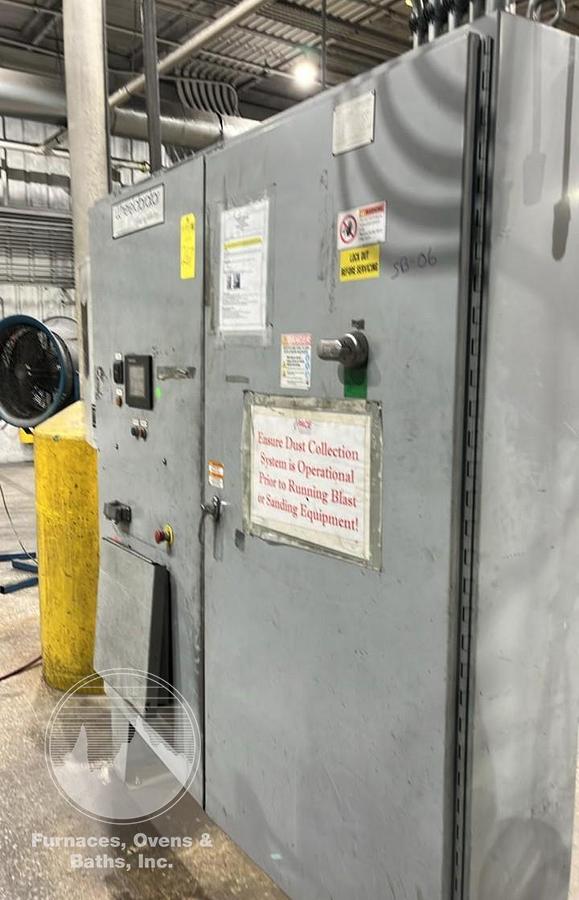

Mounted & Wired in a free standing panel includes signal lights, fused disconnect, two (2) amp meters, blast timer and PLC with HMI/Touchscreen Interface.

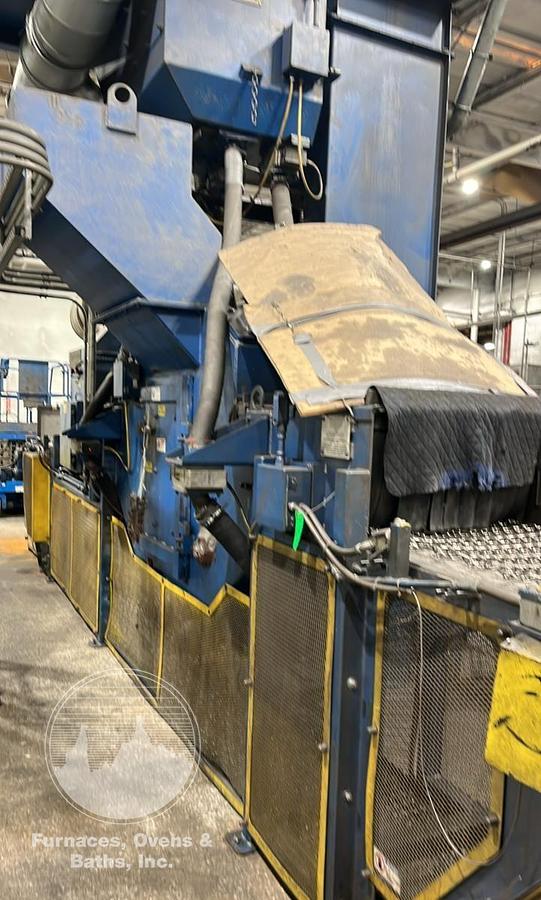

Used Wheelabrator continuous-feed wire mesh belt shot blast machine for cleaning, descaling, deburring, surface preparation, and finishing of compatible metal components. Features a 27-inch wide wire mesh conveyor belt with a 14-inch-high work opening, System is equipped with four (4) 20 HP VFD Wheels.Conveyor. Pitless design helps simplify installation by avoiding the need for a below-grade foundation pit. Components travel continuously through the blast chamber for multi-angle abrasive coverage. Suitable for compatible fabricated parts, castings, stampings, forgings, weldments, and machined components.

Includes Dust Collector.

See Layout Drawing
