36"W x 48"H x 24"L, Blue M 246 Batch Class A Oven, 600°F, Tested & Ready to Ship


36"W x 48"H x 24"L, Blue M 246 Batch Class A Oven, 600°F, Tested & Ready to Ship

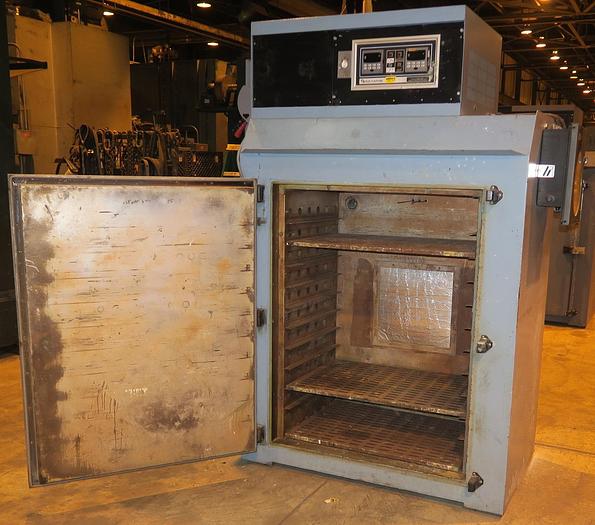

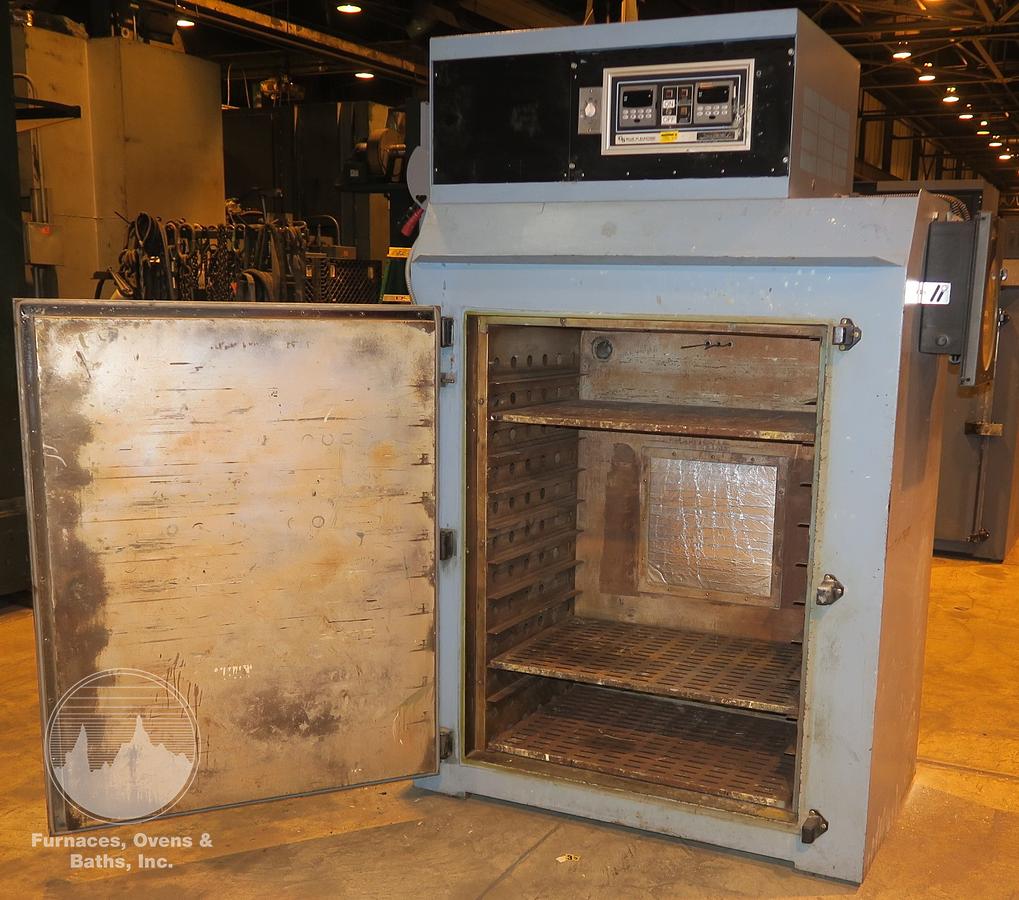

Class A oven rated for use with some solvents. Single door with 3-point cam action latch and silicon rubber gasket for a good door seal. Steel interior with perforated air duct side wall panels. 10 shelf brackets on 4" centers, 3 shelves are included. Coiled style heating elements and direct driven circulating fan are above the work area. Heated air is circulated in a horizontal pattern across the chamber. Adjustable fresh air inlet is located on the left-hand side. A powered exhaust fan is mounted on side of the oven. Pressure relief panel in rear wall. * Rated for use with some solvents - 4 oz Toluene @ 300°F per batch **

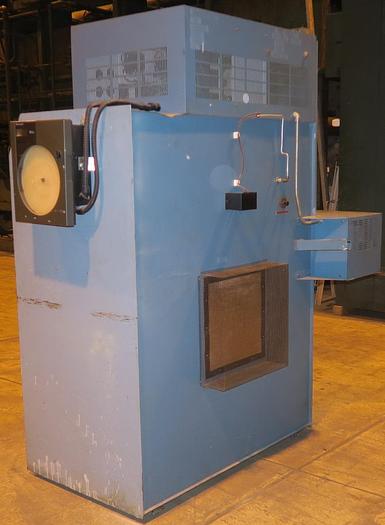

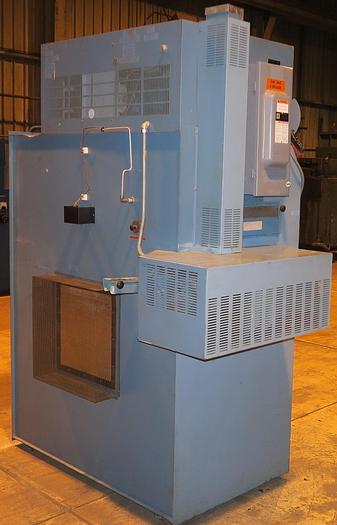

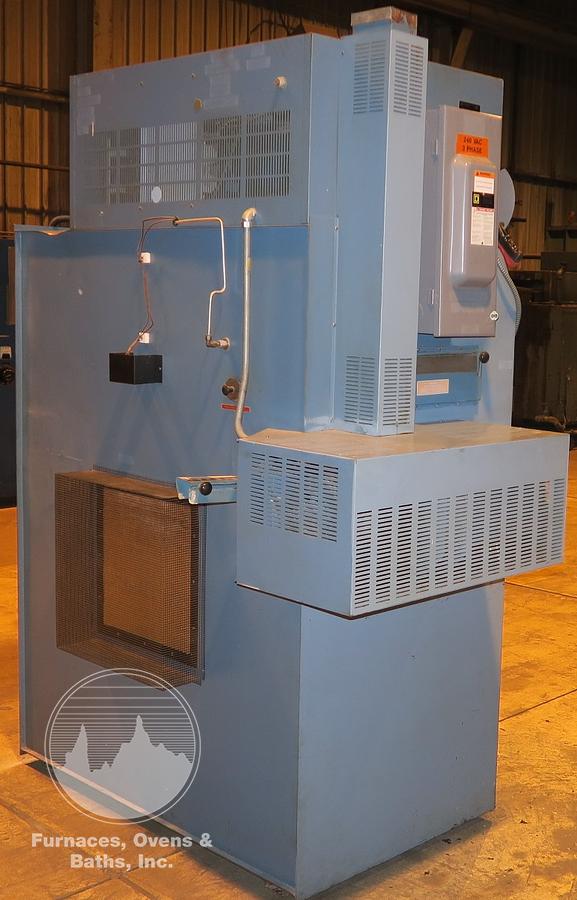

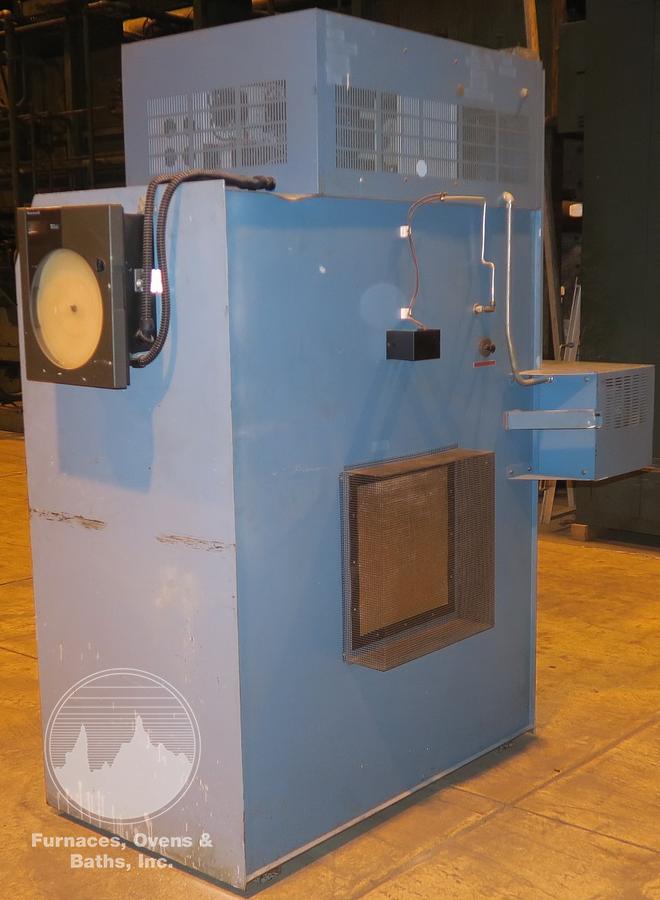

Controls are located in a convenient slide out console located above the work area. Honeywell UDC series digital temperature control, digital high limit, power toggle switch with indicating lights for on/off, over-temp and exhaust are flush mounted in the face of the console. Honeywell digital round chart recorder (installed but not in use) is mounted on the right hand side of the oven. A fused disconnect switch is mounted on the left-hand side. Solid state power relays, high limit contactor, motor starer, purge timer, fuses, relays etc. are mounted to the console base.


ManufacturerBlue M
Model246 Batch
Serial NumberDC-7492
Stock Number7398
Work area36"W x 48"H x 24"L
Max temperature600°F
Voltage208-240/3/60/51/58 Amps
External dimensions67" wide x 45" deep x 86" high to top of exhaust fan
