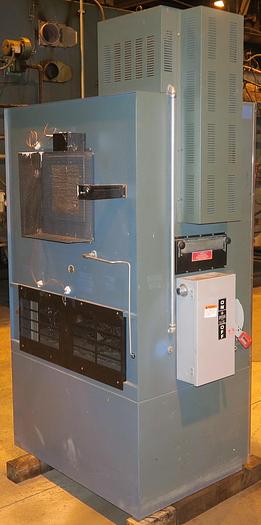

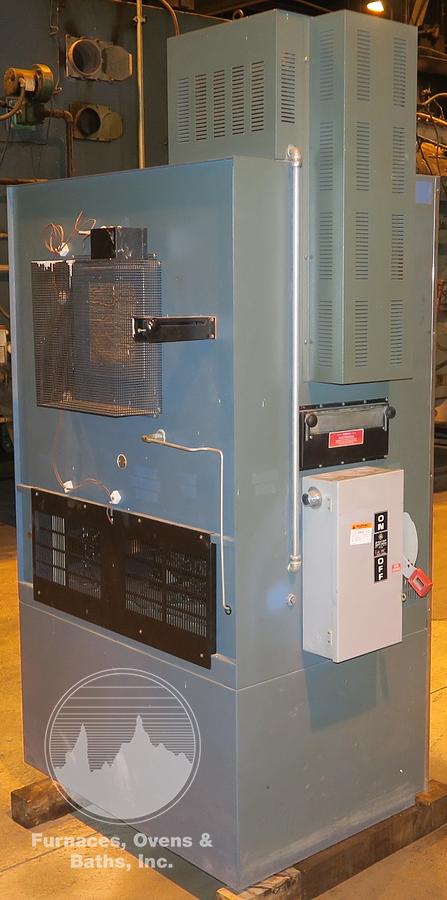

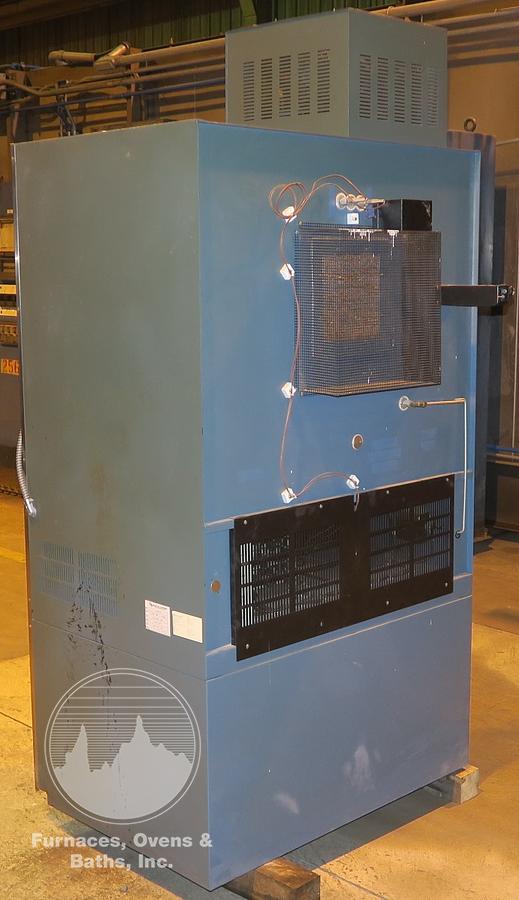

25"W x 20"H x 20"L Blue M DC-256A-EHP Class A Cabinet Oven, 600°F, Electric


25"W x 20"H x 20"L Blue M DC-256A-EHP Class A Cabinet Oven, 600°F, Electric

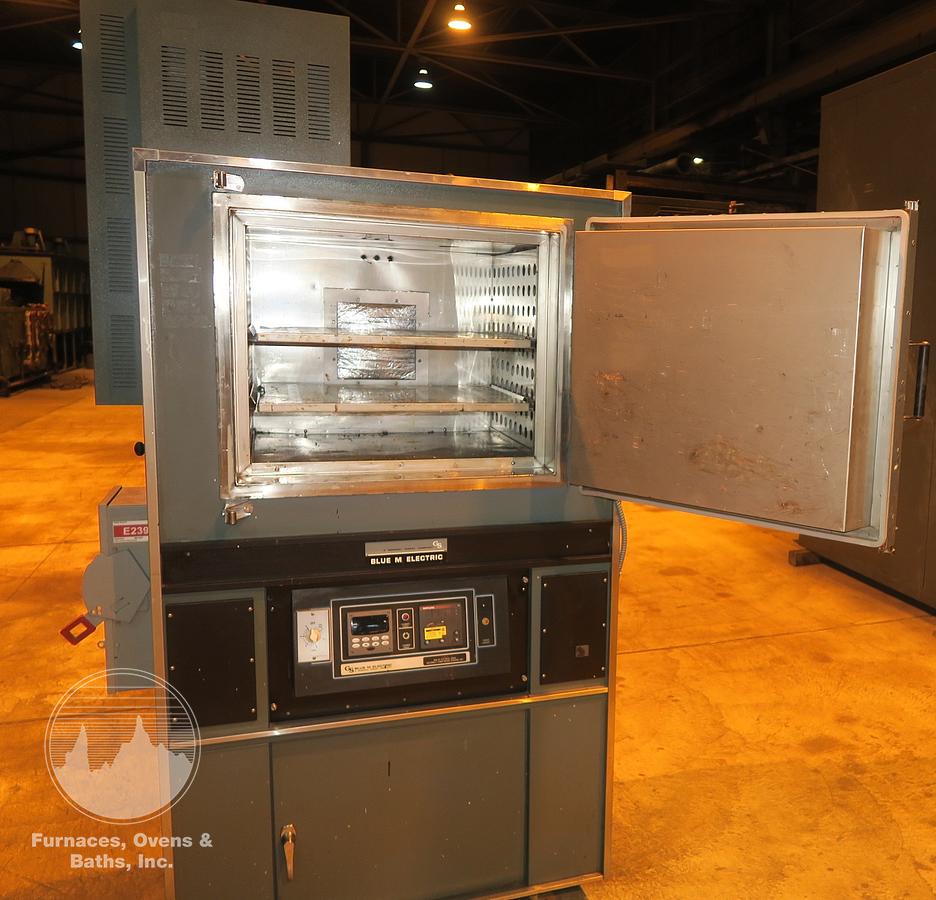

Class A oven rated for use with some solvents. Single door with 2-point cam action latch and silicon rubber gasket for a good door seal. Stainless Steel interior with perforated air duct side wall panels. 2 shelves are included. Coiled style heating elements and direct driven circulating fan are below the work area. Heated air is circulated in a horizontal pattern across the chamber. A convenient storage compartment is located at the bottom of the oven. Adjustable fresh air inlet is located on the left-hand side. A powered exhaust fan is mounted on side of the oven. Pressure relief panel in rear wall. * Rated for use with some solvents - 20 oz solvents @ 300°F per batch ** Tested & Ready to Ship

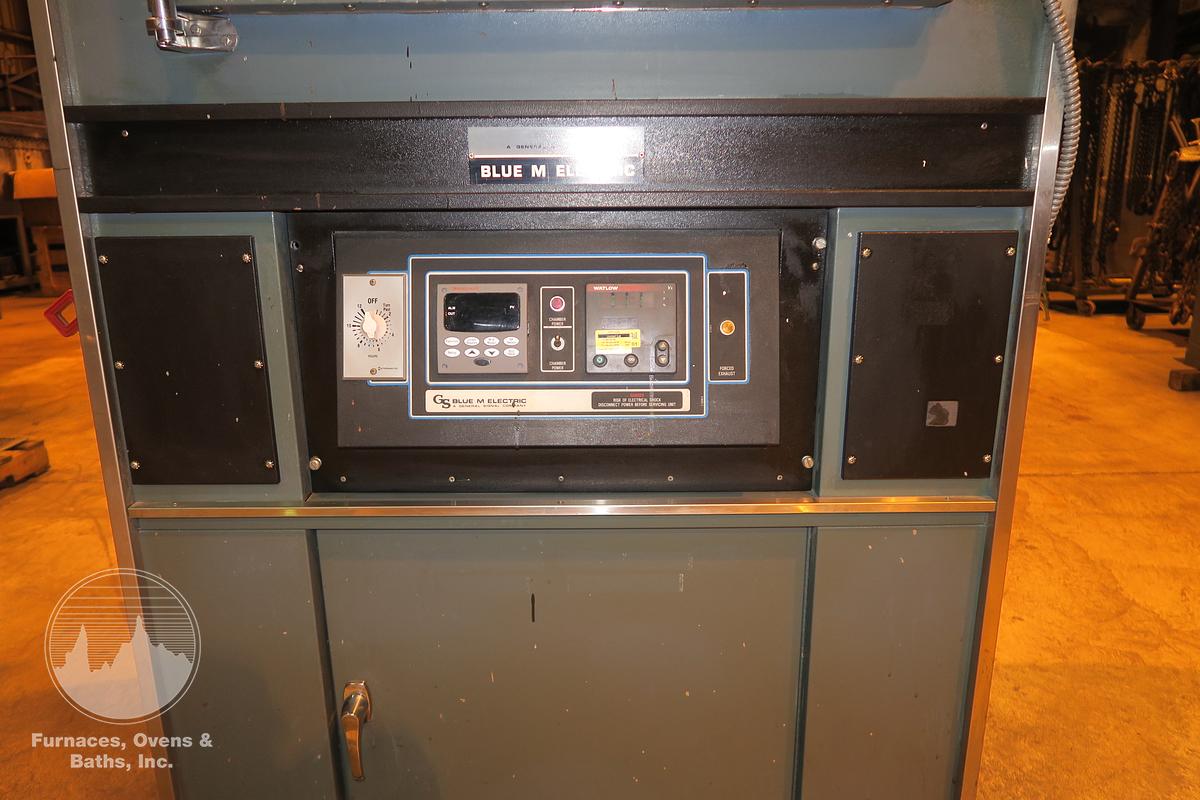

Controls are mounted and wired in a convenient slide out console located directly under the work chamber. There is a Honeywell UDC digital temperature controller and a Watlow V4 digital high limit. A control power switch, manual timer and indicating lights are flush mounted to the front panel. A fused disconnect switch is mounted on the left-hand side. Solid state power relays, high limit contactor, motor starer, purge timer, fuses, relays etc. are mounted to the console base.


ManufacturerBlue M
Serial NumberDC-7839
Stock Number7400
Work area25"W x 20"H x 20"L
Max temperature600°F
Voltage208/3/60/29 Amps
External dimensions55"W x 75"H x 42"L
