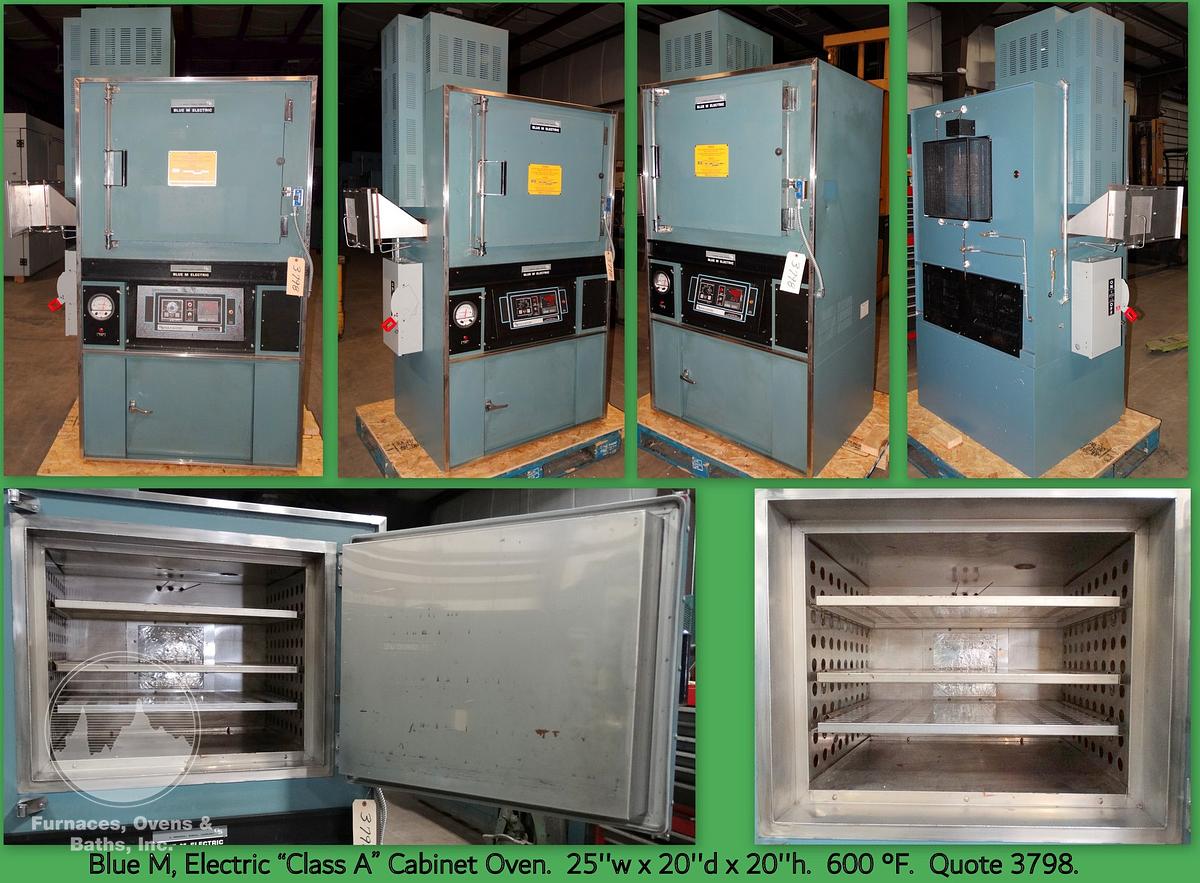

25"W x 20"H x 20"L Blue M DC-256A-FHP Class A Cabinet Oven, 600°F, Electric


25"W x 20"H x 20"L Blue M DC-256A-FHP Class A Cabinet Oven, 600°F, Electric


Class A oven rated for use with some solvents. Single door with 2-point cam action latch and silicon rubber gasket for a good door seal. Stainless steel interior with perforated air duct side wall panels. 2 adjustable shelves are included. Coiled style heating elements and direct driven circulating fan are located under the floor pan. Heated air is circulated in a horizontal pattern across the chamber. Adjustable fresh air inlet with HEPA filter is located on the left-hand side. Powered exhaust fan is mounted on top of the oven. Pressure relief panel in rear wall. * Rated for use with some solvents - Toluene 1 oz. per load @ 90 C. ** This oven has been tested and is ready for immediate shipment

Controls are located in a convenient slide out console located directly below the work area. Blue M Pro 350 digital temperature controller, Partlow non indicating high limit and chamber power toggle switch with indicating light are flush mounted in the face of the console. A circuit breaker disconnect is also mounted on the front panel. Solid state power relays, high limit contactor, motor starer, purge timer, fuses, relays etc. are mounted to the console base. A fused disconnect switch is mounted on the left-hand side.


ManufacturerBlue M
Serial NumberDC-8150
Stock Number7581
Work area25"W x 20"H x 20"L
Max temperature600°F
Voltage208/240/3/60/29/33 Amps
External dimensions54" wide x 38" deep x 84" high to top of exhaust fan on 21" high stand. 760#
