Grieve AG-650


Grieve AG-650

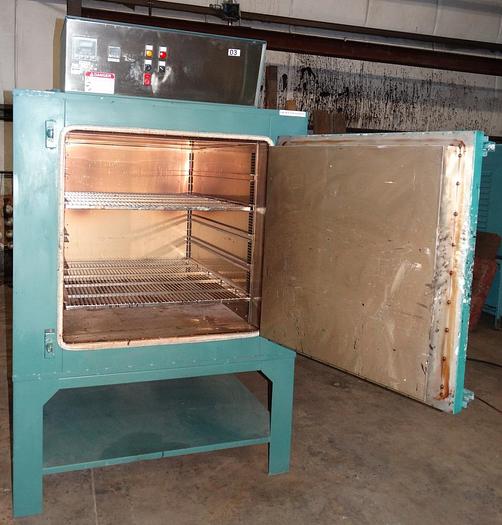

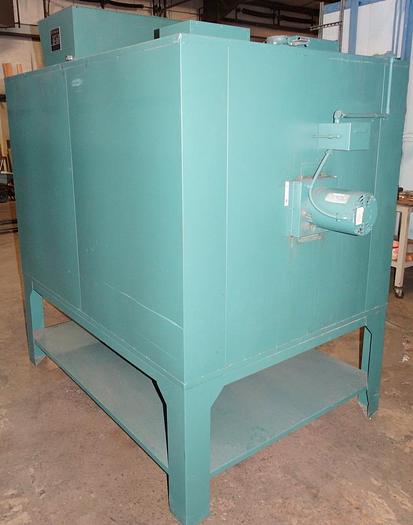

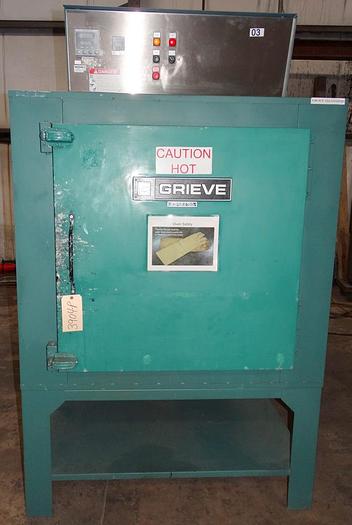

Single door with woven fiberglass gasket and Brixon spring tension latches for a good door seal. Stainless Steel interior with 5 shelf brackets on 6" centers, 2 shelves are supplied with the oven. Tubular style heating elements are located behind the work area. Direct driven circulating fan is mounted through the rear wall. Heated air is circulated in a horizontal front to back pattern for good uniform heating. An exhaust vent is mounted on top of the oven. Oven is mounted on a stand providing a comfortable loading / unloading height and a storage shelf under the oven. **Oven has been tested and is ready for immediate shipment.


Serial Number83054A03052005
Stock Number7462
Max. temperature650°F
Voltage460/3/60/9 kW
Work area36"W x 36"H x 48"L
External dimensions52" wide x 86" long x 85" high. 1570#

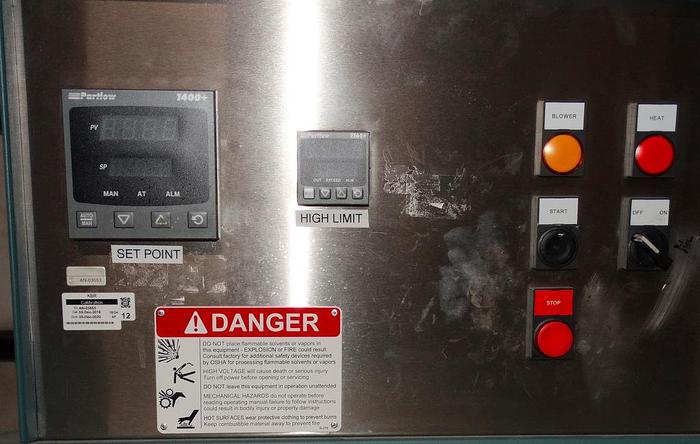

ControlsControls are located in a top mounted control console. Partlow model 1400+ digital temperature controller, Partlow model 1161+ digital high limit and control switches with indicating lights are flushmounted in the enclosure. Control and high limit contactors, motor starter, fuses, relays, etc. are mounted inside the console
