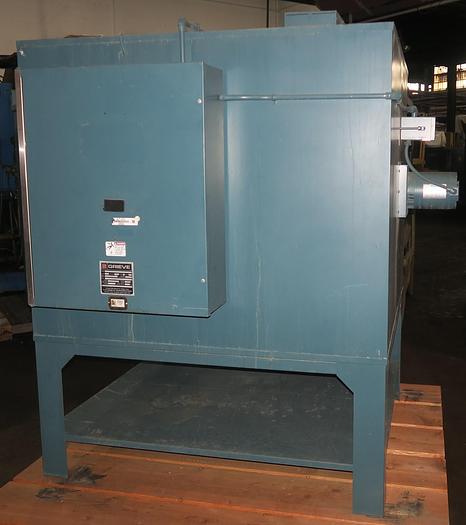

36"W x 36"H x 36"L, Grieve AB-550, Electric, 550-F


36"W x 36"H x 36"L, Grieve AB-550, Electric, 550-F

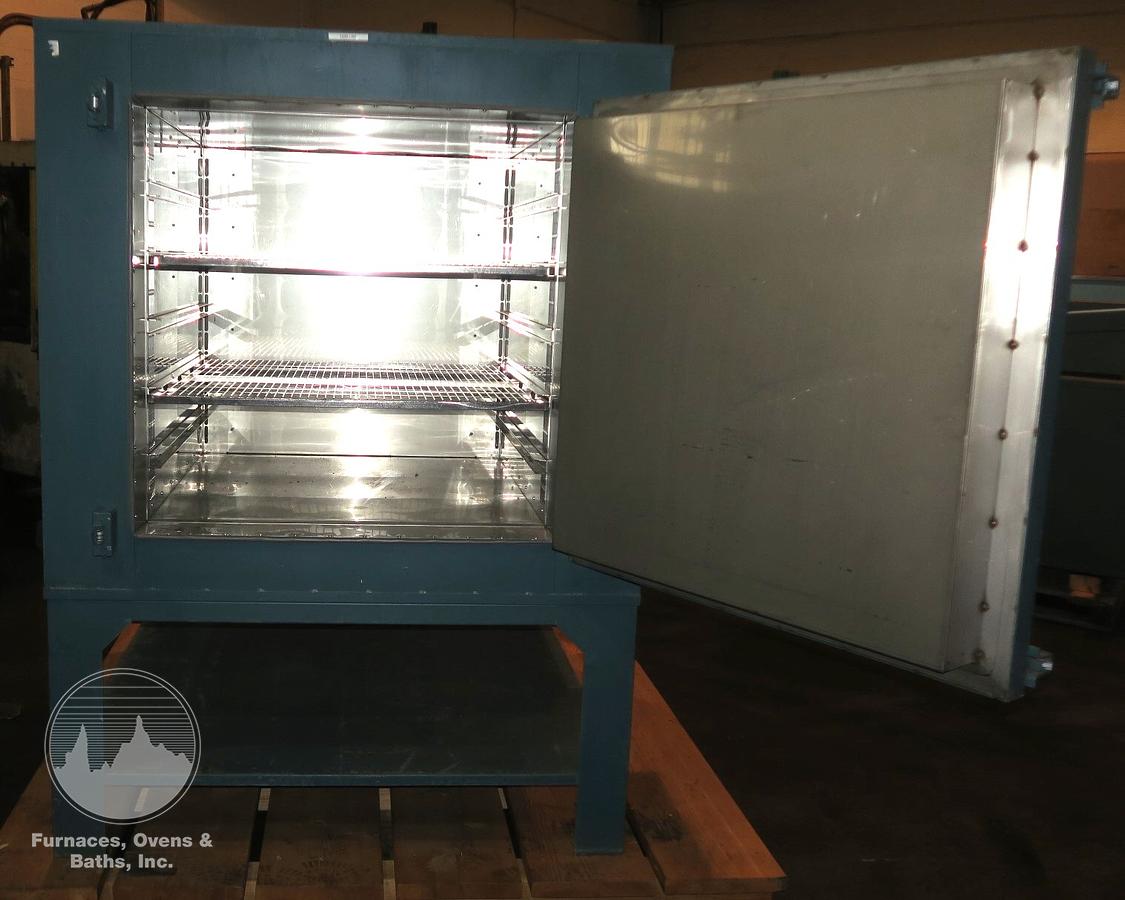

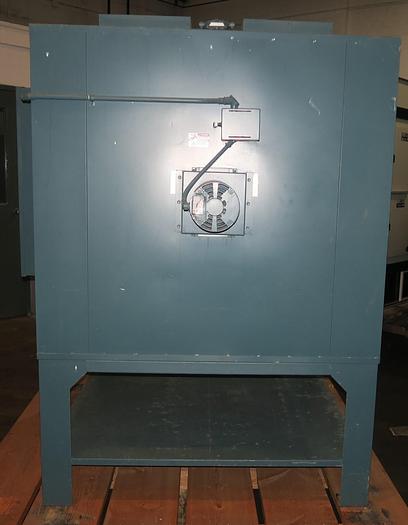

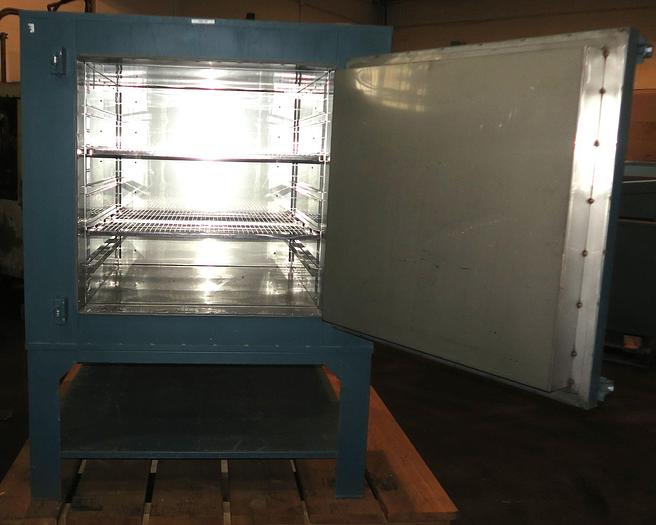

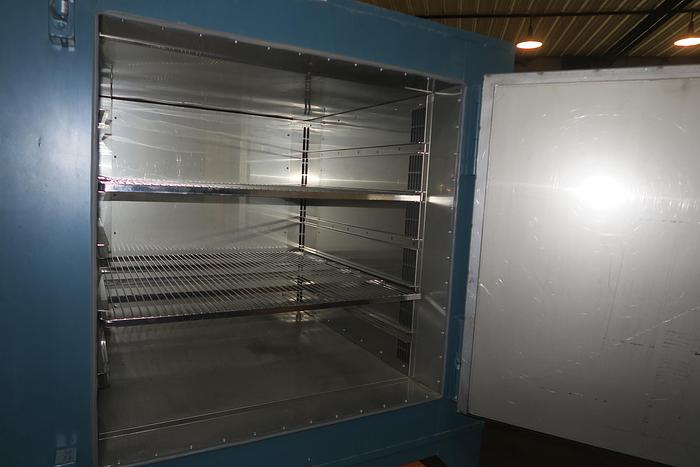

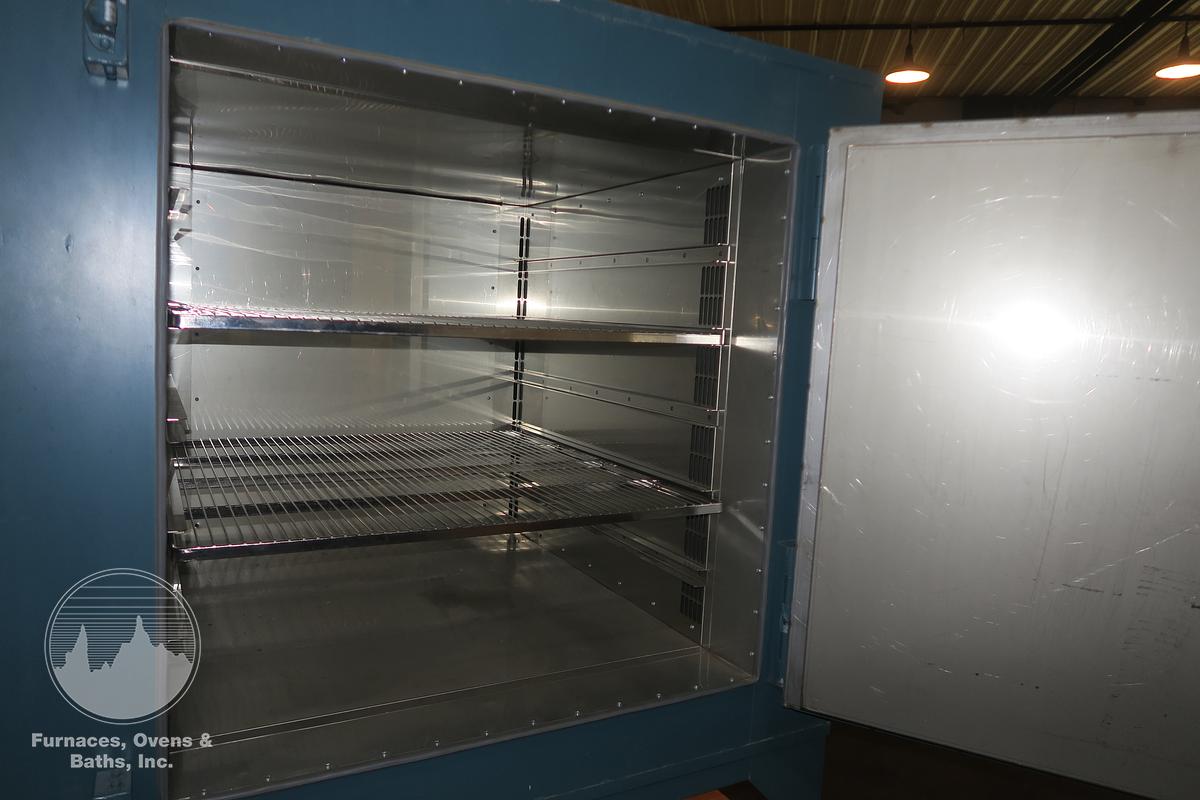

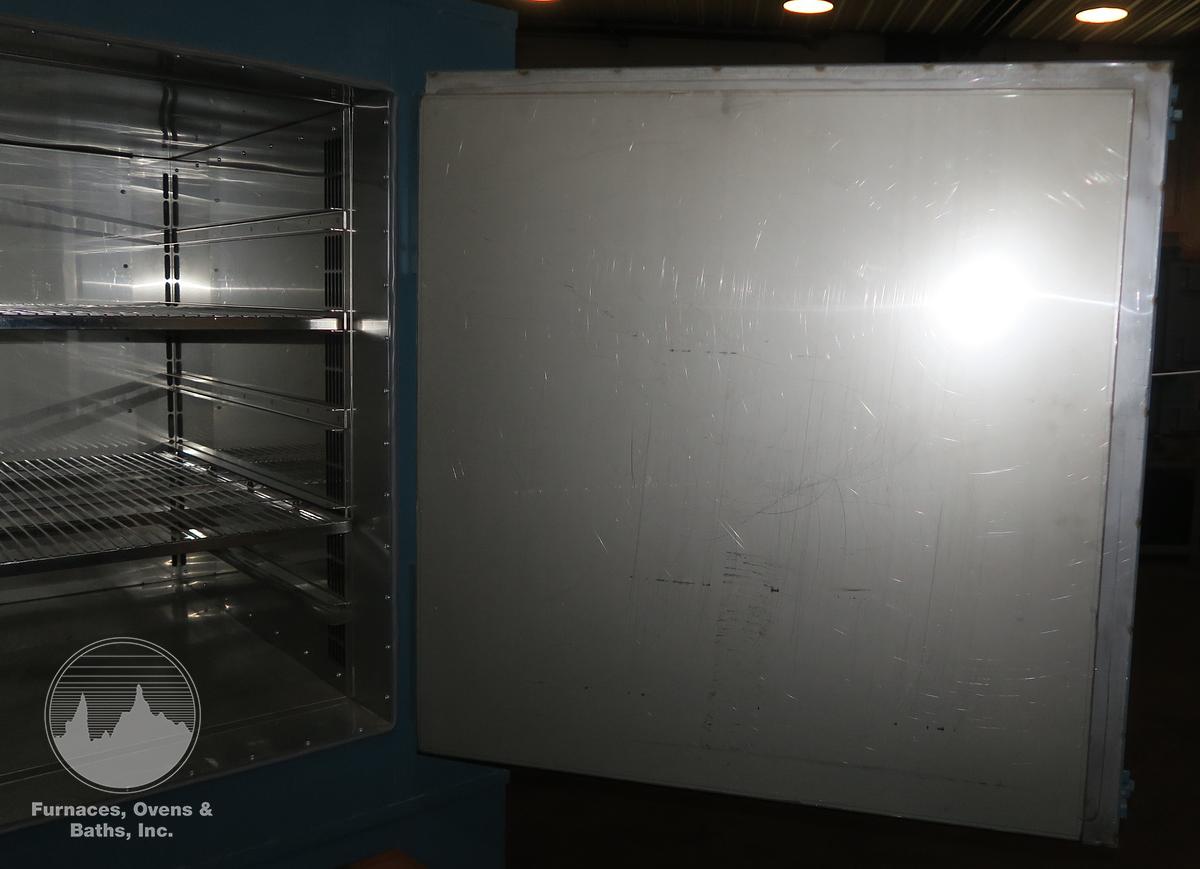

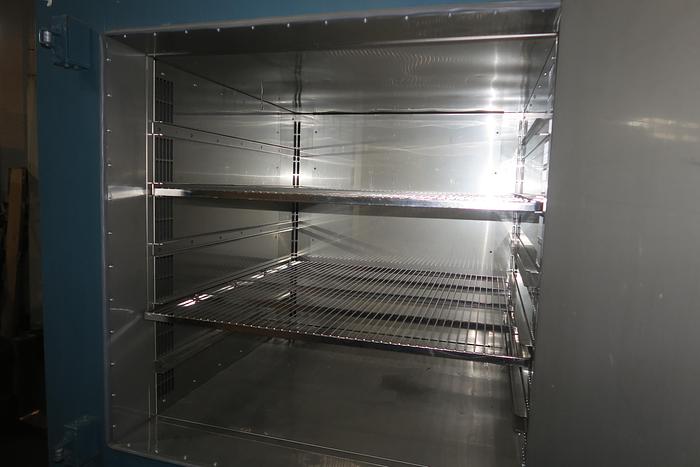

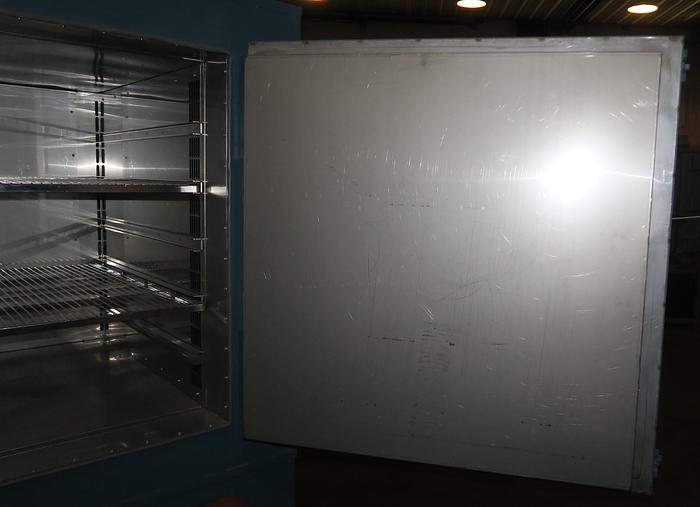

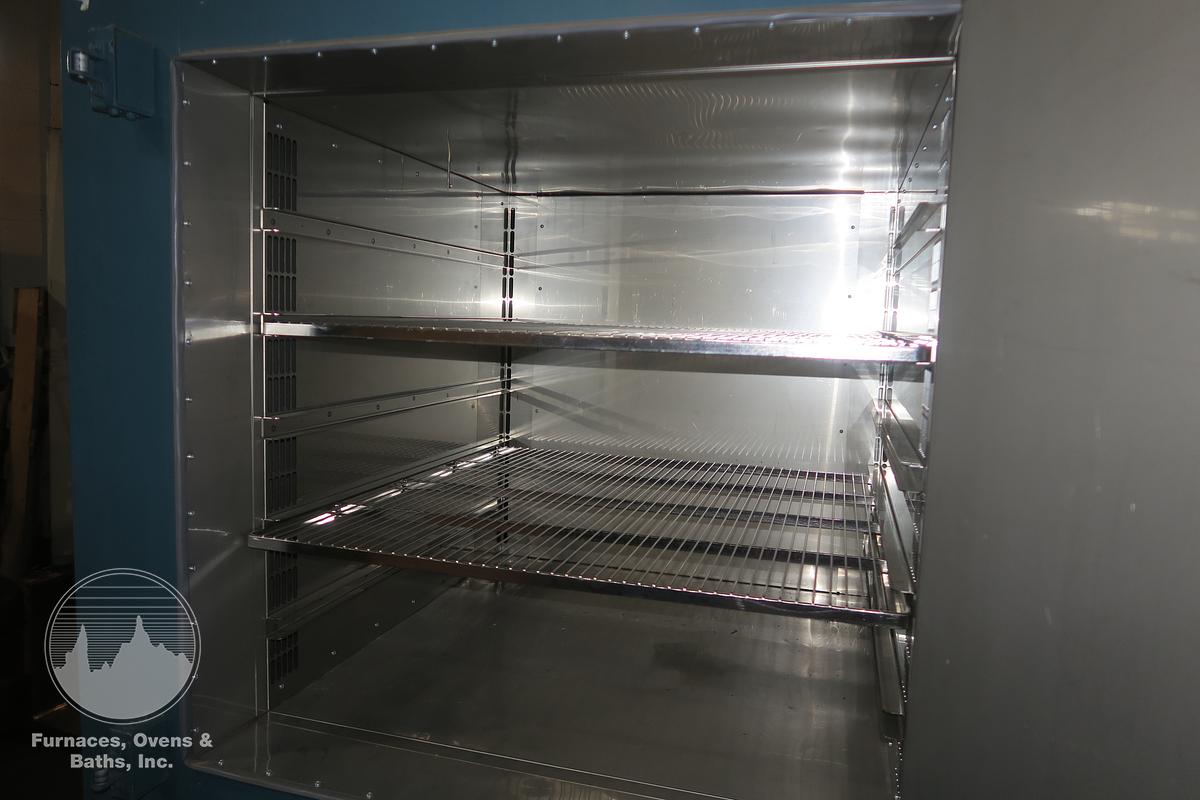

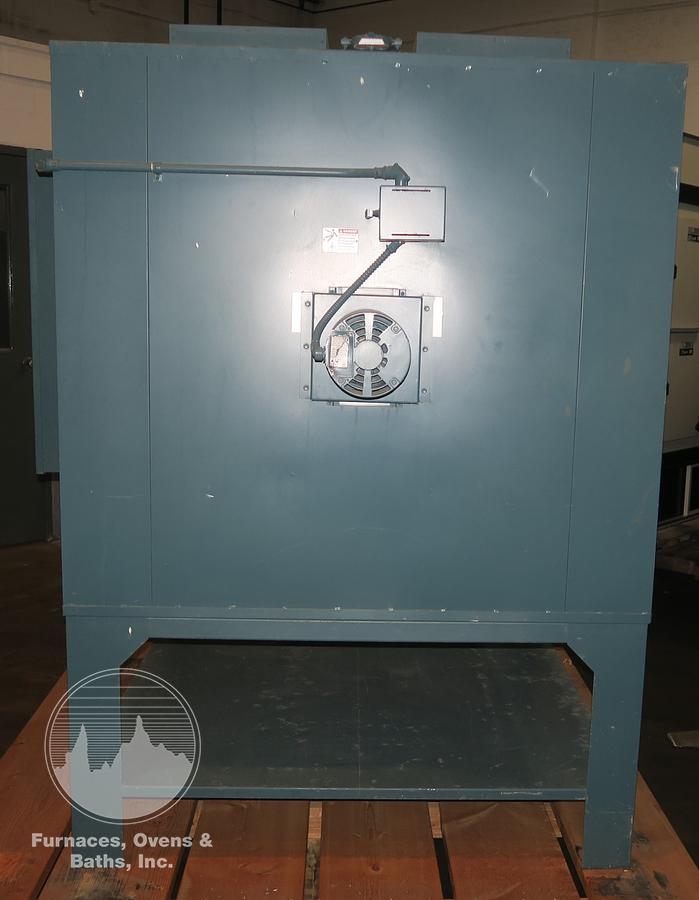

Single door with high temperature silicone rubber gasket and Brixon spring tension latches for a good door seal. Stainless steel interior with 5 shelf brackets, 2 shelves are included with this oven. Incoloy sheath tubular heating elements and belt driven circulating fan are located behind the work chamber. Heated air is circulated across the heating elements and distributed through the chamber in a horizontal front to back pattern for good uniform heating. An air flow safety switch cuts power to the heating elements if the blower is not operating. An adjustable fresh air inlet is located at the fan shaft. There is an exhaust vent with slide damper on top of the oven.

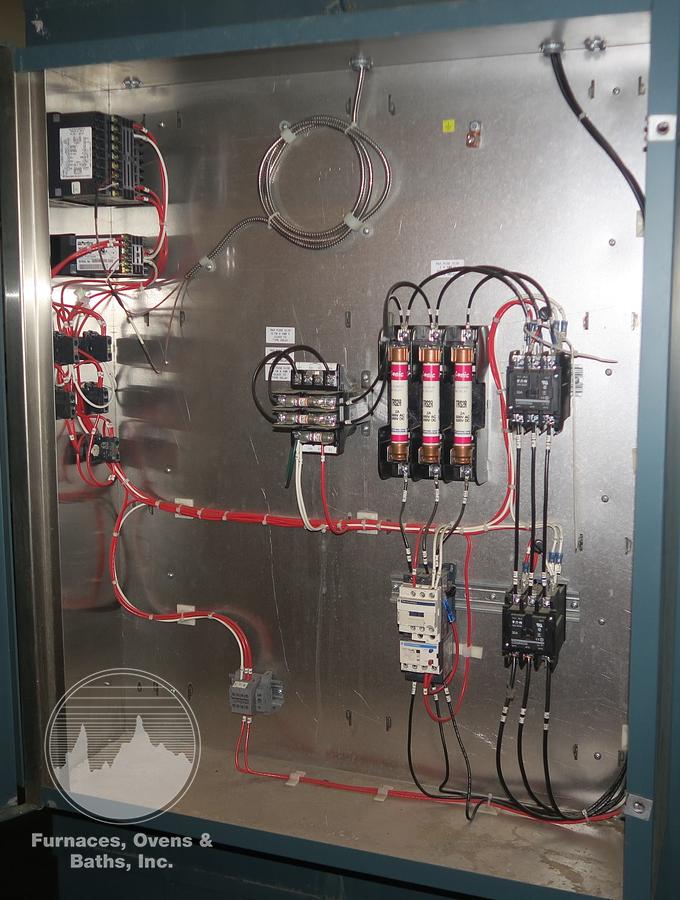

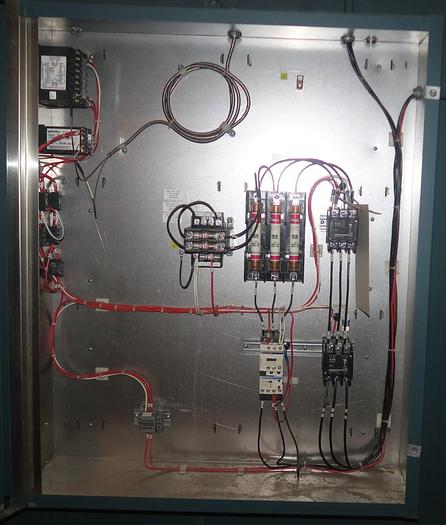

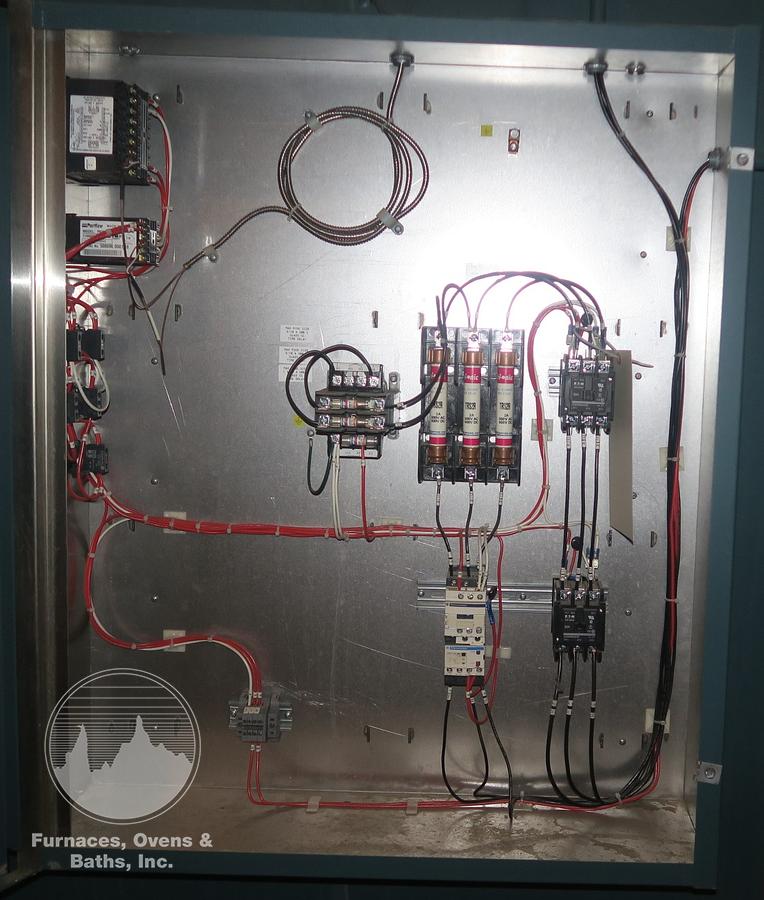

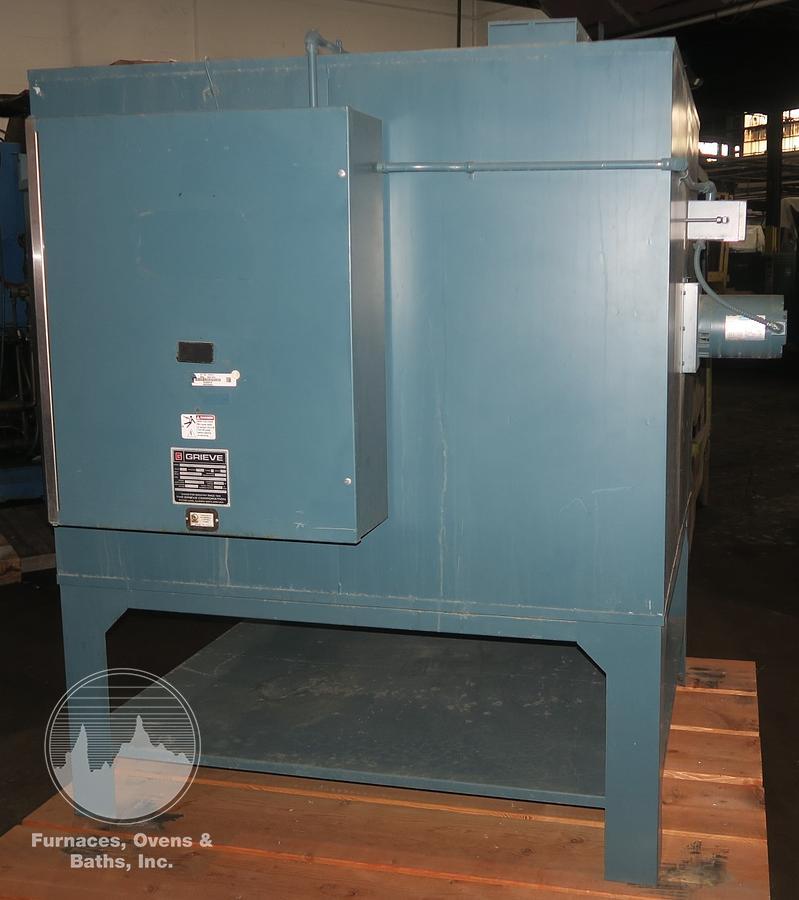

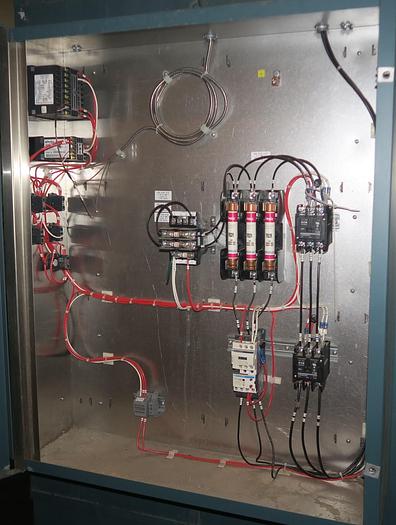

Controls are located in a right-hand side "UL" rated control cabinet which houses a Partlow 1400+ digital temperature controller, Partlow 1161+ digital high limit and control switches with indicating lights for the circulating motor and heat are flush mounted in the face of the control cabinet. Contactors, motor starters, fuses, relays etc. are mounted inside the control cabinet. This oven has an E-Stop button which shuts down the oven completely. Electrical drawings are included with this oven. Oven has been tested and is ready to ship. See video. OVEN IS IN LIKE NEW CONDITION

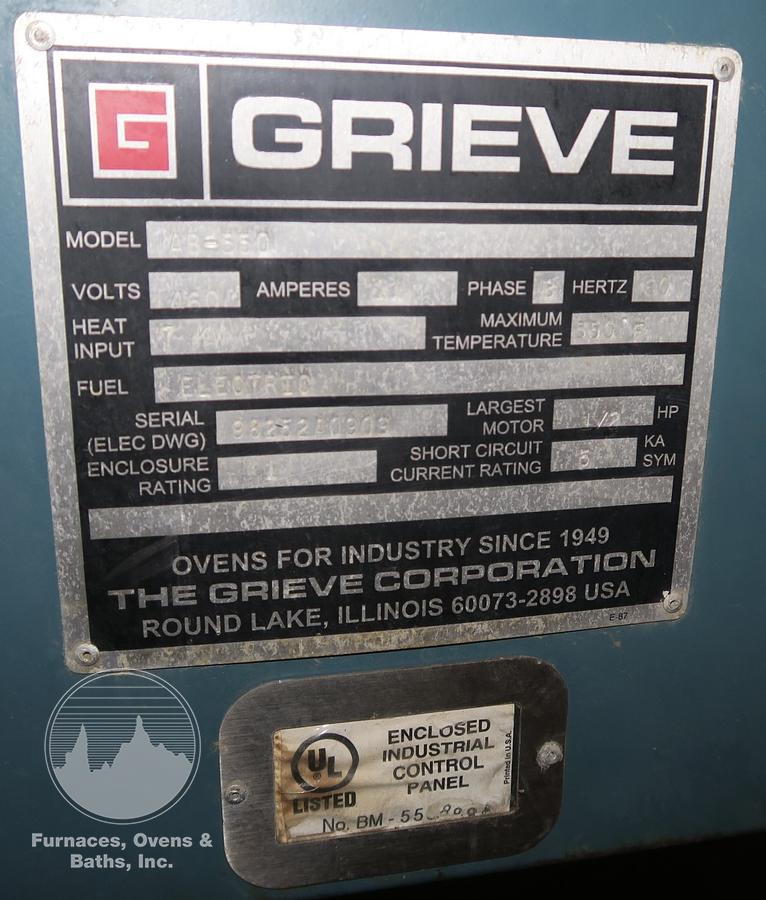

Serial Number98252A0909
Stock Number7702
Model NumberAB-550
Work Area36"W x 36"H x 36"L
Maximum Temperature550-F
Power Required460/3/60/11 Amps/7 kW

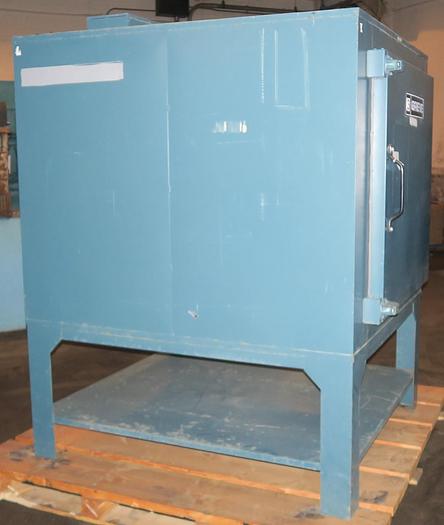

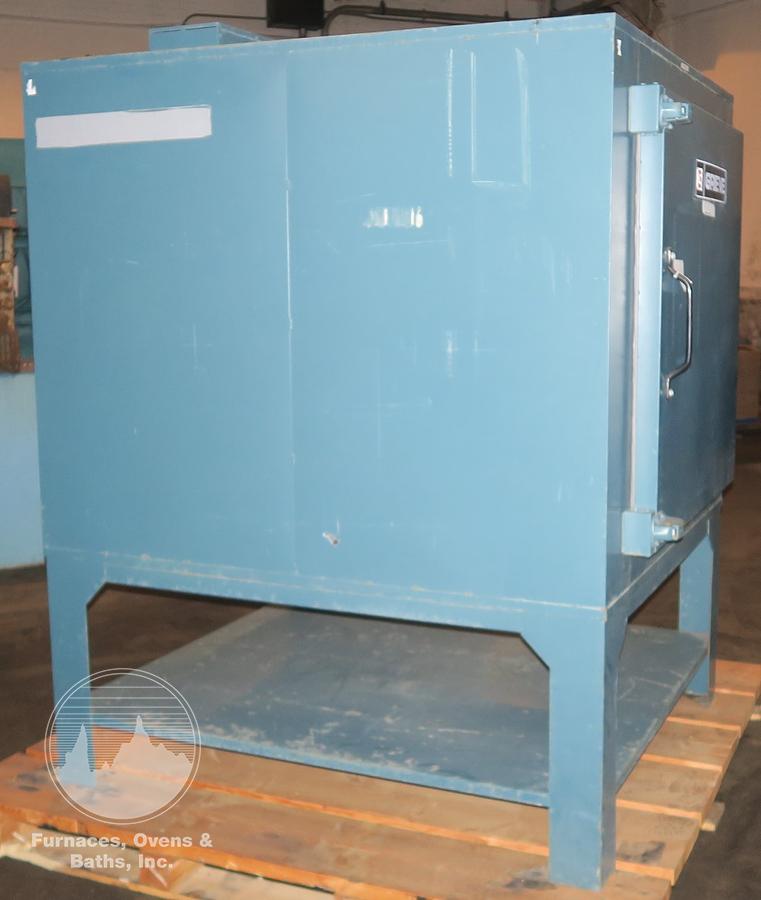

Overall Dimensions63" wide x 76" high x 73" long - Shipping Dimensions are 72" wide x 82" high x 72" long - 1500 pounds (Banded to Pallet)
